PRODUCT

PRODUCT

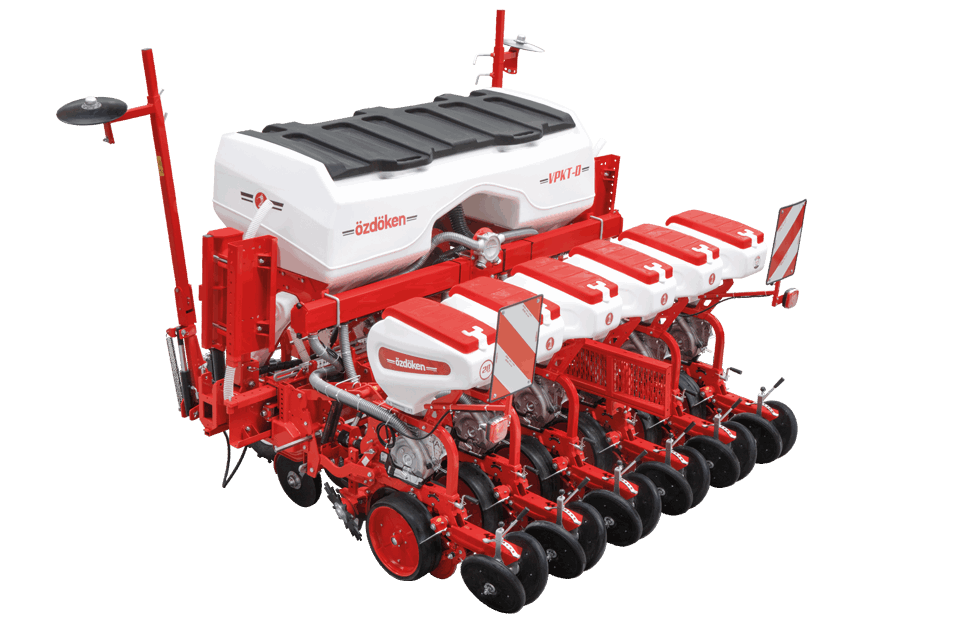

FOLDABLE ADJUSTABLE TELESCOPIC FRAME DISC TYPE

               VPKT-D series precision planter is produced as disc type. Possible to change row space 45,50,55,60,65,70 and 75 cm with the help of adjustable telescopic frame. Transport width is 300 cm. Fertilizer system and microgranule system are available as an option. 6,7 and 8 rows are avaliable for production.


Adjustable Telescopic Frame (45,50,55,60,65,70 and 75 cm Row Space)

Double Disc Type Row Units

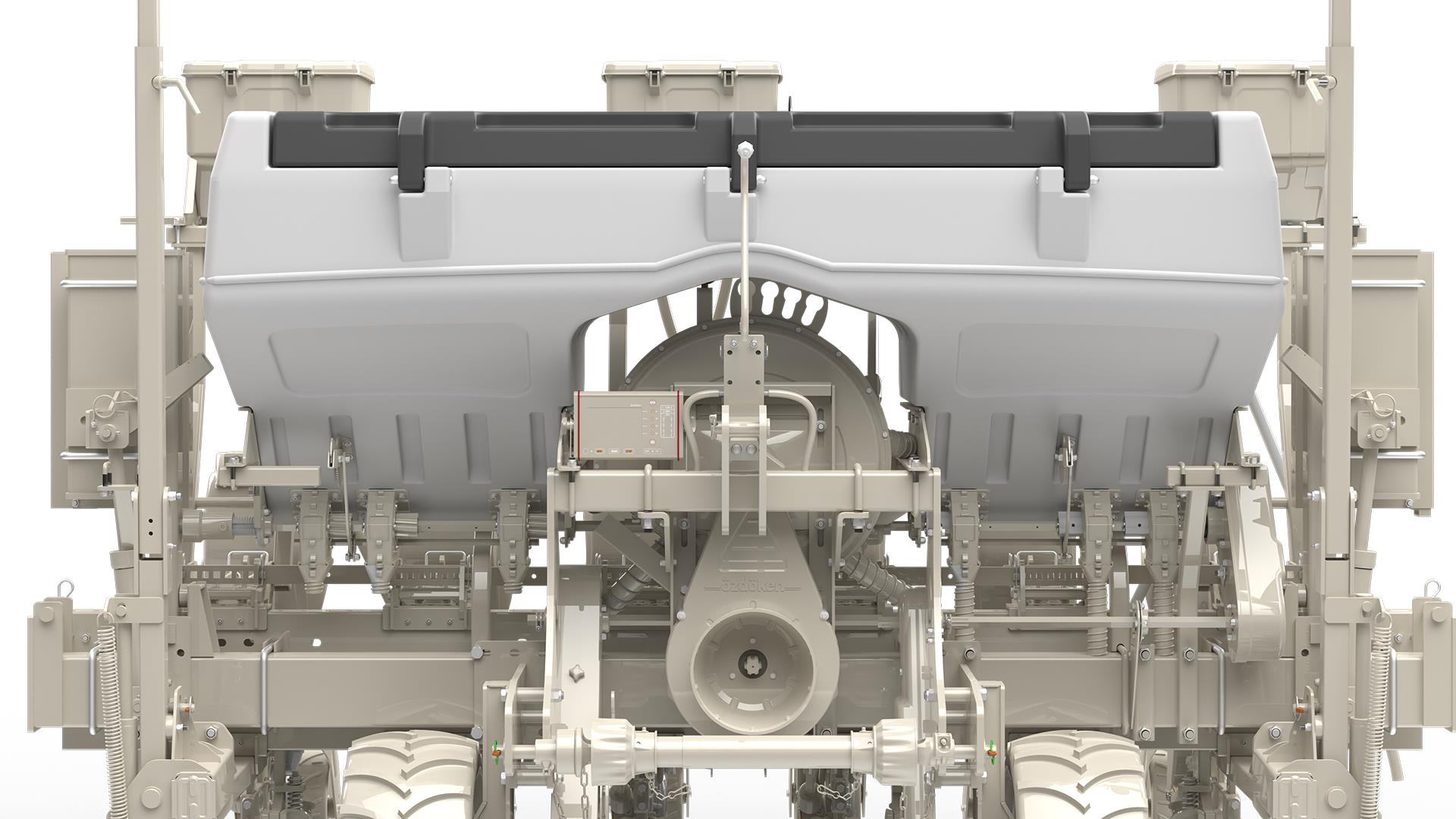

Jumbo Polythen Fertilizer Hopper

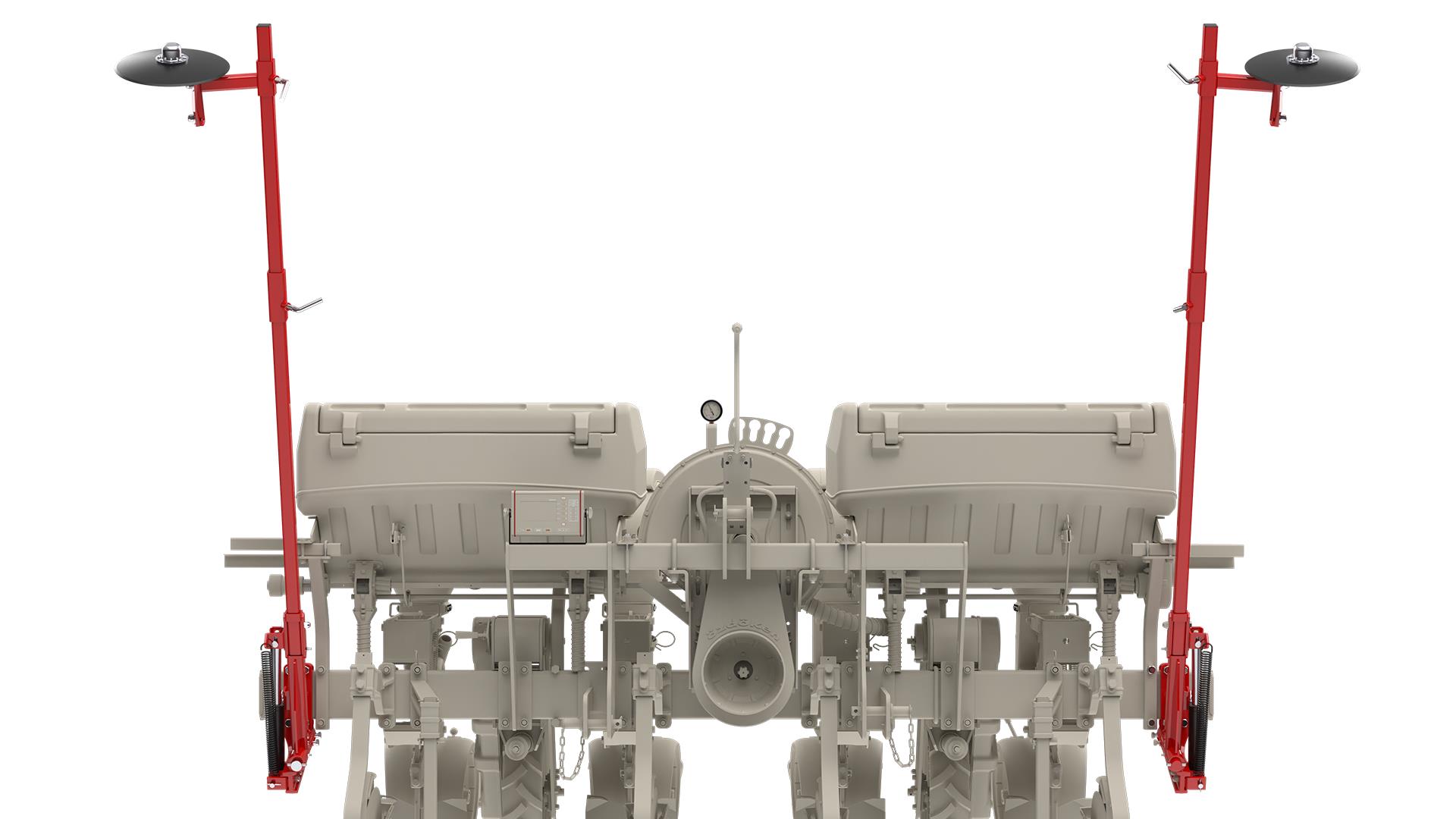

Double Hydraulic Row Markers

Coulter Type Fertilizer Opener

3 Set of Seeding Discs

PTO Shaft ( Can Be chosen octagonal or hexagonal Input)

Area Counter

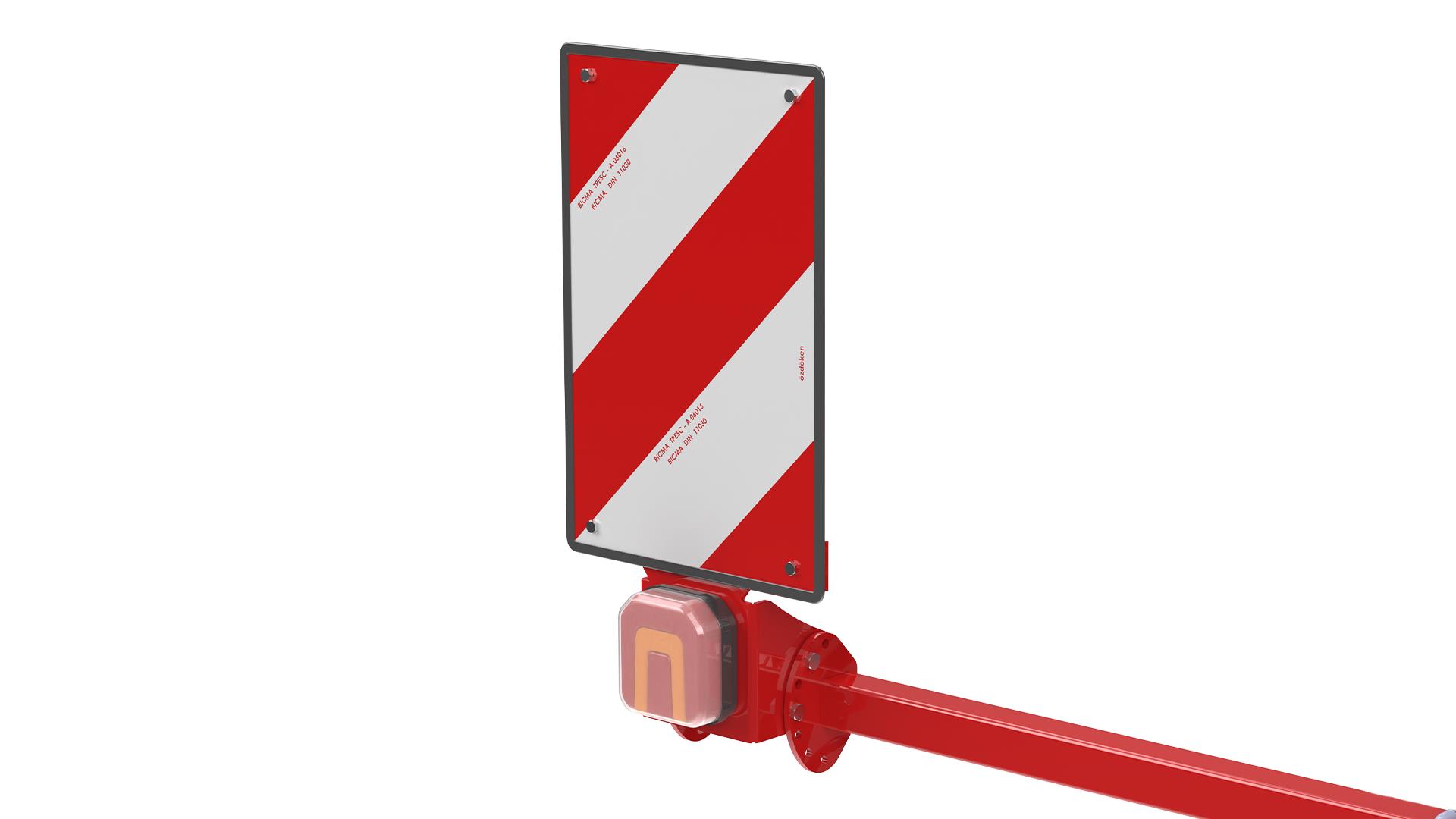

Traffic Kit

Product Equipment
DOUBLE DISC TYPE ROW UNITS DOUBLE DISC TYPE ROW UNITS

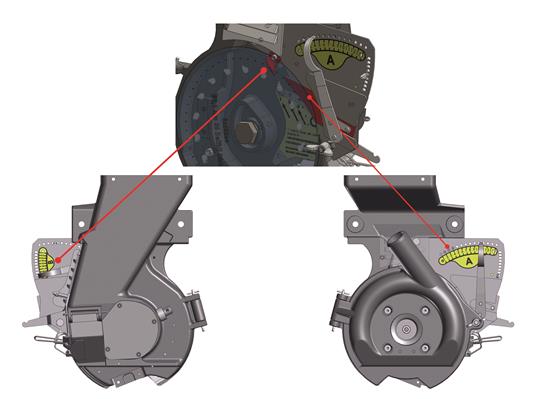

EASY DOUBLE SINGULATORS EASY DOUBLE SINGULATORS

For perfect singulation for all kind of seeds on all row units ,selectors can be adjusted from the outside of the distributor by a metering scale.

MOVEMENT WHEELS - 23.5/10.50-12 TYRE SIZE MOVEMENT WHEELS - 23.5/10.50-12 TYRE SIZE

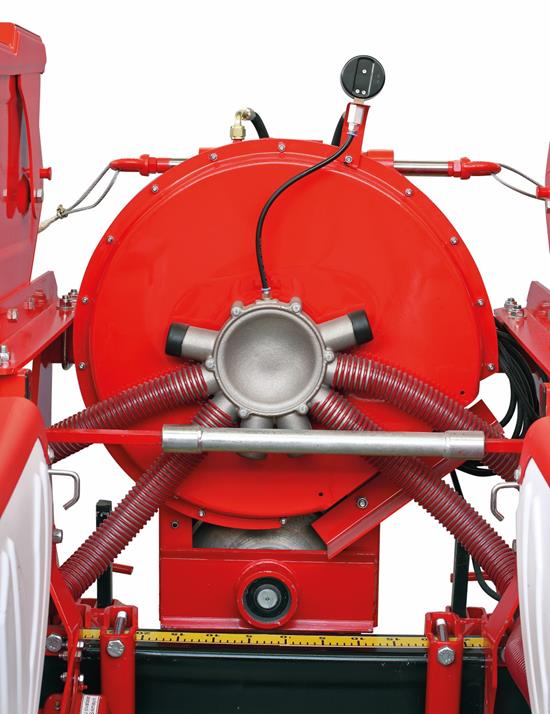

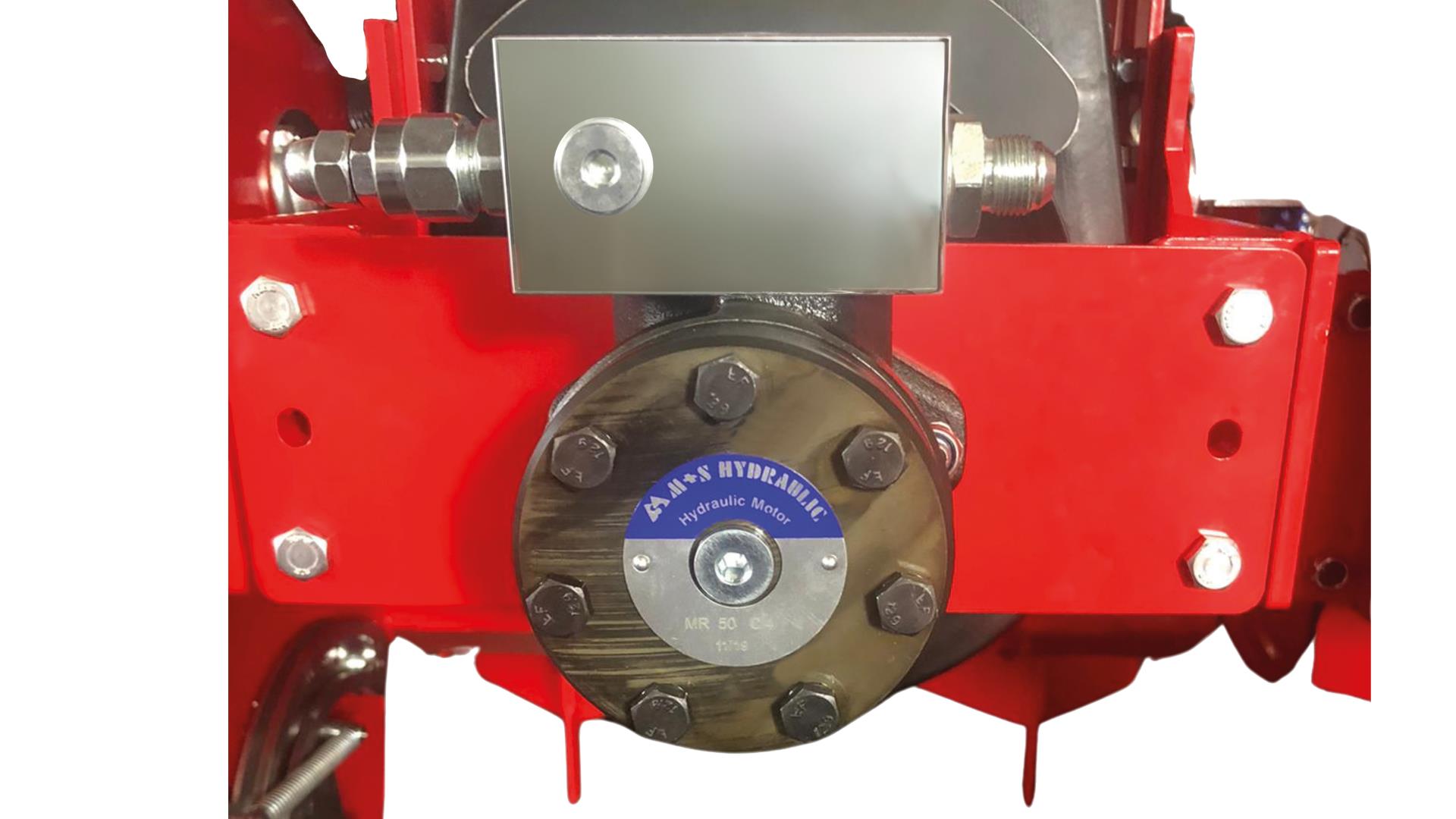

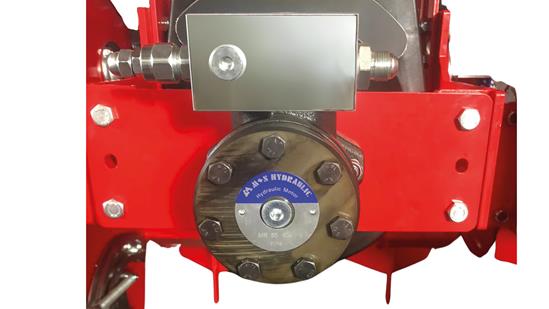

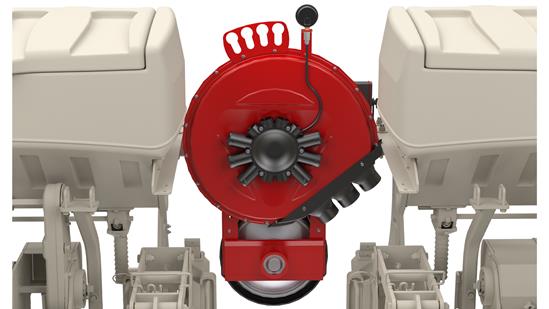

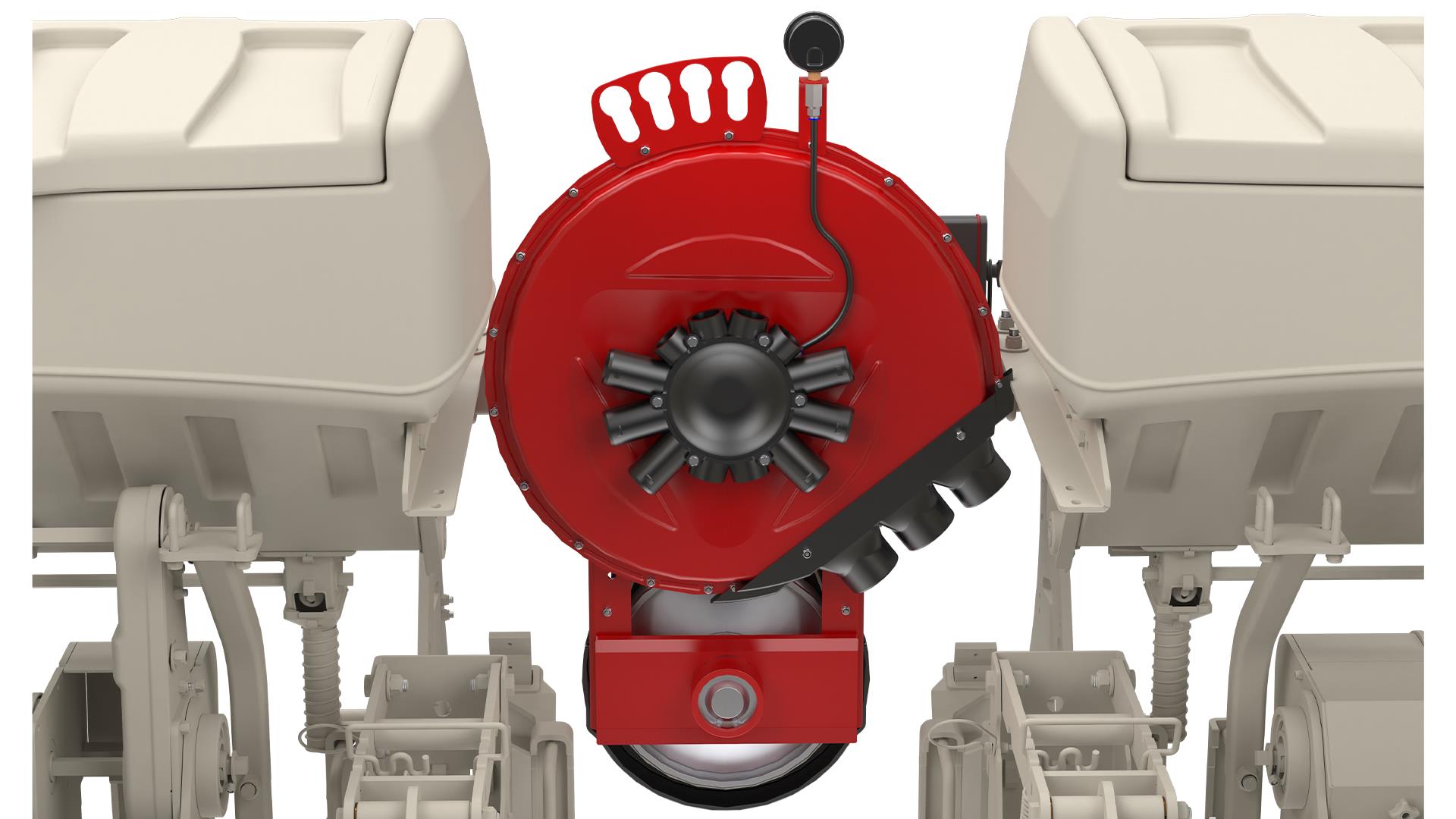

FAN SYSTEM FAN SYSTEM

Vacuum system has to be reliable while on working.Our fan system drive PTO shaft on 540 rpm and it is reliable even on high work hours and it’s quiet for user comfort.

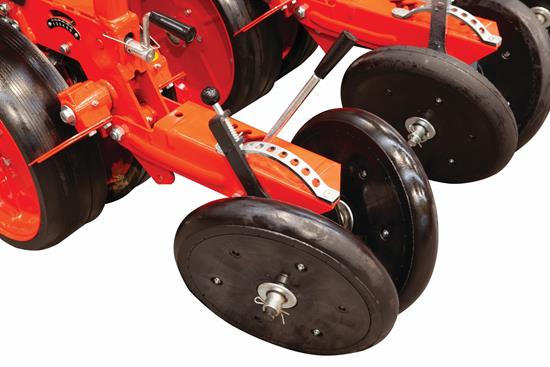

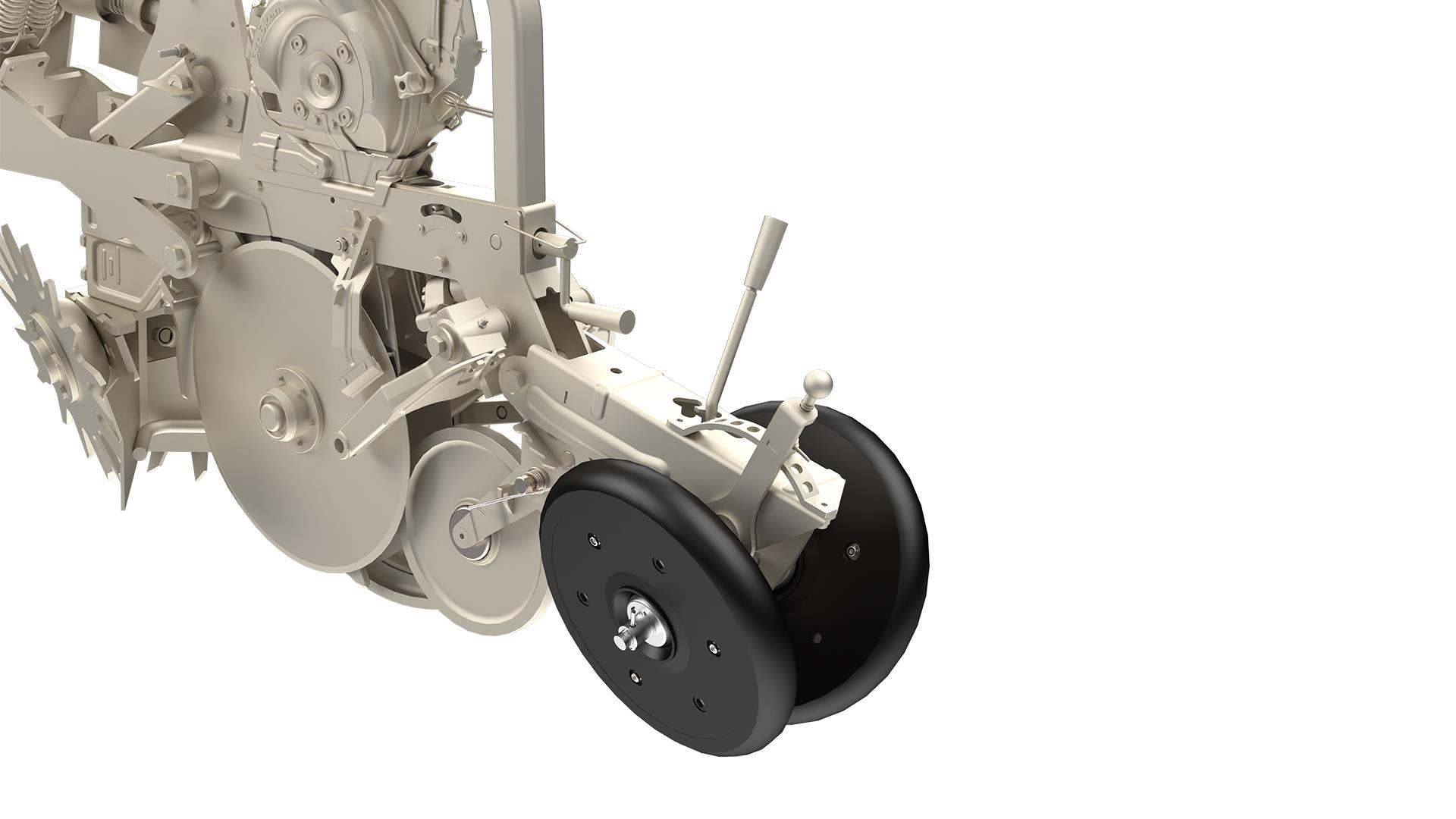

DOUBLE REAR PRESS WHEEL DOUBLE REAR PRESS WHEEL

The closing wheels that close seed lines and it’s easy to adjust pressure on the soil.

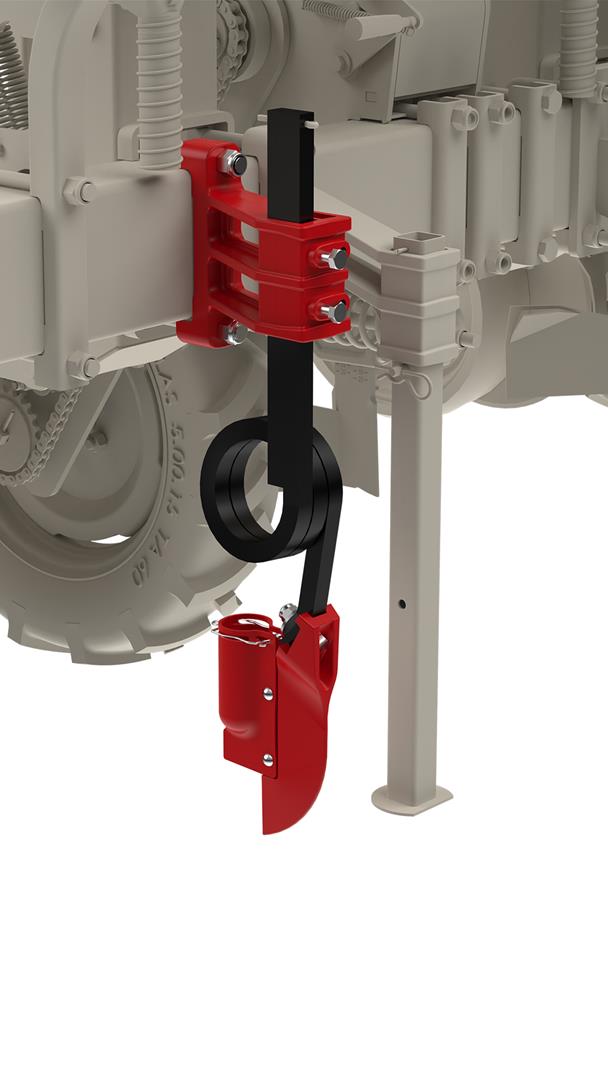

COULTER TYPE FERTILIZER OPENER COULTER TYPE FERTILIZER OPENER

STANDART AREA COUNTER STANDART AREA COUNTER

Area counter is standart in all models.

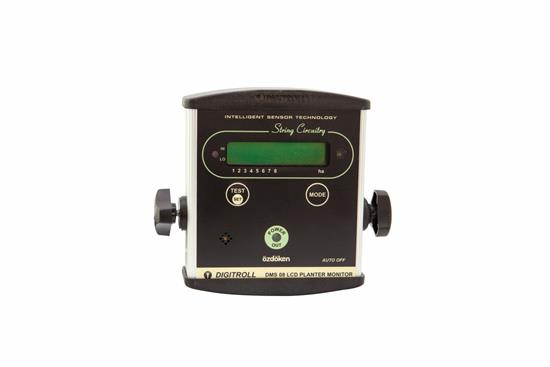

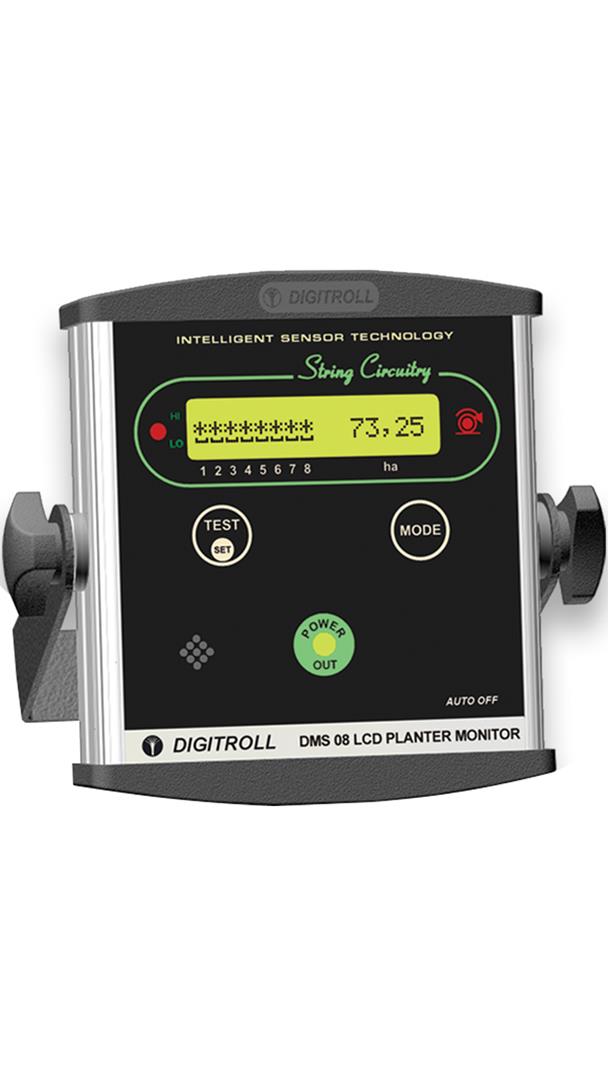

OPTIONAL DIGITROLL DMS-08 SEED CONTROLLER OPTIONAL DIGITROLL DMS-08 SEED CONTROLLER

• Photosensored seed monitoring up to 8 rows • Total and partial hectare count • Automatic system diagnostic • Audible and visual blockage alarm • 6 selectable thresholds for missing seed alarms • Seed size selection for refined seed detection

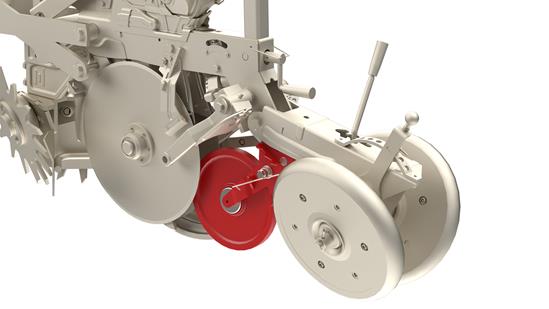

METAL SEED PRESS WHEEL METAL SEED PRESS WHEEL

The press wheel stops the seed at the seeds come to into good contact with the soil.

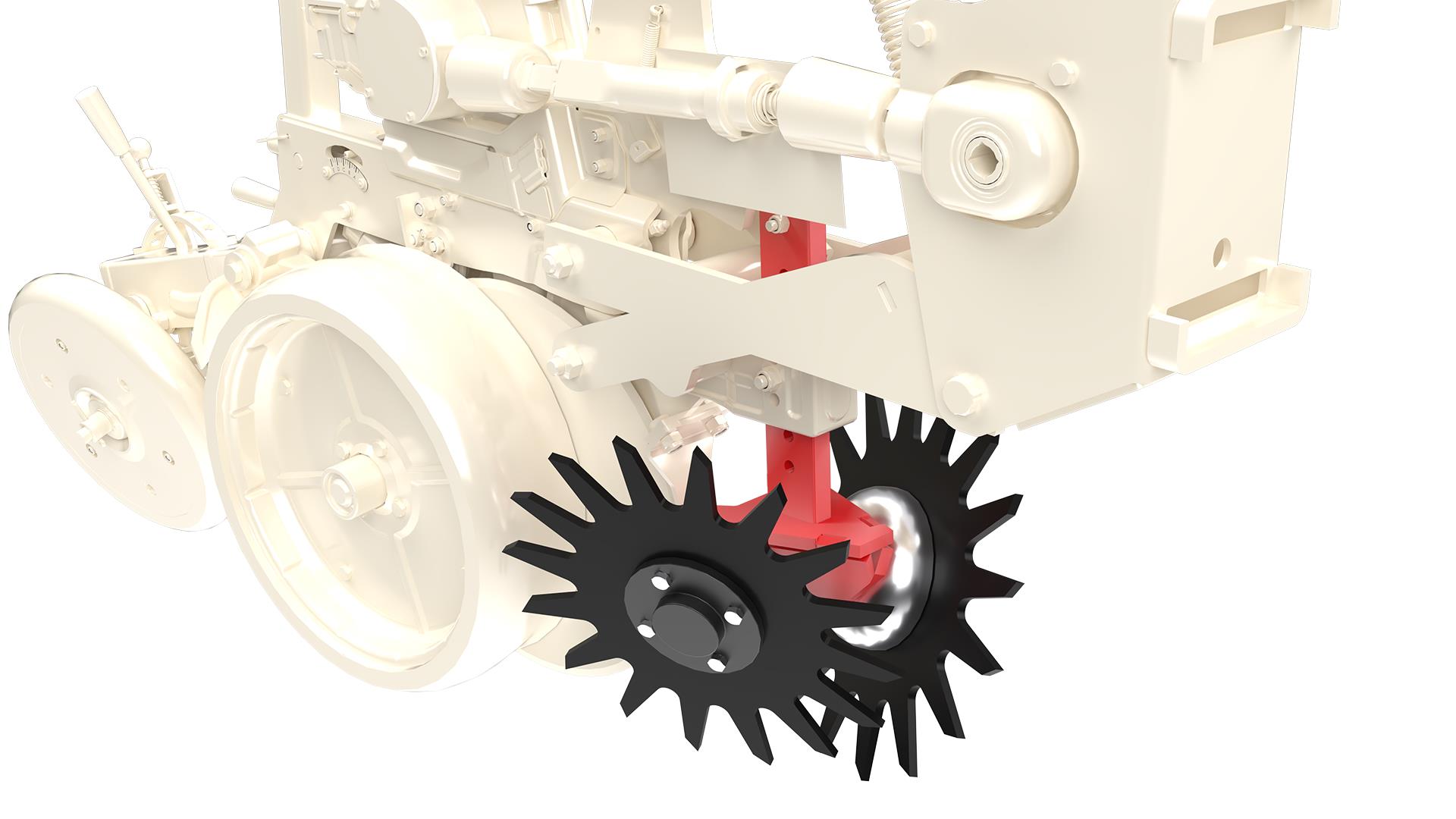

TRASH WHEEL TRASH WHEEL

Trash wheels can be mounted instead of clod remover.

FOLDABLE ADJUSTABLE TELESCOPIC FRAME FOLDABLE ADJUSTABLE TELESCOPIC FRAME

SEED HOPPER SEED HOPPER

40 Lt High Resistance Polythen Hopper.

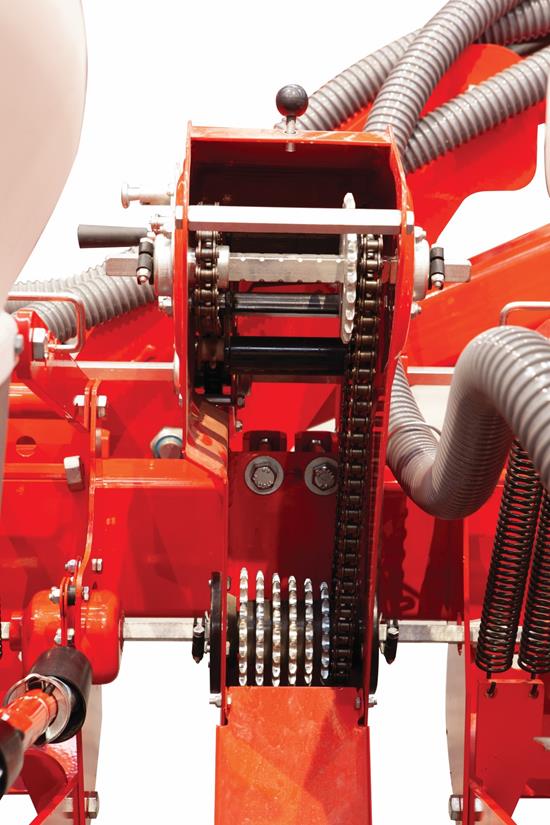

GEARBOX GEARBOX

It’s easy to configurate seed spacing with mechanical gearbox.For precise seeding,gearbox is connected to row units with the best and security way.

CARDAN SHAFT DRIVE CARDAN SHAFT DRIVE

Cardan shaft is reliable and precise movement system and it’s maintenance free.

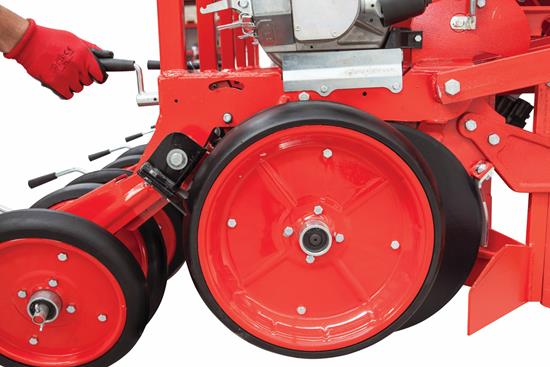

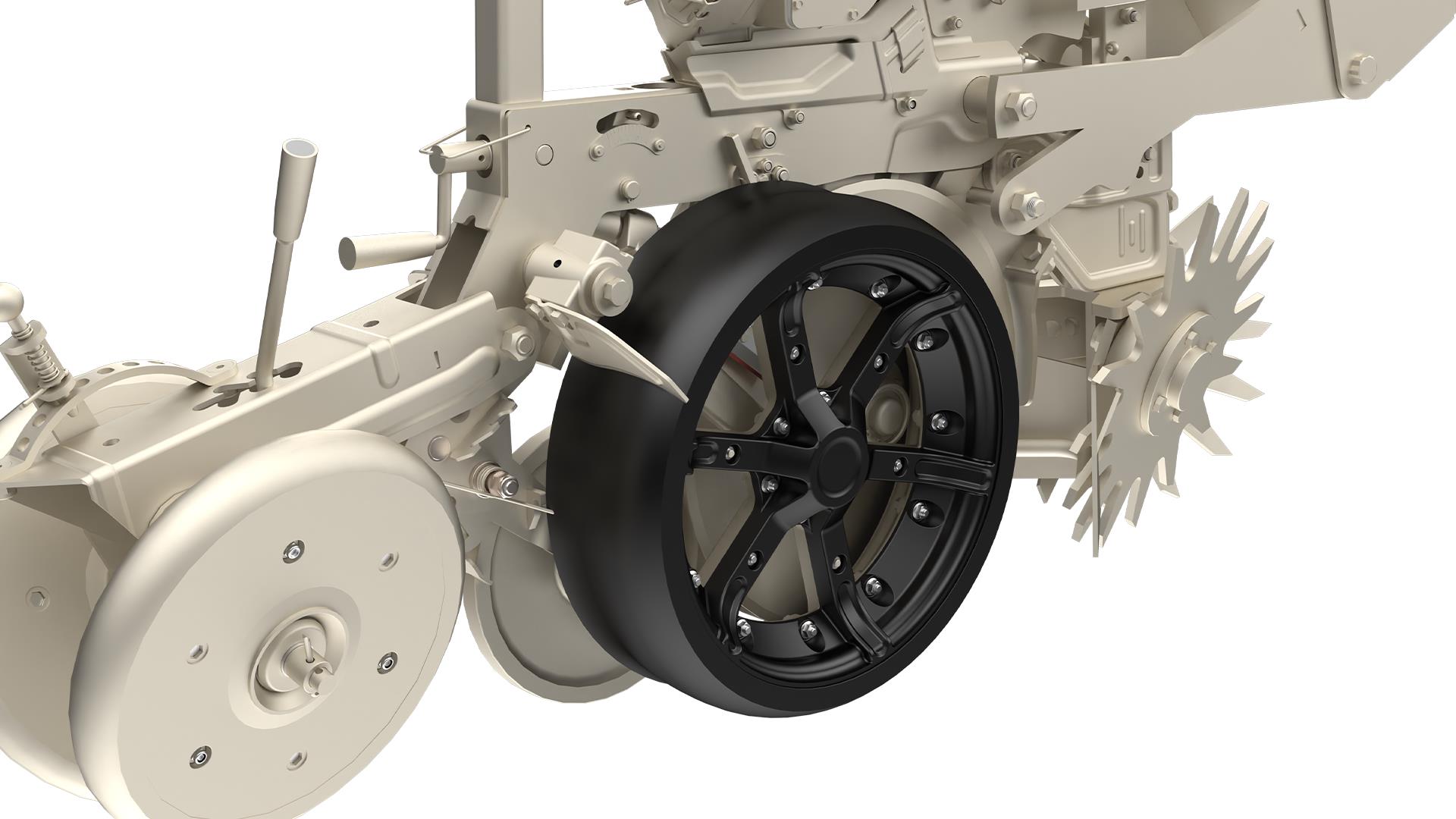

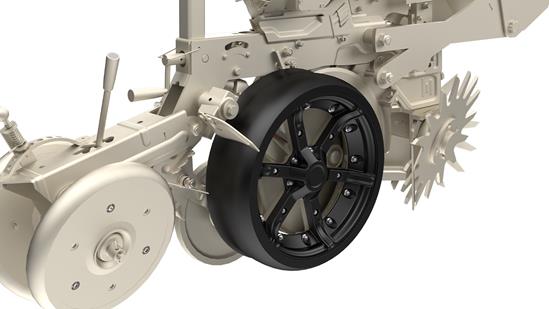

DEPTH ADJUSTMENT DEPTH ADJUSTMENT

Depth adjustment from 1 to 10 cm due to rubber gauge wheels allows to seed precisely on uneven field conditions.

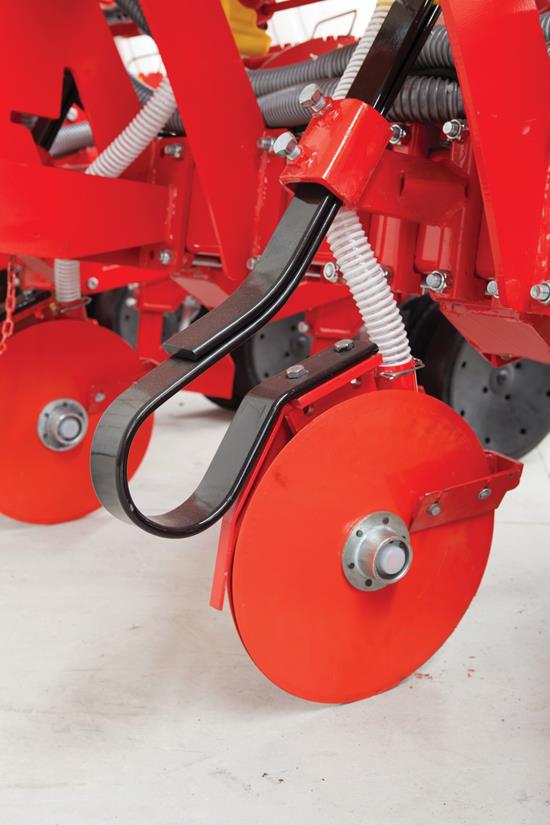

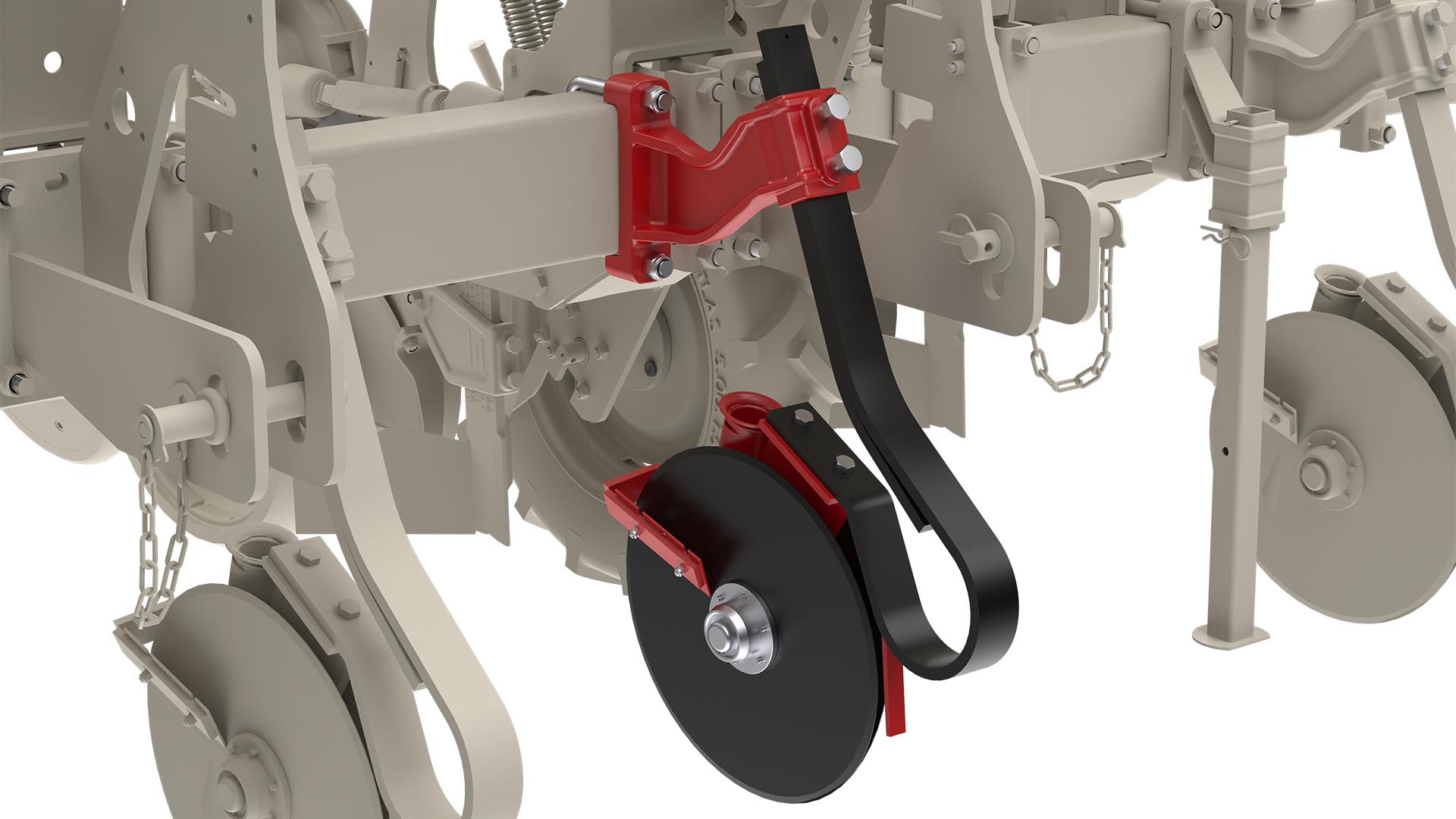

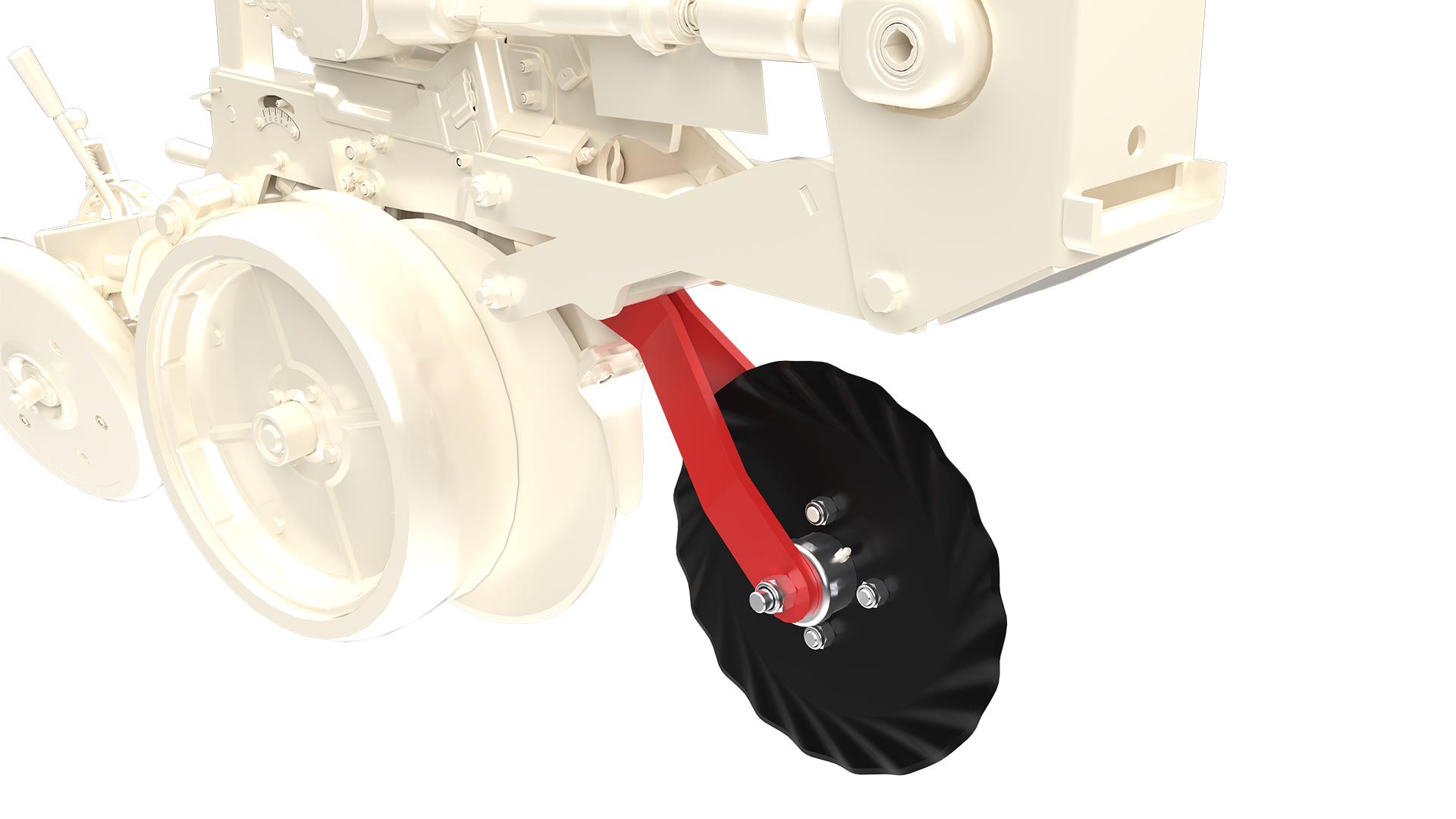

DISC TYPE FERTILIZER OPENER DISC TYPE FERTILIZER OPENER

Disc type is optional on disc type row units and it’s especially suitable for low-till conditions.

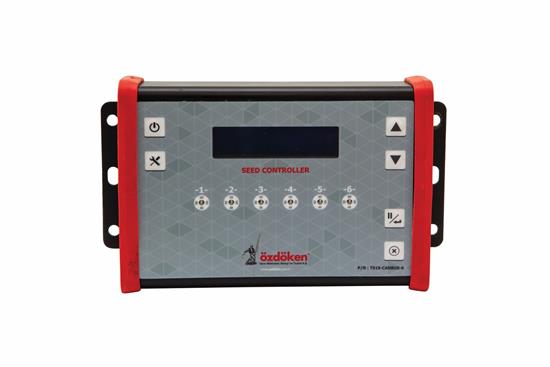

OPTIONAL TS SERIES SEED CONTROLLER OPTIONAL TS SERIES SEED CONTROLLER

-Seeding Control - Visually and Audibly Alarm -Seeding Speed -Area Counter

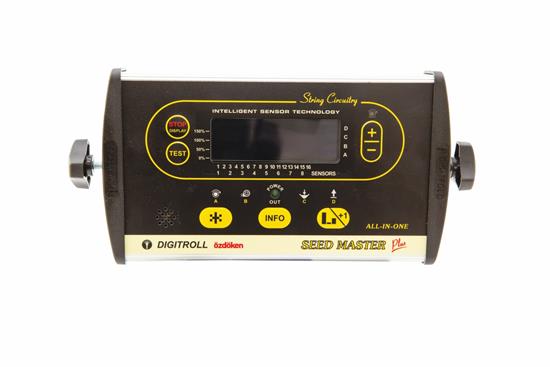

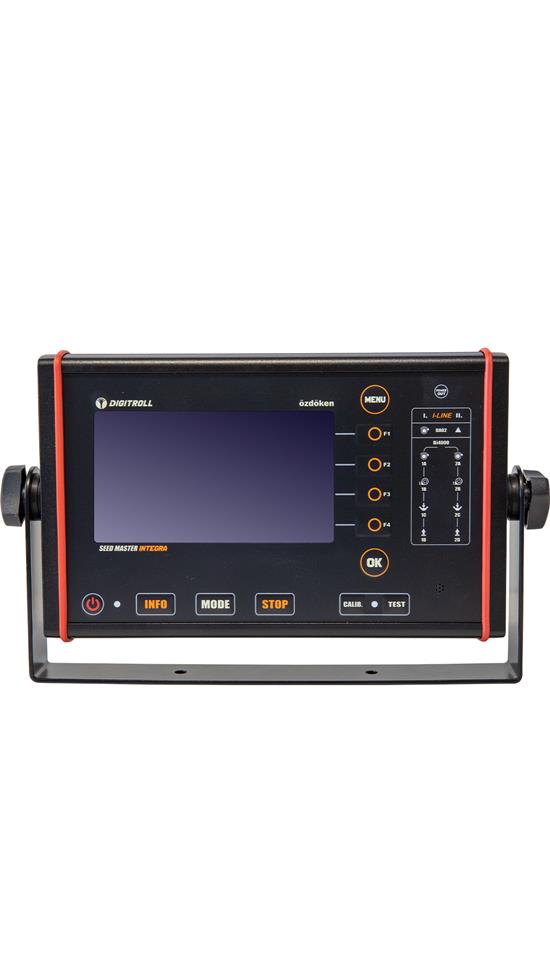

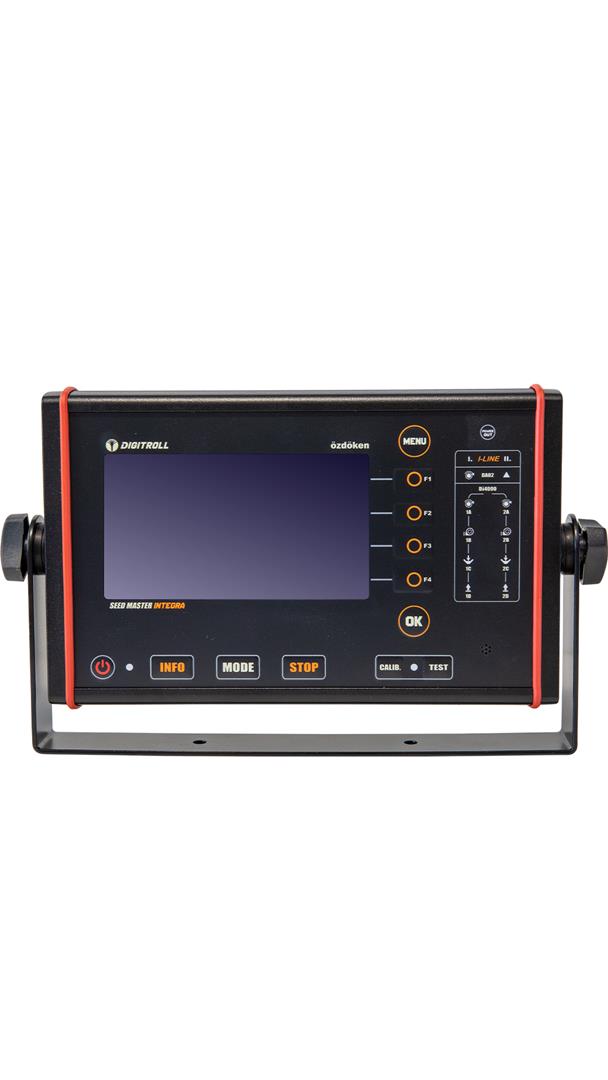

OPTIONAL DIGITROLL SEED MASTER PLUS CONTROLLER OPTIONAL DIGITROLL SEED MASTER PLUS CONTROLLER

• Photosensored seed monitoring up to 8 rows • Total and partial hectare count • Automatic system diagnostic • Audible and visual blockage alarm • 6 selectable thresholds for missing seed alarms • Seed size selection for refined seed detection • Actual seed number per hectare • longtitudional seed space on each row unit

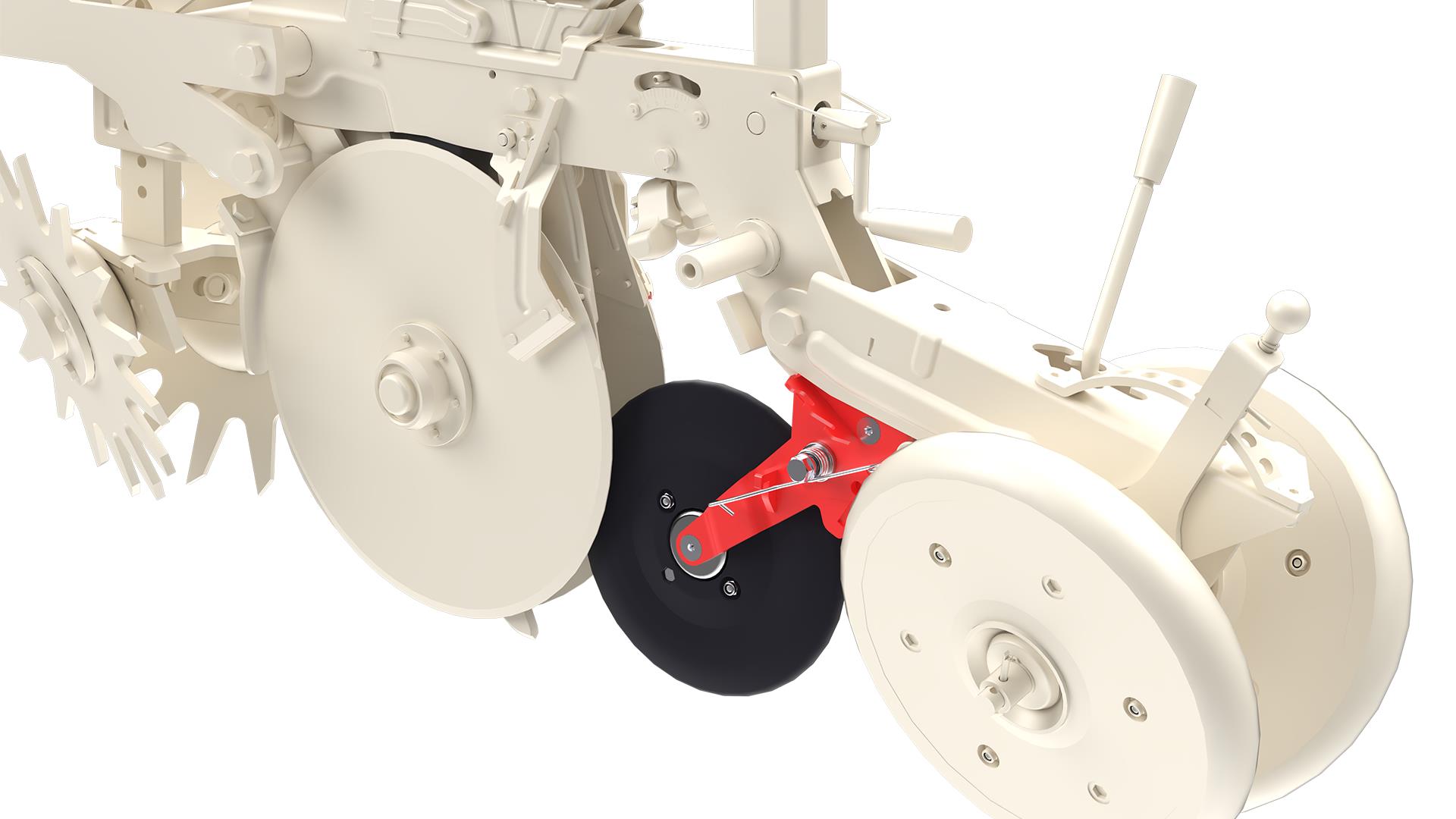

RUBBER SEED PRESS WHEEL RUBBER SEED PRESS WHEEL

The press wheel stops the seed at the seeds come to into good contact with the soil.

Technical Specifications
Model
No Of Row Units
Row Space (cm)
Transport Width (cm)
Minimum Weight (kg)
Movement Tyre
Polythen Fertilizer Hopper (lt)
Metal or Inox Fertilizer Hopper (lt)
Jumbo Plastic Hopper (lt)

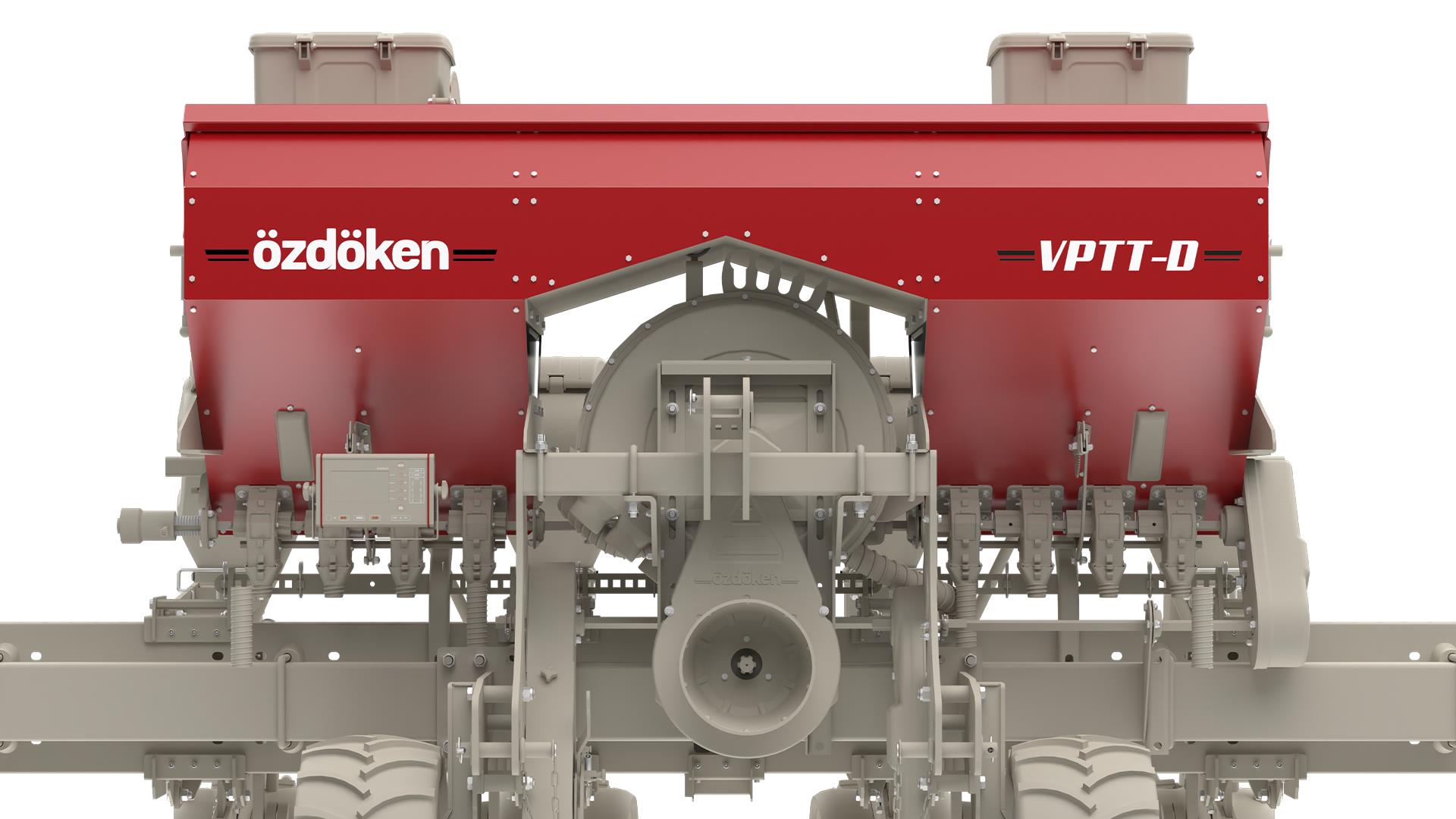

Jumbo Metal Fertilizer Hopper (lt)
VPKT-D6
6
ADJUSTABLE 45-50-55-60-65-70-75
300
1425
23.5/10.50-12
-
 -
-
-
VPKT-DG6
6
ADJUSTABLE 45-50-55-60-65-70-75
300
1720
- -
750 LT X 1
800 LT X 1
VPKT-D7
7
ADJUSTABLE 45-50-55-60-65-70-75
300
1580  -
-
VPKT-D8
8
ADJUSTABLE 45-50-55-60-65-70-75
300
 1770
 - -
-
VPKT-DG8
8

ADJUSTABLE 45-50-55-60-65-70-75



300
2100
-
750 LT X 1 800 LT X 1
