32x10 TINE DIMENSION
150X100 DOUBLE FRAME
Avaliable 3 Tines (45-50 cm) or 5 Tines(70-75 cm) per row unit.

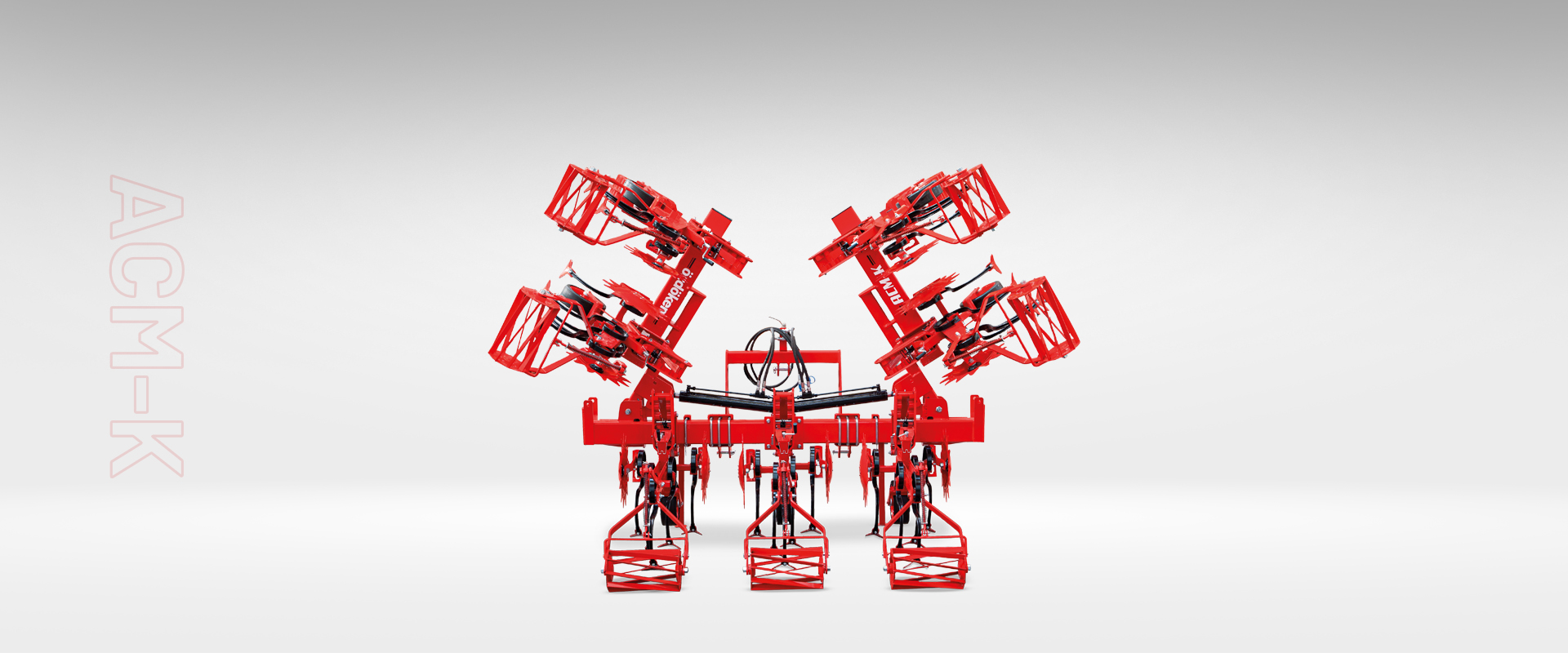

Ozdoken ACM-K series is used for hoeing and chopping weeds between cultivated corn, beet, sunflower and cotton.
- Cleans the field from weeds.
- It allows the manure to penetrate the soil better.
- Thanks to its legs made of spring steel, it does not compress the soil and prevent plant growth.
- It is a machine suitable for using on stony terrain.
- The tractor can be used on tractors with less horsepow
Technical Specifications
| Model | ACM-K9 | ACM-K13 | ACM-K7 | ACM-KG7 | ACM- K9 | ACM-KG9 | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| NUMBER OF ROW UNITS (FULL + HALF) | 7 + 2 | 11 + 2 | 5 + 2 | 5 + 2 | 7 + 2 | 7 + 2 | ||||||
| ROW SPACE (cm) | 45-50 | 45-50 | 70-75 | 70-75 | 70-75 | 70-75 | ||||||
| NUMBER OF TINES PER ROW UNIT | 3 | 3 | 5 | 5 | 5 | 5 | ||||||
| TRANSPORT WIDTH (cm) | 300 | 300 | 300 | 300 | 300 | 300 | 300 | |||||
| WEIGHT (kg) | 1200 | 1550 | 1040 | 1450 | 1260 | 1650 | ||||||
| POWER REQUIREMENT (hp) | 70-100 | 90-130 | 80-110 | 90-120 | 90-120 | 100-130 | ||||||
| JUMBO METAL OR INOX FERTILIZER HOPPER (lt) | - | - | - | 1000 | - | 1000 | ||||||
