32x10 ROW UNIT
Paralel ARM connection
Parallel linkage is mounted on repleceable metallic bushes which has high clearance . 3 steps adjustable down pressure spring is standart.
Depth adjustment wheel
Standartly, row units have 300 mm rubber depth adjustment wheel.
Guiding wheels
Iron wheels help the machine to follow tractor perfectly. Wide diamension create perfect contact on soil and help optimum depth adjustment.
32x12 TINE DIMENSION
150X100 SINGLE FRAME
Avaliable 3 Tines (45-50 cm) or 5 Tines (70-95 cm) Per Row Unit
1 Set of Free Blade

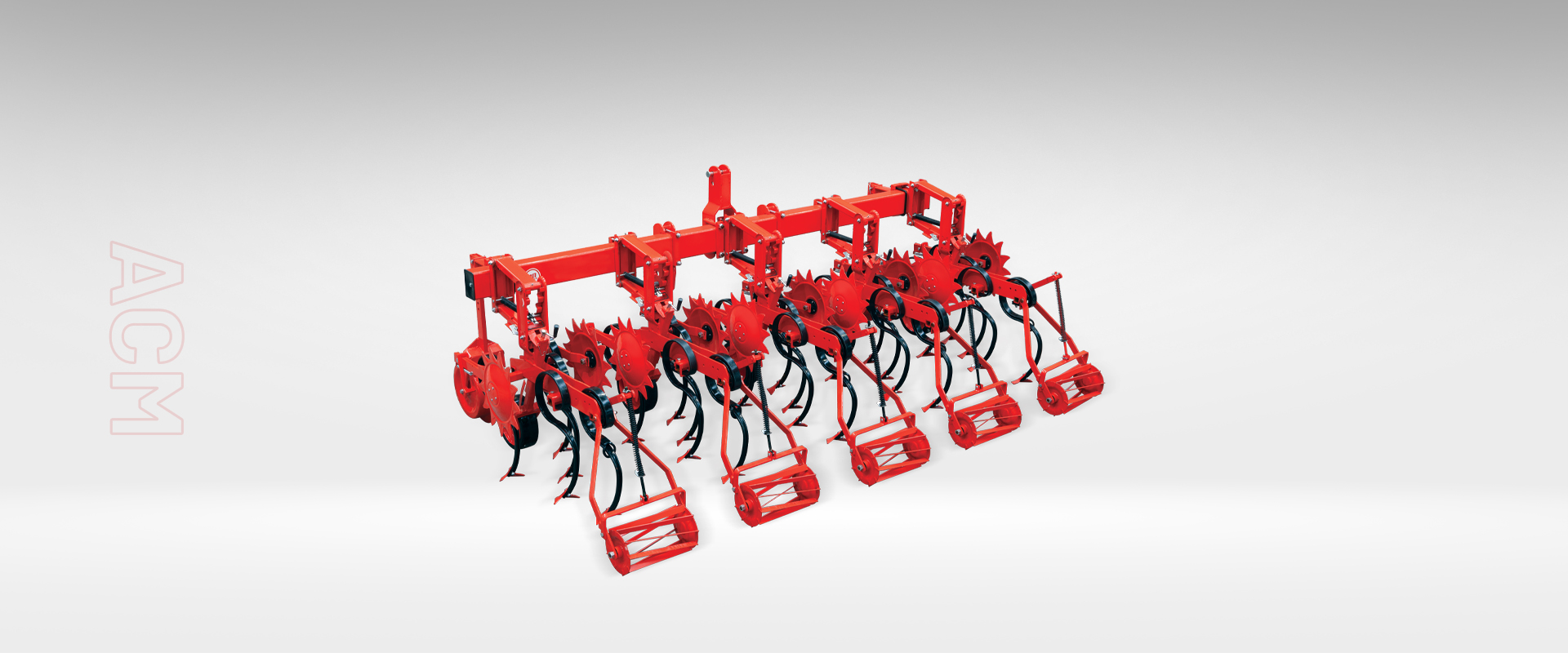

Ozdoken ACM series is used for hoeing and chopping weeds between cultivated corn, beet, sunflower and cotton.
- Cleans the field from weeds.
- It allows the manure to penetrate the soil better.
- Thanks to its legs made of spring steel, it does not compress the soil and prevent plant growth.
- It is a machine suitable for using on stony terrain.
- The tractor can be used on tractors with less horsepower regardless of horsepower.
- It provides savings in hoeing workmanship.
Product Equipment
32x10 ROW UNIT
Paralel ARM connection
Parallel linkage is mounted on repleceable metallic bushes which has high clearance . 3 steps adjustable down pressure spring is standart.
Depth adjustment wheel
Standartly, row units have 300 mm rubber depth adjustment wheel.
Guiding wheels
Iron wheels help the machine to follow tractor perfectly. Wide diamension create perfect contact on soil and help optimum depth adjustment.
Technical Specifications
| Model | ACM-6 | ACM-G6 | ACM-7 | ACM-G7 (45 cm) | ACM-G7 (50 cm) | ACM-9 | ACM-G9 (45 cm) | ACM-G9 (50 cm) | ACM-13 | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| NUMBER OF ROW UNITS (FULL + HALF) | 4 + 2 | 4 + 2 | 5 + 2 | 5 + 2 | 5 + 2 | 7 + 2 | 7 + 2 | 7 + 2 | 11 + 2 | |||||||||
| ROW SPACE (cm) | 45-50 | 45-50 | 45-50 | 45 | 50 | 45-50 | 45 | 50 | 45-50 | |||||||||
| NUMBER OF TINES PER ROW UNIT | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | ||||||||
| TRANSPORT WIDTH (cm) | 300 | 300 | 300 | 300 | 330 | 400 | 400 | 450 | 600 | |||||||||
| Length (cm) | 190 | 200 | 190 | 200 | 200 | 190 | 200 | 200 | - | |||||||||
| Height (cm) | 140 | 160 | 140 | 160 | 160 | 140 | 160 | 160 | - | |||||||||
| WEIGHT | 590 | 840 | 665 | 950 | 950 | 975 | 1300 | 1300 | 1500 | |||||||||
| POWER REQUIREMENT (hp) | 50-70 | 60-80 | 50-70 | 60-80 | 60-80 | 70-90 | 80-120 | 80-120 | 110-130 | |||||||||
| POWER REQUIREMENT (kW) | 50-70 | 45-60 | 50-70 | 45-60 | 45-60 | 70-90 | 60-90 | 60-90 | 110-130 | |||||||||
| POLYTHEN FERTILIZER OPENER (lt) | - | 180 x 2 | - | 180 x 2 | 180 x 2 | - | 180 x 4 | 180 x 4 | - | |||||||||
| METAL OR INOX FERTILIZER HOPPER (lt) | - | 200 x 2 | - | 200 x 2 | 200 x 2 | - | 200 x 4 | 200 x 4 | - | |||||||||
| JUMBO FERTILIZER HOPPERS (lt) | - | - | - | 1000 x 1 | 1000 x 1 | - | - | - | - | |||||||||
| Model | ACM-5 (70 cm) | ACM-G5 (70 cm) | ACM-5 (75 cm) | ACM-G5 (75 cm) | ACM-5 (80 cm) | ACM-G5 (80 cm) | ACM-5 (90 cm) | ACM-G5 (90 cm) | ACM-6 | ACM-G6 | ACM-7 (70 cm) | ACM-G7 (70 cm) | ACM-7 (75 cm) | ACM-G7 (75 cm) | ACM-7 (90 cm) | ACM-G7 (90 cm) | ACM-9 | ACM-G9 | ||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| NUMBER OF ROW UNITS (FULL + HALF) | 3 + 2 | 3 + 2 | 3 + 2 | 3 + 2 | 3 + 2 | 3 + 2 | 3 + 2 | 3 + 2 | 4 + 2 | 4 + 2 | 5 + 2 | 5 + 2 | 5 + 2 | 5 + 2 | 5 + 2 | 5 + 2 | 7 + 2 | 7 + 2 | ||||||||||||||||||
| ROW SPACE | 70 | 70 | 75 | 75 | 80 | 80 | 90 | 90 | 70 | 70 | 70 | 70 | 75 | 75 | 90 | 90 | 70 | 70 | ||||||||||||||||||
| NUMBER OF TINES PER ROW UNIT | 5 | 5 | 5 | 5 | 5 | 5 | 5 | 5 | 5 | 5 | 5 | 5 | 5 | 5 | 5 | 5 | 5 | 5 | 5 | |||||||||||||||||
| TRANSPORT WIDTH (cm) | 300 | 300 | 330 | 330 | 350 | 350 | 400 | 400 | 380 | 380 | 430 | 430 | 480 | 480 | 570 | 570 | 600 | 600 | ||||||||||||||||||
| Length (cm) | 190 | 200 | 190 | 200 | 190 | 200 | 190 | 200 | 190 | 200 | 190 | 200 | 190 | 200 | 190 | 200 | 190 | 200 | ||||||||||||||||||
| WEIGHT (kg) | 560 | 770 | 560 | 770 | 560 | 770 | 620 | 820 | 640 | 840 | 760 | 1020 | 760 | 1020 | 890 | 1200 | 1050 | 1550 | ||||||||||||||||||
| POWER REQUIREMENT (hp) | 50-70 | 60-80 | 50-70 | 60-80 | 50-70 | 60-80 | 50-70 | 60-80 | 50-70 | 60-80 | 60-80 | 70-100 | 60-80 | 70-100 | 70-90 | 80-110 | 80-110 | 110-140 | ||||||||||||||||||
| POWER REQUIREMENT (kW) | 37-52 | 45-60 | 37-52 | 45-60 | 37-52 | 45-60 | 37-52 | 45-60 | 37-52 | 45-60 | 45-60 | 52-75 | 45-60 | 52-75 | 52-67 | 60-82 | 60-82 | 82-105 | ||||||||||||||||||
| POLYTHEN FERTILIZER OPENER (lt) | - | 180 x 2 | - | 180 x 2 | - | 230 x 2 | - | 280 x 2 | - | 280 x 2 | - | 280 x 2 | - | 280 x 2 | - | 180 x 4 | - | 230 x 4 | ||||||||||||||||||
| METAL OR INOX FERTILIZER HOPPER (lt) | - | 200 x 2 | - | 200 x 2 | - | 250 x 2 | - | 400 x 2 | - | 250 x 2 | - | 400 x 2 | - | 400 x 2 | - | 200 x 4 | - | 250 x 2 | ||||||||||||||||||
| JUMBO FERTILIZER HOPPERS (lt) | - | 1000 x 1 | - | 1000 x 1 | - | - | - | - | - | - | - | - | - | - | - | - | - | - | ||||||||||||||||||
