Double disc type row units
Single hydraulic marker
Coulter type fertilizer opener
Easy double singulators
For perfect singulation for all kind of seeds on all row units ,selectors can be adjusted from the outside of the distributor by a metering scale.
Standart area counter
Area counter is standart in all models.
Disc type fertilizer opener
Disc type is optional on disc type row units and it’s especially suitable for low-till conditions.
Double hydraulic marker
Rubber seed press wheel
The press wheel stops the seed at the seeds come to into good contact with the soil.
Turbodisc
Metal seed press wheel
The press wheel stops the seed at the seeds come to into good contact with the soil.
Traffic kit bicma reflector polish ledlight
Microgranulator set
Digitroll integra sensor
Digitroll DMS-08 sensor
6-8
rows
100-140
hp tractor power
Adjustable Telescopic Frame (45,50,55,60,65,70 and 75 cm Row Space)
Double Disc Type Row Units
Jumbo Polythen Fertilizer Hopper
Double Hydraulic Row Markers
Coulter Type Fertilizer Opener
3 Set of Seeding Discs
PTO Shaft ( Can Be chosen octagonal or hexagonal Input)
Area Counter
Traffic Kit

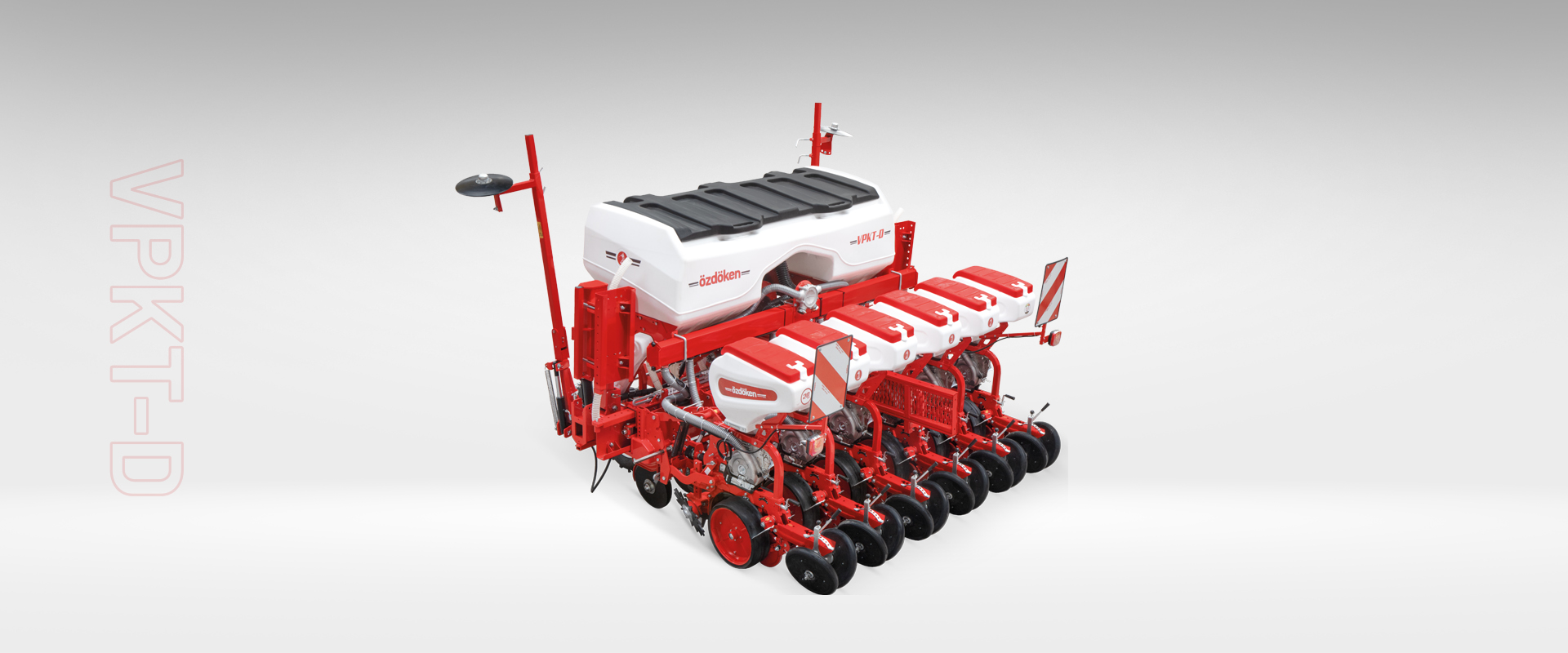

VPKT-D series precision planter is produced as disc type. Possible to change row space 45,50,55,60,65,70 and 75 cm with the help of adjustable telescopic frame. Transport width is 300 cm. Fertilizer system and microgranule system are available as an option. 6,7 and 8 rows are avaliable for production.
Product Equipment
Double disc type row units
Single hydraulic marker
Coulter type fertilizer opener
Easy double singulators
For perfect singulation for all kind of seeds on all row units ,selectors can be adjusted from the outside of the distributor by a metering scale.
Standart area counter
Area counter is standart in all models.
Disc type fertilizer opener
Disc type is optional on disc type row units and it’s especially suitable for low-till conditions.
Double hydraulic marker
Rubber seed press wheel
The press wheel stops the seed at the seeds come to into good contact with the soil.
Turbodisc
Metal seed press wheel
The press wheel stops the seed at the seeds come to into good contact with the soil.
Traffic kit bicma reflector polish ledlight
Microgranulator set
Digitroll integra sensor
Digitroll DMS-08 sensor
Technical Specifications
| Model | VPKT-D6 | VPKT-DG6 | VPKT-D8 | VPKT-DG8 | ||||
|---|---|---|---|---|---|---|---|---|
| No Of Row Units | 6 | 6 | 8 | 8 | ||||
| Row Space (adjustable) (cm) | 45-50-55-60-65-70-75 | 45-50-55-60-65-70-75 | 45-50-55-60-65-70-75 | 45-50-55-60-65-70-75 | 45-50-55-60-65-70-75 | |||
| Row Space (cm) | 300 | 300 | 300 | 300 | 300 | |||
| Minimum Weight (kg) | 1425 | 1720 | 1770 | 2100 | ||||
| Tyre Size | 23.5/10.50-12 | 23.5/10.50-12 | 23.5/10.50-12 | 23.5/10.50-12 | 23.5/10.50-12 | |||
| Plastic Hopper | - | - | - | - | - | |||
| Plastic Hopper (lt) | - | - | - | - | - | |||
| Jumbo Polythene Fertilizer Hopper Cap. (lt) | - | 750 X 1 | - | 750 X 1 | ||||
| Jumbo or Inox Fertilizer Hopper Cap. (lt) | - | 800 X 1 | - | 800 X 1 | ||||
| Power Requirement (hp) | 100-110 | 100-110 | 120-140 | 120-140 | ||||
