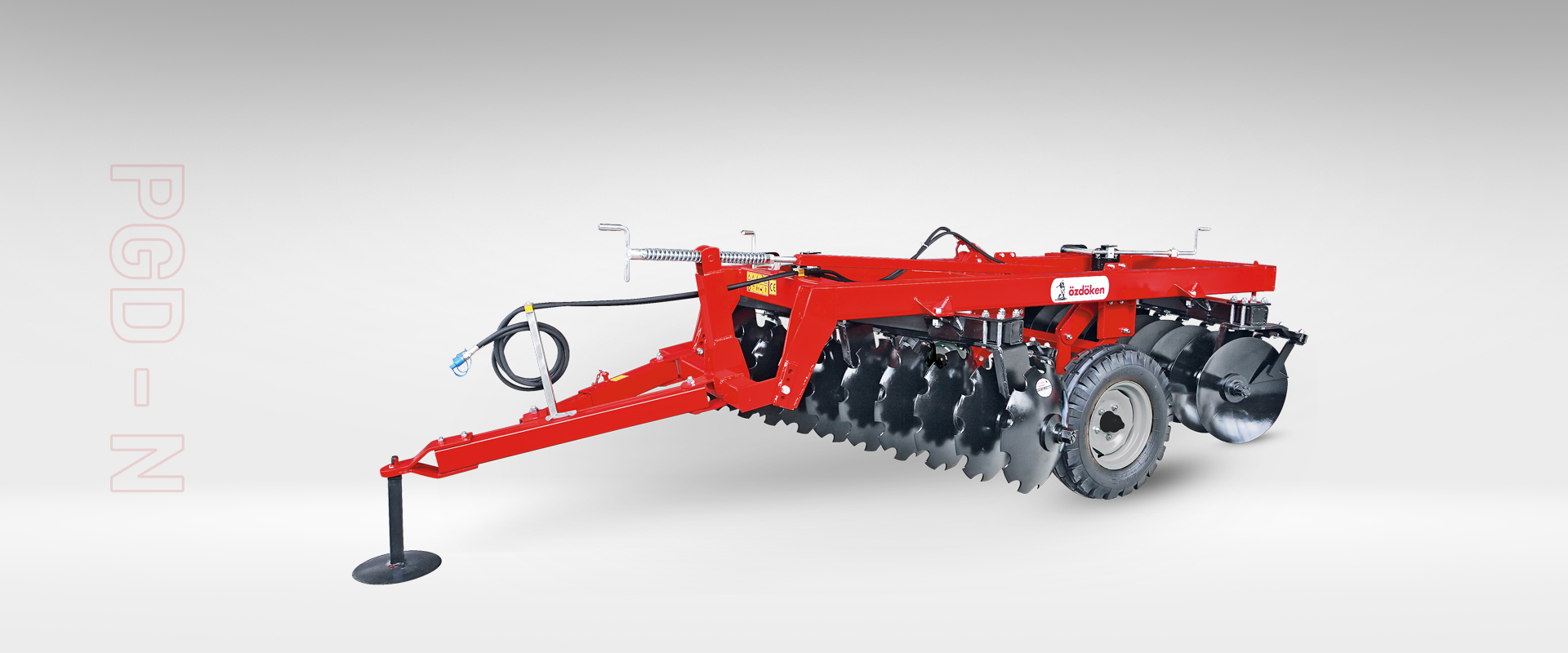

PGD-N TRAILED STANDARD FRAME

65-110
hp tractor power
198-264
cm working width

 PDG-N series is a light disc harrow that helps prepare the ground for sowing, also breaks up clods and destroys the stems of crop residues such as sunflower, rice, wheat.


Product Images

Technical Specifications

Model PGD-N-18 PGD-N-20 PGD-N-22 PGD-N-24
NUMBER OF DISC 18 20 22 24
DISC DIMENSION (mm) 560 x 4,5 / 610 x 5 / 660 x 6 560 x 4,5 / 610 x 5 / 660 x 6 560 x 4,5 / 610 x 5 / 660 x 6 560 x 4,5 / 610 x 5 / 660 x 6 560 x 4,5 / 610 x 5 / 660 x 6
DISC TO DISC DISTANCE (cm) 22 22 22 22 22
NUMBER OF BEARING 4 6 8 8
FRAME SIZE (cm) 100 x 150 x 6 100 x 150 x 6 100 x 150 x 6 100 x 150 x 6 100 x 150 x 6
Disk Chassis Dimensions (mm) 40 x 40 40 x 40 40 x 40 40 x 40 40 x 40
WEIGHT (kg) 1460 1655 1880 1990
Total Length (cm) 490 490 490 490 490
Total Height (cm) 150 150 150 150 150
TRANSPORT WIDTH (cm) 234 256 278 300
WORKING WIDTH (cm) 198 220 242 264
POWER REQUIREMENT (hp) 65-70 75-80 80-90 90-110
