45-120
hp tractor power
198-396
cm working width

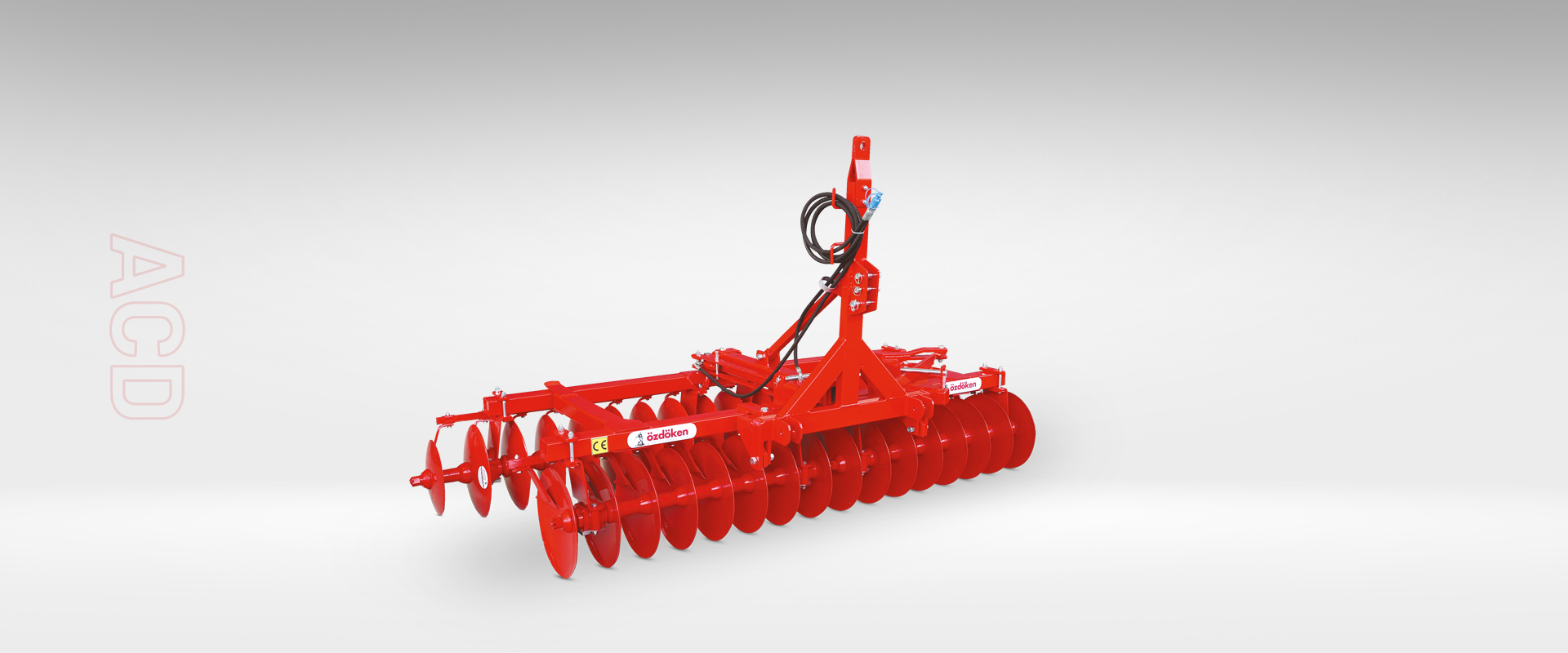

The Özdöken AÇD model is a lightweight disc harrow that can be used both as a trailed and hydraulic type. It is designed to break clods and mix them into the soil after plowing, preparing the seedbed. It efficiently chops plant residues and weeds. Unlike tandem-style disc harrows, it does not create ridges in the center of the machine.
- Optional: Ability to adjust the angle from the tractor via the link mechanism.
- Standard 46 cm boron steel disc blades. Optional 51 cm disc blades available.
- Forged steel bearing structure with 4 seals and 2 ball bearings, compliant with European standards.
- With the additional disc, you can work your field without creating furrows or spending extra time filling them.
- Cemented scrapers with blade-sharp edges make it easy to clean soil or residue from the discs.
Technical Specifications
| Model | AÇD-22 | AÇD-24 | AÇD-28 | AÇD-32 | AÇD-B32 | AÇD-36 | AÇD-38 | AÇD-40 | AÇD-44 | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| NUMBER OF DISCS | 22 | 24 | 28 | 32 | 32 | 36 | 38 | 40 | 44 | |||||||||
| DISC DIMENSION (mm) | 460x3,5 / 510x4,00 | 460x3,5 / 510x4,00 | 460x3,5 / 510x4,00 | 460x3,5 / 510x4,00 | 460x3,5 / 510x4,00 | 460x3,5 / 510x4,00 | 460x3,5 / 510x4,00 | 460x3,5 / 510x4,00 | 460x3,5 / 510x4,00 | 460x3,5 / 510x4,00 | ||||||||
| DISC TO DISC DISTANCE (cm) | 18 | 18 | 18 | 18 | 18 | 18 | 18 | 18 | 18 | 18 | ||||||||
| NUMBER OF BEARING | 8 | 8 | 8 | 8 | 8 | 12 | 12 | 12 | 12 | |||||||||
| FRAME SIZE (cm) | 80x100x5 | 80x100x5 | 80x100x5 | 80x100x5 | 80x100x5 | 100x100x6 | 100x100x6 | 100x100x6 | 100x100x6 | |||||||||
| Disc Chassis Dimensions (mm) | 26x26 | 26x26 | 26x26 | 26x26 | 26x26 | 26x26 | 26x26 | 26x26 | 26x26 | 26x26 | ||||||||
| WEIGHT (kg) | 615 | 665 | 715 | 785 | 850 | 920 | 1026 | 990 | 1060 | |||||||||
| Total Length (cm) | 150 | 150 | 150 | 150 | 150 | 150 | 150 | 150 | 150 | 150 | ||||||||
| Total Height (cm) | 180 | 180 | 180 | 180 | 180 | 180 | 180 | 180 | 180 | 180 | ||||||||
| TRANSPORT WIDTH (cm) | 219 | 237 | 273 | 309 | 309 | 345 | 363 | 381 | 417 | |||||||||
| WORKING WIDTH (cm) | 198 | 216 | 252 | 288 | 288 | 324 | 342 | 360 | 396 | |||||||||
| POWER REQUIREMENT (hp) | 45-65 | 50-70 | 60-80 | 70-90 | 80-90 | 80-100 | 85-105 | 90-110 | 110-120 | |||||||||
