FDP 60 CM DEPTH

70-400
hp tractor power
140-630
cm working width

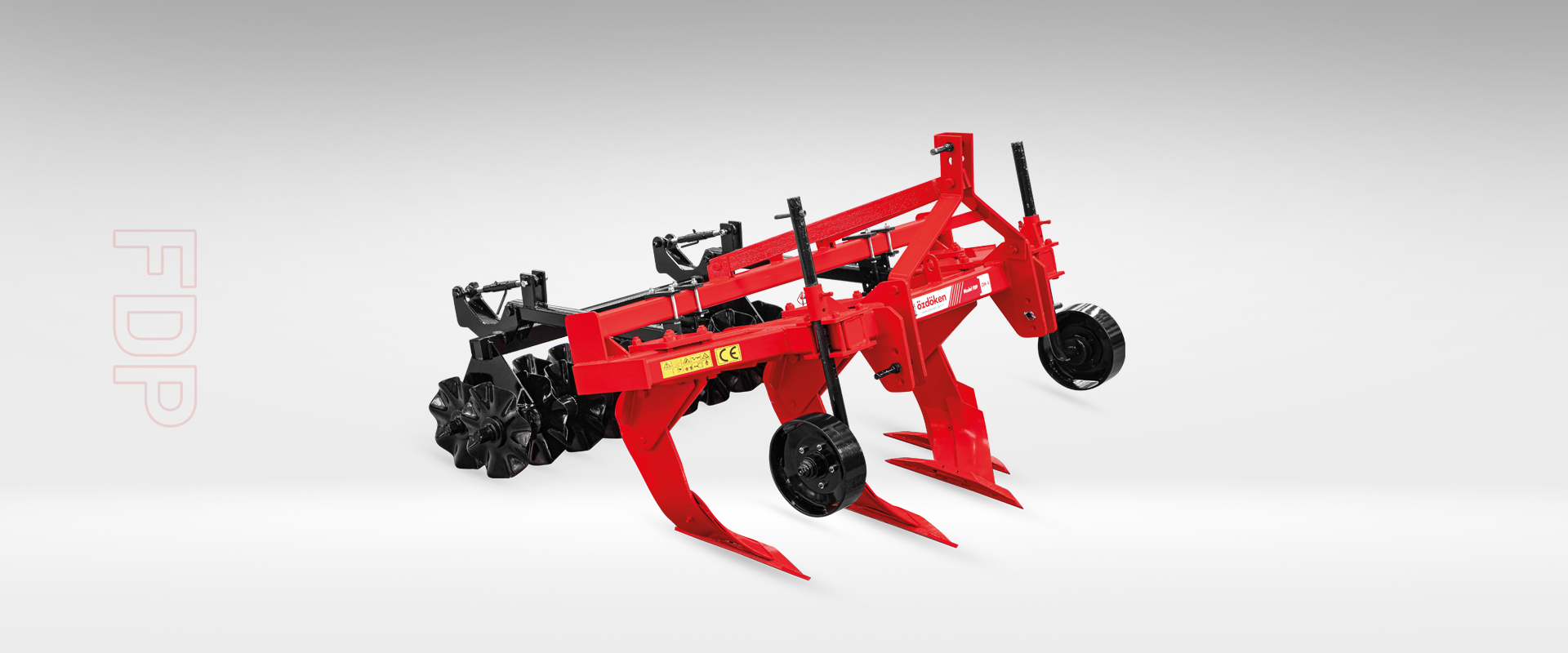

FDP series subsoilers can achieve 60 cm working depth with less power due to curved tines. Also curved tines allow to do soil loosening homogenously on machine’s working width


Product Images

Technical Specifications

Model FDP-2 FDP-4 FDP-6 FDP-8 FDP-10 FDP-12 FDP-OM-2 FDP-OM-4 FDP-OM-6 FDP-OM-8 FDP-OM-10 FDP-OM-12
NUMBER OF LEGS (pcs) 2 4 6 8 10 12 2 4 6 8 10 12
ROW SPACE (cm) 50 50 50 50 50 50 50 50 50 50 50 50 50
FRAME SIZE (cm) 120 x 120 x 8 120 x 120 x 8 120 x 120 x 8 120 x 120 x 8 120 x 120 x 8 120 x 120 x 8 120 x 120 x 8 120 x 120 x 8 120 x 120 x 8 120 x 120 x 8 120 x 120 x 8 120 x 120 x 8 120 x 120 x 8
WEIGHT (kg) 575 860 1145 1445 2340 2640 665 1310 1685 3160 3920 4750
WORKING WIDTH (cm) 140 230 330 430 530 630 140 230 330 430 530 630
TRANSPORT WIDTH (cm) 160 250 350 450 550 650 160 250 350 450 550 650
POWER REQUIREMENT (hp) 70-80 110-140 180-200 230-260 300-350 350-400 70-80 110-140 180-200 230-260 300-350 350-400
