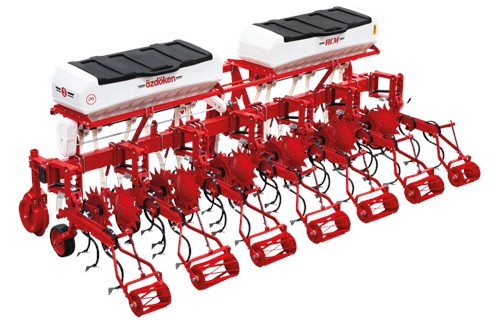

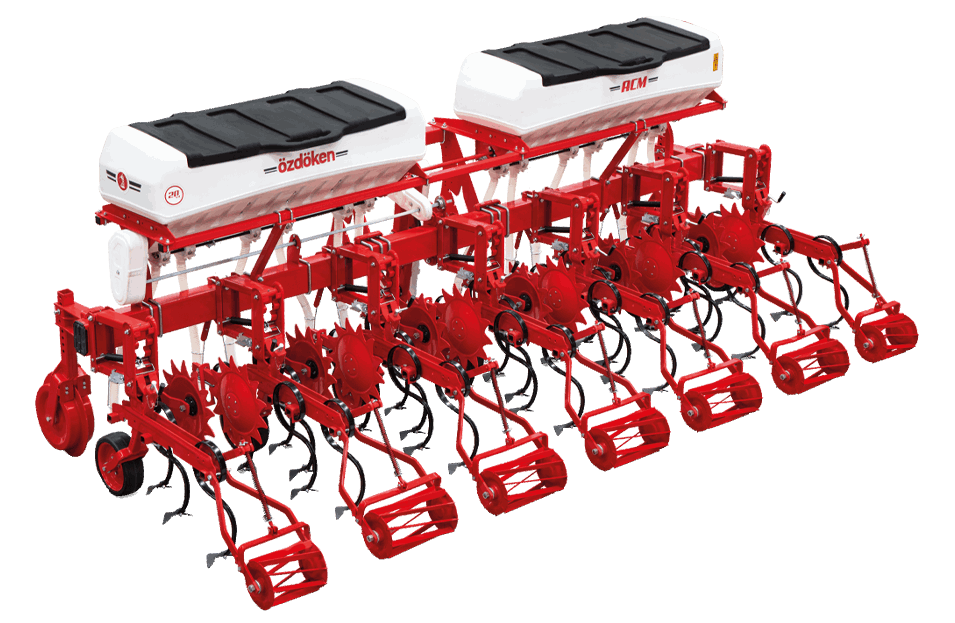

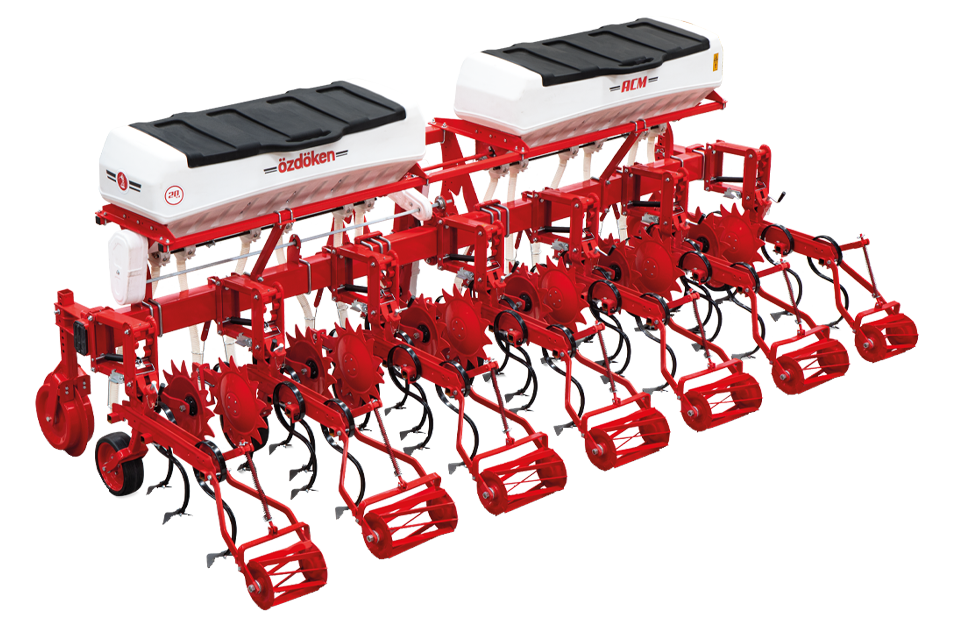

ACM SERIES FIXED FRAME ROW CROP CULTIVATOR

Ozdoken ACM series is used for hoeing and chopping weeds between cultivated corn, beet, sunflower and cotton.

- Cleans the field from weeds.
- It allows the manure to penetrate the soil better.
- Thanks to its legs made of spring steel, it does not compress the soil and prevent plant growth.
- It is a machine suitable for using on stony terrain.
- The tractor can be used on tractors with less horsepower regardless of horsepower.
- It provides savings in hoeing workmanship.

32x12 TINE DIMENSION

150X100 SINGLE FRAME

Avaliable 3 Tines (45-50 cm) or 5 Tines (70-95 cm) Per Row Unit

1 Set of Free Blade

Product Equipment

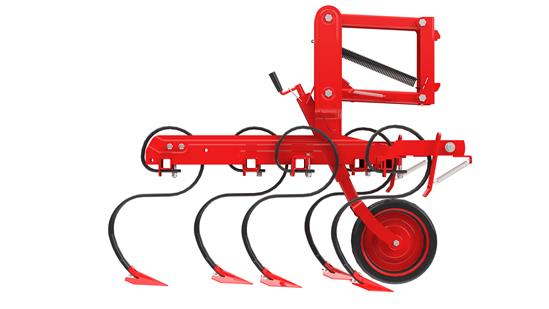

32x10 ROW UNIT

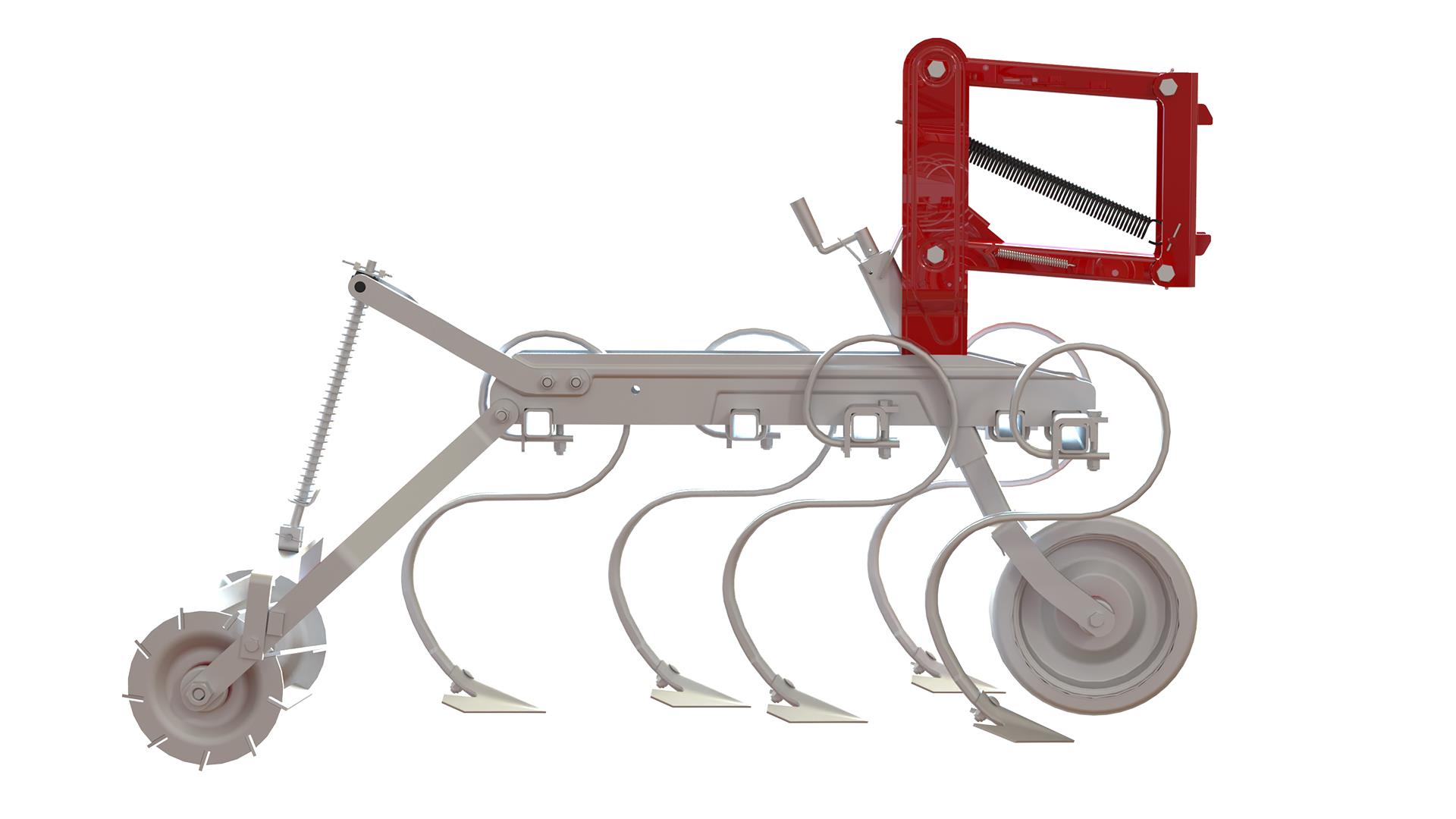

PARALEL ARM CONNECTION

Parallel linkage is mounted on repleceable metallic bushes which has high clearance . 3 steps adjustable down pressure spring is standart.

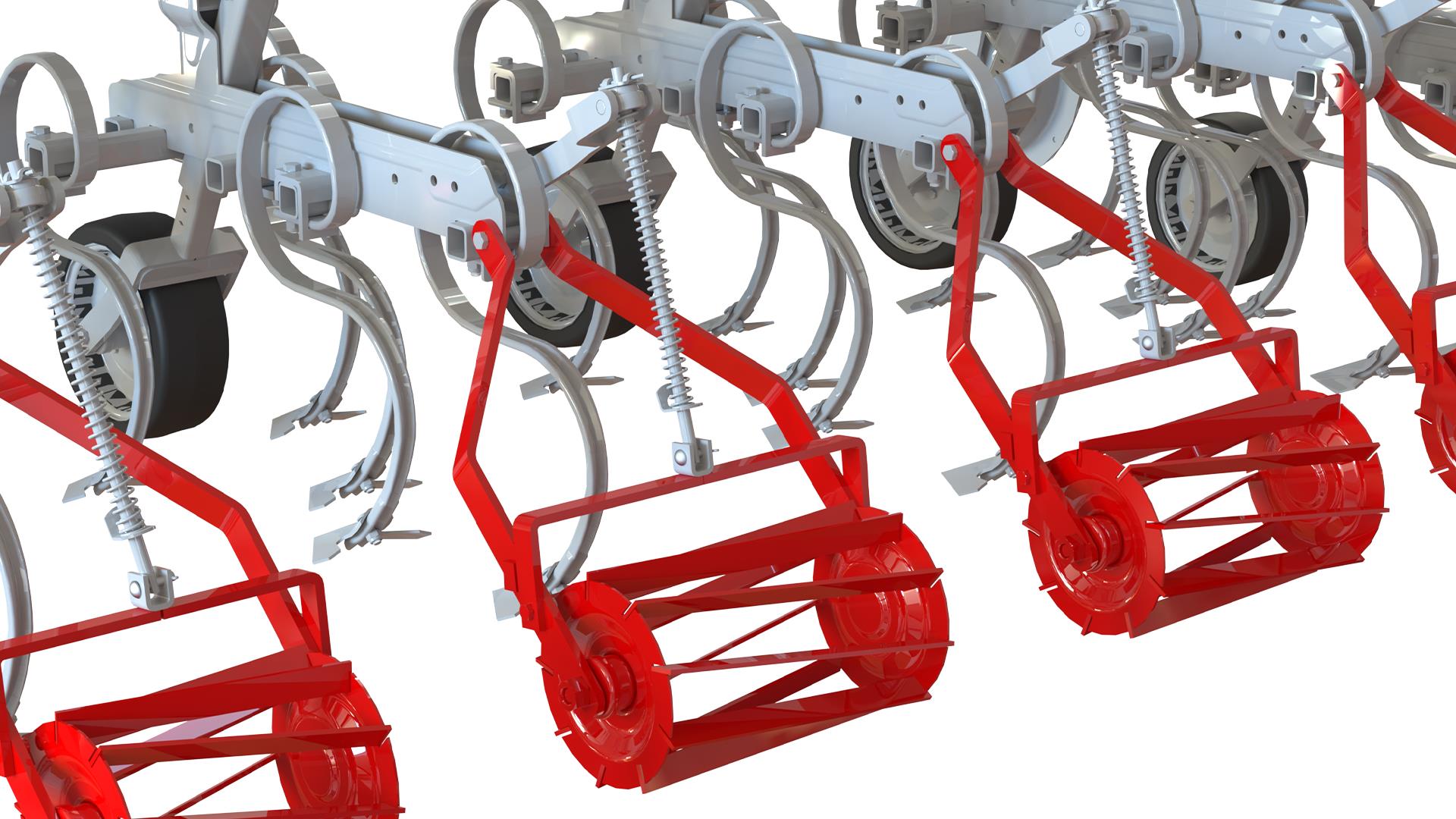

OPTIONAL - ROLLER

Rollers are mounted with reinforced bearings.

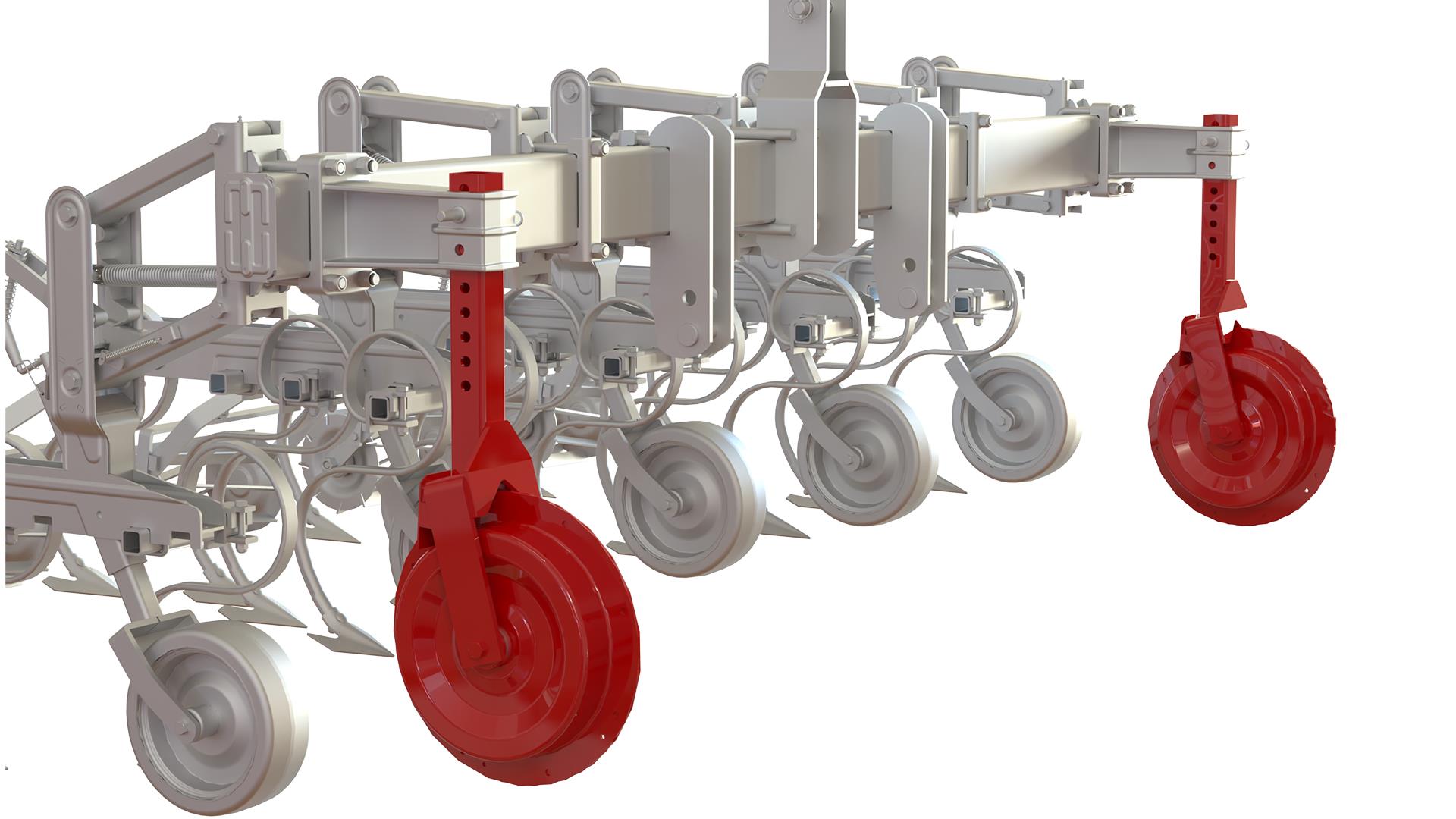

GUIDING WHEELS

Iron wheels help the machine to follow tractor perfectly. Wide diamension create perfect contact on soil and help optimum depth adjustment.

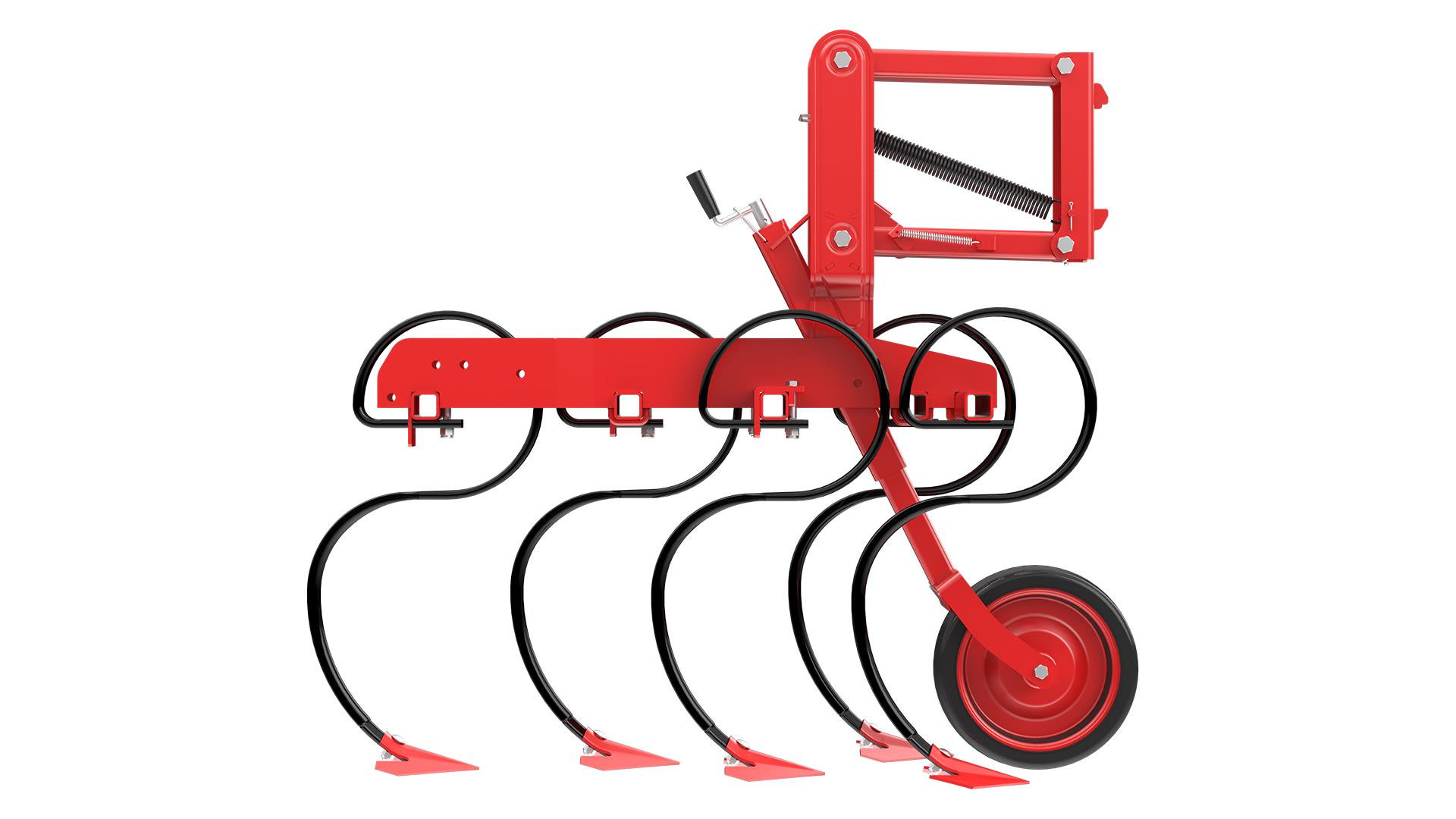

OPTIONAL - 45X12 ROW UNIT

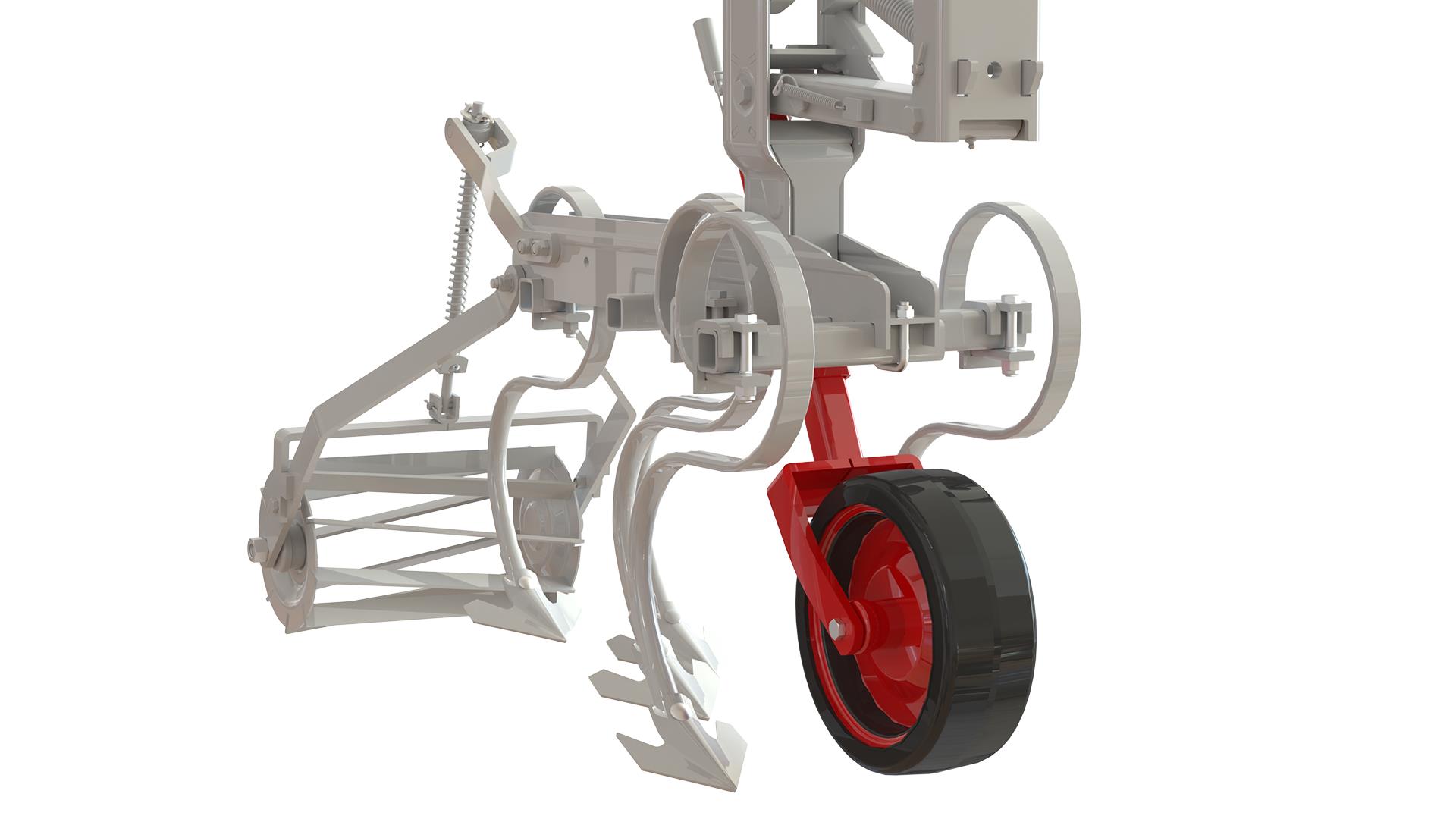

DEPTH ADJUSTMENT WHEEL

Standartly, row units have 300 mm rubber depth adjustment wheel.

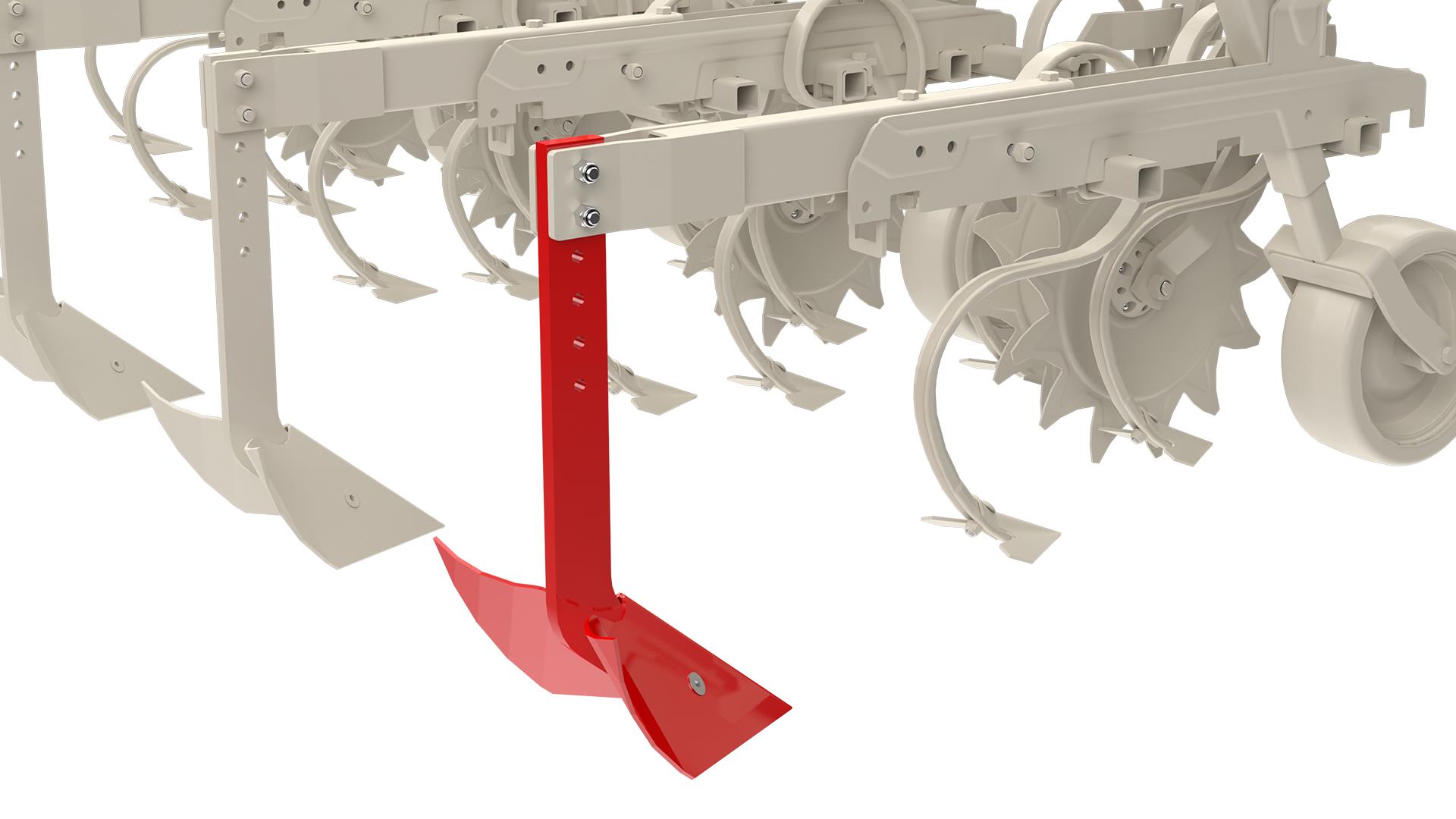

OPTIONAL - RIDGER

Fixed or adjustable ridger can be chosen according to crop type.

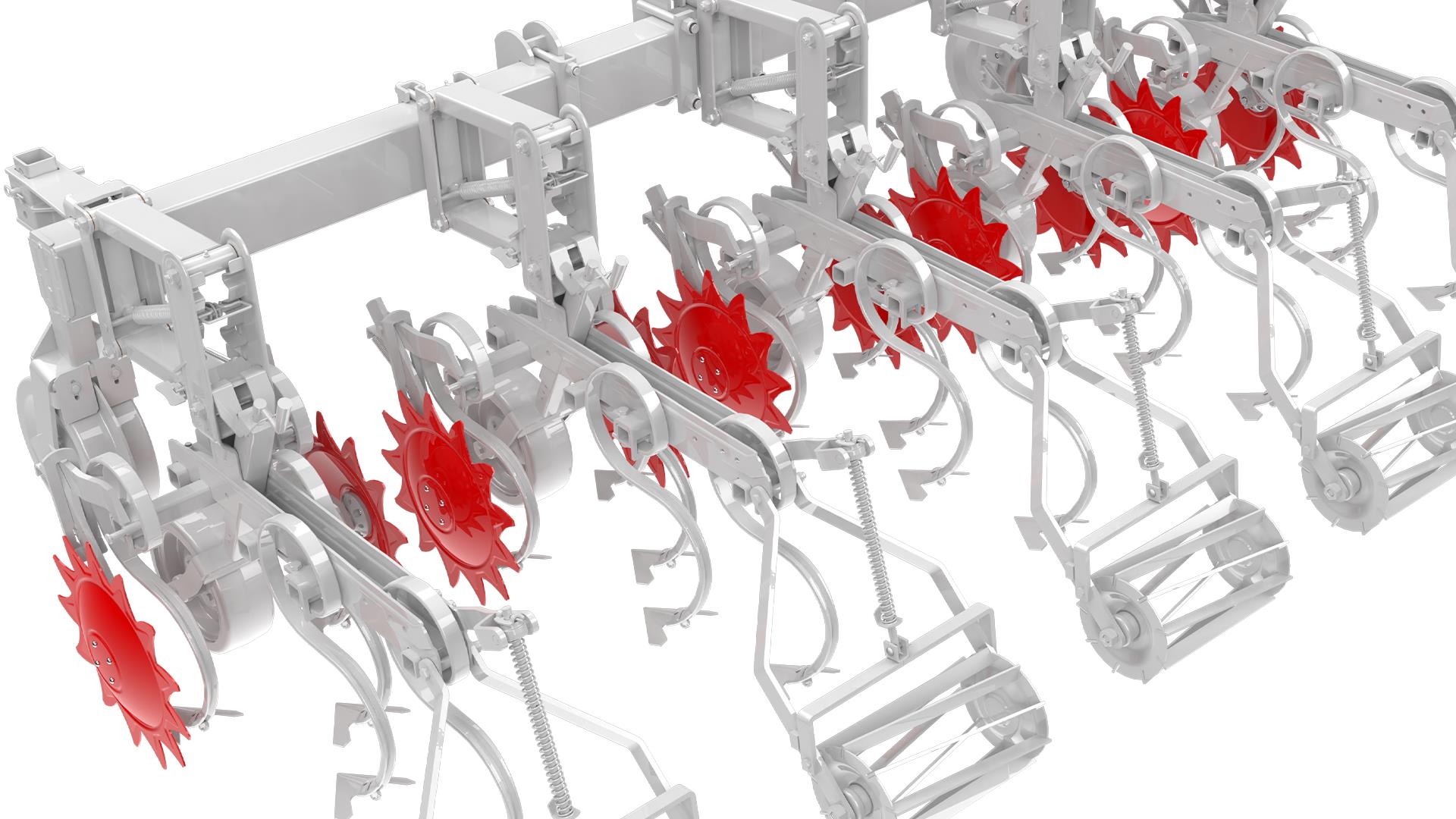

OPTIONAL - CROP PROTECTION DISCS

Technical Specifications

Model	NUMBER OF ROW UNITS	ROW SPACE (cm)	NUMBER OF TINES PER ROW UNIT	TRANSPORT WIDTH (cm)	WEIGHT (kg)	POWER REQUIREMENT		POLYTHEN FERTILIZER OPENER	METAL OR INOX FERTILIZER HOPPER	JUMBO FERTILIZER HOPPERS
ACM-6	4 complate 2 half	45-50	3	300	590	50-70 hp	37-52 kw	-	-	-
ACM-G6	4 complate 2 half	45-50		300	840	60-80 hp	45-60 kw	180 lt x 2	200 lt x 2	-
ACM-7	5 complate 2 half	45-50		300	665	50-70 hp	37-52 kw	-	-	-
ACM-G7	5 complate 2 half	45		300	950	60-80 hp	45-60 kw	180 lt x 2	200 lt x 2	1000 lt x 1
ACM-G7	5 complate 2 half	50		330	950	60-80 hp	45-60 kw	180 lt x 2	200 lt x 2	1000 lt x 1
ACM-9	7 complate 2 half	45-50		400	975	70-90 hp	52-67 kw	-	-	-
ACM-G9	7 complate 2 half	45		400	1300	80-120 hp	60-90 kw	180 lt x 4	200 lt x 4	-
ACM-G9	7 complate 2 half	50		450	1300	80-120 hp	60-90 kw	180 lt x 4	200 lt x 4	-
ACM-13	11 complate 2 half	45-50		600	1500	110-130 hp	82-97	-	-	-

Model	NUMBER OF ROW UNITS	ROW SPACE (cm)	NUMBER OF TINES PER ROW UNIT	TRANSPORT WIDTH (cm)	WEIGHT (kg)	POWER REQUIREMENT		POLYTHEN FERTILIZER OPENER	METAL OR INOX FERTILIZER HOPPER	JUMBO FERTILIZER HOPPERS
ACM-5	3 complate 2 half	70	5	300	560	50-70 hp	37-52 kw	-	-	-
ACM-G5	3 complate 2 half	70		300	770	60-80 hp	45-60 kw	180 lt x 2	200 lt x 2	1000 lt x 1
ACM-5	3 complate 2 half	75		330	560	50-70 hp	37-52 kw	-	-	-
ACM-G5	3 complate 2 half	75		330	770	60-80 hp	45-60 kw	180 lt x 2	200 lt x 2	1000 lt x 1
ACM-5	3 complate 2 half	80		350	560	50-70 hp	37-52 kw	-	-	-
ACM-G5	3 complate 2 half	80		350	770	60-80 hp	45-60 kw	230 lt x 2	250 lt x 2	-
ACM-5	3 complate 2 half	90		400	620	50-70 hp	37-52 kw	-	-	-
ACM-G5	3 complate 2 half	90		400	820	60-80 hp	45-60 kw	280 lt x 2	400 lt x 2	-
ACM-6	4 complate 2 half	70		380	640	50-70 hp	37-52 kw	-	-	-
ACM-G6	4 complate 2 half	70		380	840	60-80 hp	45-60 kw	230 lt x 2	250 lt x 2
ACM-7	5 complate 2 half	70		430	760	60-80 hp	45-60 kw	-	-	-
ACM-G7	5 complate 2 half	70		430	1020	70-100 hp	52-75 kw	280 lt x 2	400 lt x 2	-
ACM-7	5 complate 2 half	75		480	760	60-80 hp	45-60 kw	-	-	-
ACM-G7	5 complate 2 half	75		480	1020	70-100 hp	52-75 kw	280 lt x 2	400 lt x 2
ACM-7	5 complate 2 half	90		570	890	70-90 hp	52-67 kw	-	-	-
ACM-G7	5 complate 2 half	90		570	1200	80-110 hp	60-82 kw	180 lt x 4	200 lt x 4	-
ACM-9	7 complate 2 half	70		600	1050	80-110 hp	60-82 kw	-	-	-
ACM-G9	7 complate 2 half	70		600	1550	110-140 hp	82-105 kw	230 lt x 4	250 lt x 2	-

POLYTHEN FERTILIZER OPENER
