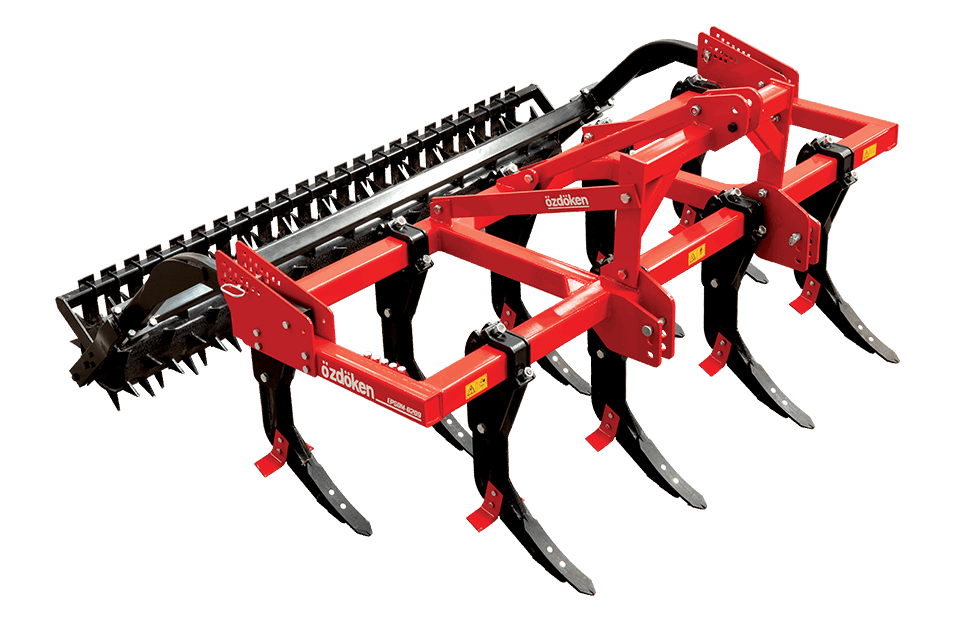

EPSOM 35 CM DEPTH

Product Images

Product Equipment

Standard 4 Optional 5

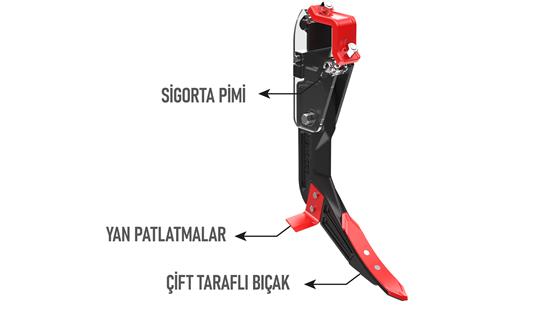

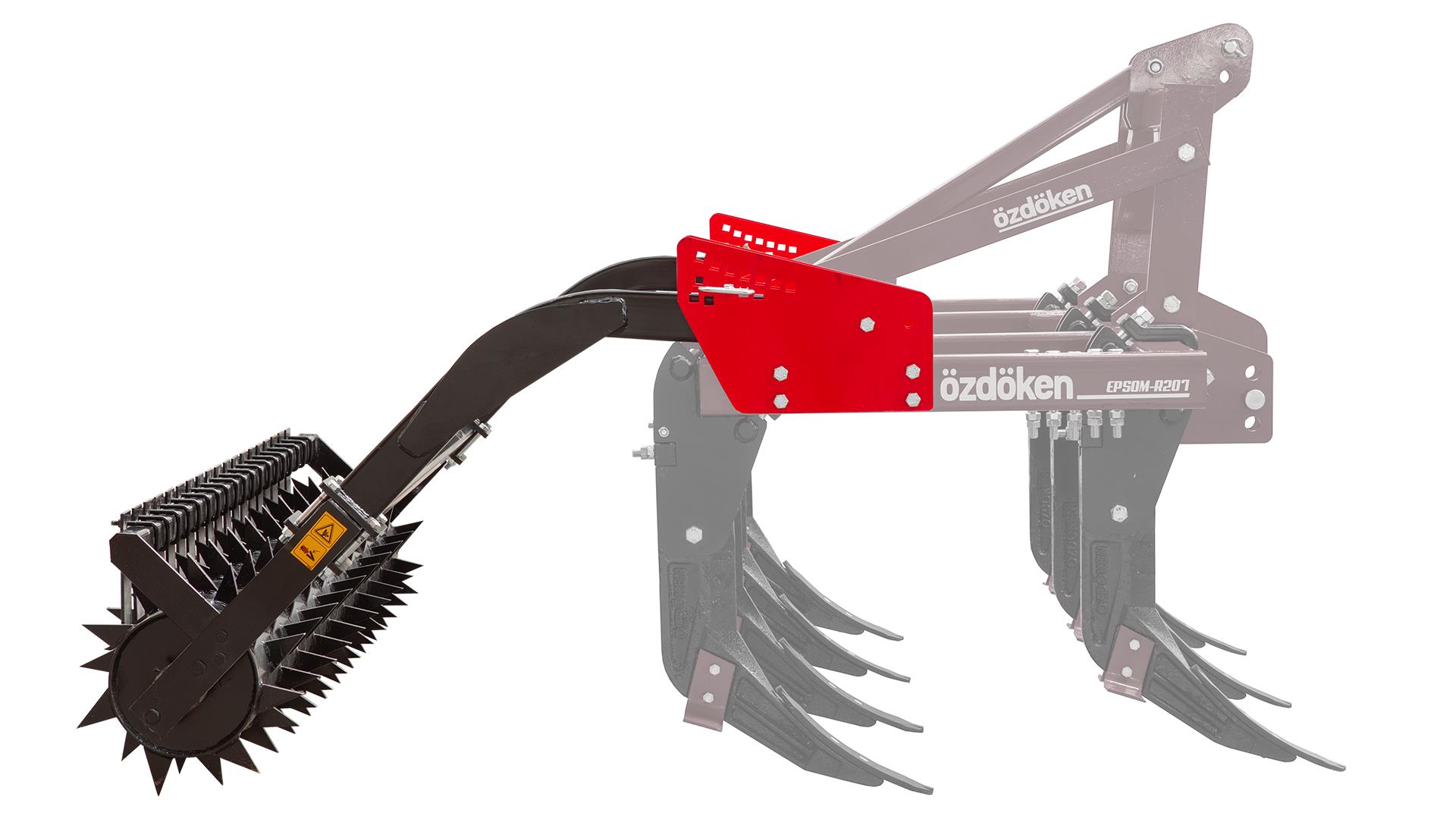

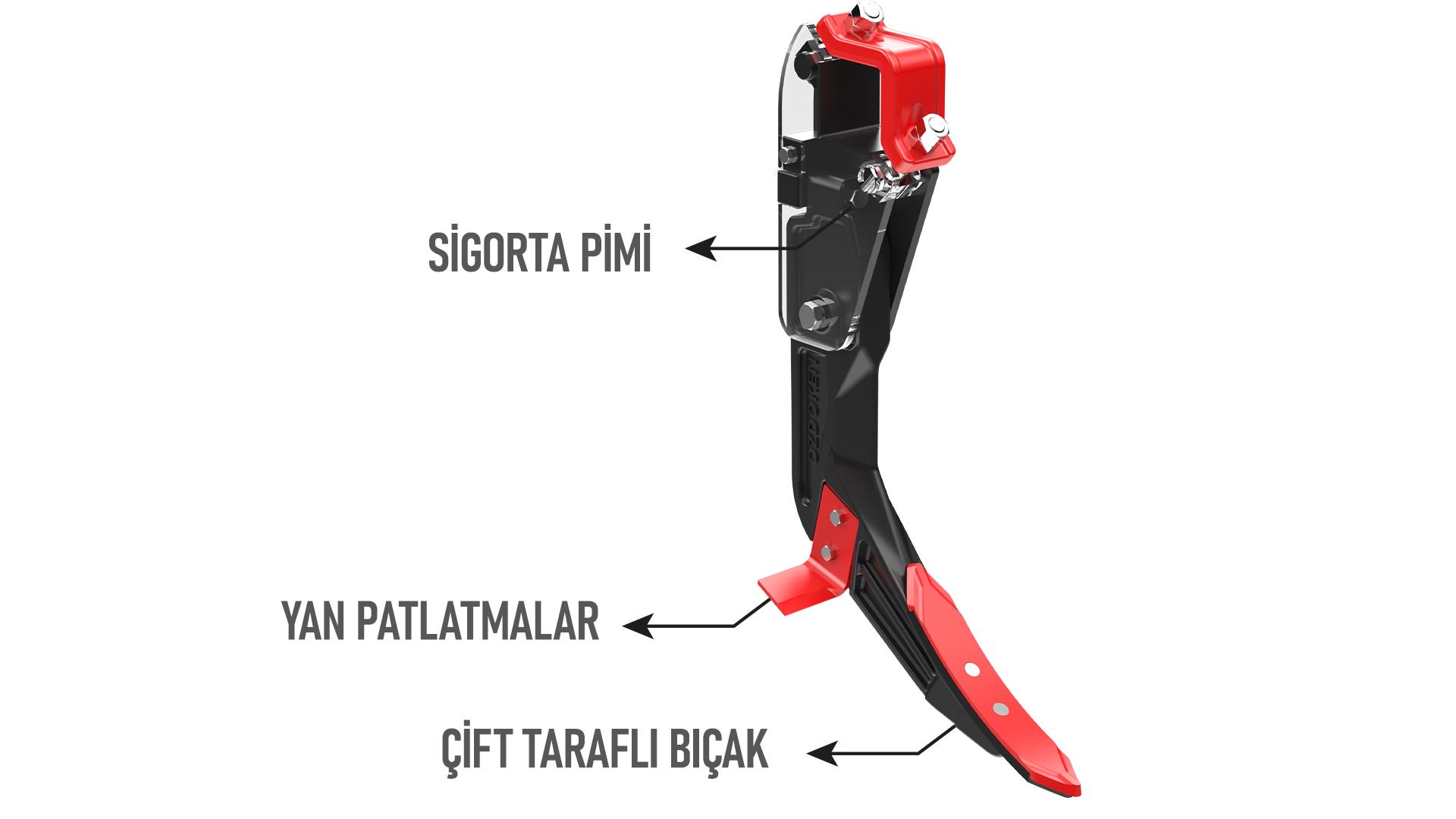

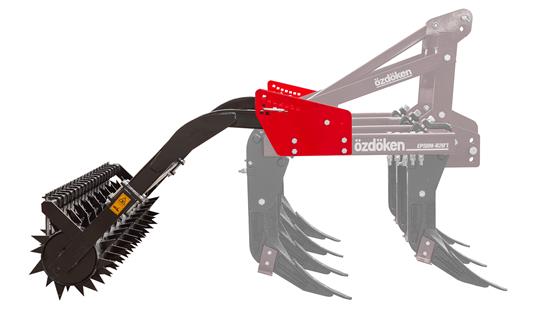

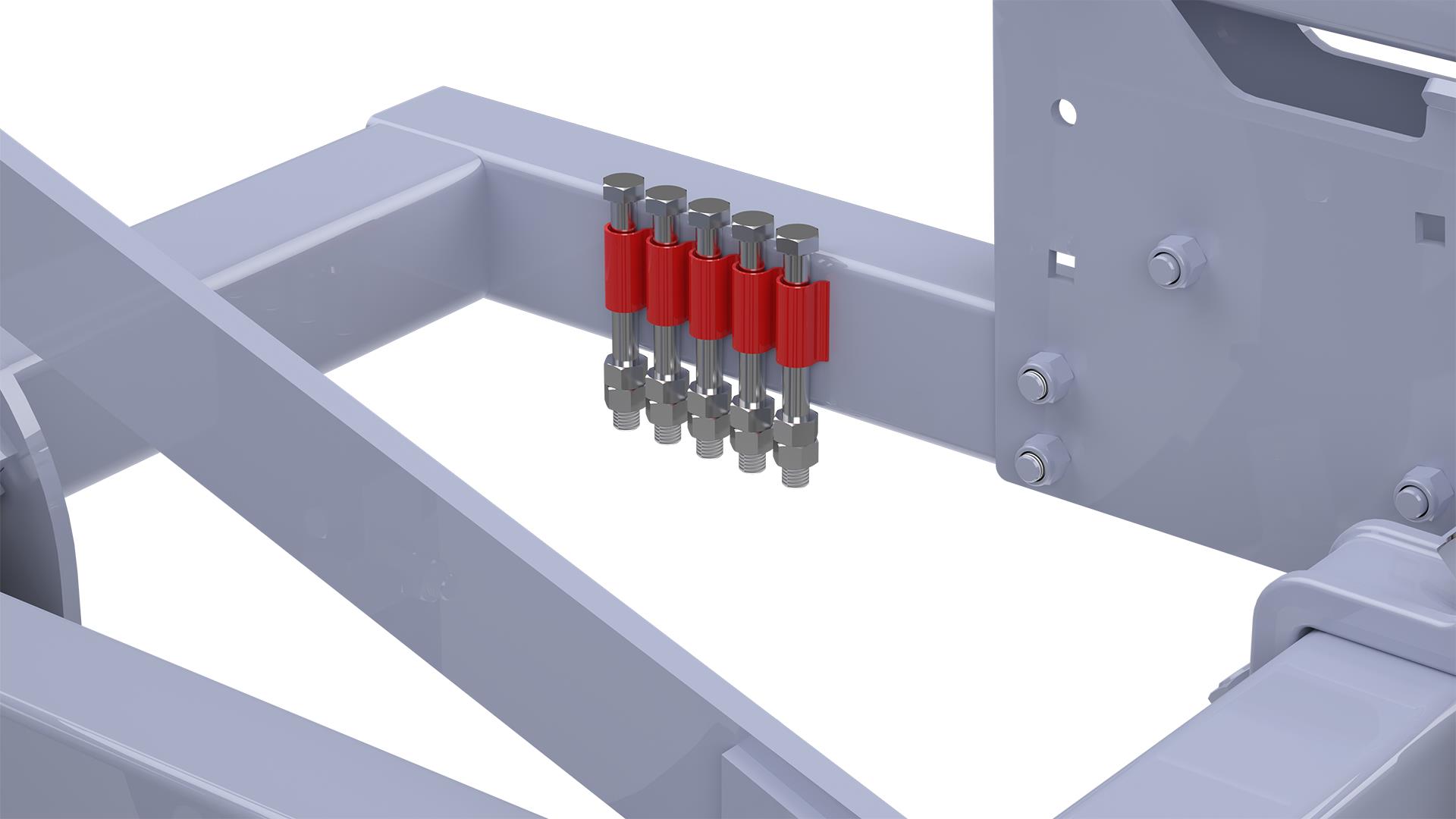

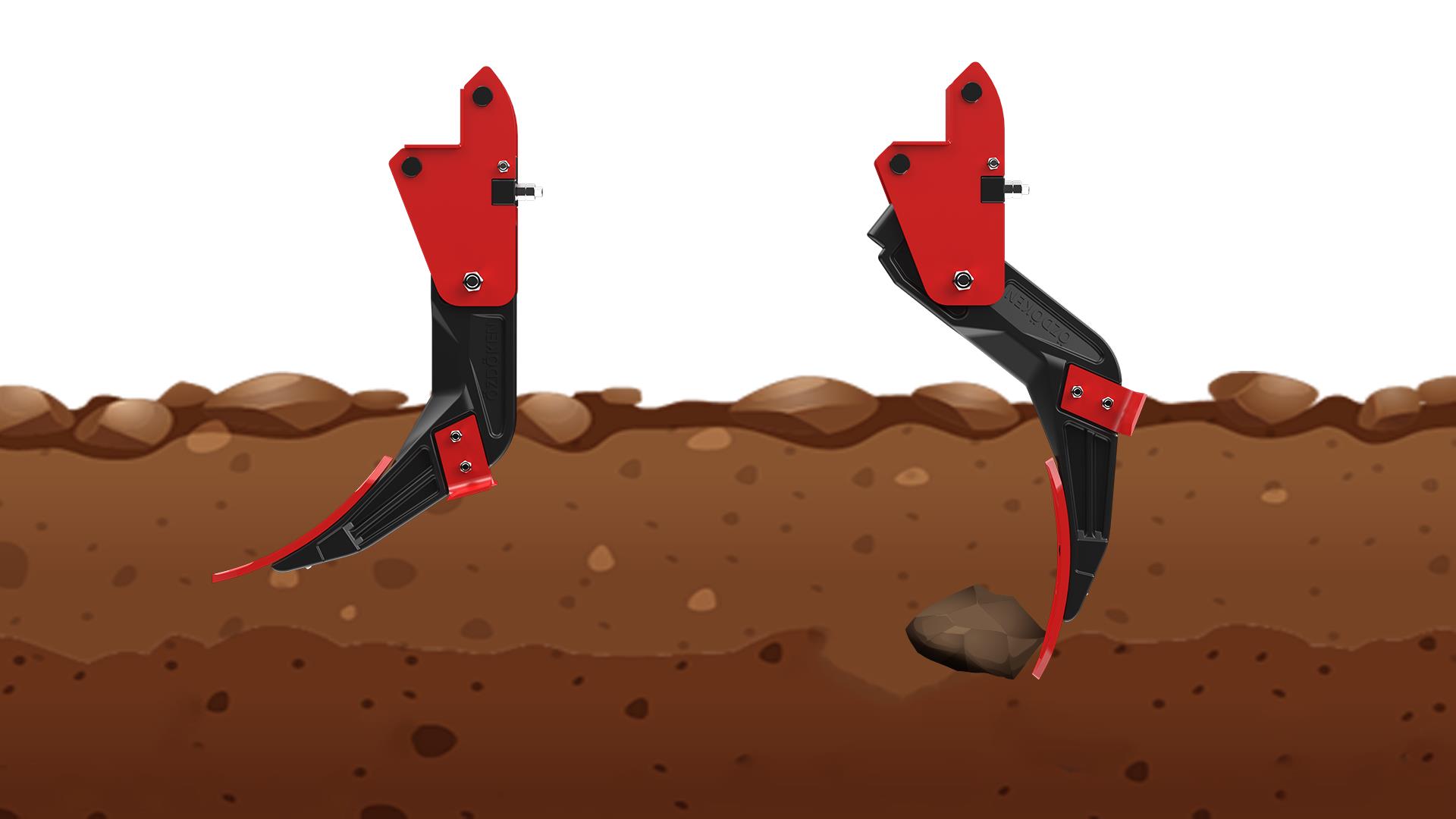

Security PIN “When excessive pressure is placed on the legs, the pin positioned at the front breaks, allowing it to function without harming the legs, even in the toughest soil conditions.” Unfolded roller Spare pins LEG

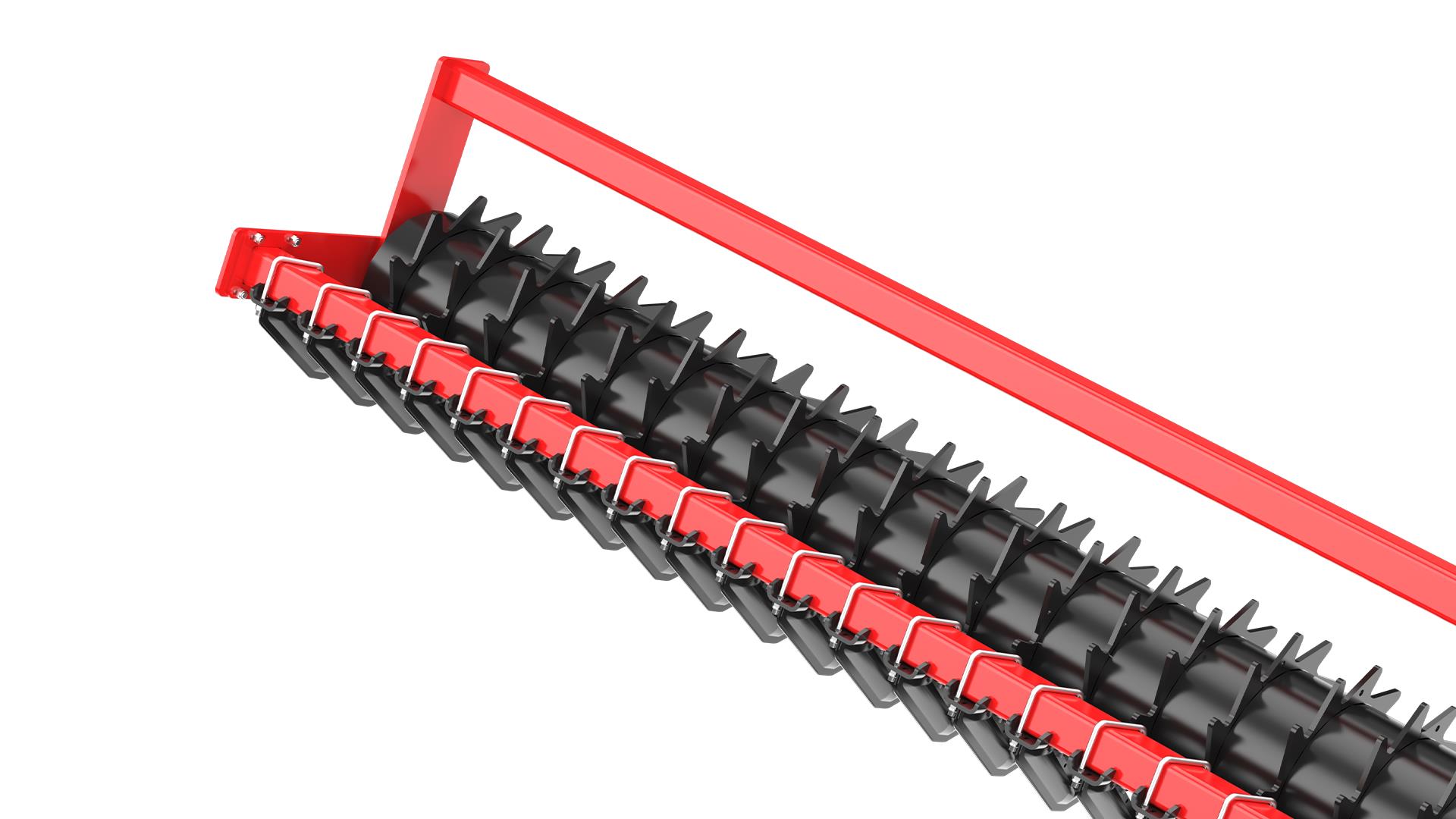

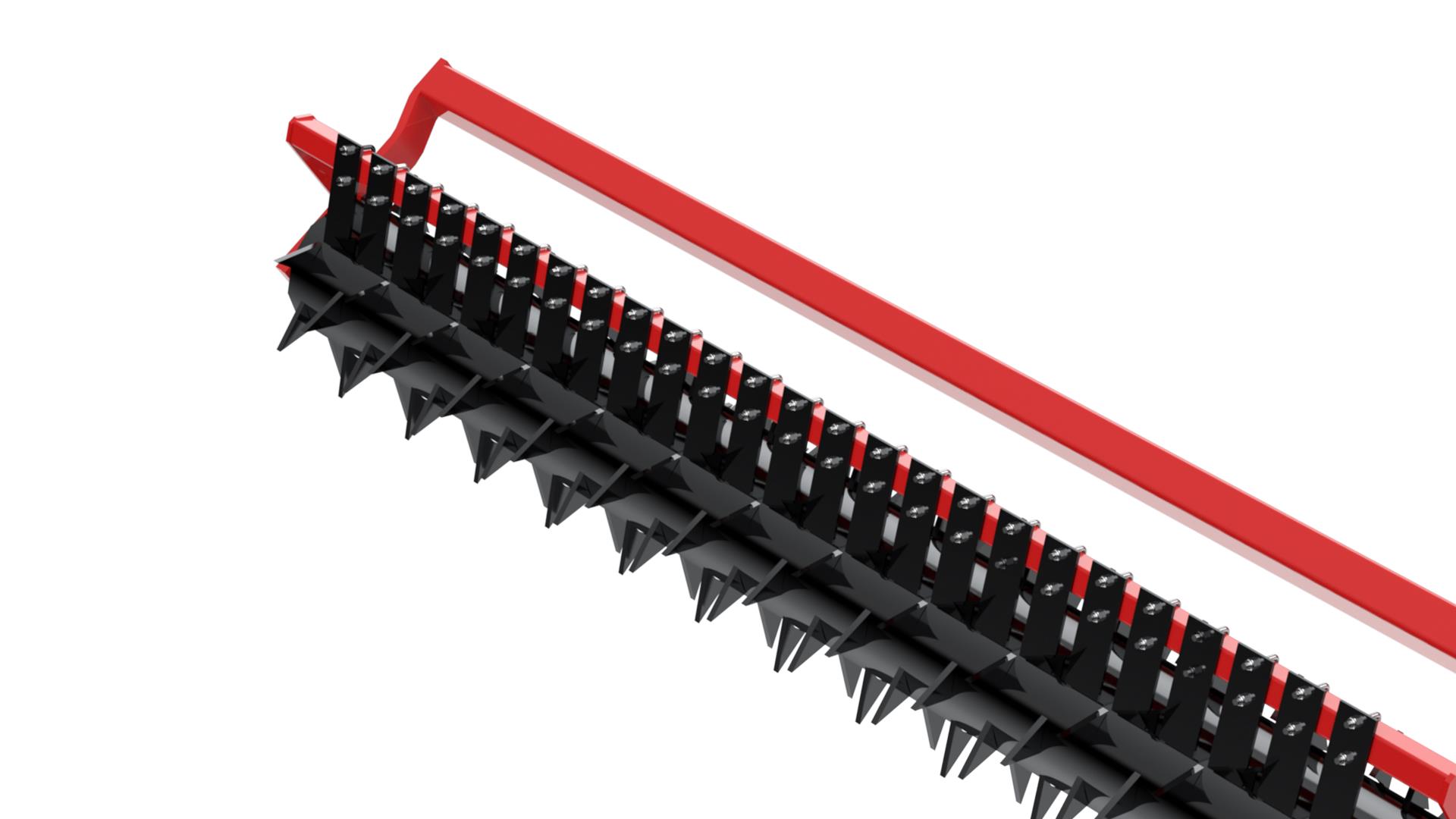

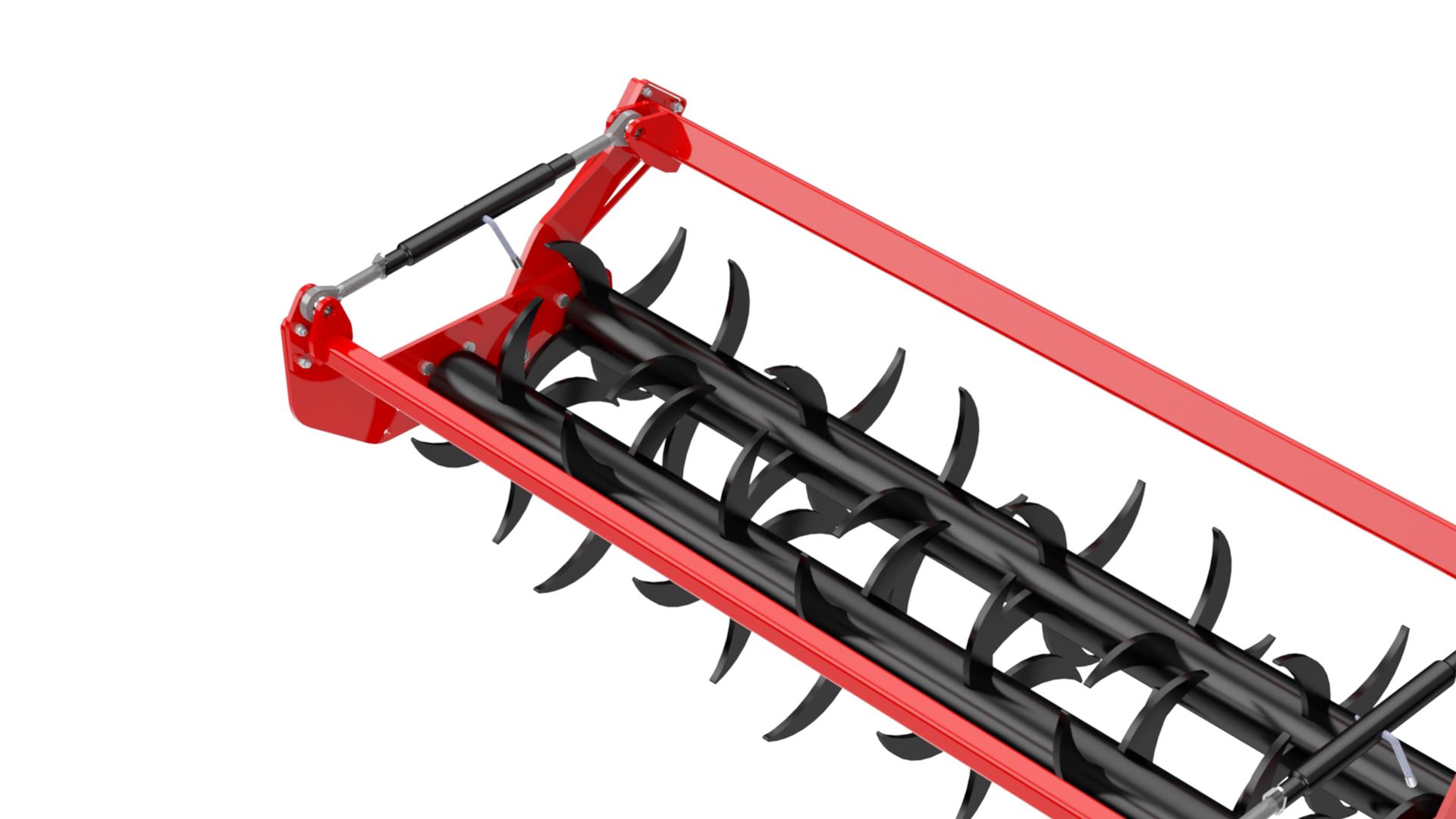

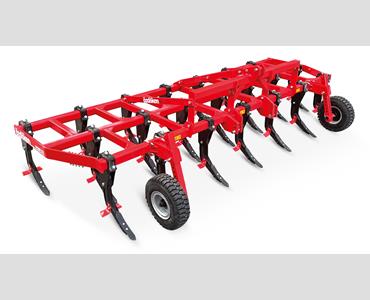

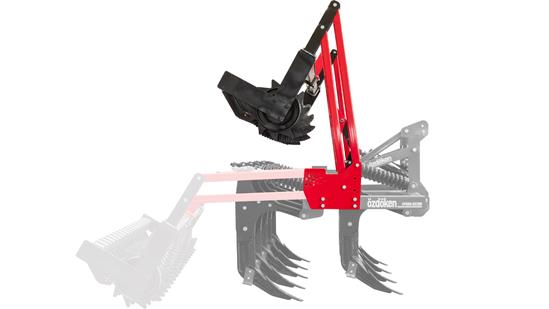

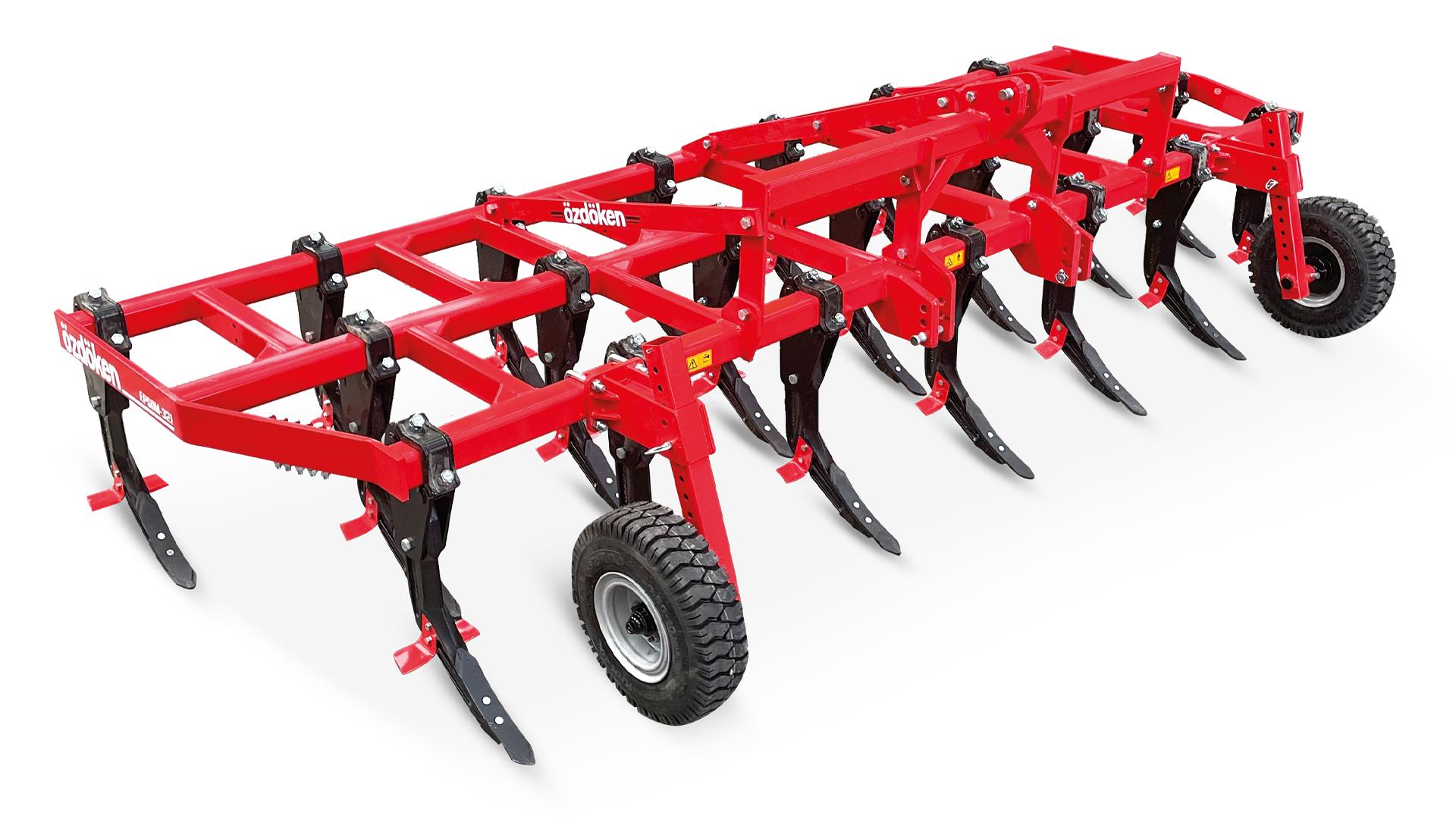

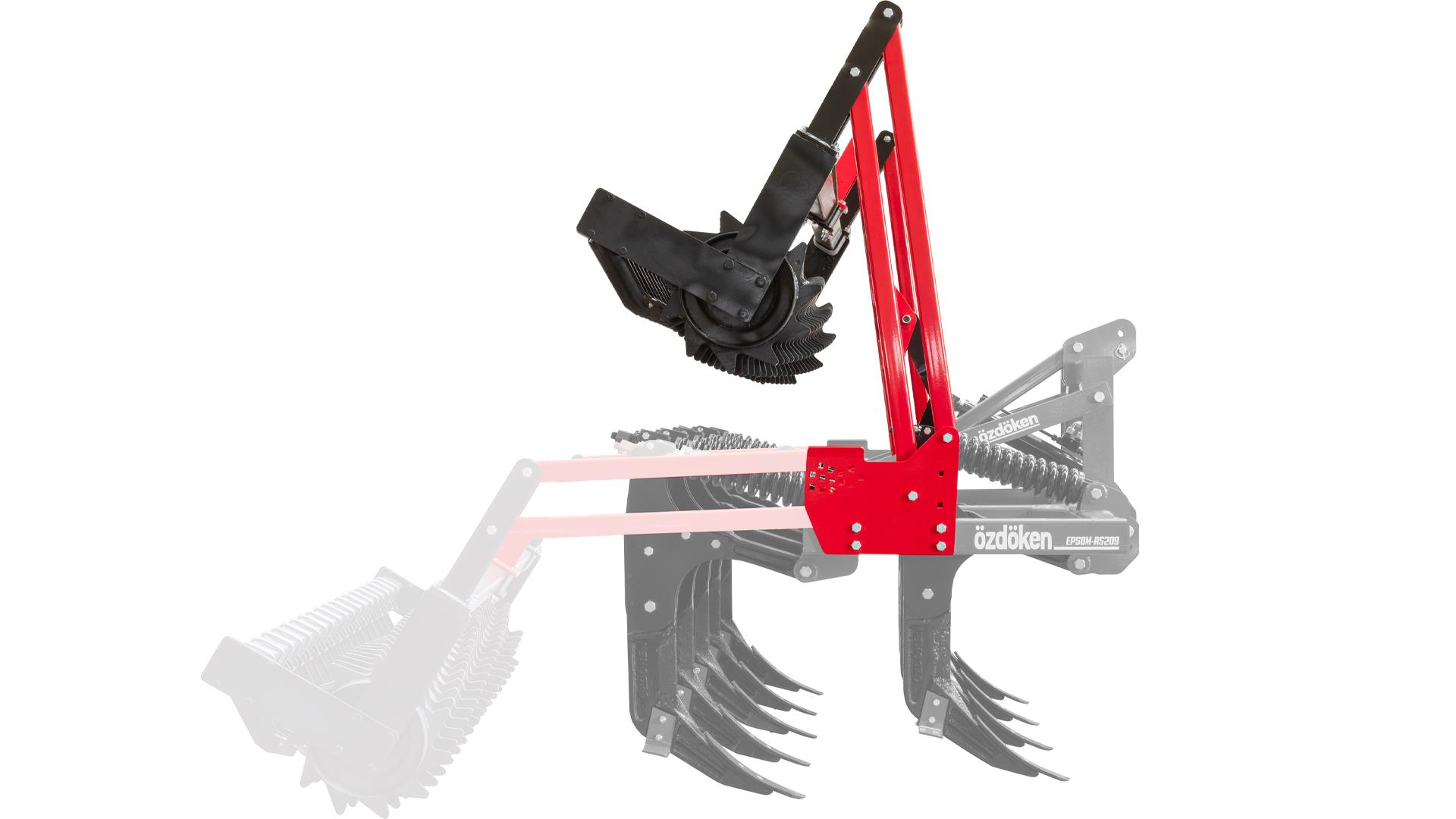

270 MM packer roller 3-ROW frame 320MM packer roller Double 140 MM spike roller Foldable roller Shorter Machine,Less Power Requirment

Technical Specifications

Model	EPSOM-205	EPSOM-207	EPSOM-209	EPSOM-R211	EPSOM-R205	EPSOM-R207	EPSOM-R209
NUMBER OF LEGS (PCS)	5	7	9	11	5	7	9
WORKING WIDTH (cm)	170	220	270	320	170	220	270
TRANSPORT WIDTH (cm)	190	240	290	320	170	220	270
WEIGHT (kg)	500	600	680	838	-	-	-
(270 mm)	-	-	-	-	660	800	940
(320 mm)	-	-	-	-	700	880	1050
(140 mm)	-	-	-	1135	680	850	1000
Total Length (cm)	-	-	-	-	200	200	200
Total Height (cm)	-	-	-	-	140	140	140
POWER REQUIREMENT (hp)	50-70	70-80	80-100	100-165	45-75	65-105	80-135

Model	EPSOM-309	EPSOM-311	EPSOM-313	EPSOM-315	EPSOM-317	EPSOM-R309	EPSOM-R311	EPSOM-R313	EPSOM-R315	EPSOM-R317
NUMBER OF LEGS (pcs)	9	11	13	15	17	9	11	13	15	17
WORKING WIDTH (cm)	220	270	320	370	420	220	270	320	370	420
TRANSPORT WIDTH (cm)	240	290	340	390	440	250	300	350	400	450
WEIGHT (kg)	850	950	1050	1180	1300	-	-	-	-	-
(270 mm)	-	-	-	-	-	1200	1165	1550	1750	2070
(320 mm)	-	-	-	-	-	1350	1550	1800	2050	2420
(140 mm)	-	-	-	-	-	1300	1480	1710	1940	2290
Total Length (cm)	200										200	200	200	200	200	200	200	200	200	200
Total Height (cm)	140										140	140	140	140	140	140	140	140	140	140
POWER REQUIREMENT (hp)	80-135	100-165	115-195	135-225	150-255	80-135	100-165	115-195	135-225	150-255
