FrançaisPRODUCT

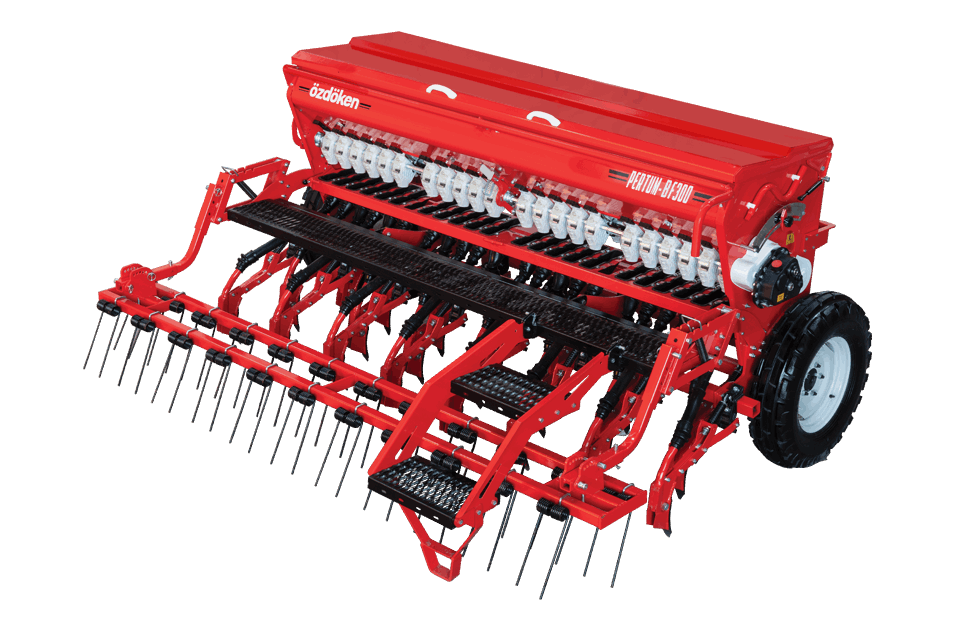

Ozdoken Pertum series are a grain seed drill which can be used as single grain seeding or in combination with all soil tillage equipments. Pertum is avaliable with single disc row unit which has standartly pressure wheel.
Pressure adjustment can be adjusted mechanically.
With the help of variable gearbox seed are sown from 1,5 kg to 400 kg. Dosage meter can be easily adjusted according to seed size.
All range of Pertum Series has double hydraulic row marker standartly.

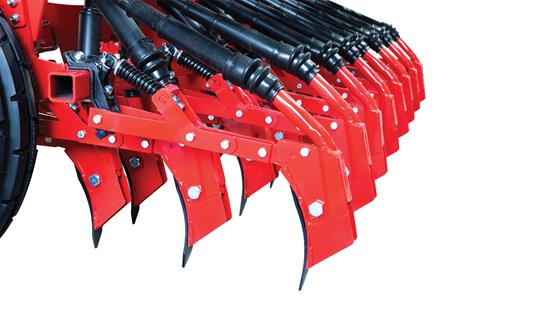

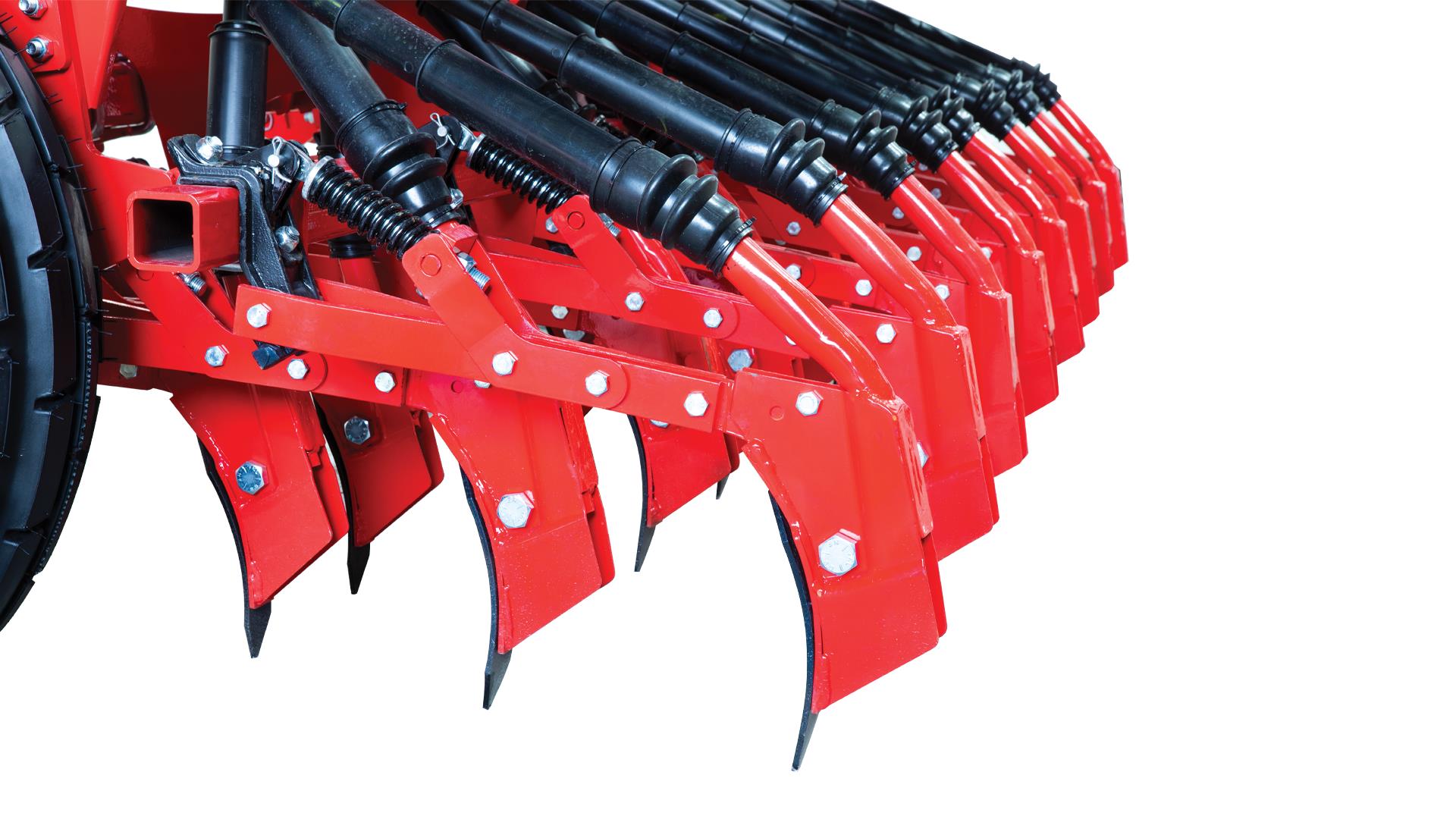

COULTER TYPE ROW UNIT
DOUBLE HYDRAULIC ROW MARKER All Pertum models have double hydraulic row markers standartly.
FOLLOWING TINES Easy to change depth and angle adjustment of following tines.

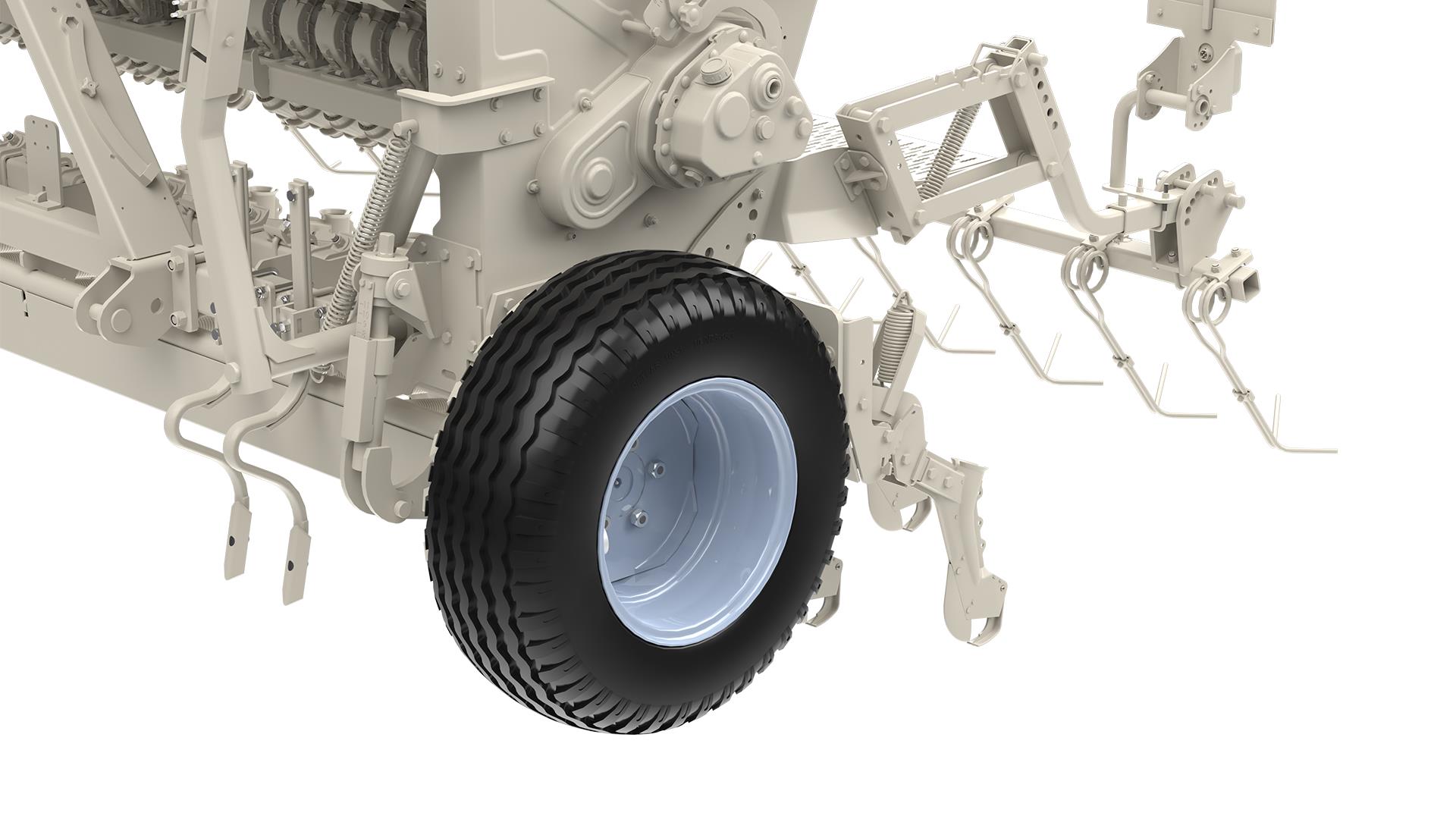

10.0/75-15.3 TRYE
EXTENSION FOR 3 POINT LINKAGE
OPTIONAL - TRACK ERADICATOR-S TINE VERSION

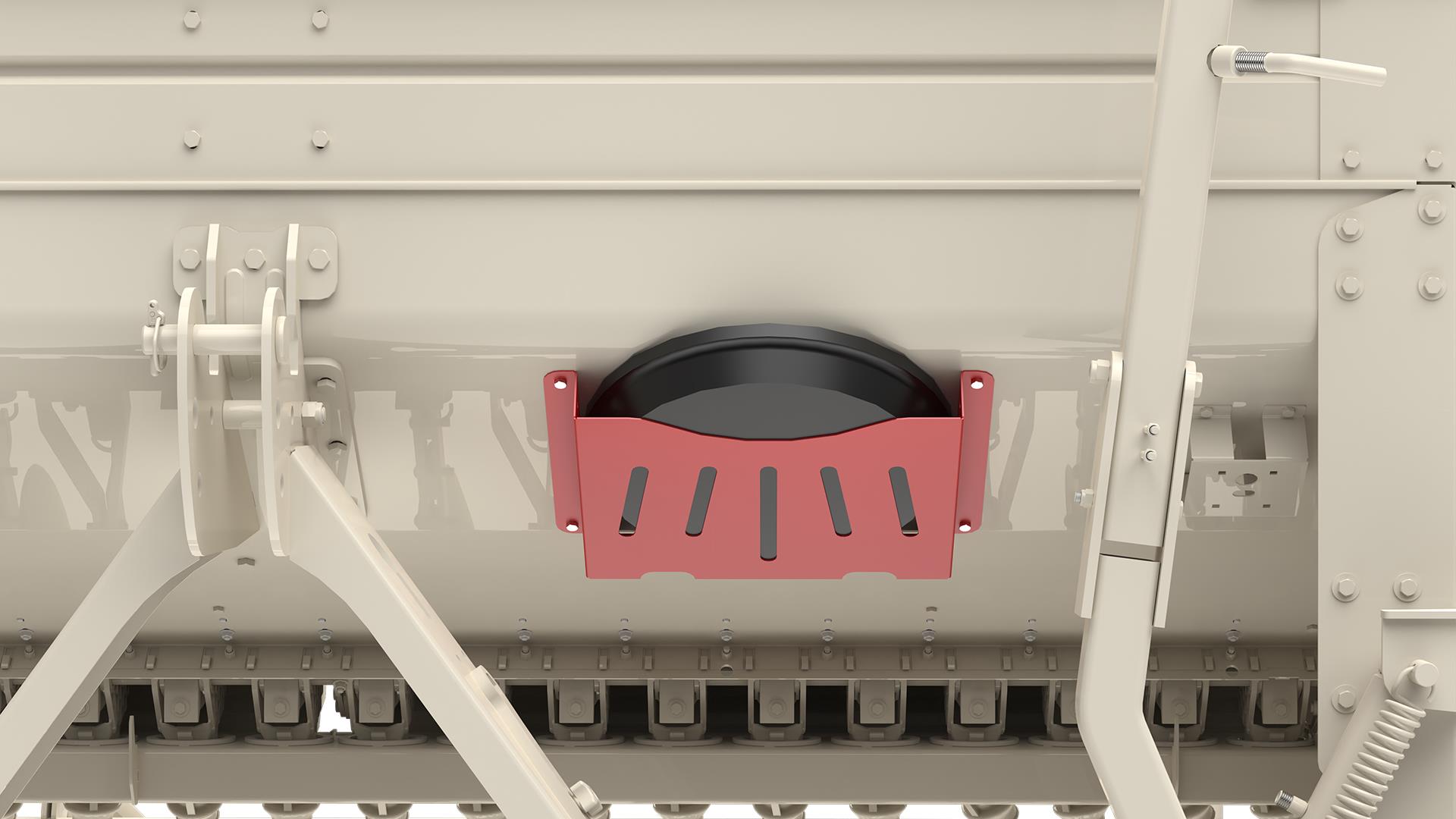

OPTIONEL - CALIBRATION KİT
OPTIONAL - TRACK ERADICATOR-SPRING VERSION
VARIO GEARBOX With the help of variable gearbox seed are sown from 1,5 kg to 400 kg. Dosage meter can be easily adjusted according to seed size.
DOSAGEMETER FOR ALL KIND OF GRAINS The dosagemeter has 2 type of rollers to seed small and normal size seeds . The seed change is very easy without roller change.
6.00x16 TYRE
PRESSURE AND DEPTH ADJUSTMENT Pressure adjustment can be adjusted by mechanically.
OPTIONAL - HOPPER EXTENSION
OPTIONAL - BASIC TRAMLINE

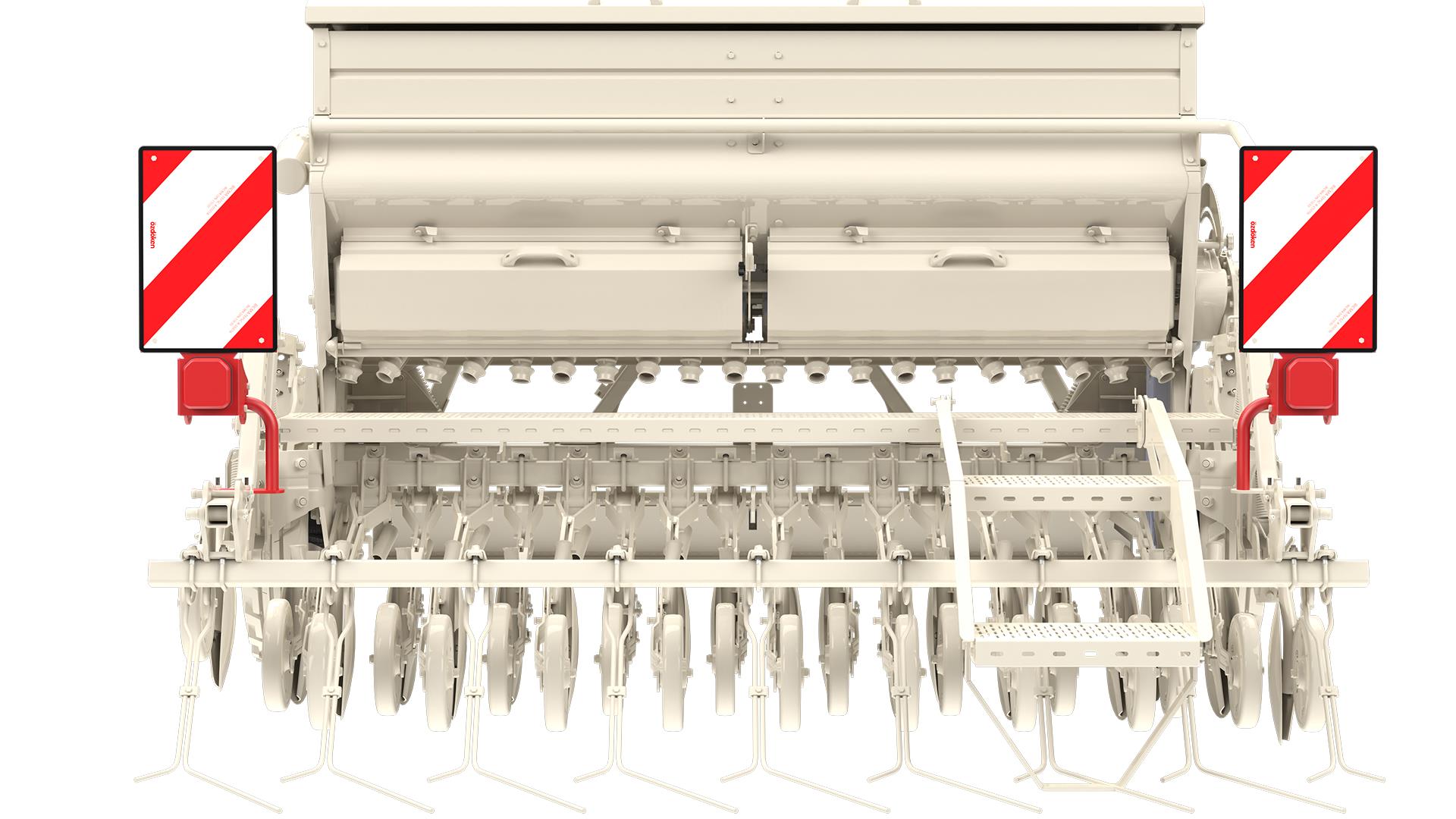

OPTIONAL - TRAFFIC KIT BICMA REFLECTOR POLISH LEDLIGHT | Model | Number of Row Unit | Row Space | Working Width | Transport Width | Height | Length | Tyre Size | Weight | Seed Capacıty | Seed Capacity With Extension | Fertilizer Hopper Capacity | Fertilizer Hopper Capacity With Extension | Power Requirement |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
pcs | cm | cm | cm | cm | cm | kg | lt | lt | lt | lt | hp | ||
| PERTUM-BS250 | 18 | 12,5 | 225 | 250 | 140 | 160 | 6.00X16 | 780 | 480 | - | - | - | 50-70 |
| PERTUM-BS300 | 22 | 12,5 | 275 | 300 | 140 | 160 | 6.00X16 | 970 | 590 | 950 | - | - | 60-80 |
| PERTUM-BS350 | 26 | 12,5 | 325 | 360 | 140 | 160 | 10.0/75-15.3 | 1100 | 700 | 1225 | - | - | 70-90 |
| PERTUM-BS400 | 30 | 12,5 | 375 | 410 | 140 | 160 | 10.0/75-15.3 | 1280 | 830 | 1330 | - | - | 80-110 |
| PERTUM-BF250 | 18 | 12,5 | 225 | 250 | 140 | 160 | 6.00X16 | 850 | 240 | 250 | - | 50-70 | |
| PERTUM-BF300 | 22 | 12,5 | 275 | 300 | 140 | 160 | 6.00X16 | 1140 | 295 | 485 | 310 | 480 | 60-80 |
| PERTUM-BF350 | 26 | 12,5 | 325 | 360 | 140 | 160 | 10.0/75-15.3 | 1190 | 350 | 575 | 370 | 570 | 70-90 |
| PERTUM-BF400 | 30 | 12,5 | 375 | 410 | 140 | 160 | 10.0/75-15.3 | 1370 | 410 | 670 | 430 | 670 | 80-110 |
- The indicated power may vary by approximately ±20% depending on the soil structure and changes in the tractor model (two-wheel drive, etc.).
