FDP SUBSOILER
FDP series subsoilers can achieve 60 cm working depth with less power due to curved tines. Also curved tines allow to do soil loosening homogenously on machine’s working width
Product Equipment
WORKING DEPTH – 60 CM
OPTIONAL - DOUBLE ROLLER
REVERSIBLE BLADE
OPTIONAL - TRAFFIC KIT BICMA REFLECTOR POLISH LEDLIGHT
WORKING DEPTH – 60 CM UNDER BEAM CLEARANCE – 90 CM

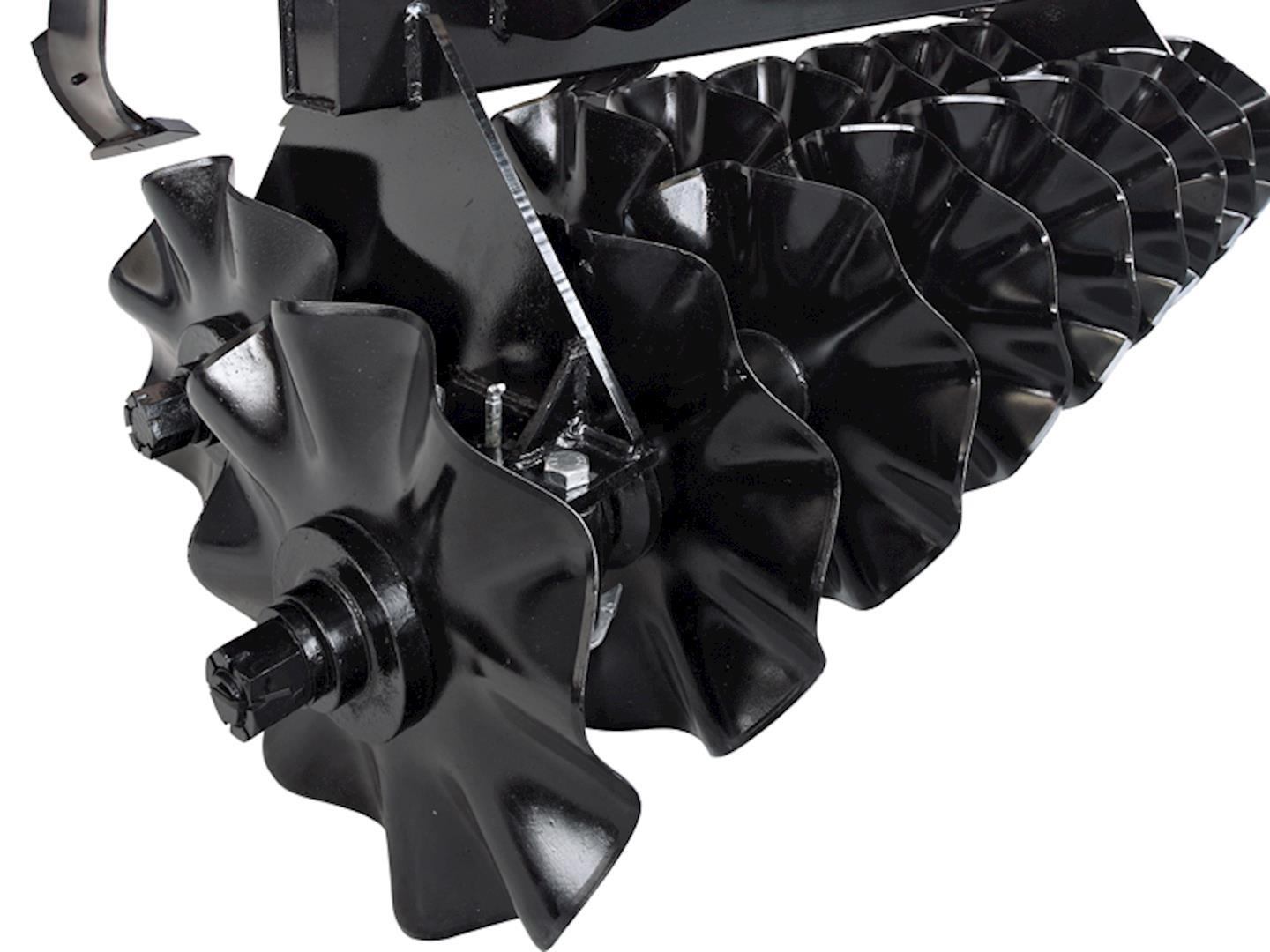

OPTIONAL - DOUBLE ROLLER Optional Double Disc Roller helps to prepare seed bed preparation.
REVERSIBLE BLADE Reversible blade made from boron steel for durability and long working life.
OPTIONAL - TRAFFIC KIT BICMA REFLECTOR POLISH LEDLIGHT Technical Specifications
| MODEL | NUMBER OF LEGS | ROW SPACE (cm) | FRAME SIZE (cm) | WEIGHT (kg) | WORKING WIDTH (cm) | TRANSPORT WIDHT (cm) | POWER REQUIREMENT |
| FDP-2 | 2 | 50 | 120 x 120 x 8 | 575 | 140 | 160 | 70-80 hp |
| FDP-4 | 4 | 860 | 230 | 250 | 100-120 hp | ||
| FDP-6 | 6 | 1145 | 330 | 350 | 160-180 hp | ||
| FDP-8 | 8 | 1445 | 430 | 450 | 200-240 hp | ||
| FDP-10 | 10 | 2340 | 530 | 550 | 240-260 hp | ||
| FDP-12 | 12 | 2640 | 630 | 650 | 300-350 hp | ||
| FDP-OM-2 | 2 | 665 | 140 | 160 | 70-80 hp | ||
| FDP-OM-4 | 4 | 1310 | 230 | 250 | 100-120 hp | ||
| FDP-OM-6 | 6 | 1685 | 330 | 350 | 160-180 hp | ||
| FDP-OM-8 | 8 | 3160 | 430 | 450 | 200-240 hp | ||
| FDP-OM-10 | 10 | 3920 | 530 | 550 | 240-260 hp | ||
| FDP-OM-12 | 12 | 4750 | 630 | 650 | 300-350 hp |
Product Pictures
