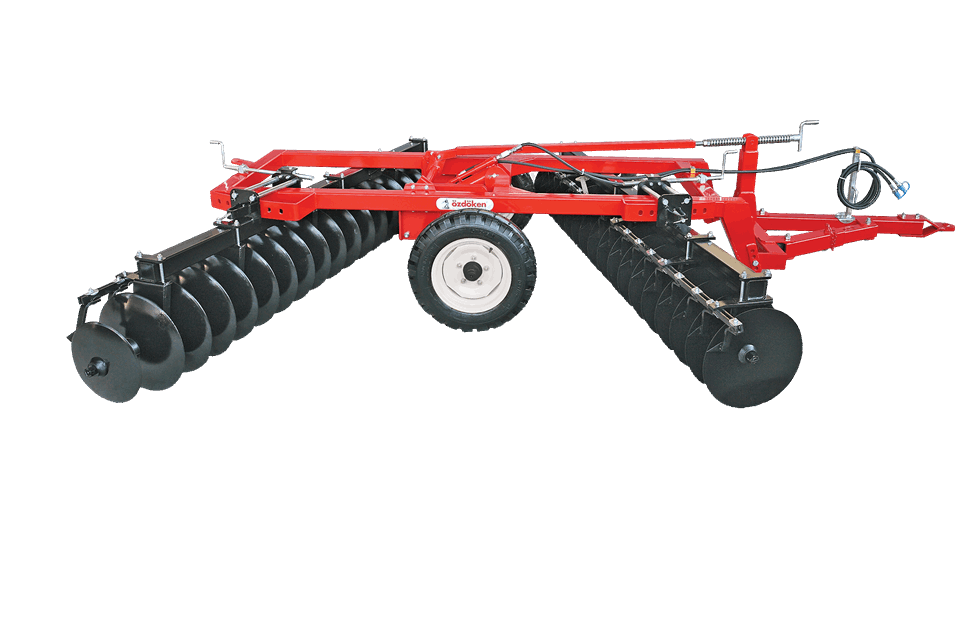

PGD-H TRAILED LIGHT TYPE DISC HARROW
PGD-H TRAILED LIGHT TYPE DISC HARROW
Product Equipment
CEMENTED SCRAPERS CEMENTED SCRAPERS

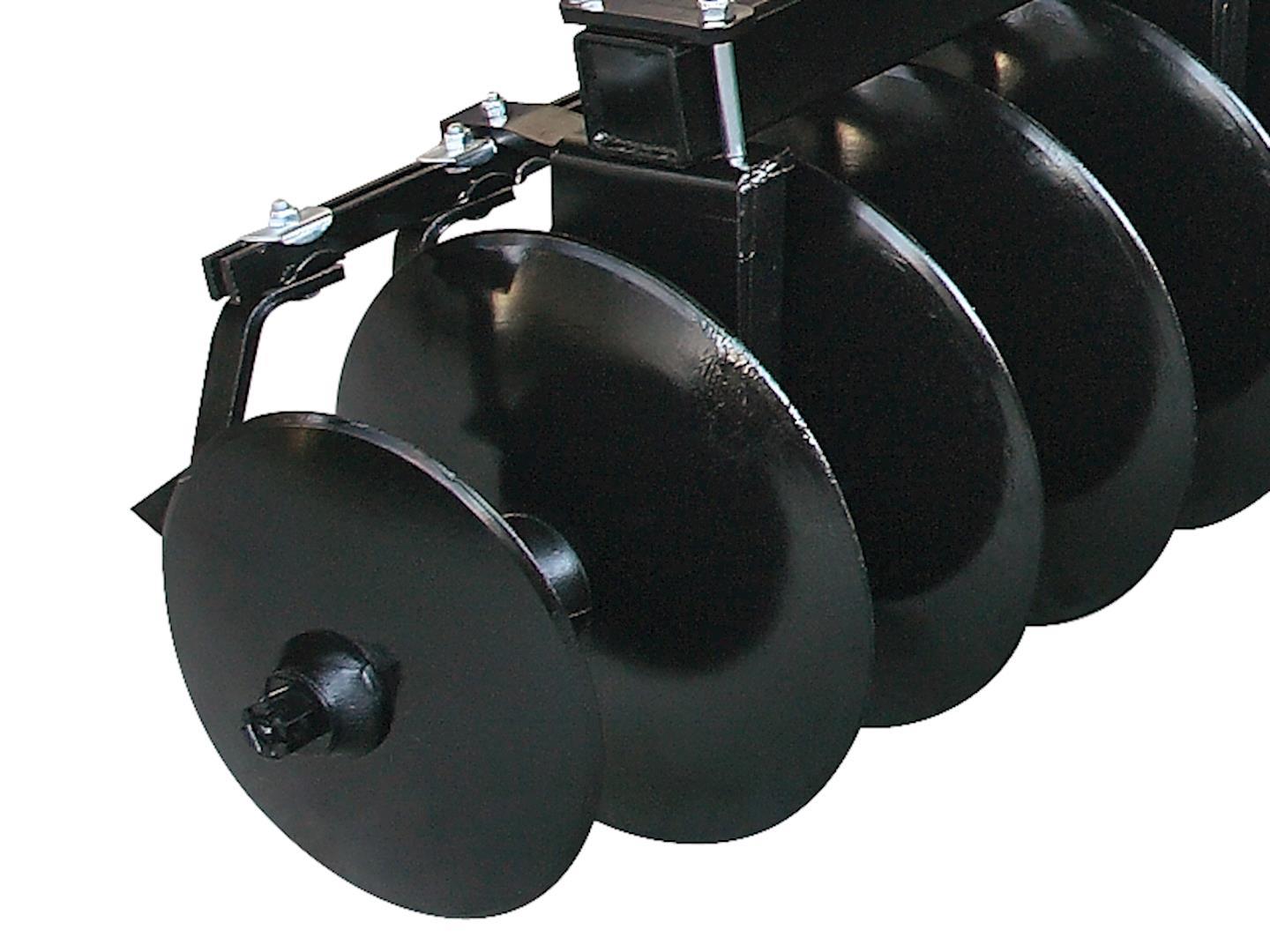

FURROW CLOSER FURROW CLOSER

Balance Arm Balance Arm

LONG LIFE BEARING LONG LIFE BEARING

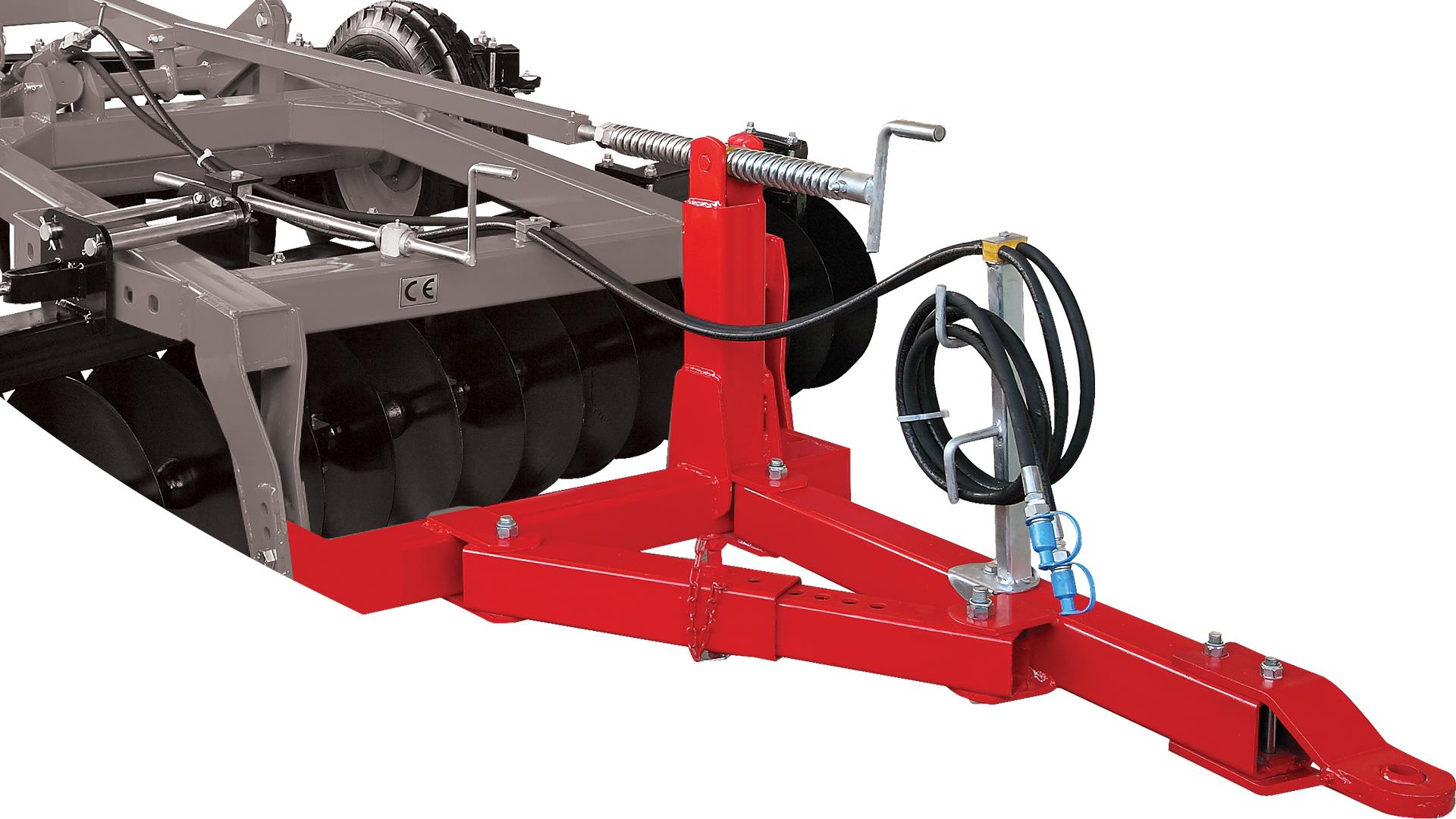

ADJUSTABLE TOOL BAR ADJUSTABLE TOOL BAR

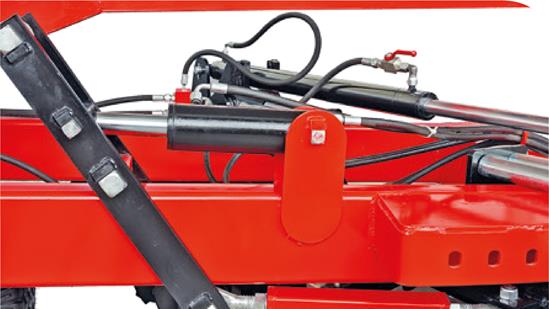

OPTIONAL - HYDRAULIC ANGLE ADJUSTMENT OPTIONAL - HYDRAULIC ANGLE ADJUSTMENT

Technical Specifications


MODELS
NUMBER OF DISC
(pcs)
DISC DIMENSION
(mm)
DISC TO DISC DISTANCE (cm)
NUMBER OF BEARING
(pcs)
FRAME SIZE
(cm)

WEIGHT

(kg)

WORKING WIDHT

(cm)

TRANSPORT WIDHT

(cm)

POWER REQUIREMENT
PGD-H28
28
460 X 3,5 / 510 X4
18
8
100 X 100 X 6
109025227364-80 hp
PGD-H32
32
460 X 3,5 / 510 X4
18
8
100 X 100 X 6
122028830975-90 hp
PGD-H36
36
460 X 3,5 / 510 X4
18
12
100 X 100 X 8
130532434590-105 hp
PGD-H40
40
460 X 3,5 / 510 X4
18
12
100 X 100 X 8
1335360381100-112 hp
PGD-H44
44
460 X 3,5 / 510 X4
18
12
100 X 100 X 8
1410396417115-130 hp
PGD-H4848
460 X 3,5 / 510 X4
18
12
150 X 100 X 8
1580432453115-130 hp
