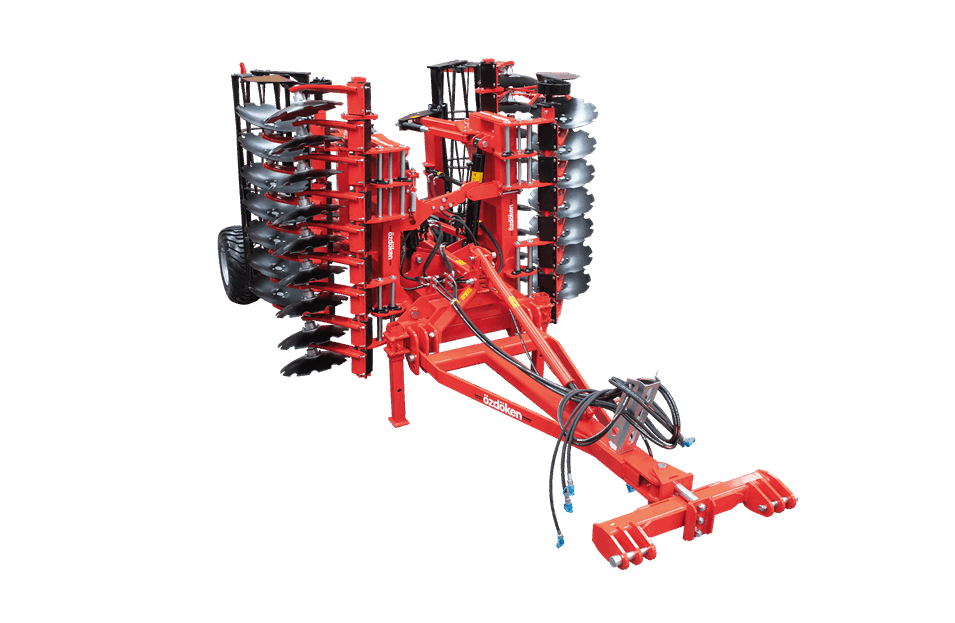

EVODISC TK - TRAILED TYPE FOLDABLE FRAME
Product Equipment
MECHANICAL ANGEL ADJUSTMNET
RUBER SUSPENSION
SHORTER MACHINE LESS PUISSANCE REQUISE
OPTIONAL - DOUBLE CAGE ROLLER
OPTIONAL - DOUBLE U TYPE ROLLER
OPTIONAL - RUBBER ROLLER
SIDE DEFLECTOR
ADJUSTABLE SIDE DISCS
OPTIONAL - CAGE ROLLER 500 MM
OPTIONAL - SINGLE U TYPE ROLLER
OPTIONAL - PACKER ROLLER 460 MM
OPTIONAL - V TYPE ROLLER 500 MM
MECHANICAL ANGEL ADJUSTMNET
RUBER SUSPENSION
SHORTER MACHINE LESS PUISSANCE REQUISE
OPTIONAL - DOUBLE CAGE ROLLER
OPTIONAL - DOUBLE U TYPE ROLLER
OPTIONAL - RUBBER ROLLER
SIDE DEFLECTOR
ADJUSTABLE SIDE DISCS
OPTIONAL - CAGE ROLLER 500 MM
OPTIONAL - SINGLE U TYPE ROLLER
OPTIONAL - PACKER ROLLER 460 MM
OPTIONAL - V TYPE ROLLER 500 MM Technical Specifications
| MODEL | NUMBER OF DISCS | DISC DIMENSION (mm) | WORKING WIDHT (cm) | TRANSPORT WIDHT (cm) | WEIGHT (kg) | POWER REQUIMENT |
| EVODISC TK400 | 32 | 510X4,0 / 560X4,5 | 400 | 300 | 3845 | 150-200 |
| EVODISC TK500 | 40 | 510X4,0 / 560X4,5 | 500 | 300 | 4245 | 190-240 |
| EVODISCT TK600 | 48 | 510X4,0 / 560X4,5 | 600 | 300 | 4735 | 220-260 |
