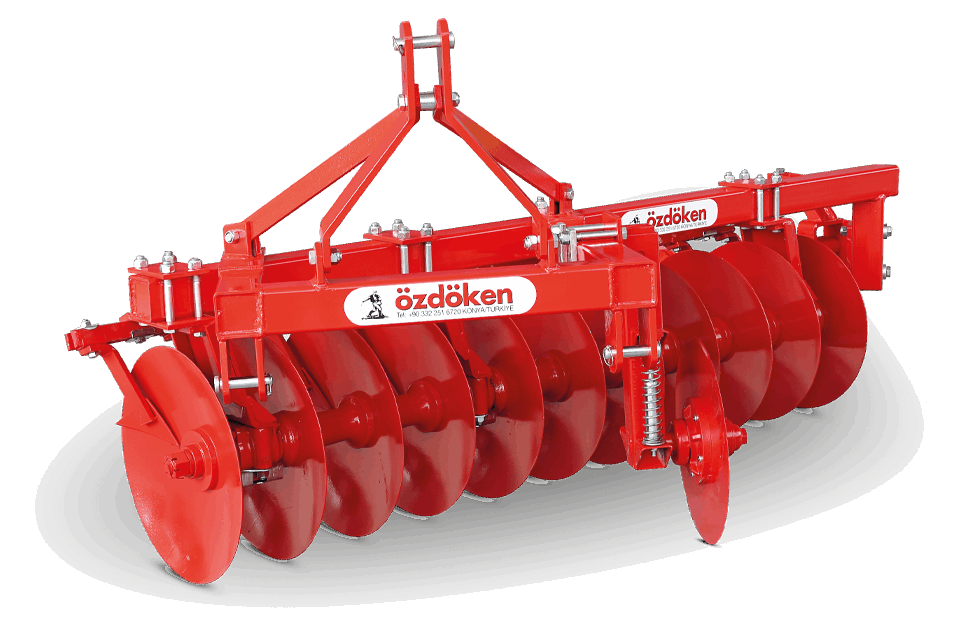

VVY - MOUNTED SINGLE LINE DISCHARROW
VVY - MOUNTED SINGLE LINE DISCHARROW


Product Equipment
CEMENTED SCRAPERS CEMENTED SCRAPERS

MOUNTED AND TRAILED WORKING MOUNTED AND TRAILED WORKING

ADJUSTMENT TOOL BAR ADJUSTMENT TOOL BAR

LONG LIFE BEARING LONG LIFE BEARING

FURROW CLOSER FURROW CLOSER

HYDRAULIC ANGLE ADJUSTMENT HYDRAULIC ANGLE ADJUSTMENT

Technical Specifications
MODEL
NUMBER OF DISCS
DISC DIMENSION
(mm)
 DISC TO DISC DISTANCE (cm)
NUMBER OF BEARING
(pcs)
FRAME SIZE
(cm)

WEIGHT

(kg)

WORKING WIDHT (cm)

TRANSPORT WIDHT

(cm)

 POWER REQUIREMENT
VVY-8
 8 560 x 4,5 22 2 100 x 100 x 6 550 176 210 55-65
VVY-9 9 560 x 4,5 22 2 100 x 100 x 6 580 198 238 60-70
VVY-10 10 560 x 4,5 22 2 100 x 100 x 6 620 220 270 65-75
VVY-11 11 560 x 4,5 22 3 100 x 100 x 6 650 242 285 70-80
VVY-12 12 560 x 4,5 22 3 100 x 100 x 6 690 264 300 75-85
VVY-13 13 560 x 4,5 22 3 100 x 100 x 6 730 286 330 80-90
VVY-14 14 560 x 4,5 22 4 100 x 100 x 6 765 308 360 85-95
VVY-15 15 560 x 4,5 22 4 100 x 100 x 6 795 330 370 90-100
VVY16 16 560 x 4,5 22 4 100 x 100 x 6 820 352 400 95-105

The specified horsepower may vary by up to ±20% depending on soil conditions and tractor model differences (e.g., 4WD, etc.)

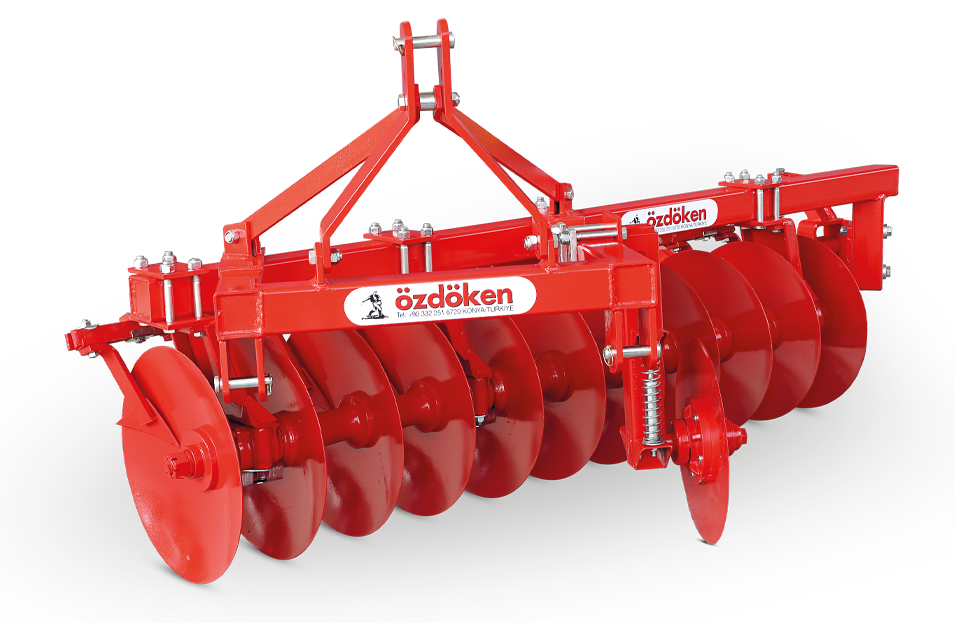

Product Pictures
