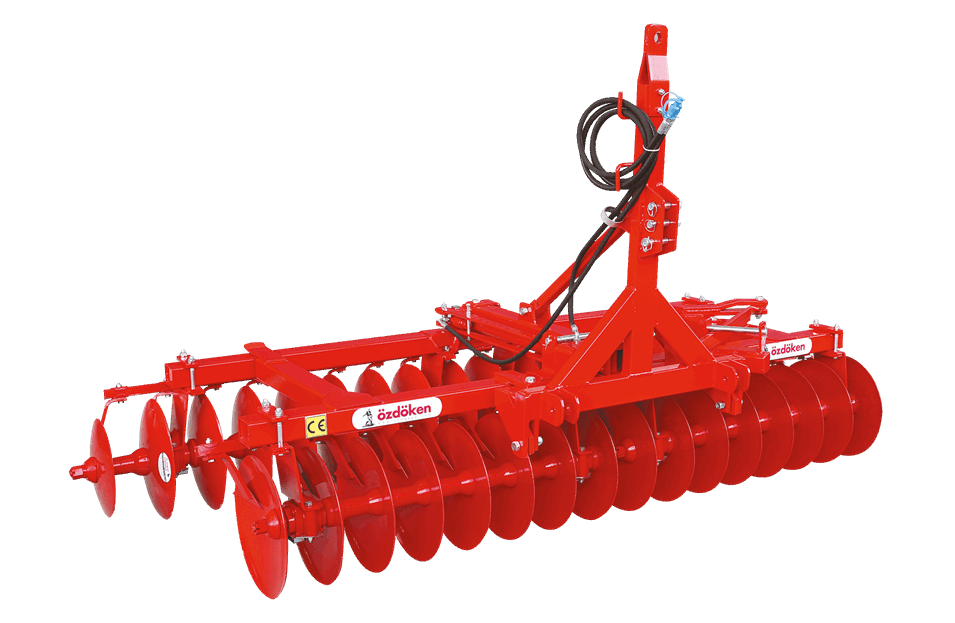

The Özdöken AÇD model is a lightweight disc harrow that can be used both as a trailed and hydraulic type. It is designed to break clods and mix them into the soil after plowing, preparing the seedbed. It efficiently chops plant residues and weeds. Unlike tandem-style disc harrows, it does not create ridges in the center of the machine.
Optional: Ability to adjust the angle from the tractor via the link mechanism.
Standard 46 cm boron steel disc blades. Optional 51 cm disc blades available.
Forged steel bearing structure with 4 seals and 2 ball bearings, compliant with European standards.
With the additional disc, you can work your field without creating furrows or spending extra time filling them.
Cemented scrapers with blade-sharp edges make it easy to clean soil or residue from the discs.
CEMENTED SCRAPERS

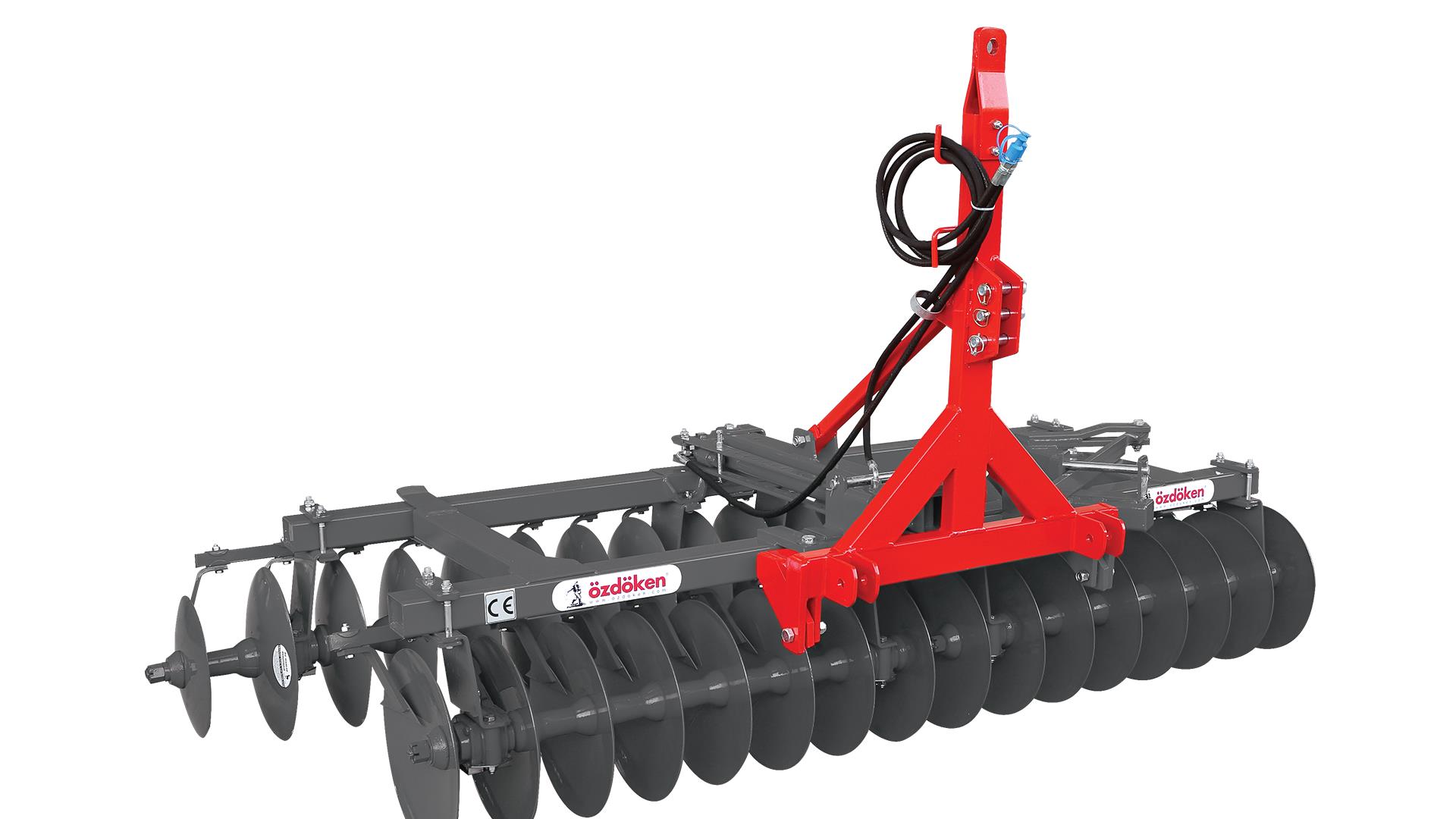

MOUNTED AND TRAILED WORKING

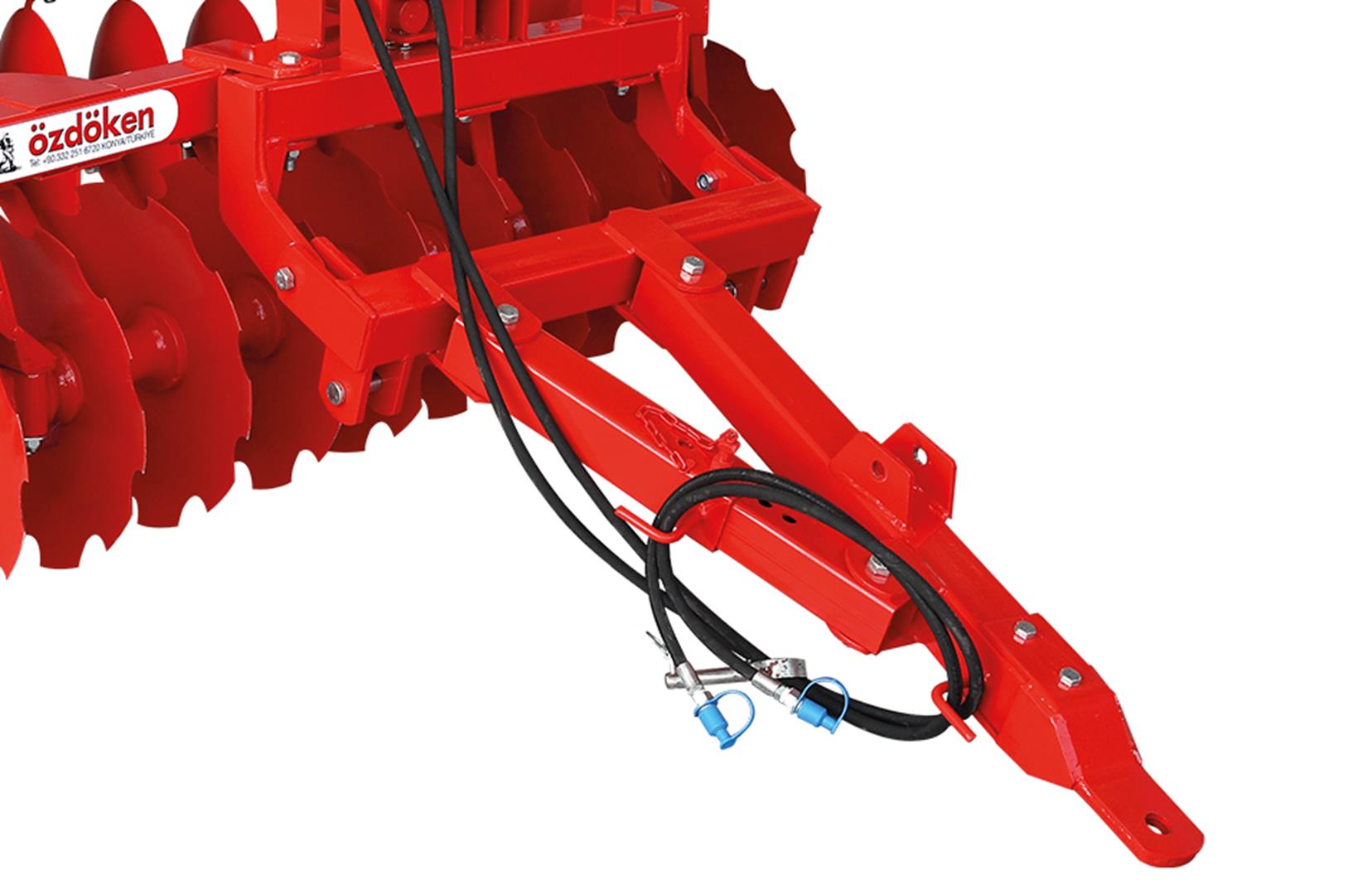

ADJUSTMENT TOOL BAR

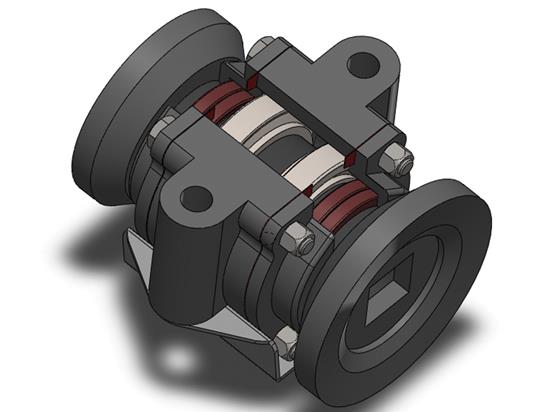

LONG LIFE BEARING

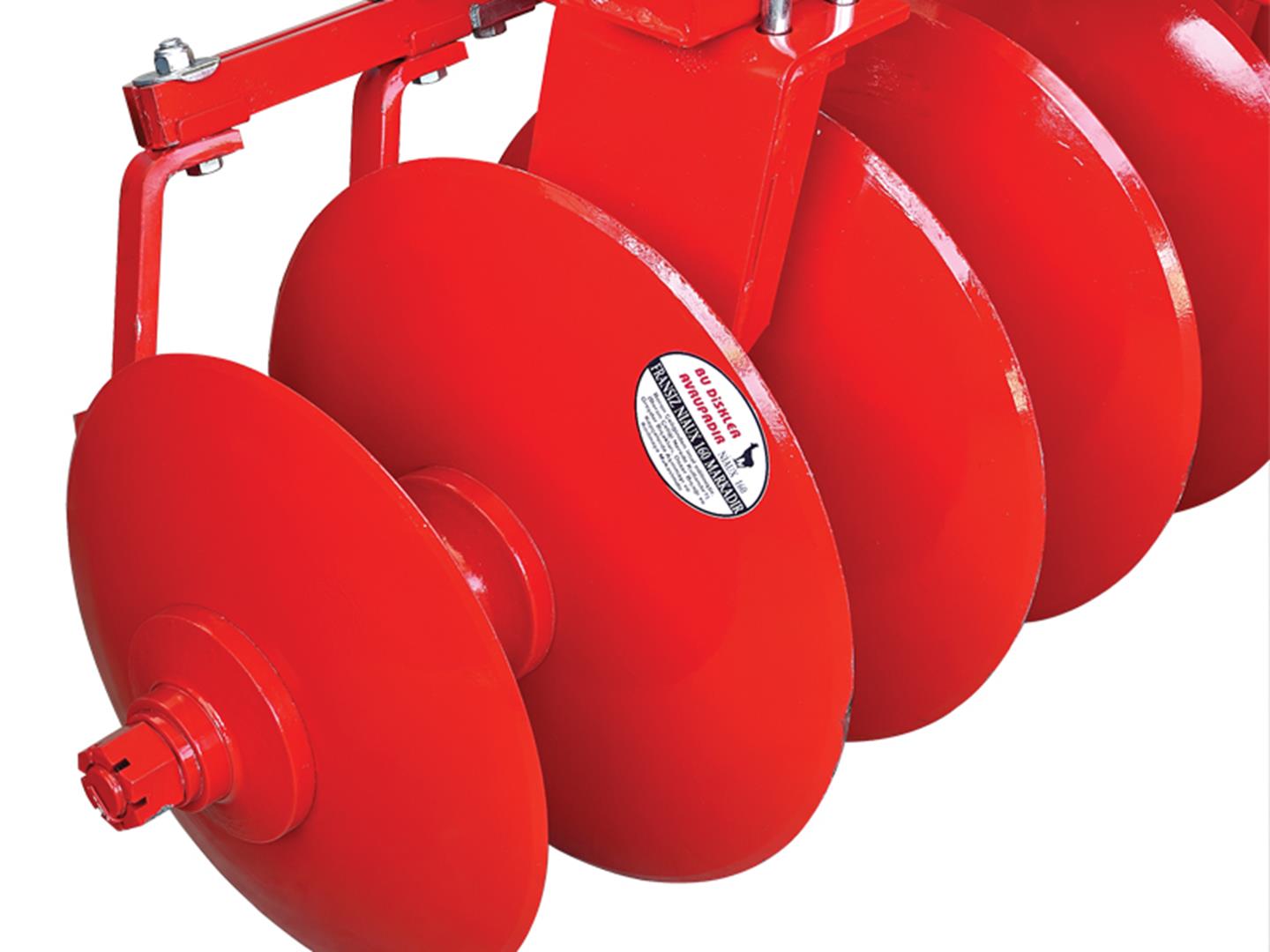

FURROW CLOSER

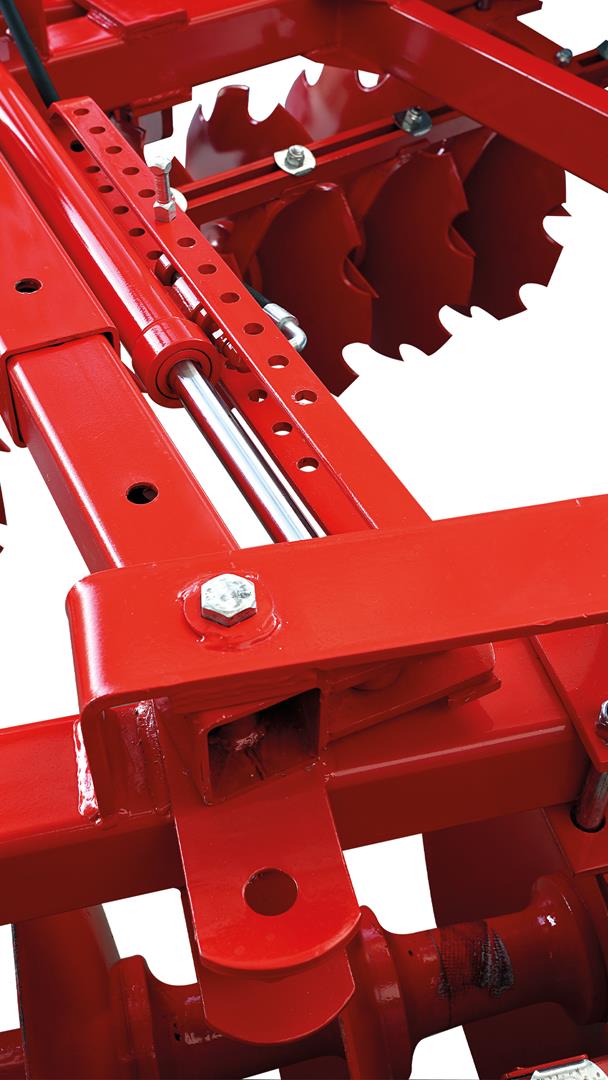

HYDRAULIC ANGLE ADJUSTMENT | MODEL | NUMBER OF DISCS | DISC DIMENSION (mm) | DISC TO DISC DISTANCE (cm) | NUMBER OF BEARING (pcs) | FRAME SIZE (cm) | WEIGHT (kg) | WORKING WIDHT (cm) | TRANSPORT WIDHT (cm) | POWER REQUIREMENT |
| ACD-22 | 22 | 460 x 3,5 / 510 x 4,00 | 18 | 8 | 80 x 100 x 5 | 615 | 198 | 219 | 55-65 |
| ACD-24 | 24 | 460 x 3,5 / 510 x 4,00 | 18 | 8 | 80 x 100 x 5 | 665 | 216 | 237 | 60-70 |
| ACD-28 | 28 | 460 x 3,5 / 510 x 4,00 | 18 | 8 | 80 x 100 x 5 | 715 | 252 | 273 | 70-80 |
| ACD-32 | 32 | 460 x 3,5 / 510 x 4,00 | 18 | 8 | 80 x 100 x 5 | 785 | 288 | 309 | 80-90 |
| ACD-B32 | 32 | 460 x 3,5 / 510 x 4,00 | 18 | 8 | 80 x 100 x 5 | 850 | 288 | 309 | 80-90 |
| ACD-36 | 36 | 460 x 3,5 / 510 x 4,00 | 18 | 12 | 80 x 100 x 6 | 920 | 324 | 345 | 90-100 |
| ACD-40 | 40 | 460 x 3,5 / 510 x 4,00 | 18 | 12 | 80 x 100 x 6 | 990 | 360 | 381 | 100-110 |
| ACD-44 | 44 | 460 x 3,5 / 510 x 4,00 | 18 | 12 | 80 x 100 x 6 | 1060 | 396 | 417 | 110-120 |
The specified horsepower may vary by up to ±20% depending on soil conditions and tractor model differences (e.g., 4WD, etc.)
