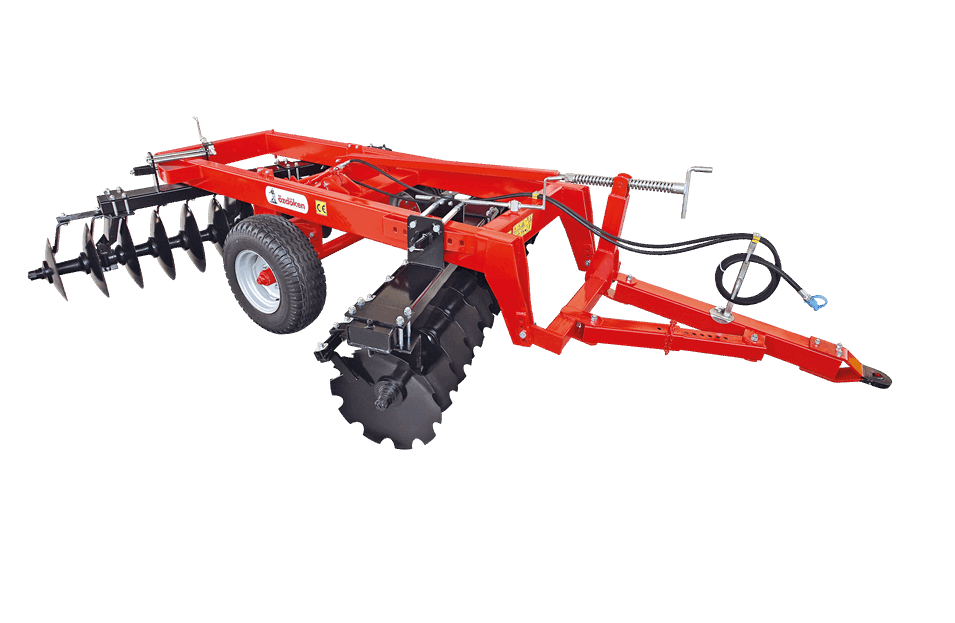

PGD-B TRAILED HEAVY TYPE DISC HARROW
PGD-B TRAILED HEAVY TYPE DISC HARROW
Product Equipment
CEMENTED SCRAPERS CEMENTED SCRAPERS

FURROW CLOSER FURROW CLOSER

BALANCE ARM BALANCE ARM

LONG LIFE BEARING LONG LIFE BEARING

ADJUSTABLE TOOL BAR ADJUSTABLE TOOL BAR

OPTIONAL - HYDRAULIC ANGLE ADJUTSMENT OPTIONAL - HYDRAULIC ANGLE ADJUTSMENT

Technical Specifications
MODELS
NUMBER OF DISC
(pcs)
DISC DIMENSION
(mm)
DISC TO DISC DISTANCE (cm)
NUMBER OF BEARING
(pcs)
FRAME SIZE
(cm)

WEIGHT

(kg)

WORKING WIDHT

(cm)

TRANSPORT WIDHT

(cm)
POWER REQUIREMENT
PGD-B18
 18 560x4,5 / 610x5 / 660x6 22 4 100 x 200 x 6 1680 198 234 70-80
PGD-B20
 20 560x4,5 / 610x5 / 660x6 22 6 100 x 200 x 6 1760 220 256 15-85
PGD-B22
 22 560x4,5 / 610x5 / 660x6 22 8 100 x 200 x 6 1840 242 278 90-100
PGD-B24
 26 560x4,5 / 610x5 / 660x6 22 8 100 x 200 x 6 1715 264 300 100-110
PGD-B26
 26 560x4,5 / 610x5 / 660x6 22 8 100 x 200 x 6 1995 286 322 110-120
PGD-B28 28 560x4,5 / 610x5 / 660x6 22 8 100 x 200 x 6 2065 308 344 120-130

PGD-B30

 30
560x4,5 / 610x5 / 660x6
 22 8 100 x 200 x 6 2200 330 366 125-135
PGD-B32 32
560x4,5 / 610x5 / 660x6
22
 8
100 x 200 x 6
2350 352 388 135-145
PGD-B32 32
560x4,5 / 610x5 / 660x6
22
 8
100 x 200 x 8
 2410 352 388 135-145
PGD-B34 34
560x4,5 / 610x5 / 660x6
22
 12
100 x 200 x 8
 2510 374 410 145-155
PGD-B36 36
560x4,5 / 610x5 / 660x6
22
 12
100 x 200 x 8
 2680 396 432 155-165
PGD-B38 38
560x4,5 / 610x5 / 660x6
22
 12
100 x 200 x 8
 2750 418 454 165-175
