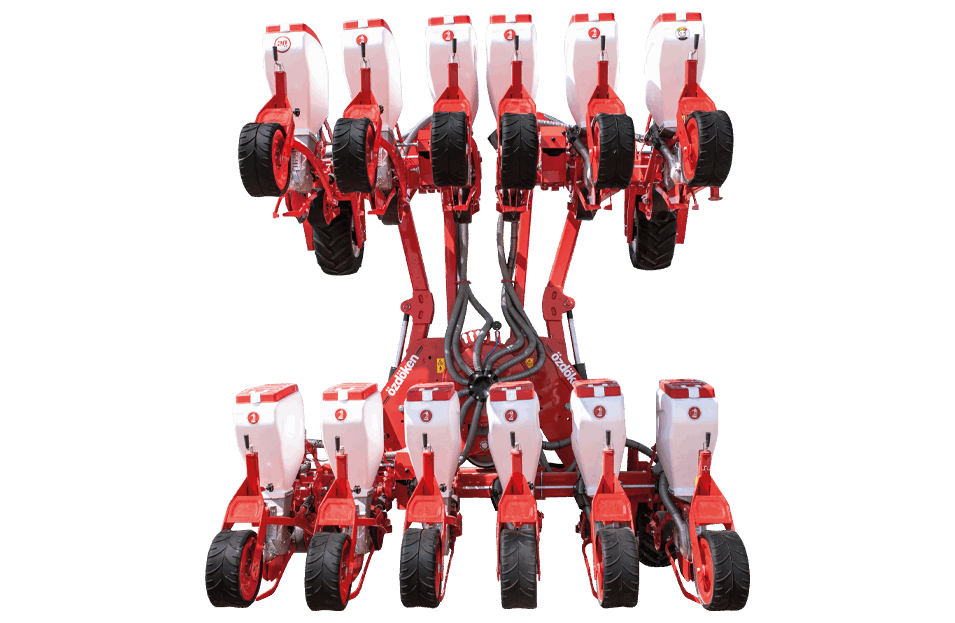

OKTOPUS - FOLDABLE FRAME COULTER TYPE PLANTER
OKTOPUS series pneumatic planting machines are manufactured as axe type. Thanks to the fully telescopic chassis system, it can be quickly changed to 45, 50, 55, 60, 65 and 70 cm distance. It can plant granular seeds such as corn, sunflower, beet, cotton, soy, anise, safflower, poppy, cumin, black cumin, chickpea. Fertilizer system and microgranule system are offered as options. 4, 5 and 6 row production is available.
Product Equipment
COULTER TYPE ROW UNIT
FRONT PRESS WHELL FOR SMALL SEEDS
PATENTED METERING UNIT WITH DOUBLE SINGULATOR

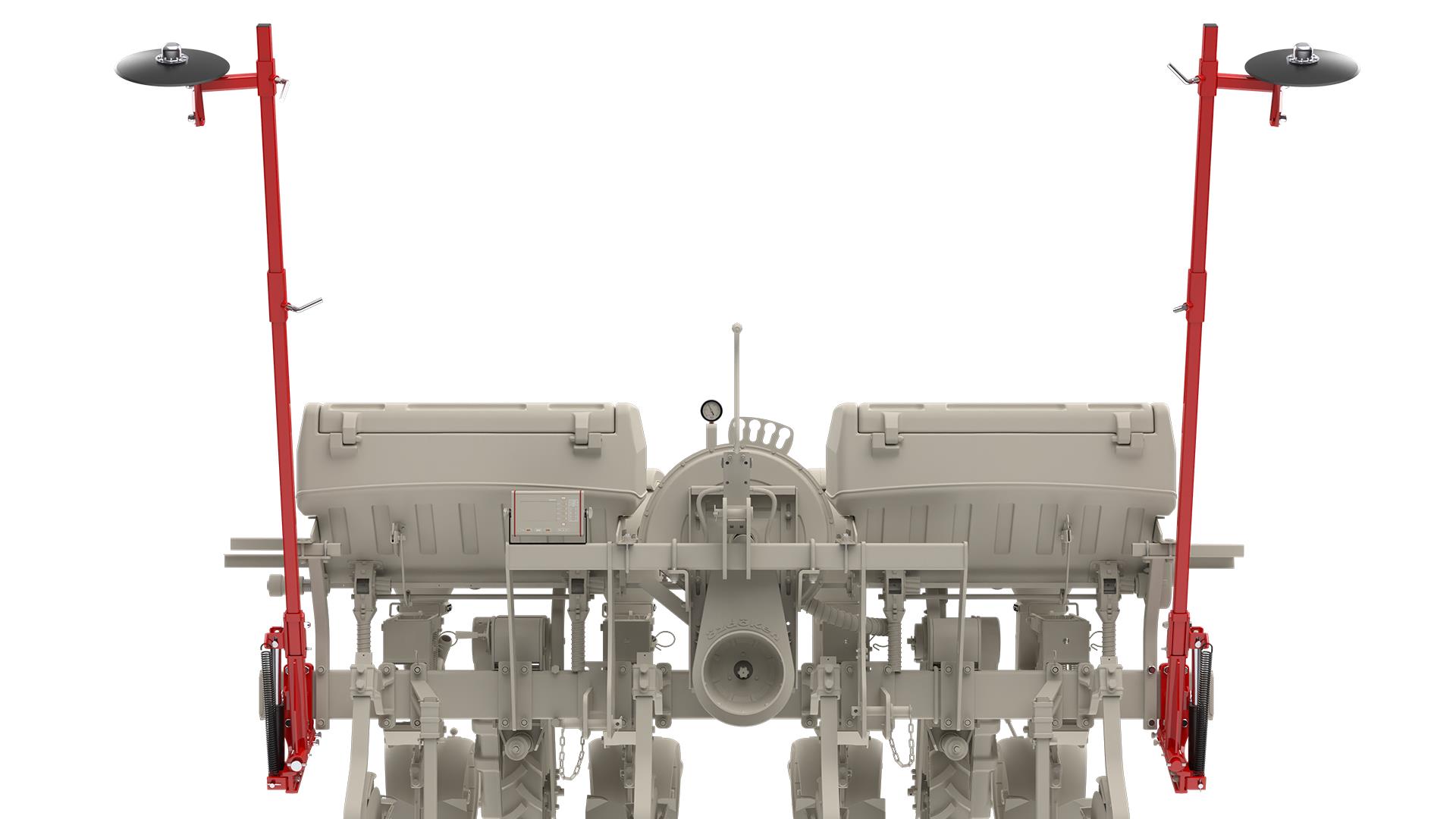

OPTIONAL - DOUBLE HYDRAULIC MARKER
OPTIONAL - HYDRAULIC FAN

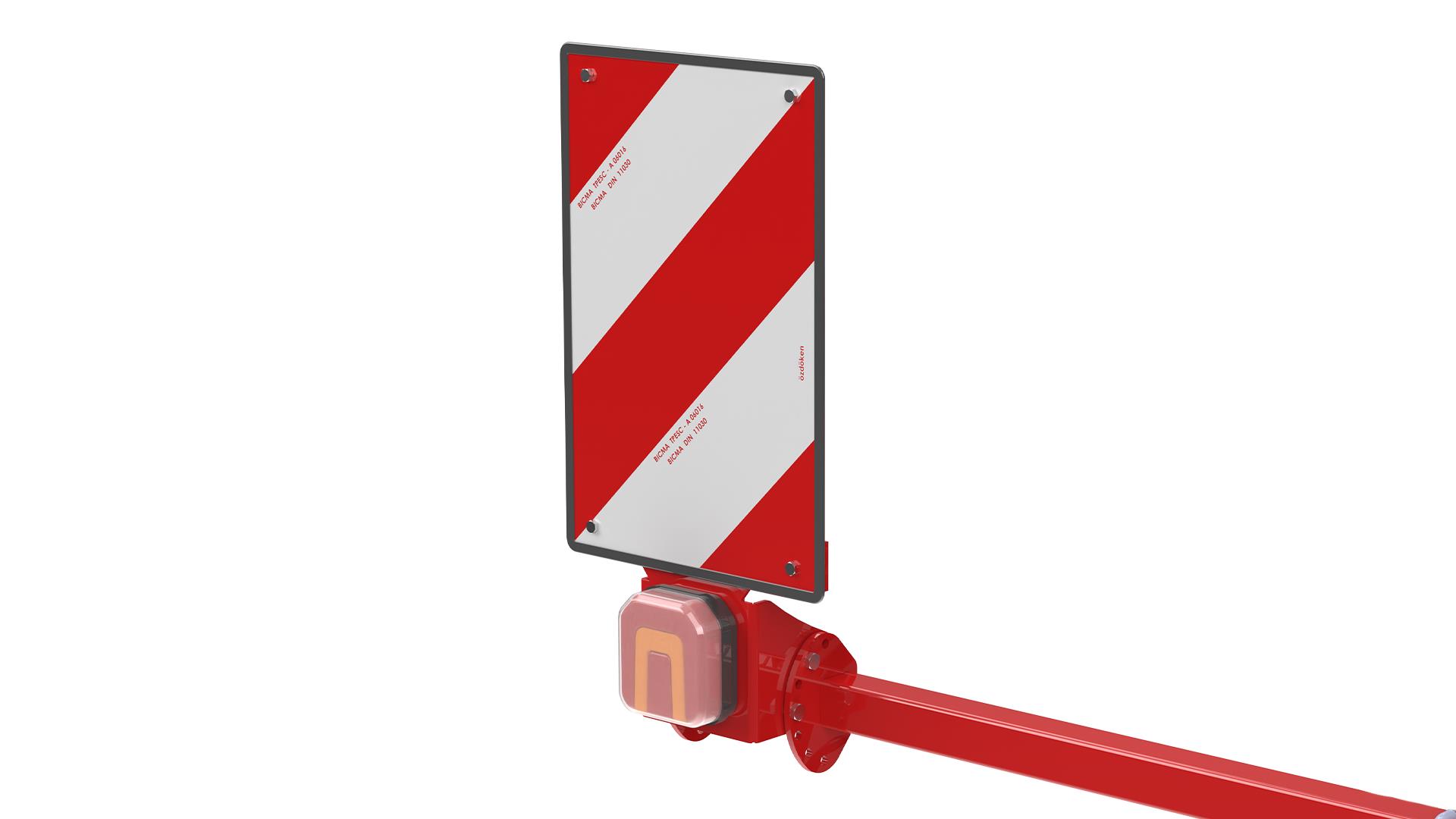

OPTIONAL - OPTIONAL - TRAFFIC KIT - BICMA REFLECTOR - POLISH LEDLIGHT

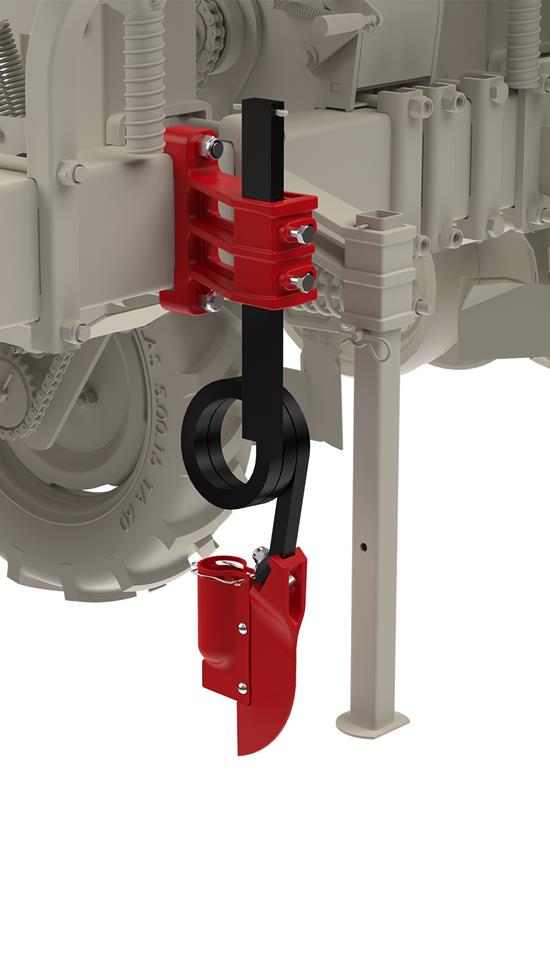

BALTA TİP GÜBRE ATICI
SINGLE HYDRAULIC MARKER
AREA COUNTER
OPTIONAL - DIGITROLL DMS-08 SENSOR
OPTIONAL - BEE KIT

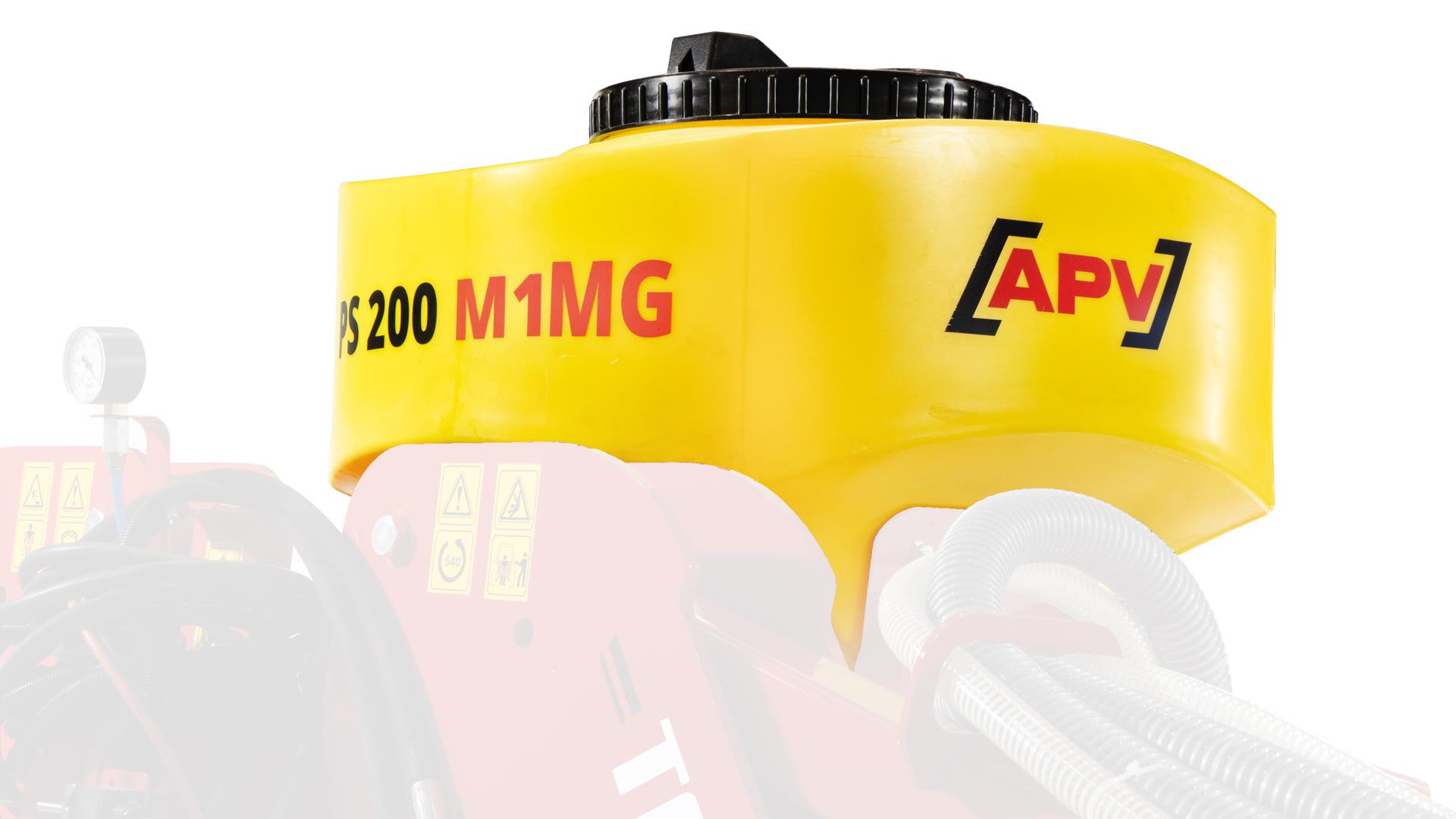

OPTIONAL - APV PS2000 M1MG MICROGRANULATOR
COULTER TYPE ROW UNIT
FRONT PRESS WHELL FOR SMALL SEEDS
PATENTED METERING UNIT WITH DOUBLE SINGULATOR
OPTIONAL - DOUBLE HYDRAULIC MARKER
OPTIONAL - HYDRAULIC FAN
OPTIONAL - OPTIONAL - TRAFFIC KIT - BICMA REFLECTOR - POLISH LEDLIGHT
BALTA TİP GÜBRE ATICI
SINGLE HYDRAULIC MARKER
AREA COUNTER
OPTIONAL - DIGITROLL DMS-08 SENSOR
OPTIONAL - BEE KIT
OPTIONAL - APV PS2000 M1MG MICROGRANULATOR Technical Specifications
| Model | Number Of Row Unit | Row Space | Transport Width | Power Requirement | Weight |
| | pcs | cm | cm | hp | kg |
| OKTOPUS-8 | 8 | 50 | 300 | 100-120 | 2000 |
| OKTOPUS-8 | 8 | 70-75-80 | 300 | 100-120 | 2000 |
| OKTOPUS-9 | 9 | 65 | 300 | 110-130 | 2200 |
| OKTOPUS-12 | 12 | 50 | 300 | 130-150 | 2600 |
- The indicated power may vary by approximately ±20% depending on the soil structure and changes in the tractor model (two-wheel drive, etc.).
