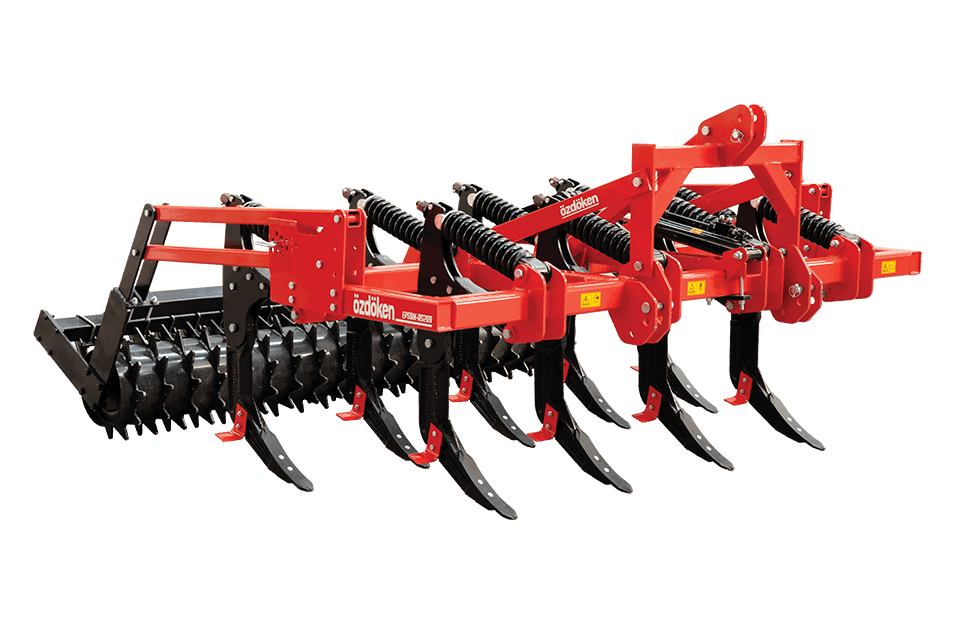

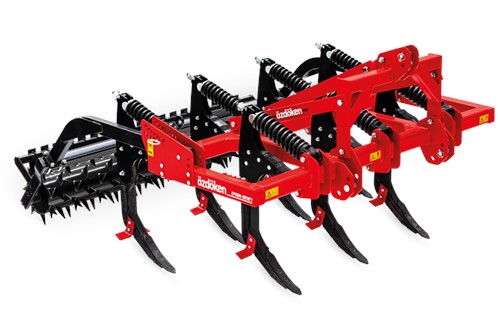

EPSOM-S CHISEL SUBSOILER WITH SPRING
Product Equipment

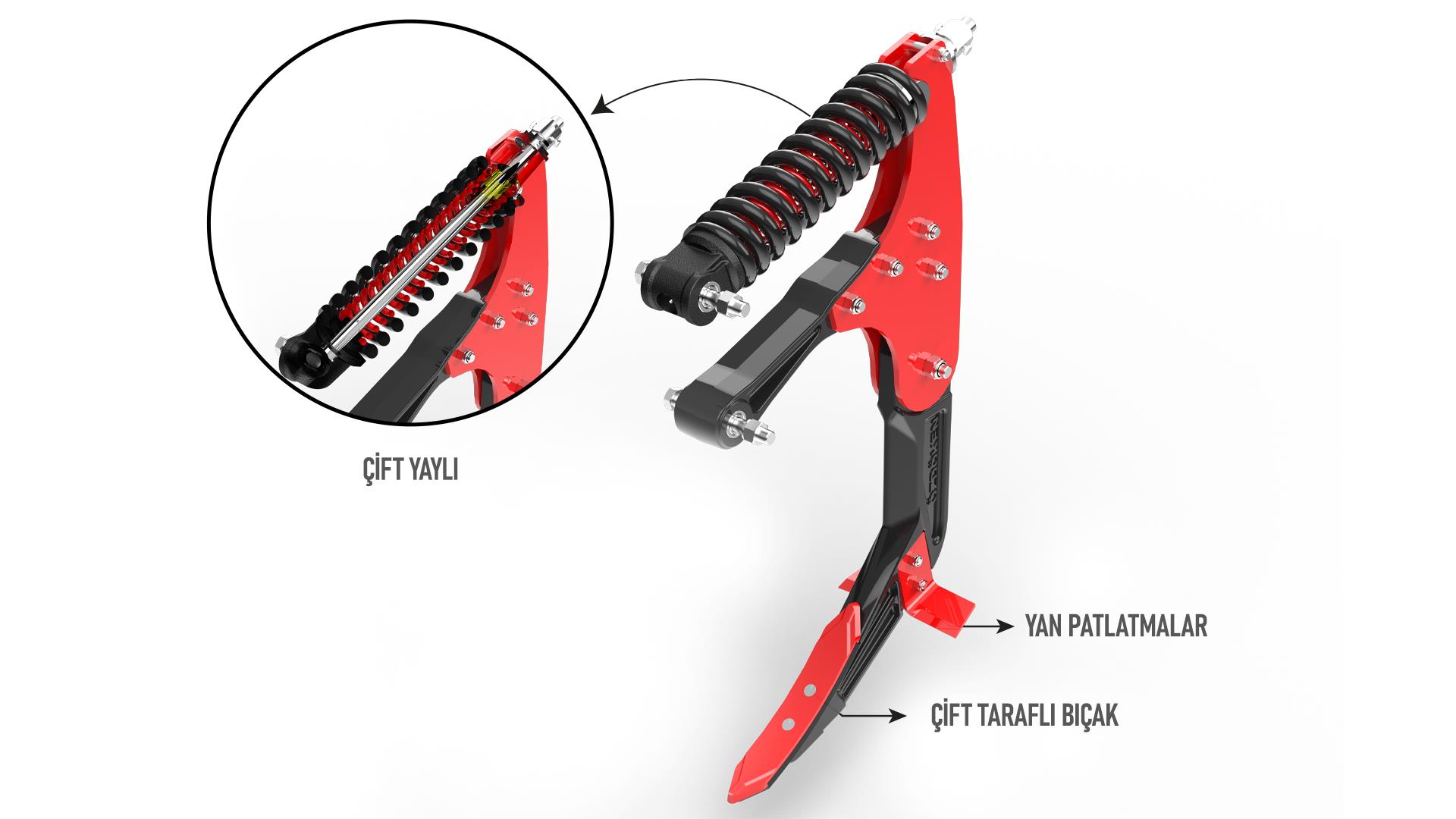

CAST IRON LEGS
UNFOLDED ROLLER
SPARE PINS
OPTIONAL - 270 MM PACKER ROLLER
OPTIONAL - DOUBLE 140 MM SPIKE ROLLER

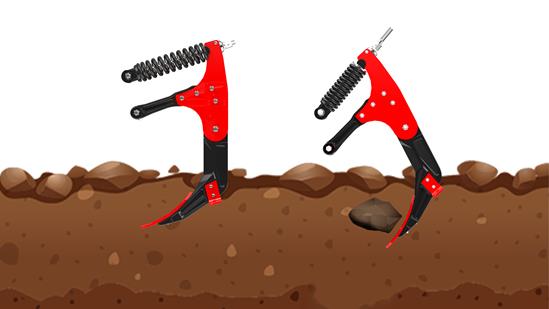

STANDART
OPTIONAL - FOLDABLE ROLLER
LEG
OPTIONAL - 460 MM PACKER ROLLER
CAST IRON LEGS
UNFOLDED ROLLER
SPARE PINS
OPTIONAL - 270 MM PACKER ROLLER
OPTIONAL - DOUBLE 140 MM SPIKE ROLLER
STANDART
OPTIONAL - FOLDABLE ROLLER Shorter Machine,Less Power Requirment
LEG
OPTIONAL - 460 MM PACKER ROLLER Technical Specifications
Model | NUMBER OF LEGS | WORKING WIDTH | TRANSPORT WIDTH | WEIGHT | POWER REQUIREMENT | |||
pcs | kg | cm | kg | 270 mm | 460 mm | 140 mm | hp | |
EPSOM-S205 | 5 | 170 | 190 | 650 | 65-90 | |||
EPSOM-S207 | 7 | 220 | 240 | 825 | 90-125 | |||
EPSOM-S209 | 9 | 270 | 290 | 1000 | 115-160 | |||
EPSOM-S211 | 11 | 320 | 340 | 1225 | 140-200 | |||
EPSOM-SR205 | 5 | 170 | 190 | 850 kg | 950 kg | 900 kg | 65-90 | |
EPSOM-SR207 | 7 | 220 | 240 | 1075 kg | 1175 kg | 11125 kg | 90-125 | |
EPSOM-SR209 | 9 | 270 | 290 | 1300 kg | 1400 kg | 1350 kg | 115-160 | |
EPSOM-SR211 | 11 | 320 | 340 | 1550 kg | 1700 kg | 1650 kg | 140-00 | |
Model | NUMBER OF LEGS | WORKING WIDTH | TRANSPORT WIDTH | WEIGHT | POWER REQUIREMENT | |||
pcs | kg | cm | kg | 270 mm | 460 mm | 140 mm | hp | |
EPSOM-S309 | 9 | 220 | 240 | 1050 | 115-160 | |||
EPSOM-S311 | 11 | 2740 | 290 | 1300 | 140-2020 | |||
EPSOM-S313 | 13 | 320 | 340 | 1500 | 170-235 | |||
EPSOM-S315 | 15 | 370 | 390 | 1800 | 195-270 | |||
EPSOM-S317 | 17 | 420 | 440 | 2100 | 220-310 | |||
EPSOM-SR309 | 9 | 220 | 240 | 1350 kg | 1500 kg | 1450 kg | 115-160 | |
EPSOM-SR311 | 11 | 270 | 290 | 1600 kg | 1800 kg | 1730 kg | 140-200 | |
EPSOM-SR313 | 13 | 320 | 340 | 1900 kg | 2150 kg | 2060 kg | 170-235 | |
EPSOM-SR315 | 15 | 370 | 390 | 2200 kg | 2510 kg | 2390 kg | 195-270 | |
EPSOM-SR317 | 17 | 420 | 440 | 2500 kg | 2870 kg | 2720 kg | 220-310 | |
