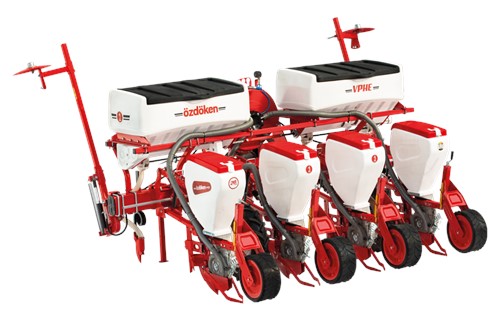

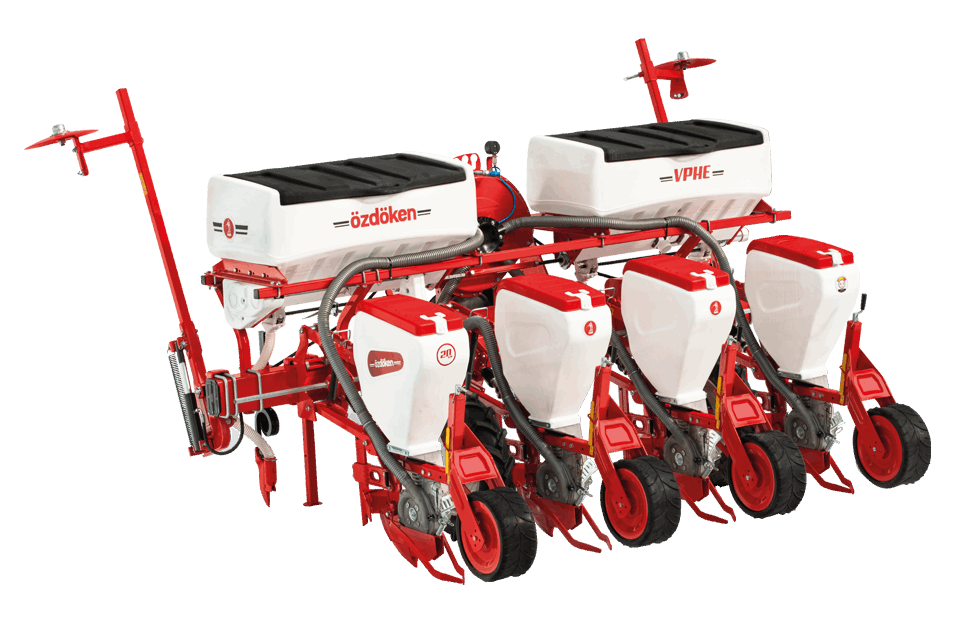

VPHE - FIXED FRAME COULTER TYPE

Ozdoken VPHE series precision planters are produced with coulter type seedbed openers. The row space can be adjusted at the desired distance. Possible to seed corn, sunflower, sugarbeet, cotton, soja. Fertilizer system and microgranule system are available as an option. It is produced from 2 rows to 12 rows.

Coulter Type Row Units

Polythen Fertilizer Hopper

Single Hydraulic Row Markers

Double Hydraulic Row Markers (Only For 8 Rows)

Coulter Type Fertilizer Opener

2 Set Of Seeding Disc

Pto Shaft (Can Be Chosen Octagonal Or Hexagonal Input )

Area Counter

Product Equipment

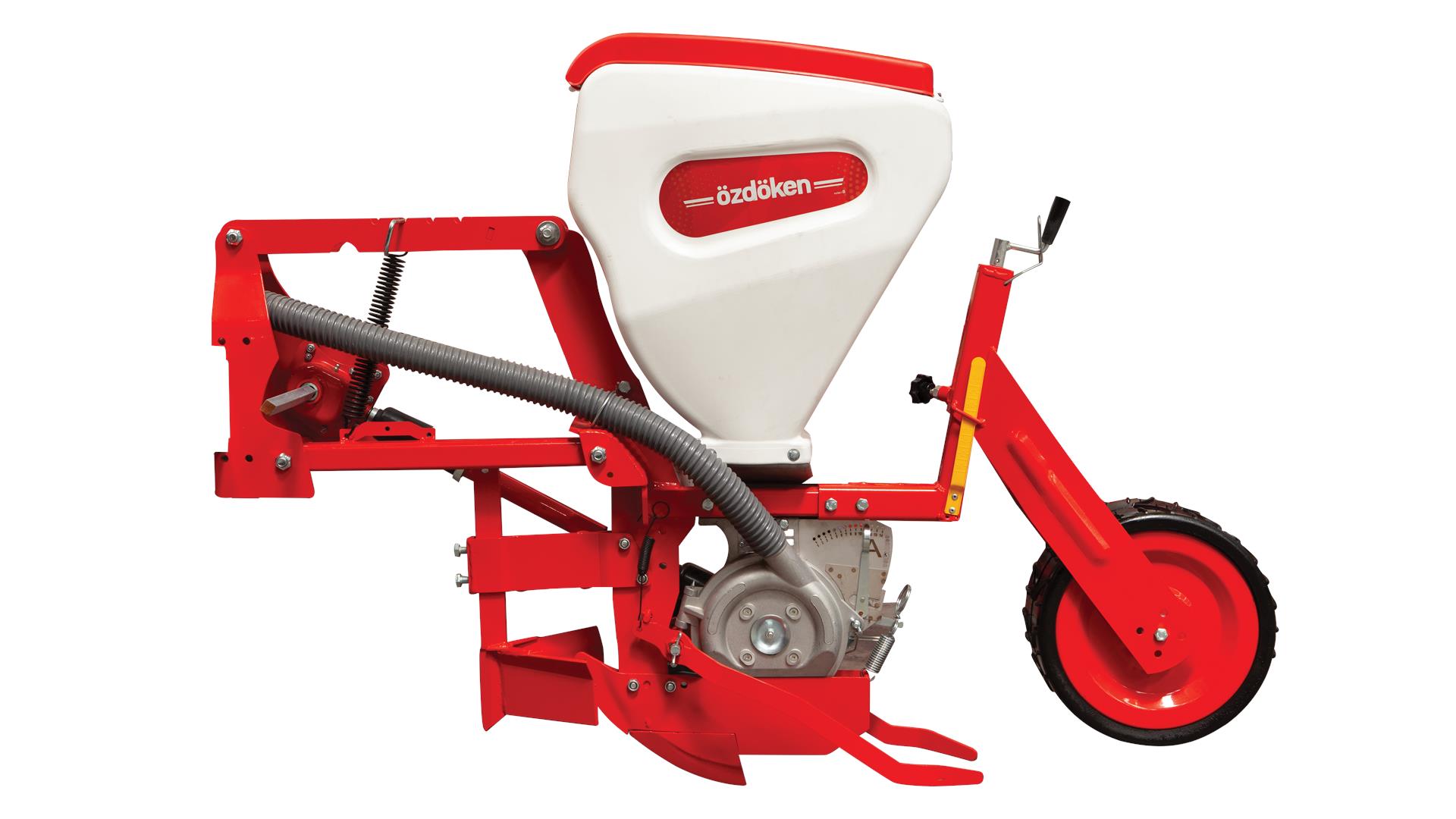

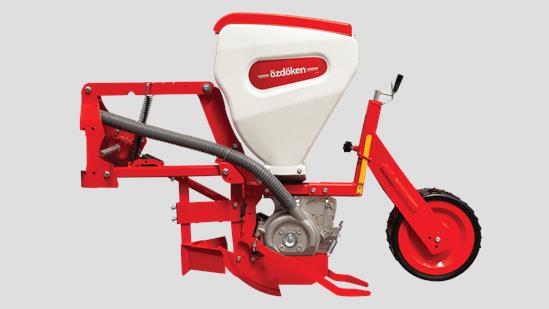

COULTER TYPE ROW UNIT

FRONT PRESS WHELL FOR SMALL SEEDS

AREA COUNTER

OPTIONAL - DIGITROLL DMS-08 SENSÖR

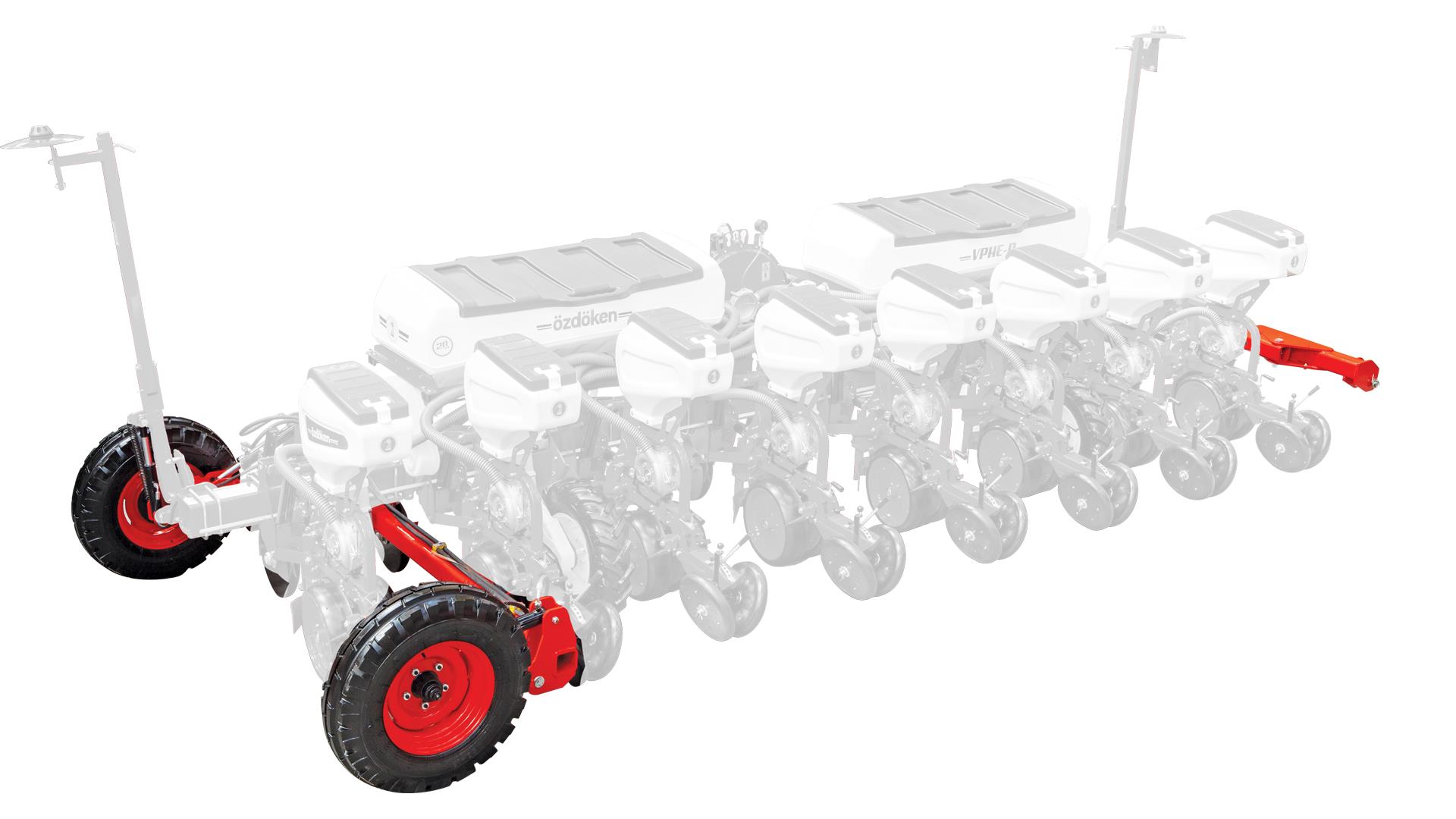

OPTIONAL - TRANSPORT WHEEL FOR 8 ROWS

OPTIONAL - TRAFFIC KIT - BICMA REFLECTOR - POLISH LEDLIGHT

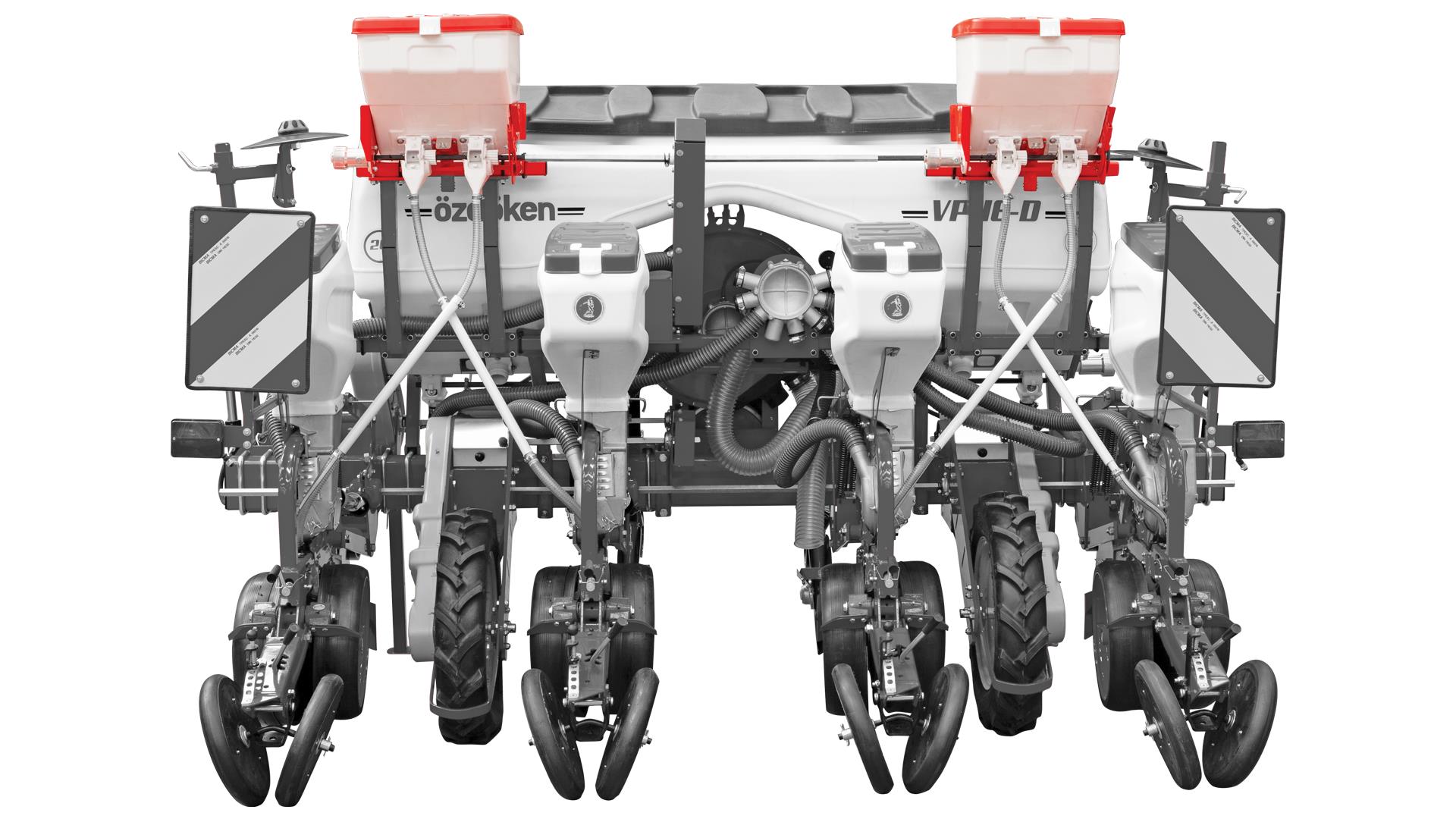

OPTIONAL - MICROGRANULATOR

OPTIONAL - BEE KIT

OPTIONAL - JUMBO POLYTHENE FERTILIZER HOPPER

OPTIONAL - JUMBO INOX FERTILIZER HOPPER

COULTER TYPE FERTILIZER OPENER

SINGLE HYDRAULIC MARKER

OPTIONAL - DOUBLE HYDRAULIC MARKER

OPTIONAL - DIGITROLL INTEGRA SENSOR

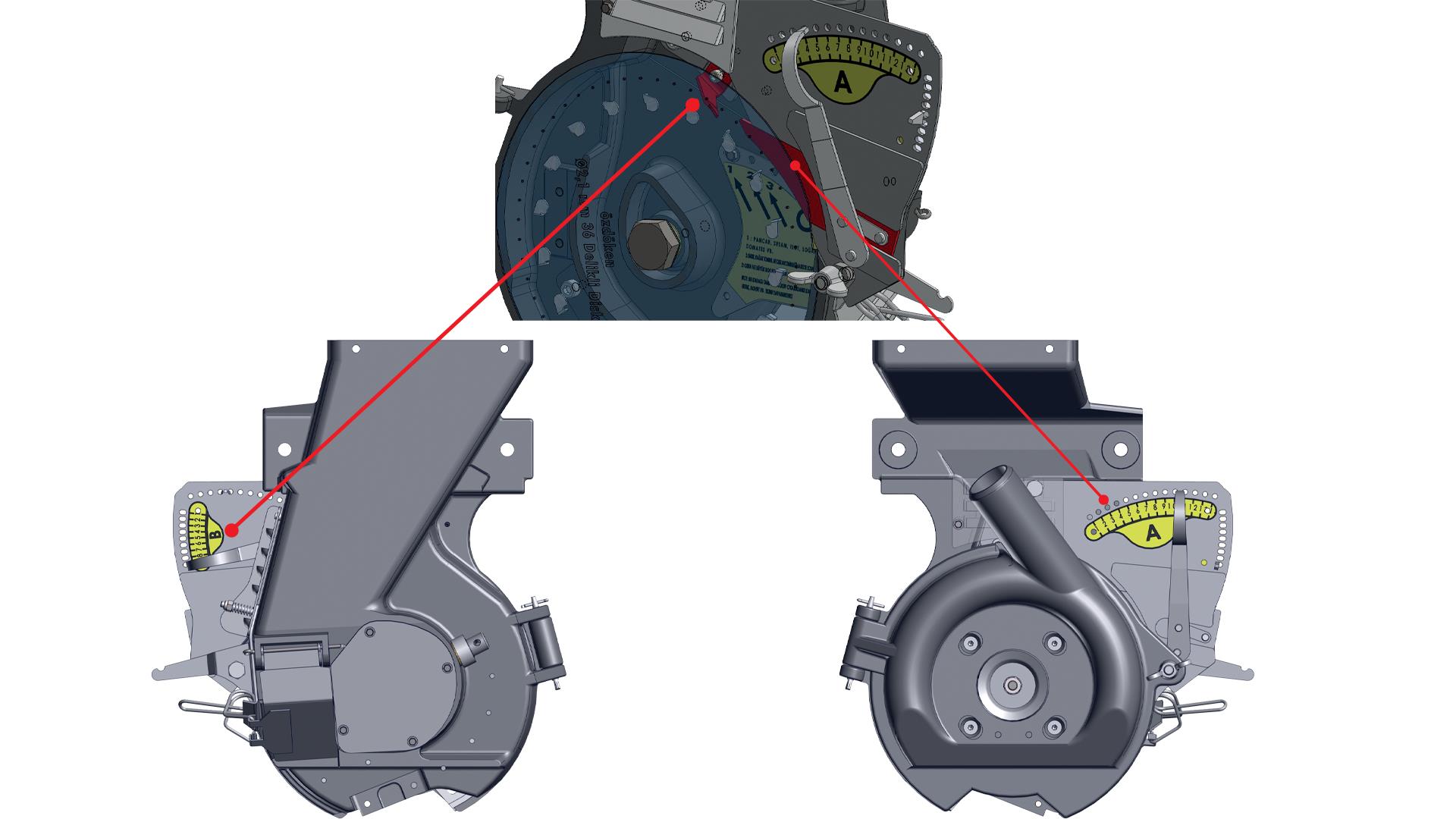

PATENTED METERING UNIT WITH DOUBLE SINGULATOR

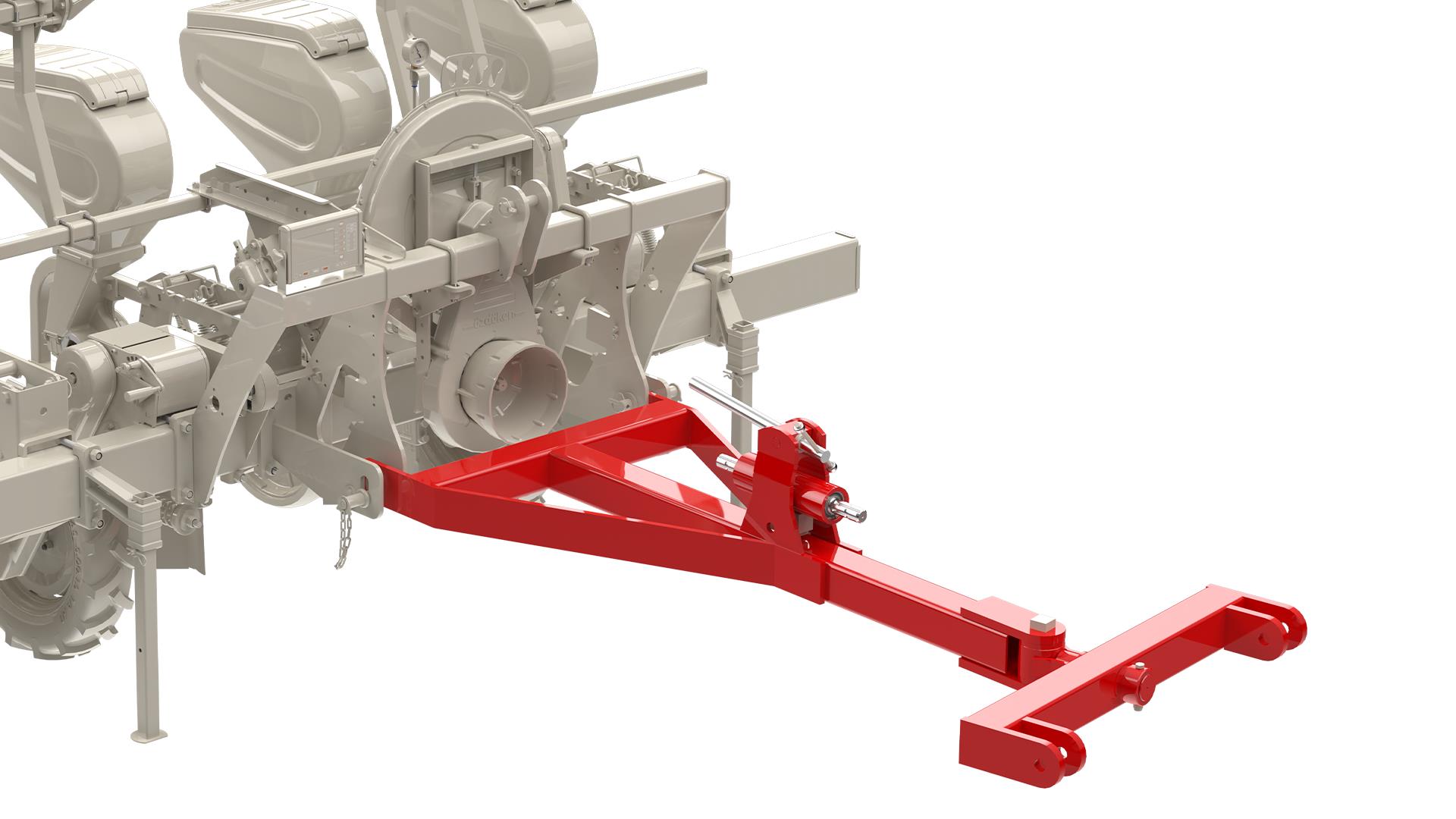

OPTIONAL - TRAILED KIT FOR 6 AND 8 ROWS

OPTIONAL - PATENTED METERING UNIT WITH DOUBLE SINGULATOR

OPTIONAL - HYDRAULIC FAN

OPTIONAL - JUMBO METAL FERTILIZER HOPPER

Technical Specifications

REAR WHEEL

Model	Number Of Row Unit	Row Space	Transport Widht	Height	Length	Weight	Tyre Size	Polythene Fertilizer Hopper Cap.	Metal or Inox Fertilizer Hopper Cap.	Jumbo Polythene Fertilizer Hopper Cap.	Jumbo or Inox Fertilizer Hopper Cap.	Power Requirement
	pcs	cm	cm	cm	cm	kg		lt	lt	lt	lt	hp
VPHE-2	2	70-75	100	150	200	385	5.00x15	-	-	-	-	50-60
VPHE-G2	2	70-75	100	150	200	460		180 lt x 1	200 lt x 2	-	-	50-60
VPHE-3	3	150	300	150	200	630		-	-	-	-	55-65
VPHE-G3	3	150	300	150	200	800		180 lt x 2	200 lt x 2	-	-	55-65
VPHE-4	4	70-75/90	300	150	200	670		-	-	-	-	60-70
VPHE-G4	4	70-75/90	300	150	200	880		180 lt x 2	200 lt x 2	750 lt x 1	1000 lt x 1	60-70
VPHE-5	5	45-50/70-75	300/350	150	200	750		-	-	-	-	65-75
VPHE-G5	5	45-50/70-75	300/350	150	200	1055		180 lt x 2	200 lt x 2	-	1000 lt x 1	65-75
VPHE-6	6	45-50/70-75	350/420	150	200	765		-	-	-	-	70-80
VPHE-G6	6	45-50/70-75	350/420	150	200	1100		230 lt x 2	250 lt x 2	-	-	70-80
VPHE-8	8	70	560	150	200	965	6.50/80-15	-	-	-	-	90-100
VPHE-G8	8	70	560	150	200	1425	6.50/80-15	280 lt x 2	400 lt x 2	-	700 lt x 2	90-100

- The indicated power may vary by approximately ±20% depending on the soil structure and changes in the tractor model (two-wheel drive, etc.).

Product Pictures

watch VPHE - FIXED FRAME COULTER TYPE 0.0

Product Videos VPHE PRECISION PLANTER - Get To Know Coulter Type

You can watch the video to examine this product in more detail.

Product Documents

VHPE BROŞÜR
