VPTT - ADJUSTABLE TELESCOPIC FRAME COULTER TYPE

VPTT serisi pnomatik ekim makineleri balta tip olarak üretilmektedir. Tam teleskopik şase sistemi sayesinde 45,50,55,60,65 ve 70 cm ara mesafeye hızlıca değiştirilebilir. Mısır, ayçiçeği, pancar, pamuk, soya, anason, aspir, haşhaş, kimyon, çörekotu, nohut gibi taneli tohumları ekebilir. Gübre tertibatı ve mikrogranül sistemi opsiyonel olarak sunulmaktadır. 4,5 ve 6 sıralı üretimi mevcuttur.

Adjustable Telescopic Frame (75 And 95 Cm Row Space For 4 Rows )

Adjustable Telescopic Frame (45,50,55,60,65,70 Cm Row Space For 6 Rows )

Coulter Type Row Units

Polythen Fertilizer Hopper

Single Hydraulic Row Markers

Coulter Type Fertilizer Opener

3 Set Of Seeding Disc

Pto Shaft (Can Be Chosen Octagonal Or Hexagonal Input )

Area Counter

Product Equipment

COULTER TYPE ROW UNIT

FRONT PRESS WHELL FOR SMALL SEEDS

PATENTED METERING UNIT WITH DOUBLE SINGULATOR

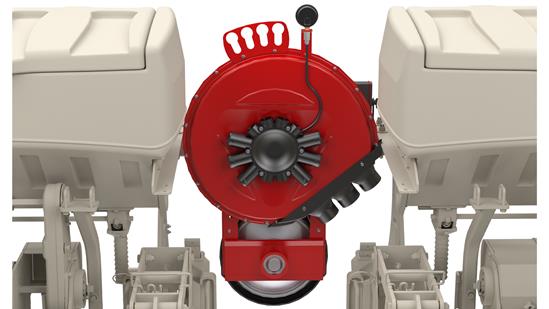

BEE KIT

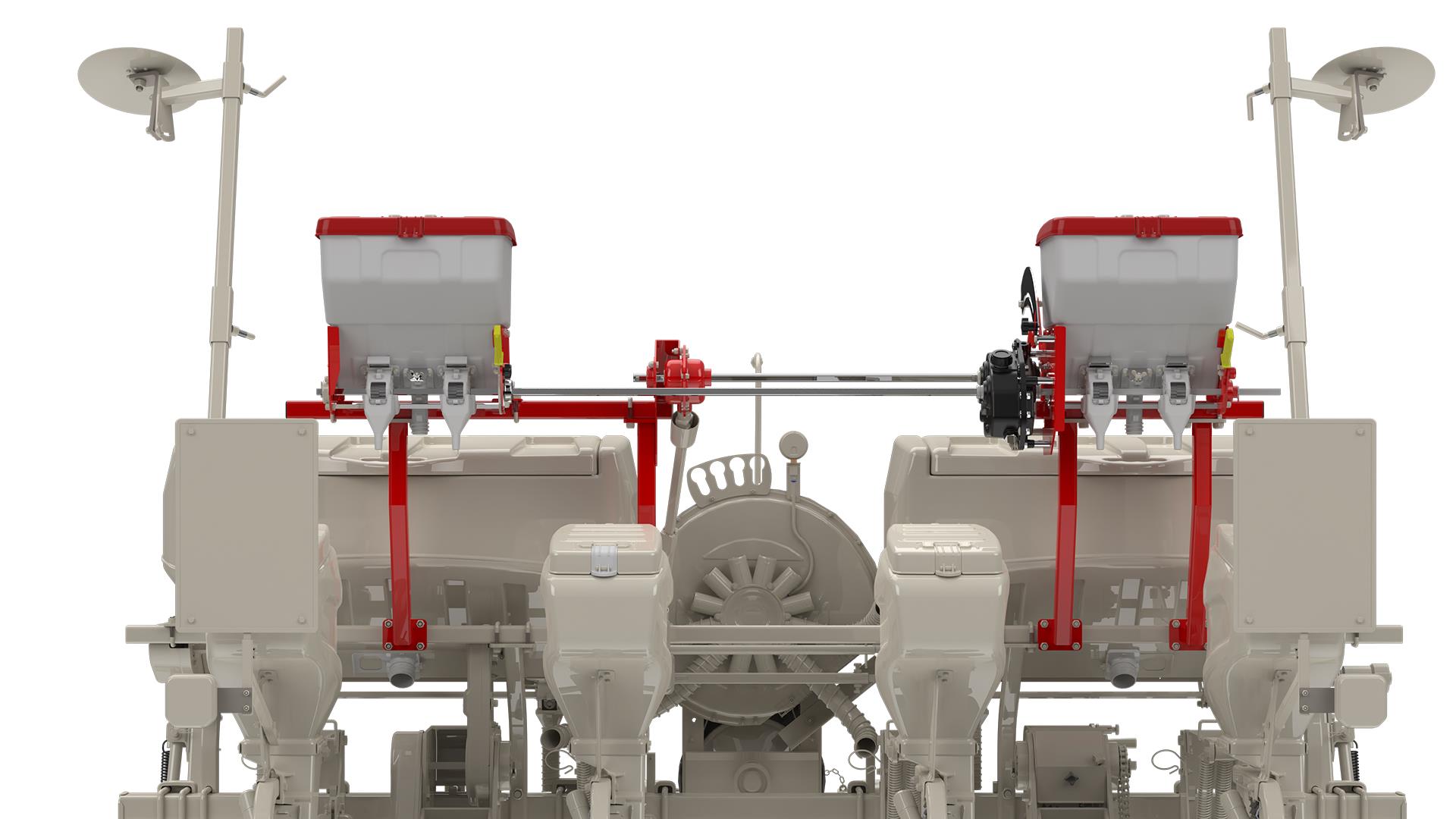

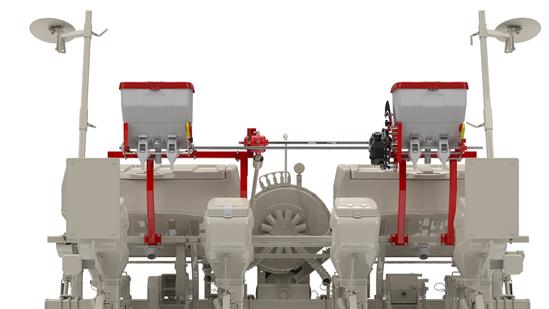

OPTIONAL - MICROGRANULATOR

OPTIONAL - DIGITROLL DMS-08 SENSOR

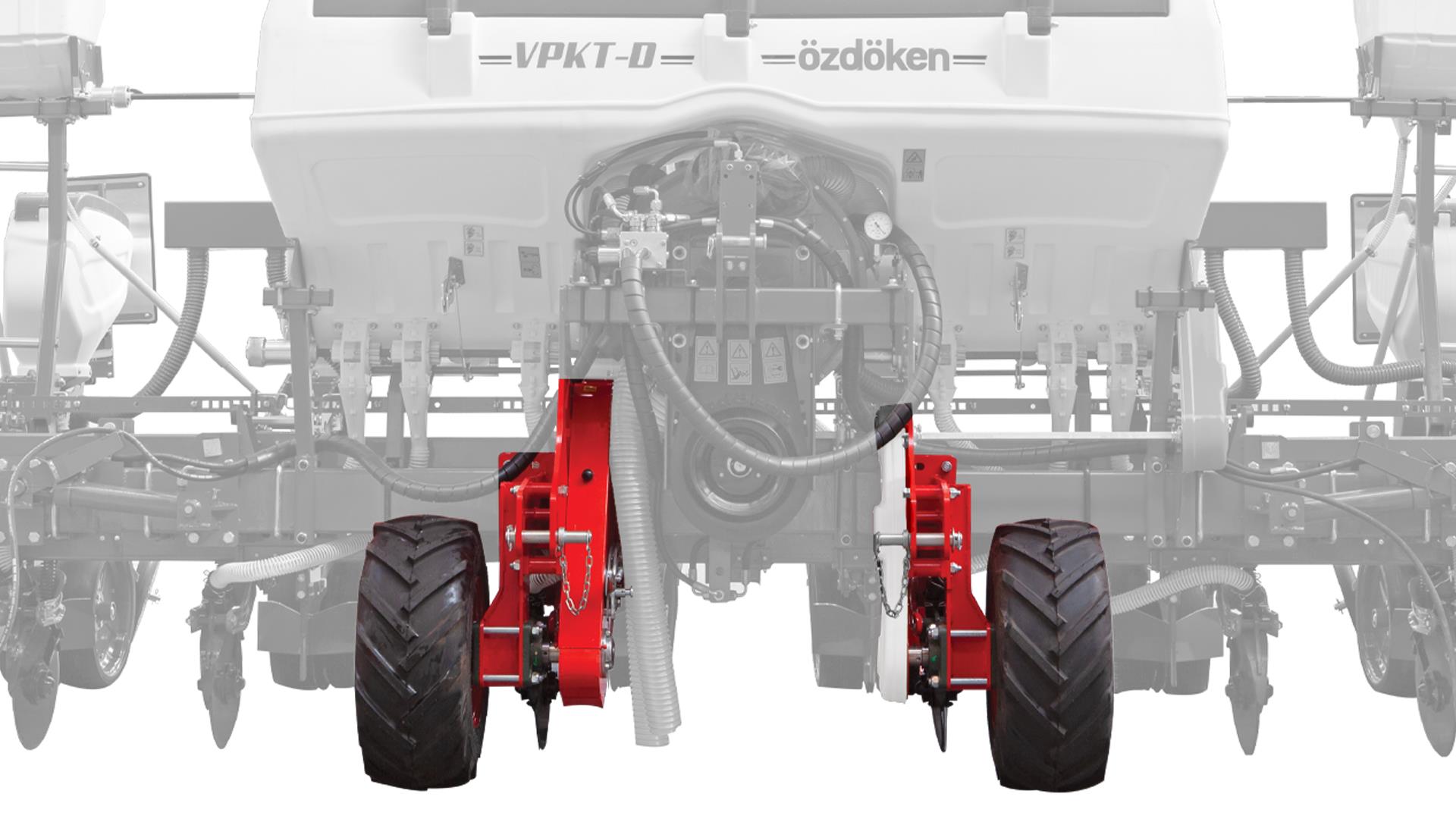

OPTIONAL - PATENTED METERING UNIT WITH DOUBLE SINGULATOR

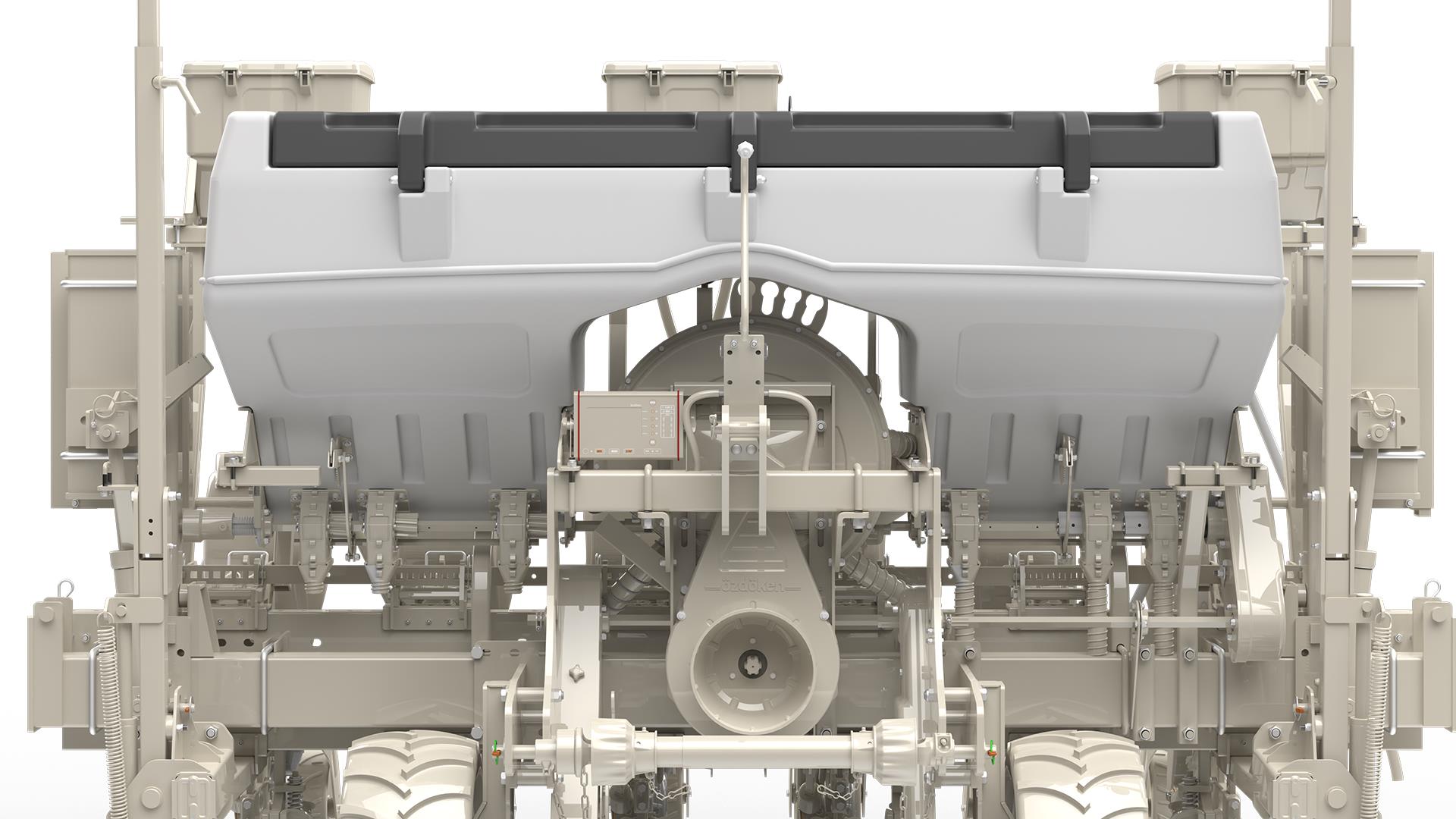

OPTIONAL - JUMBO POLYTHENE FERTILIZER HOPPER

OPTIONAL - JUMBO INOX FERTILIZER HOPPER

COULTER TYPE FERTILIZER OPENER

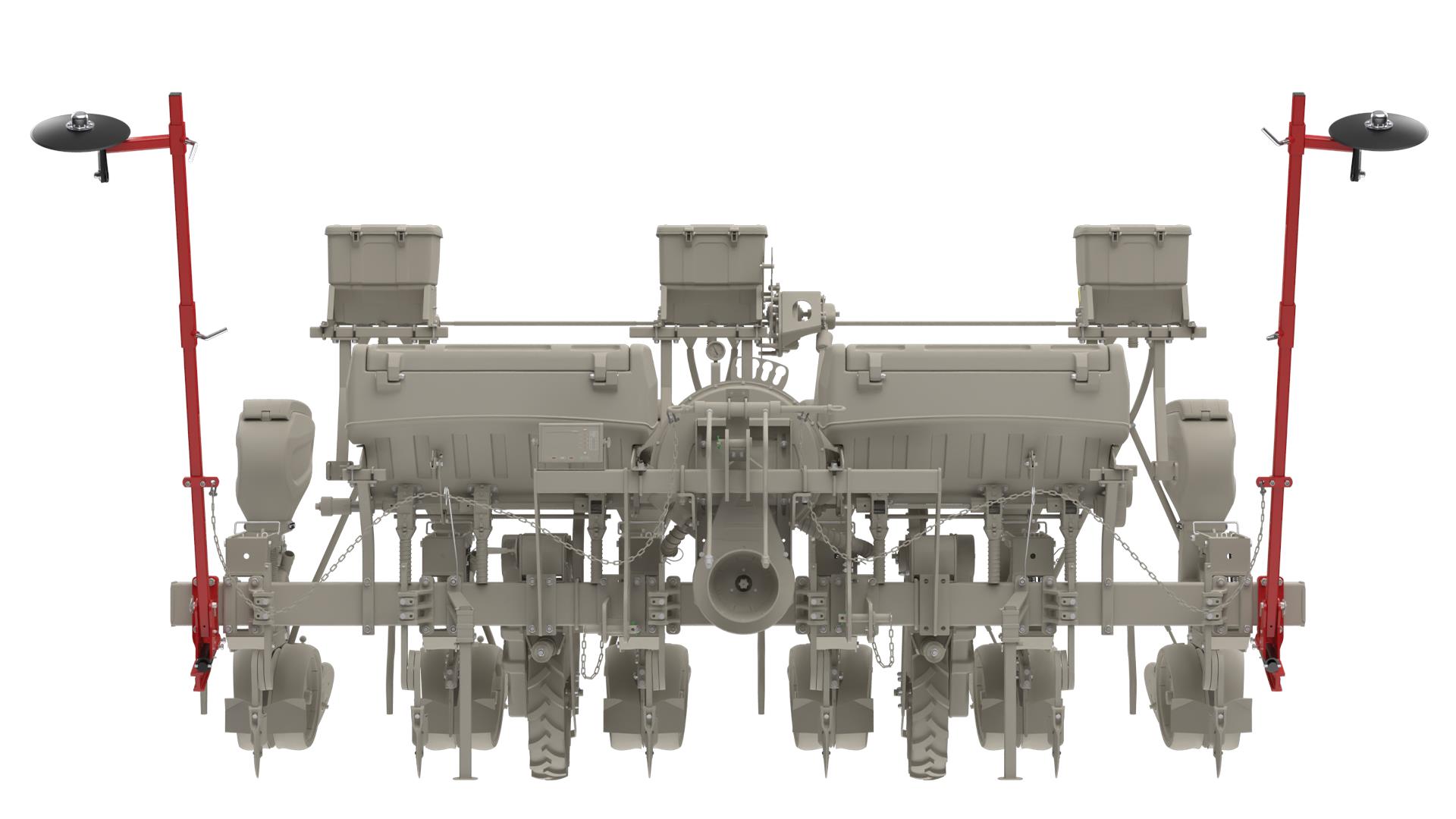

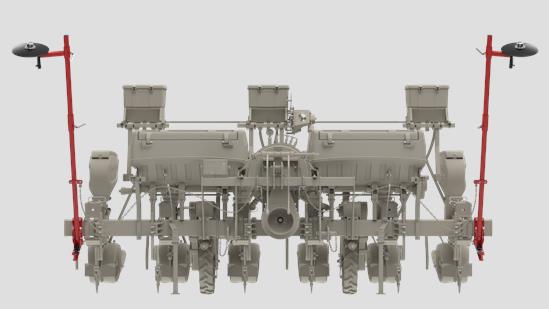

SINGLE HYDRAULIC MARKER

AREA COUNTER

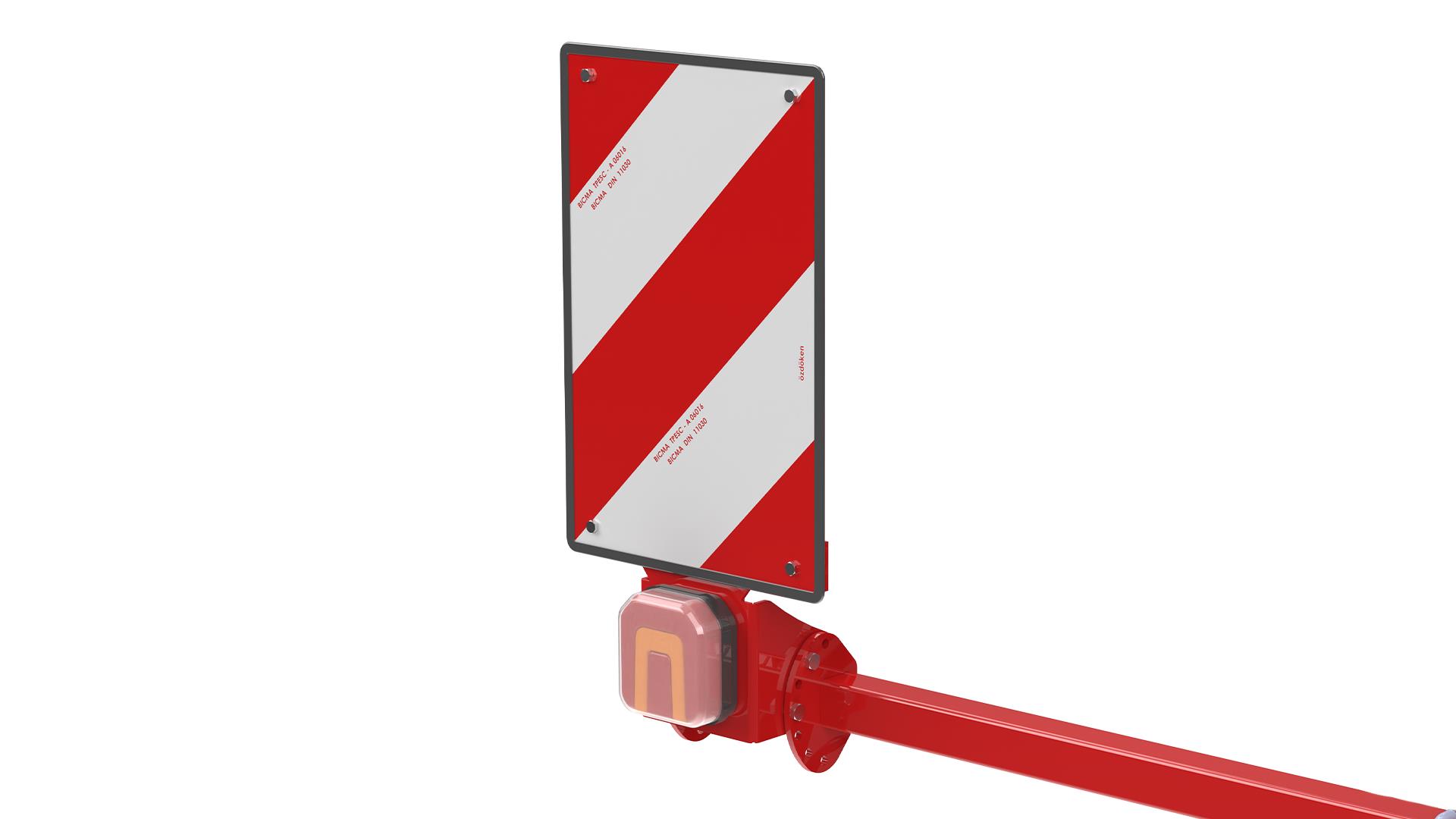

OPTIONAL - TRAFFIC KIT - BICMA REFLECTOR - POLISH LEDLIGHT

OPTIONAL - DOUBLE HYDRAULIC MARKER

OPTIONAL - DIGITROLL INTEGRA SENSOR

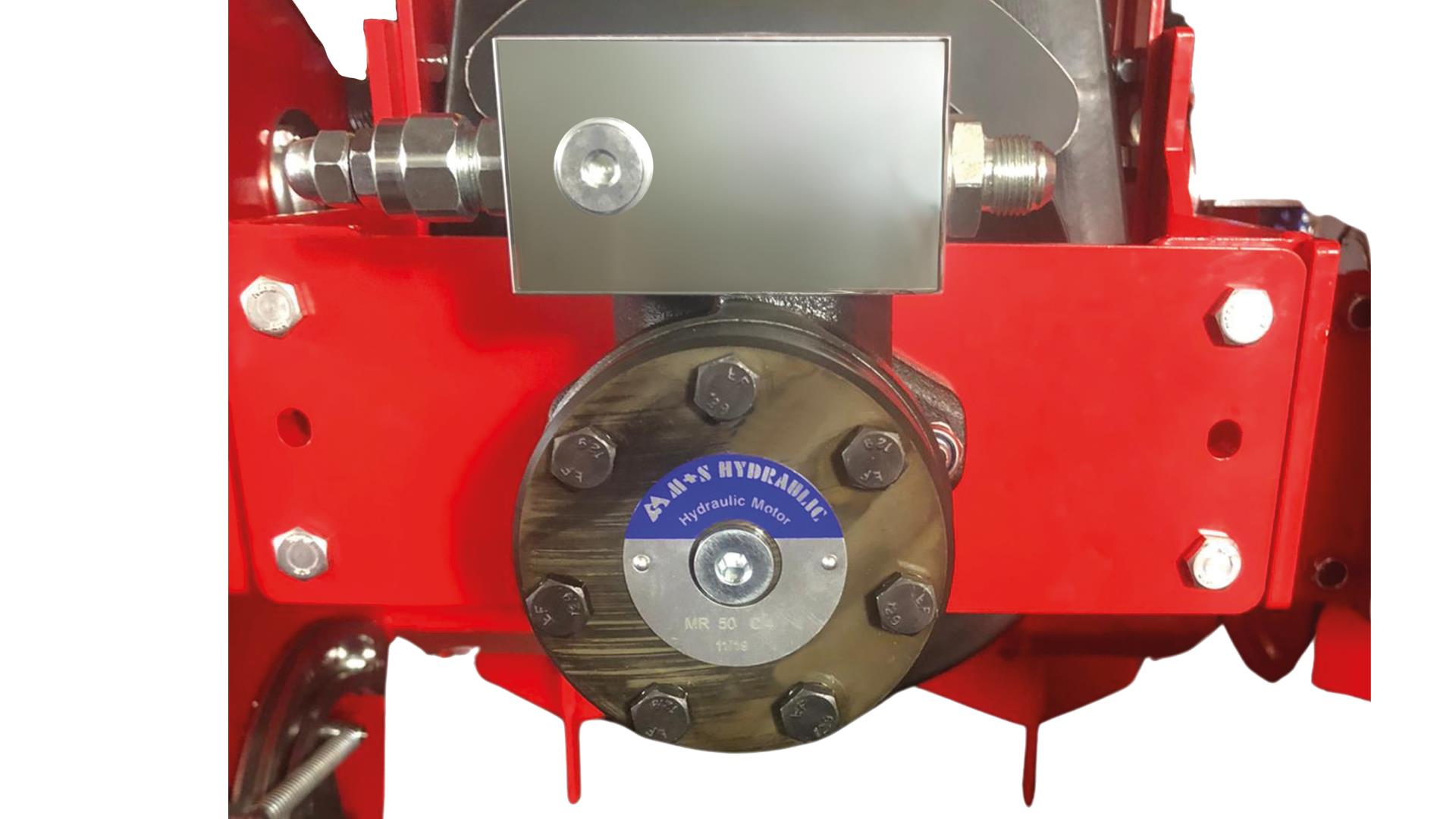

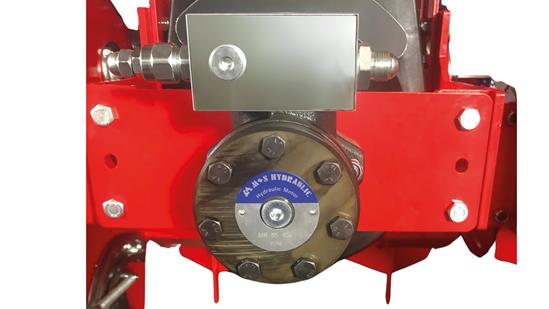

OPTIONAL - HYDRAULIC FAN

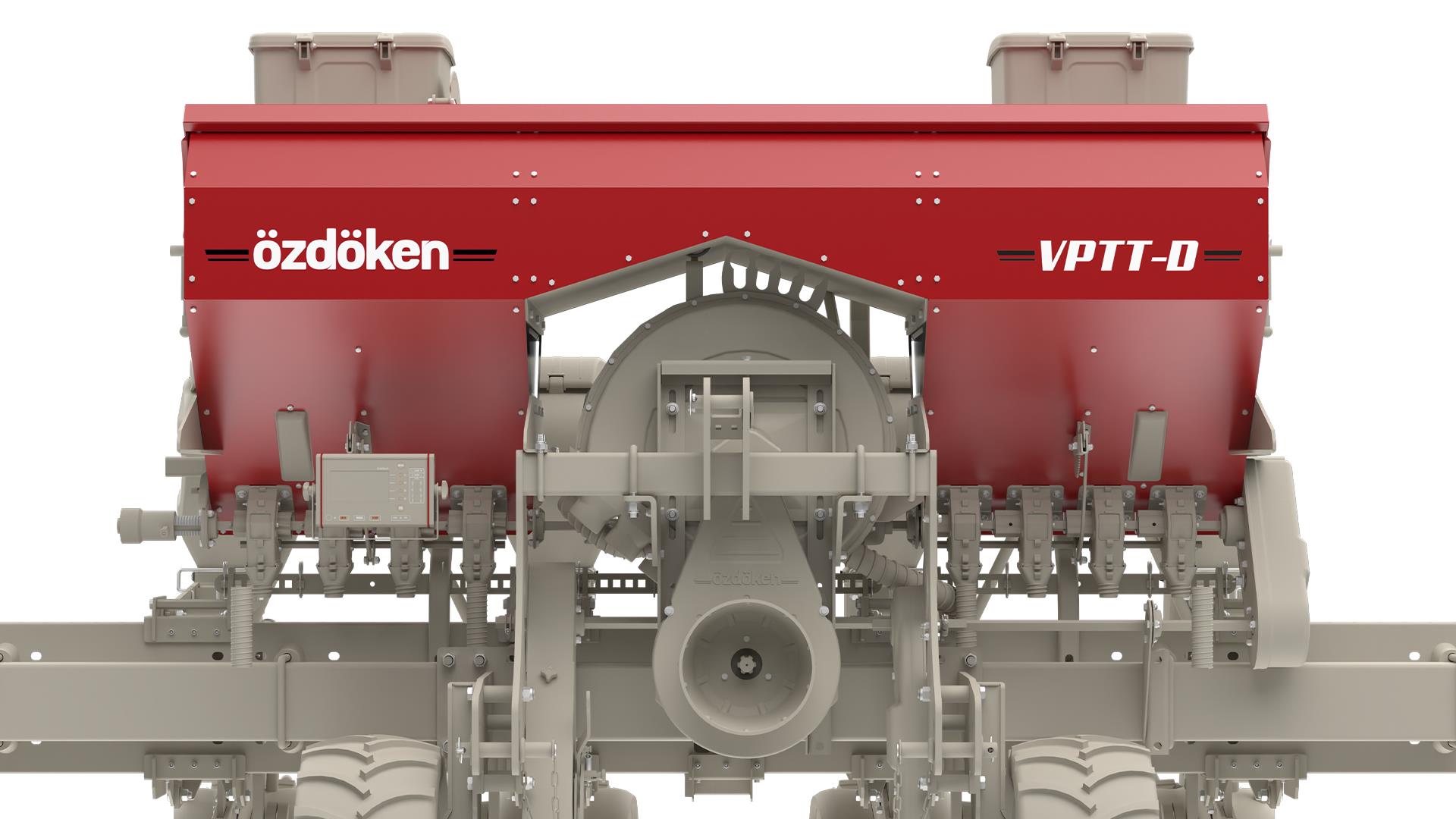

OPTIONAL - JUMBO METAL FERTILIZER HOPPER

Technical Specifications

Model	Number Of Row Unit	Row Space	Transport Widht	Height	Length	Weight	Tyre Size	Polythene Fertilizer Hopper Cap.	Metal or Inox Fertilizer Hopper Cap.	Jumbo Polythene Fertilizer Hopper Cap.	Jumbo or Inox Fertilizer Hopper Cap.	Power Requirement
	pcs	cm	cm	cm	cm	kg		lt	lt	lt	lt	hp
VPTT-4	4	ADJUSTABLE 45-50-70	300	150	220	920	23.5/10.50-12	-	-	-	-	65-75
VPTT-G4	4	ADJUSTABLE 45-50-70	300	150	220	1060		180 lt x 1	200 lt x 2	-	-	70-80
VPTT-4	4	ADJUSTABLE 75-95	330	150	220	920		-	-	-	-	65-75
VPTT-G4	4	ADJUSTABLE 75-95	330	150	220	1060		180 lt x 2	200 lt x 2	-	-	70-80
VPTT-5	5	ADJUSTABLE 45-50-55-60-65-70	320	150	220	1000		-	-	-	-	80-90
VPTT-G5	5		320	150	220	1190		180 lt x 2	200 lt x 2	-	-	80-90
VPTT-6	6		400	150	220	1150		-	-	-	-	90-100
VPTT-G6	6		400	150	220	1350		230 lt x 2	250 lt x 2	-	-	90-100

- The indicated power may vary by approximately ±20% depending on the soil structure and changes in the tractor model (two-wheel drive, etc.).
