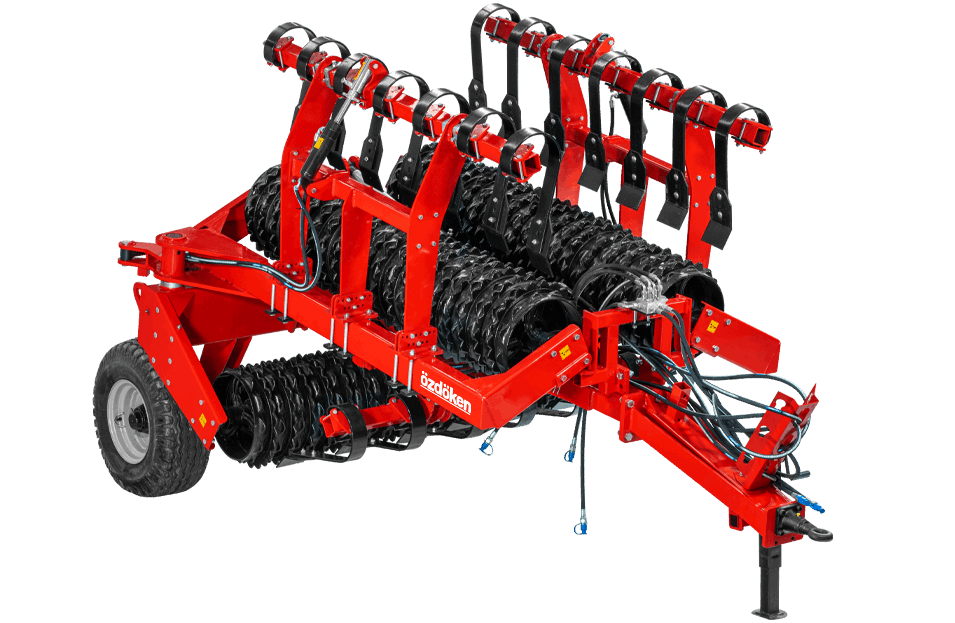

FOLDABLE TRAILED TYPE CAMBRIDGE ROLLER
Model RC prepares the seed bed perfectly before seeding thanks to its 50 cm diameter cast iron roller and heavy chassis, and prevents the seeds from cold weather by pressing the soil during seeding or after seeding. RC-T series cambridge rollers manufactured with trailed linkage system. Avaliable on 450,630,830 and 950 cm working width.
Product Equipment

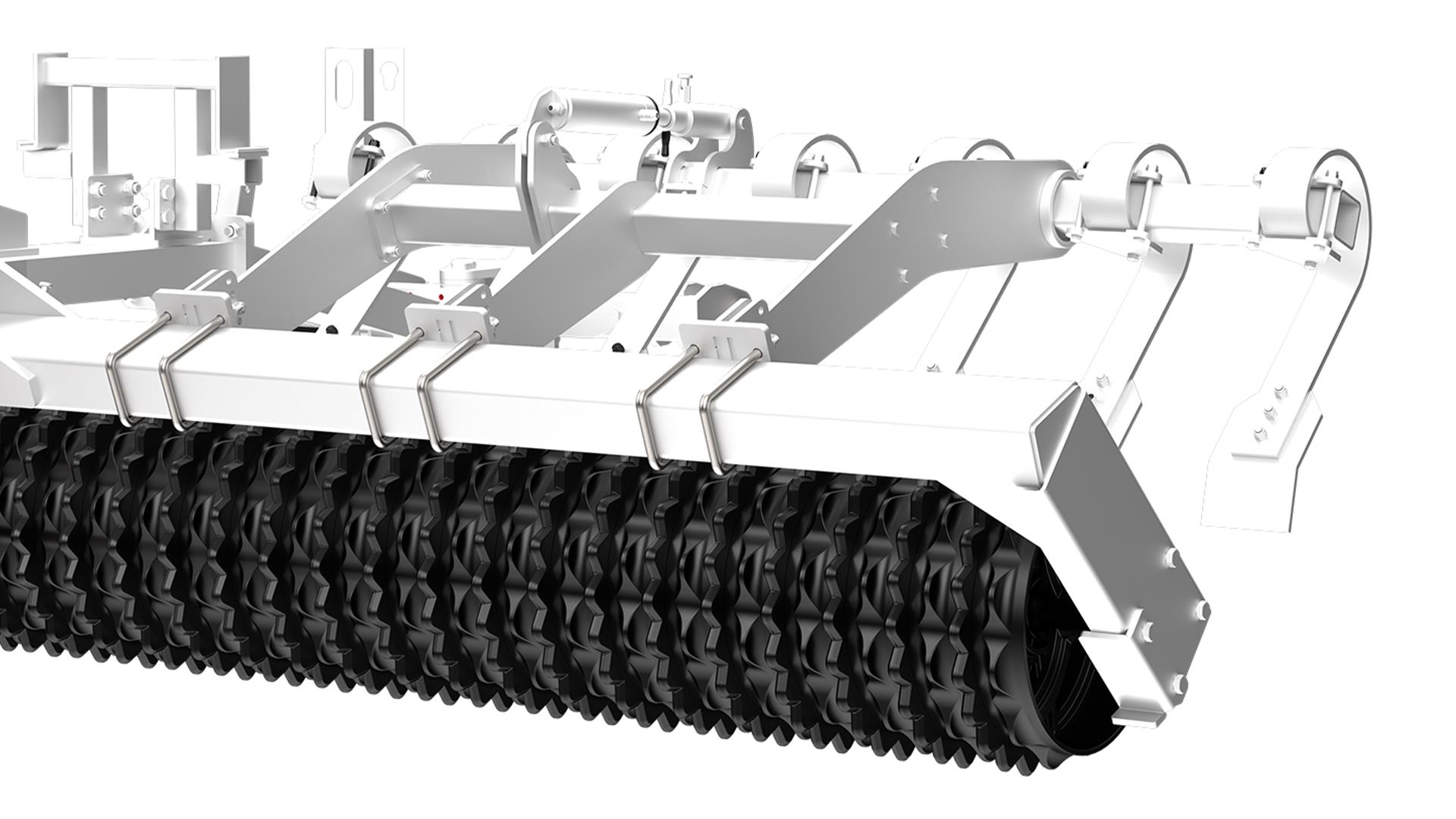

500 MM ROLLER DIMENSION
40 MM DRAWBAR

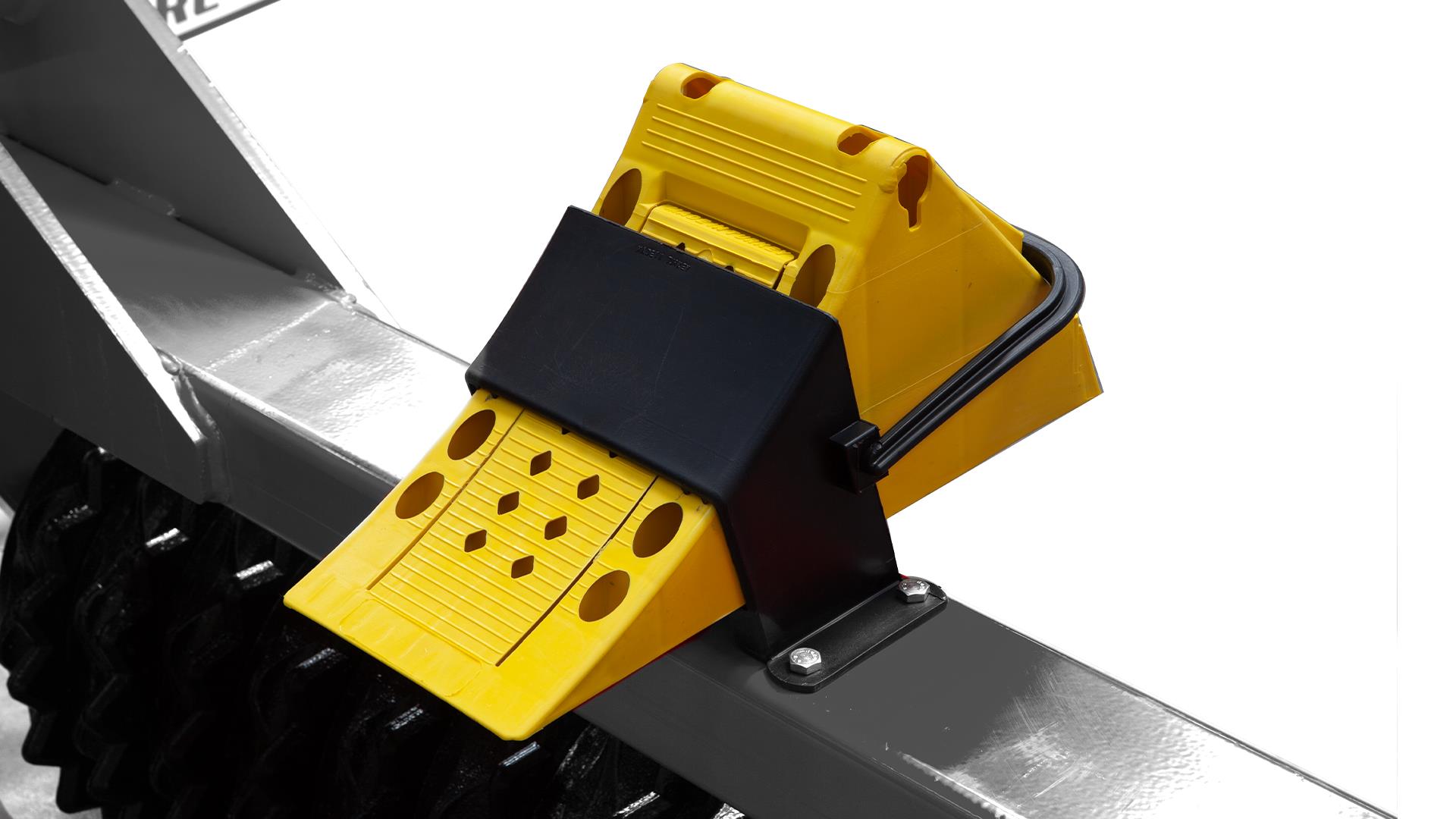

OPTIONAL - PLASTIC WEDGE

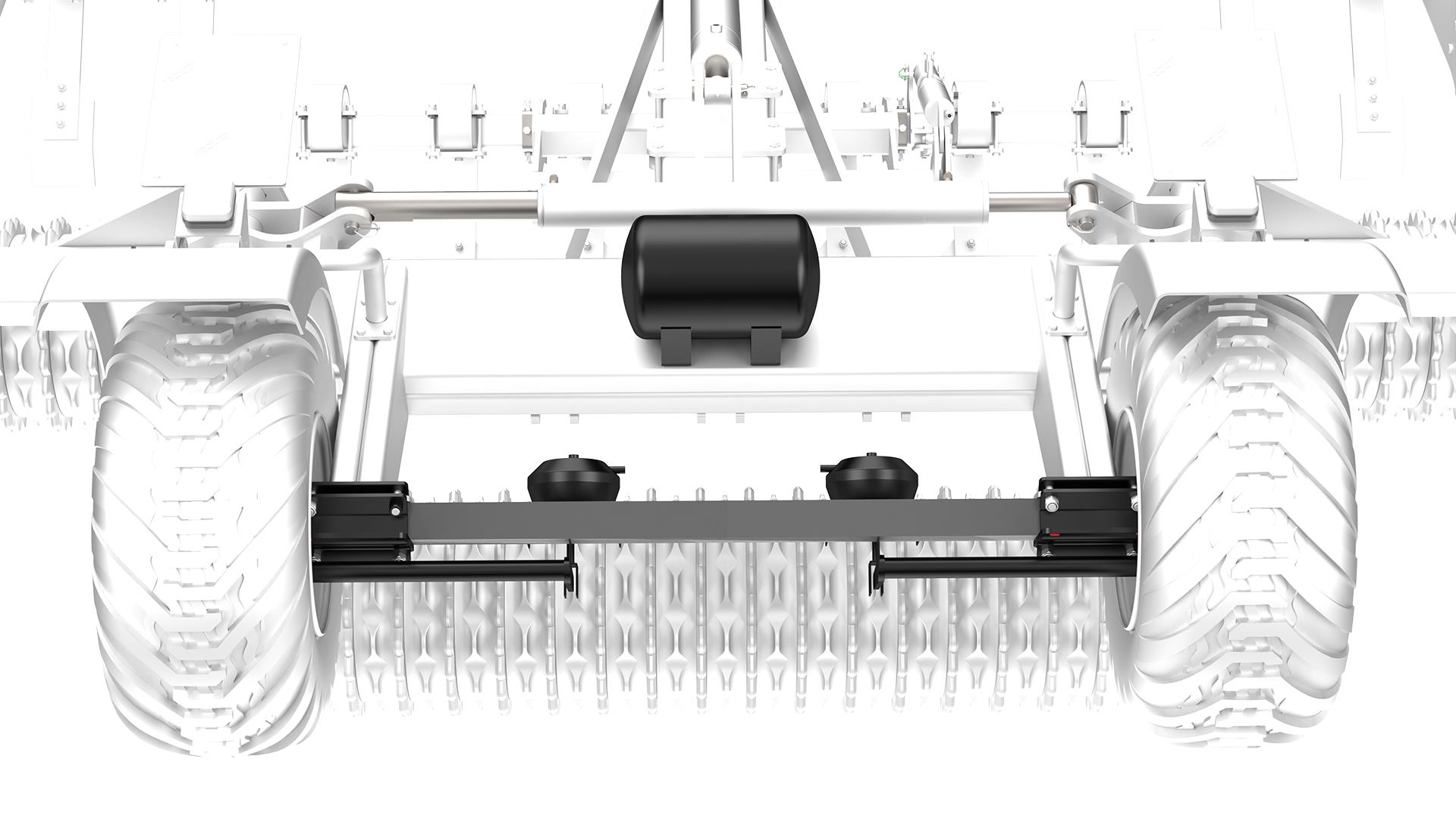

OPTIONAL - AIR BRAKE

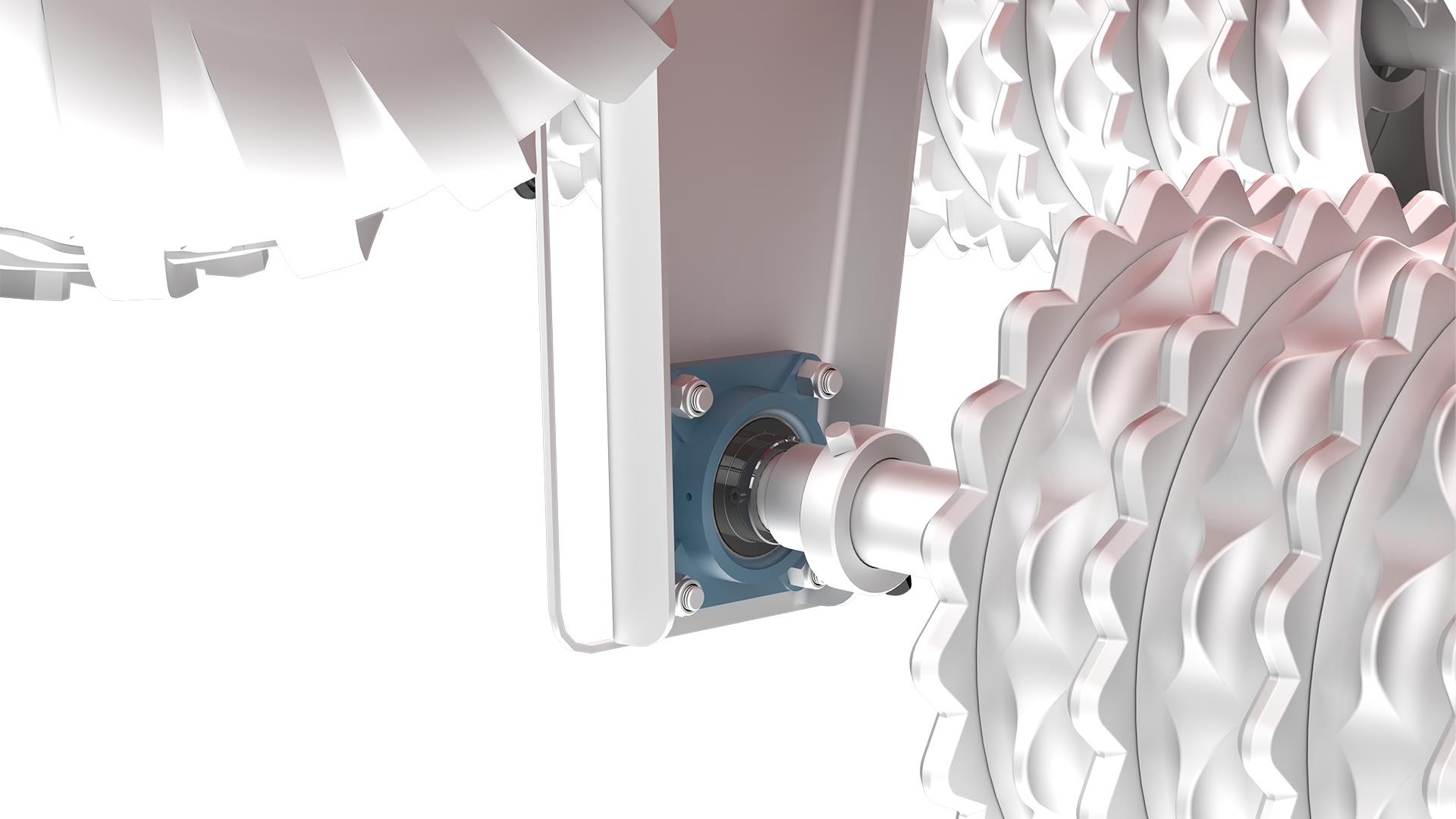

UCF TYPE BEARING
OPTIONAL - SEMI TRAILED DRAWBAR

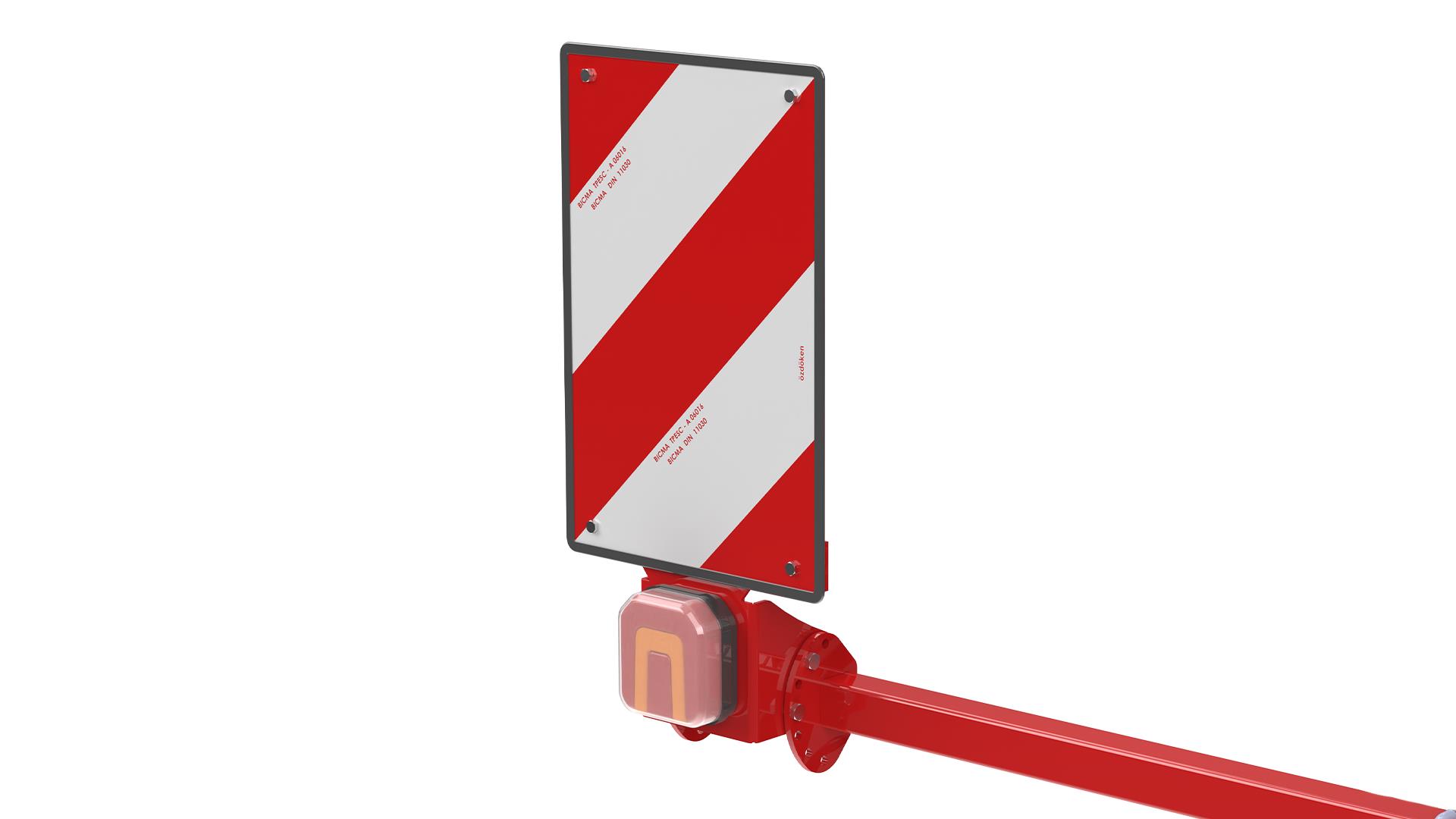

OPTIONAL - TRAFFIC KIT BICMA REFLECTOR POLISH LEDLIGHT

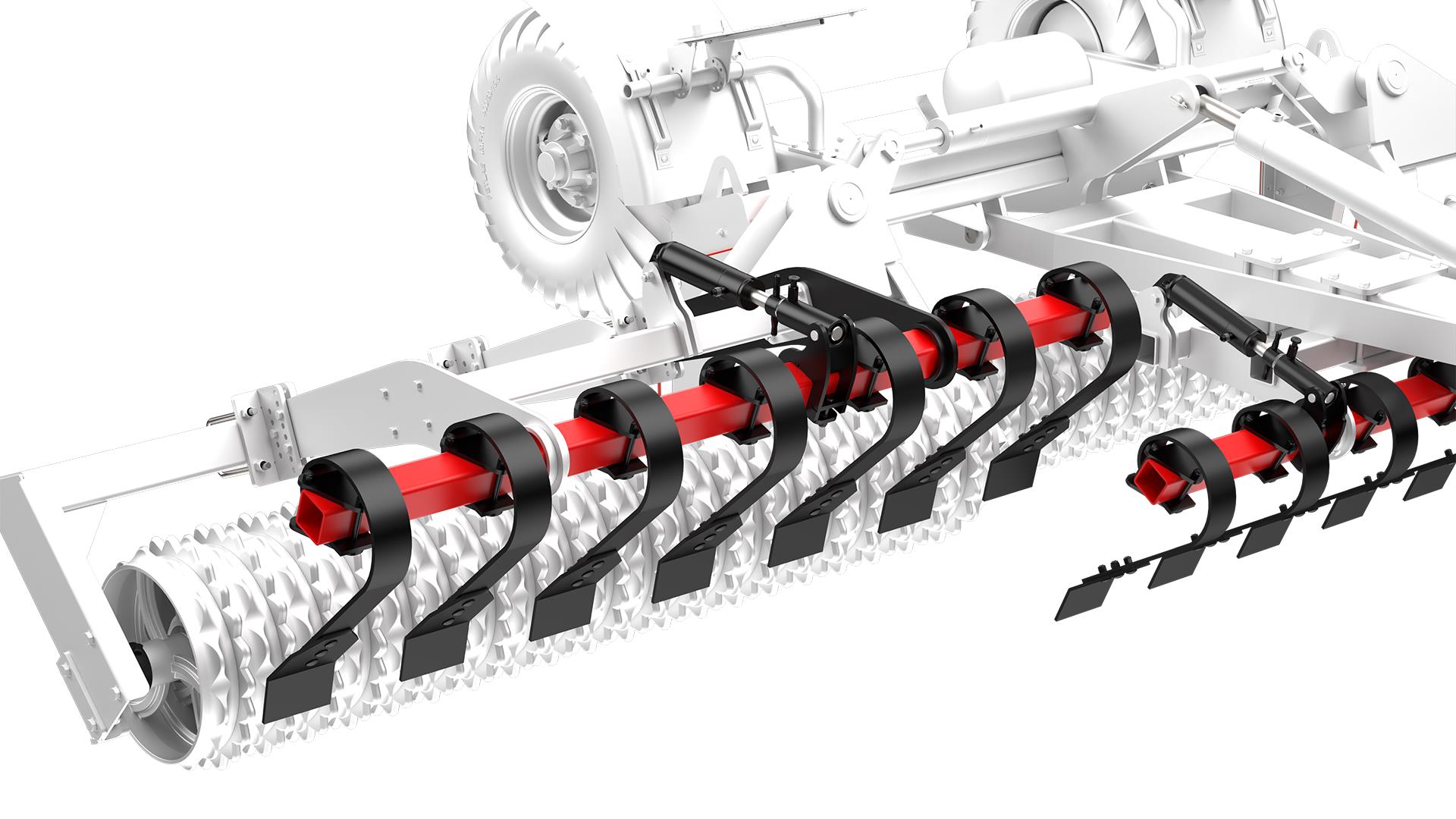

OPTIONAL - LEVELLING BLADES
500 MM ROLLER DIMENSION
40 MM DRAWBAR
OPTIONAL - PLASTIC WEDGE
OPTIONAL - AIR BRAKE
UCF TYPE BEARING
OPTIONAL - SEMI TRAILED DRAWBAR
OPTIONAL - TRAFFIC KIT BICMA REFLECTOR POLISH LEDLIGHT
OPTIONAL - LEVELLING BLADES Technical Specifications
| Model | Roller Size (cm) | Maximum Weight (kg) | Transport Width (cm) | Working Width (cm) | TYRE SIZE | Power Requirement |
| RC-450 | 50 | 2270 | 240 | 450 | 400/60-15.5 | 60-70 hp |
| RC-630 | 2975 | 240 | 630 | 400/60-15.5 | 70-80 hp | |
| RC-830 | 4100 | 240 | 830 | 400/60-15.5 | 80-100 hp | |
| RC-950 | 4645 | 240 | 950 | 400/60-15.5 | 90-110 hp |
