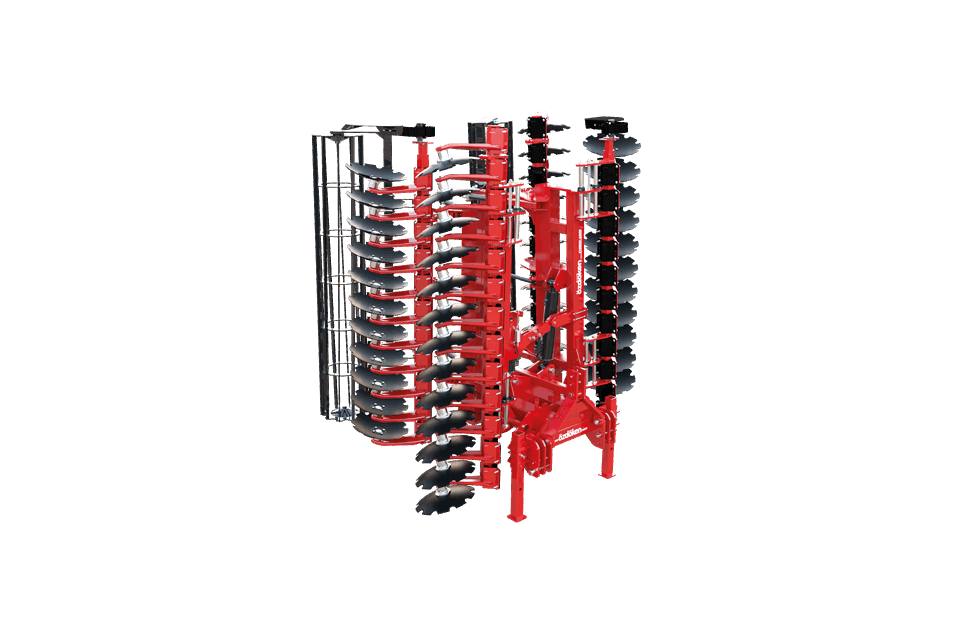

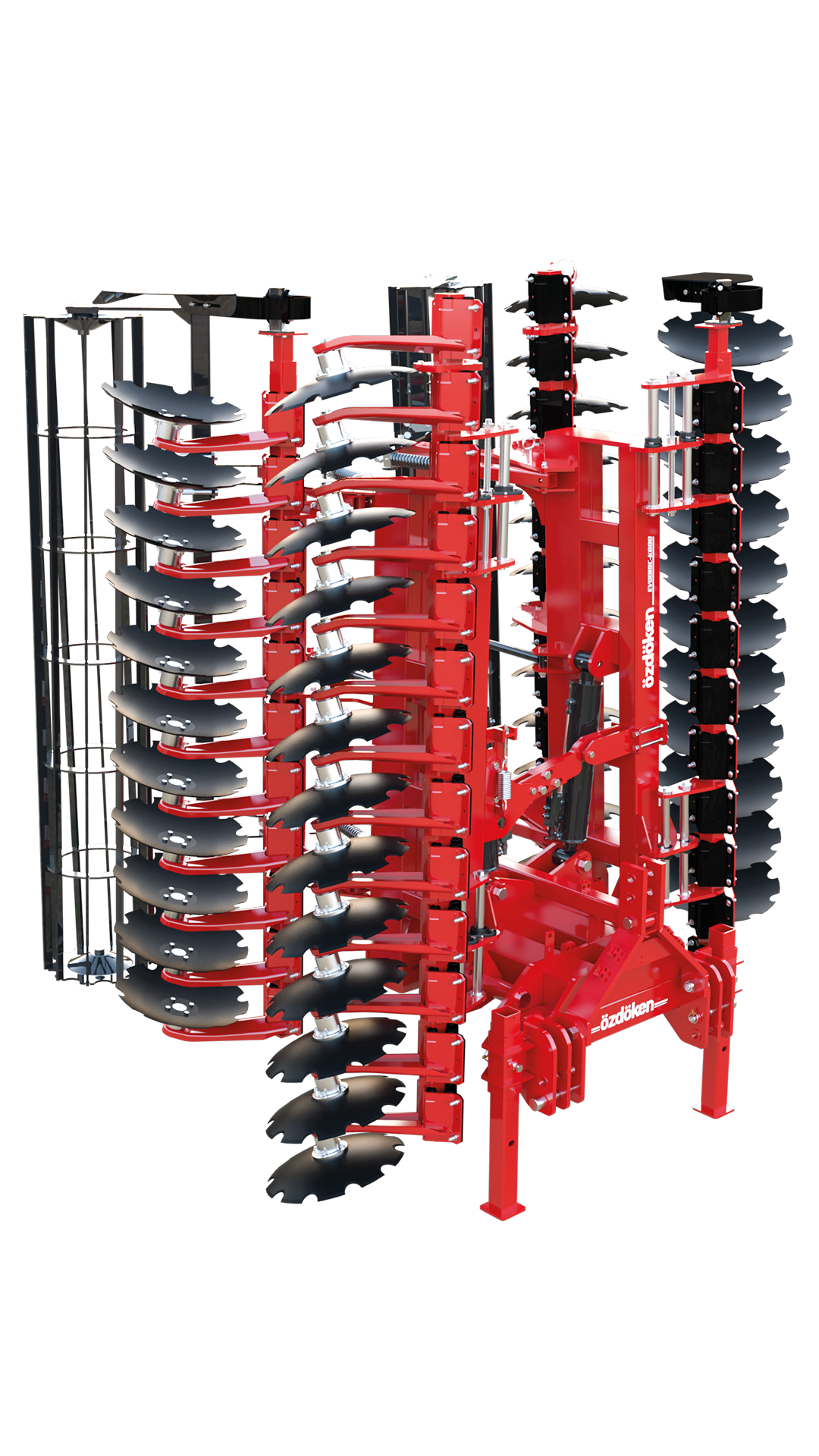

EVODISC K - THREE POINT LINKAGE FOLDABLE FRAME
Product Equipment
MECHANICAL ANGEL ADJUSTMNET
RUBER SUSPENSION
SHORTER MACHINE LESS PUISSANCE REQUISE
OPTIONAL - DOUBLE CAGE ROLLER
OPTIONAL - DOUBLE U TYPE ROLLER
OPTIONAL - RUBBER ROLLER
SIDE DEFLECTOR
ADJUSTABLE SIDE DISCS
OPTIONAL - CAGE ROLLER 500 MM
OPTIONAL - SINGLE U TYPE ROLLER
OPTIONAL - PACKER ROLLER 460 MM
OPTIONAL - V TYPE ROLLER 500 MM
MECHANICAL ANGEL ADJUSTMNET
RUBER SUSPENSION
SHORTER MACHINE LESS PUISSANCE REQUISE
OPTIONAL - DOUBLE CAGE ROLLER
OPTIONAL - DOUBLE U TYPE ROLLER
OPTIONAL - RUBBER ROLLER
SIDE DEFLECTOR
ADJUSTABLE SIDE DISCS
OPTIONAL - CAGE ROLLER 500 MM
OPTIONAL - SINGLE U TYPE ROLLER
OPTIONAL - PACKER ROLLER 460 MM
OPTIONAL - V TYPE ROLLER 500 MM Technical Specifications
| MODEL | NUMBER OF DISCS | DISC DIMENSION (mm) | WORKING WIDHT (cm) | TRANSPORT WIDHT (cm) | WEIGHT (kg) | POWER REQUIMENT |
| EVODISC K400 | 32 | 510X4,0 / 560X4,5 | 400 | 300 | 2400 | 150-200 |
| EVODISC K500 | 40 | 510X4,0 / 560X4,5 | 500 | 300 | 2800 | 190-240 |
| EVODISC K600 | 48 | 510X4,0 / 560X4,5 | 600 | 300 | 3400 | 220-260 |
| MODEL | NUMBER OF DISCS | DISC DIMENSION (mm) | WORKING WIDHT (cm) | TRANSPORT WIDHT (cm) | WEIGHT (kg) | POWER REQUIMENT |
| EVODISC K400X | 32 | 610 X 5 | 400 | 300 | 2600 | 150-200 |
| EVODISC K500X | 40 | 610 X 5 | 500 | 300 | 3000 | 190-240 |
| EVODISC K600X | 48 | 610 X 5 | 600 | 300 | 3600 | 220-260 |
