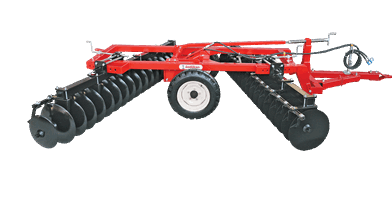

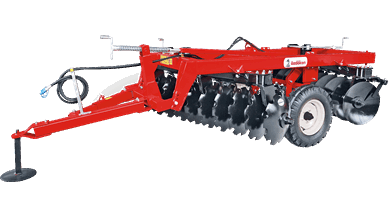

PGD-N TRAILED STANDARD FRAME DISC HARROW
PDG-N series is a light disc harrow that helps prepare the ground for sowing, also breaks up clods and destroys the stems of crop residues such as sunflower, rice, wheat.
Product Equipment

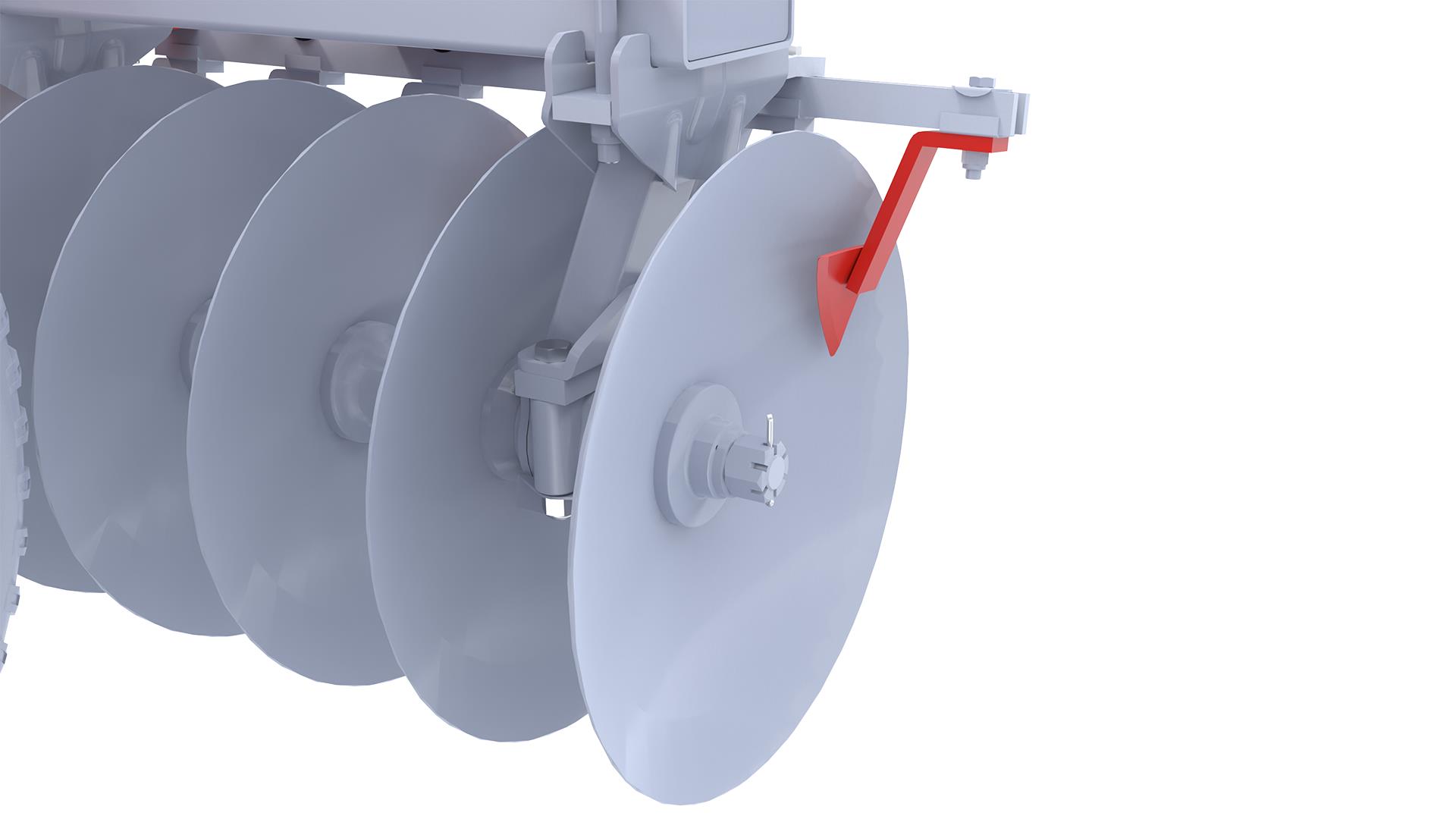

CEMENTED SCRAPERS

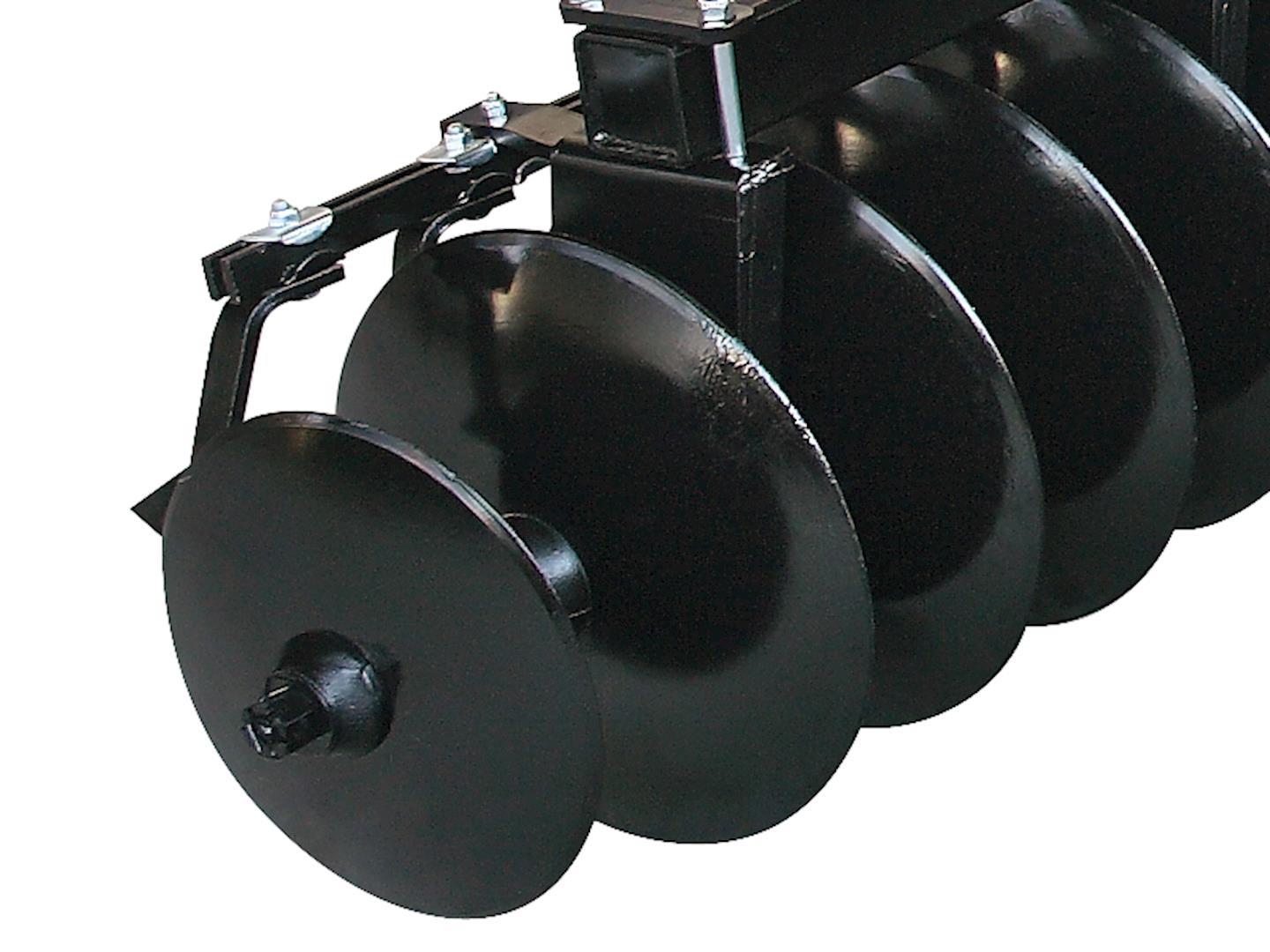

FURROW CLOSER

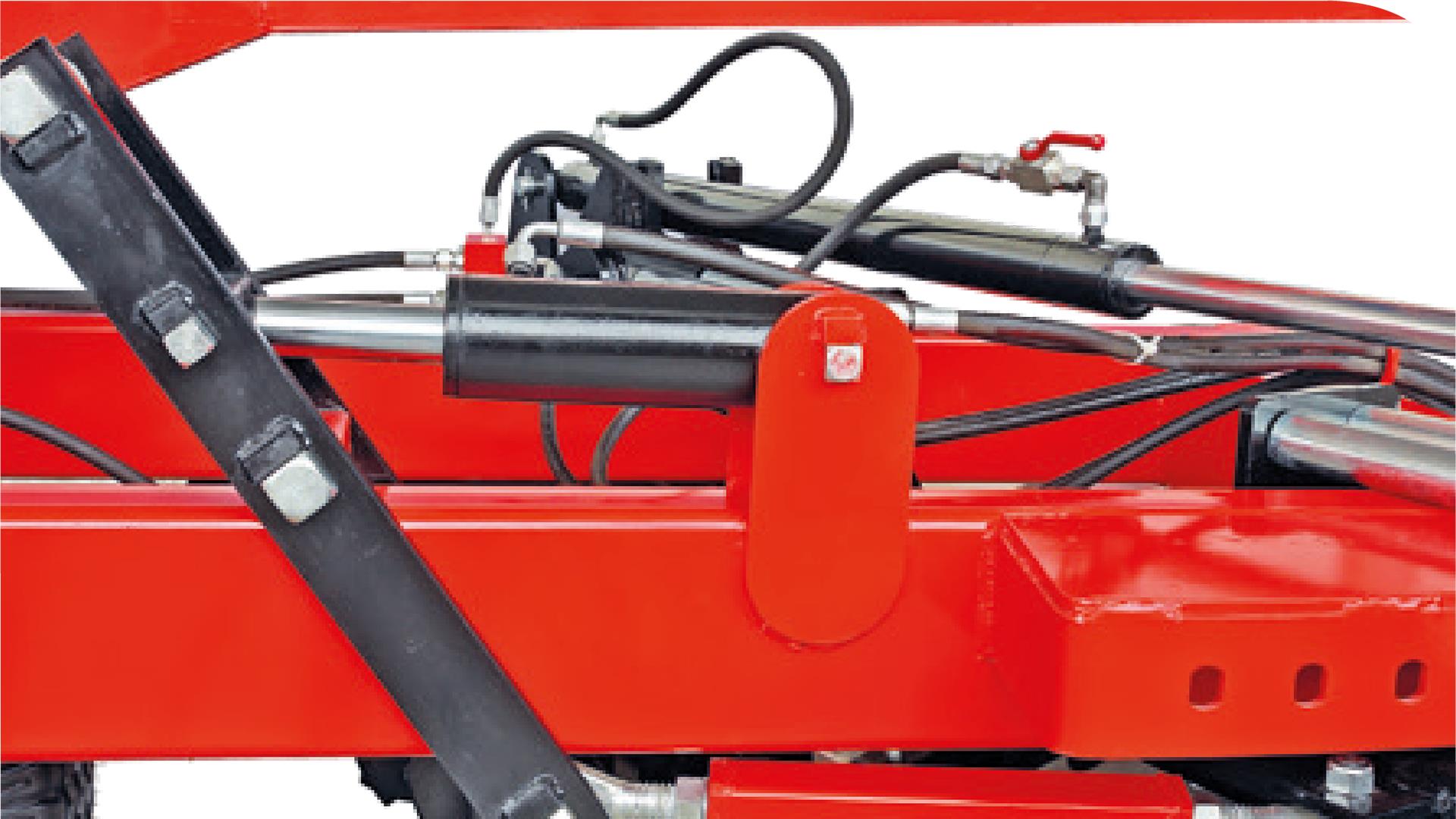

HYDRAULIC ANGLE ADJUSTMENT
LONG LIFE BEARING

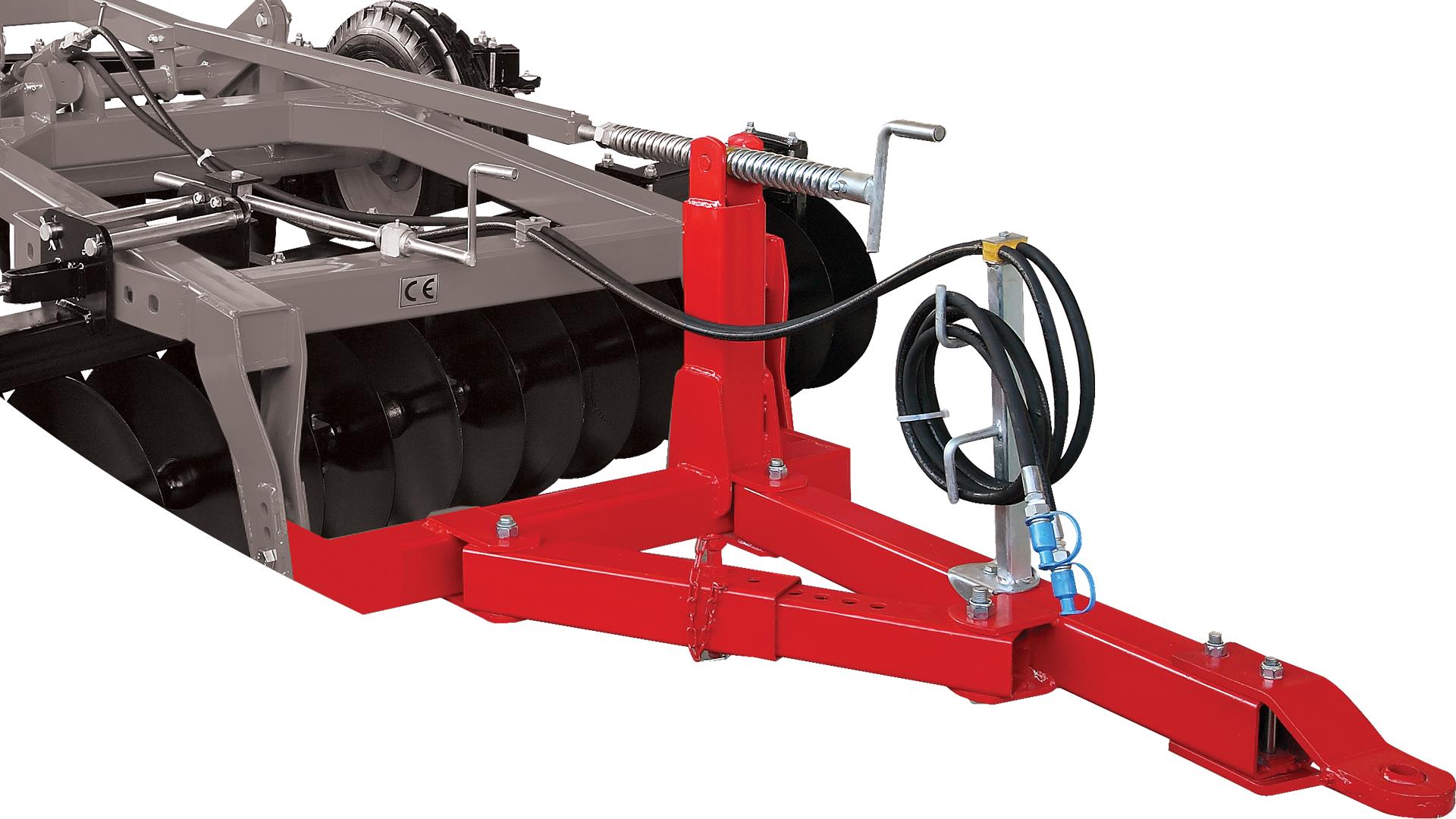

ADJSTMENT TOOL BAR

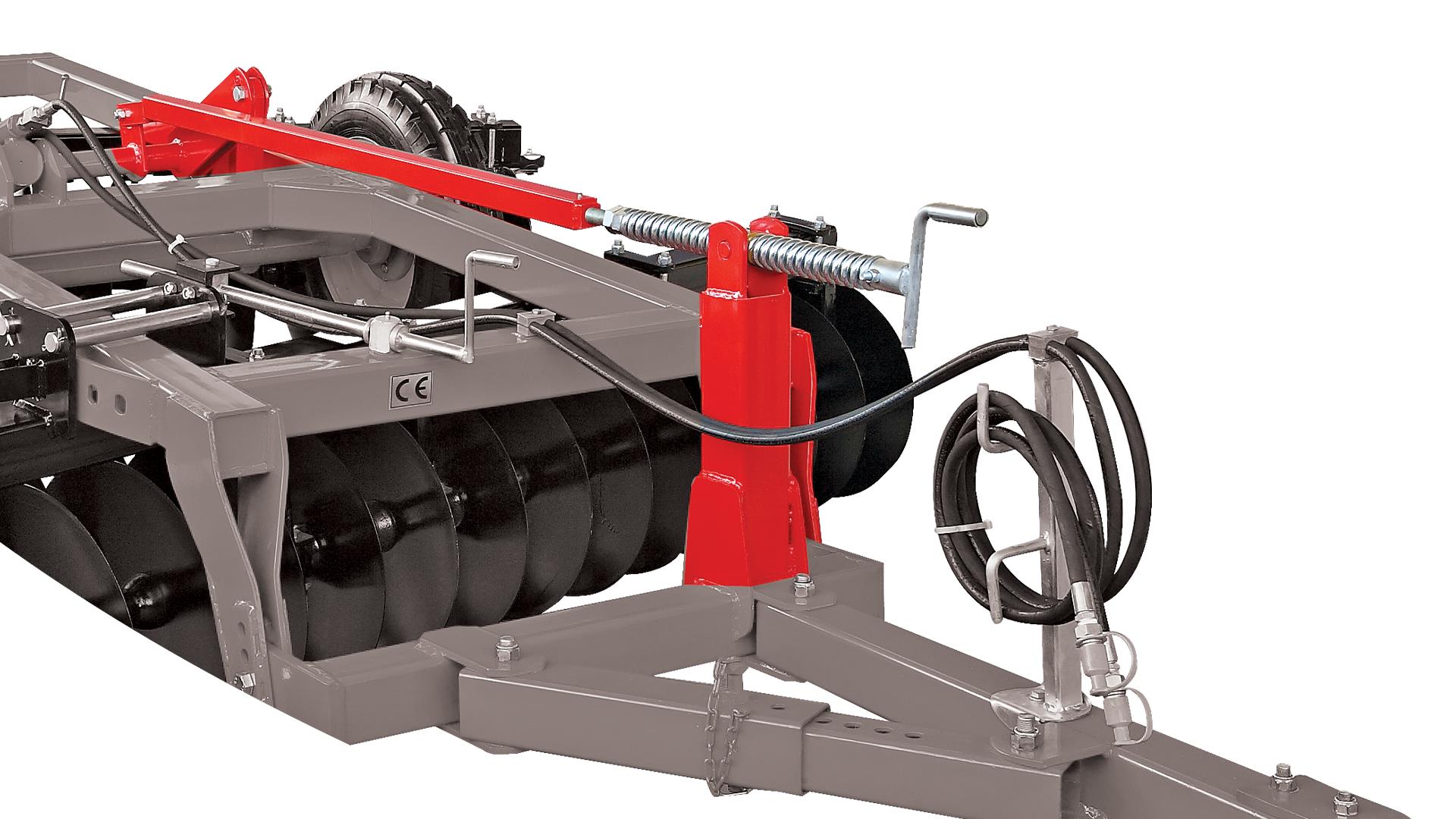

BALANCE ARM
CEMENTED SCRAPERS
FURROW CLOSER
HYDRAULIC ANGLE ADJUSTMENT
LONG LIFE BEARING
ADJSTMENT TOOL BAR
BALANCE ARM Technical Specifications
| MODELS | NUMBER OF DISC (pcs) | DISC DIMENSION (mm) | DISC TO DISC DISTANCE (cm) | NUMBER OF BEARING (pcs) | FRAME SIZE (cm) | WEIGHT (kg) | WORKING WIDHT (cm) | TRANSPORT WIDHT (cm) | POWER REQUIREMENT |
| PGD-N18 | 18 | 560x4,5 / 610x5 / 660x6 | 22 | 4 | 100 x 150 x 6 | 1460 | 198 | 234 | 65-70 hp |
| PGD-N20 | 20 | 560x4,5 / 610x5 / 660x6 | 22 | 6 | 100 x 150 x 6 | 1655 | 220 | 256 | 75-80 hp |
| PGD-N22 | 22 | 560x4,5 / 610x5 / 660x6 | 22 | 8 | 100 x 150 x 6 | 1880 | 242 | 278 | 80-90 hp |
| PGD-N24 | 24 | 560x4,5 / 610x5 / 660x6 | 22 | 8 | 100 x 150 x 6 | 1990 | 264 | 300 | 90-110 hp |
