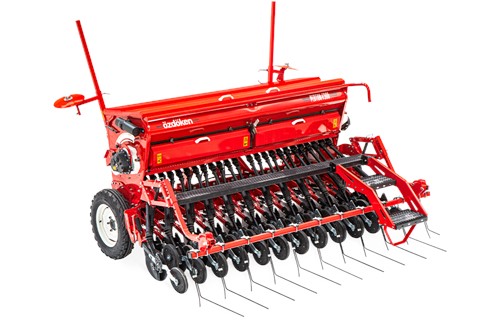

PERTUM SERIES MECHANICAL GRAIN SEED DRILL

      Ozdoken Pertum series are a grain seed drill which can be used as single grain seeding or in combination with all soil tillage equipments. Pertum is avaliable with single disc row unit which has standartly pressure wheel.

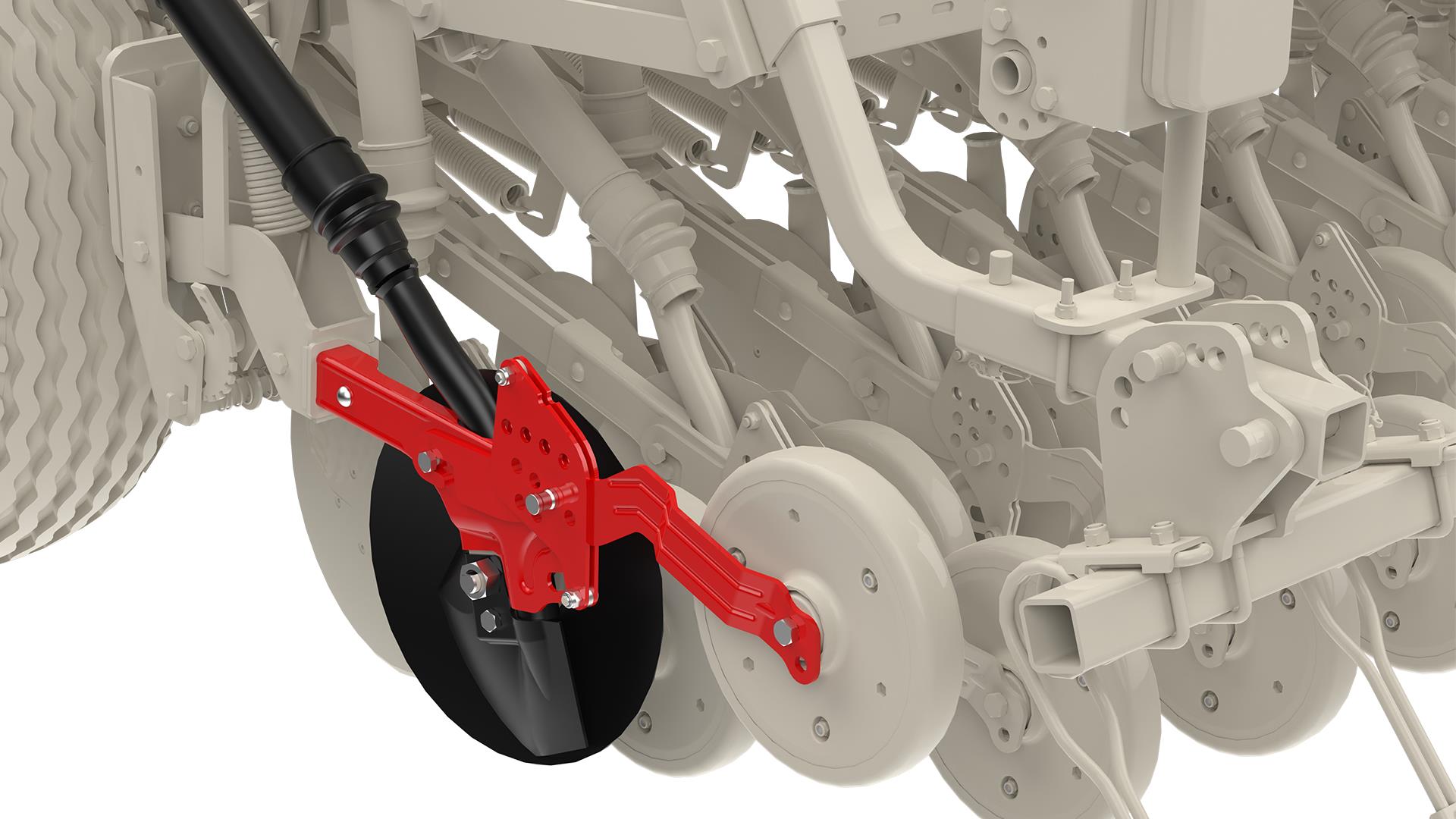

SINGLE DISC ROW UNIT

Single disc has standartly with seed pressure wheel which allows precise seeding depth even on small seeds.

PRESSURE AND DEPTH ADJUSTMENT

Pressure adjustment can be adjusted mechanically.

VARIO GEARBOX WITH FLEXIBLE DOSAGE METER

With the help of variable gearbox seed are sown from 1,5 kg to 400 kg. Dosage meter can be easily adjusted according to seed size.

DOUBLE HYDRAULIC ROW MARKER

All range of Pertum Series has double hydraulic row marker standartly.

DOSAGE METER FOR ALL KIND OF GRAINS

The dosage meter has 2 type of rollers to seed small and normal size seeds. The seed change is very easy without roller change.

FOLLOWING TINES

Easy to change depth and angle adjustment of following tines.

Product Equipment
SINGLE DISC ROW UNIT SINGLE DISC ROW UNIT

Single disc has standartly with seed pressure wheel which allows precise seeding depth even on small seeds.

FOLLOWING TINES FOLLOWING TINES

Easy to change depth and angle adjustment of following tines.

PRESSURE AND DEPTH ADJUSTMENT PRESSURE AND DEPTH ADJUSTMENT

Pressure adjustment can be adjusted by mechanically.

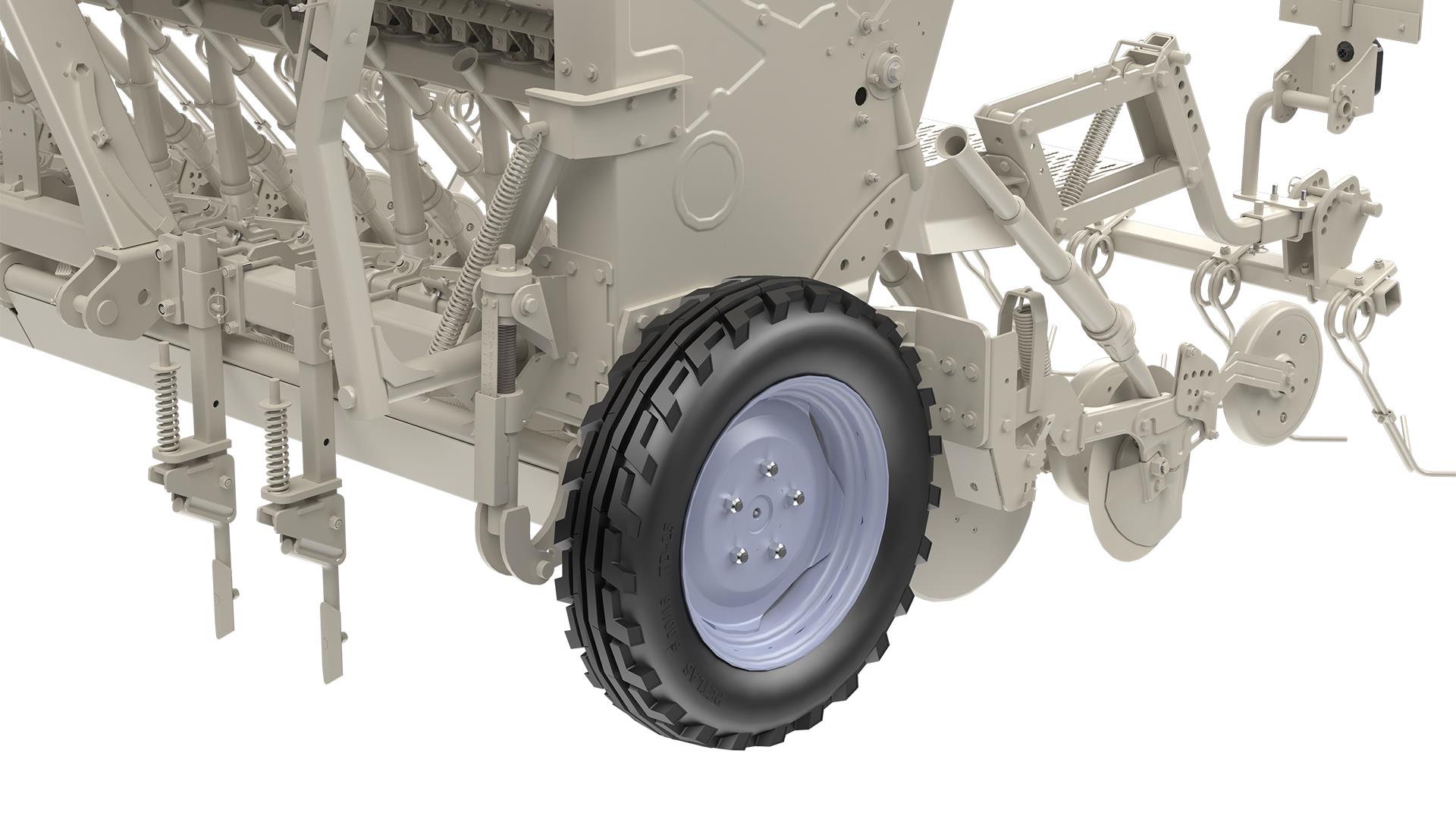

6.00X16 TYRE SIZE 6.00X16 TYRE SIZE

Avaliable for 250 and 300 cm working width.

DOUBLE HYDRAULIC ROW MARKER DOUBLE HYDRAULIC ROW MARKER

All Pertum models have double hydraulic row markers standartly.

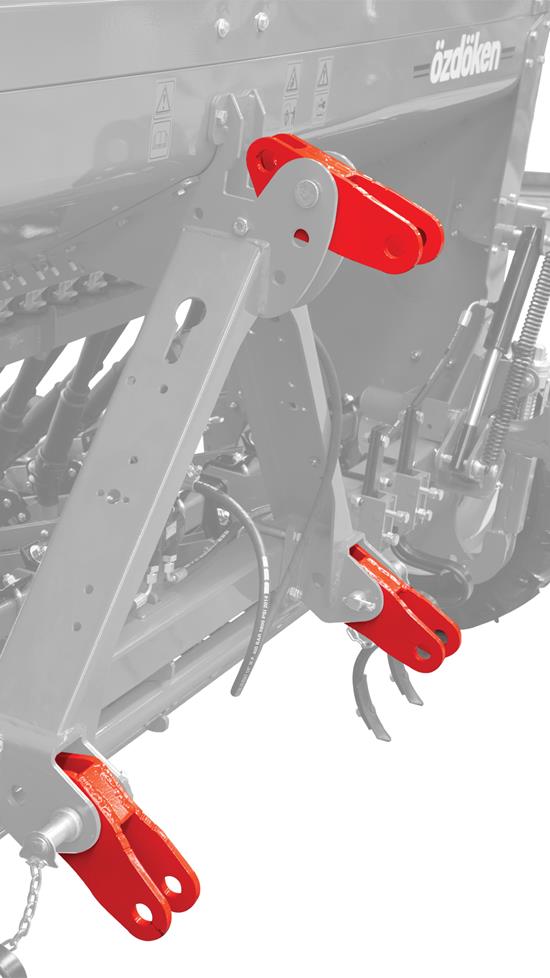

EXTENSION FOR 3 POINT LINKAGE EXTENSION FOR 3 POINT LINKAGE

HOPPER EXTENSION HOPPER EXTENSION

All Pertum models has extension kit optionally for extra hopper capacity for seed and fertilizer.

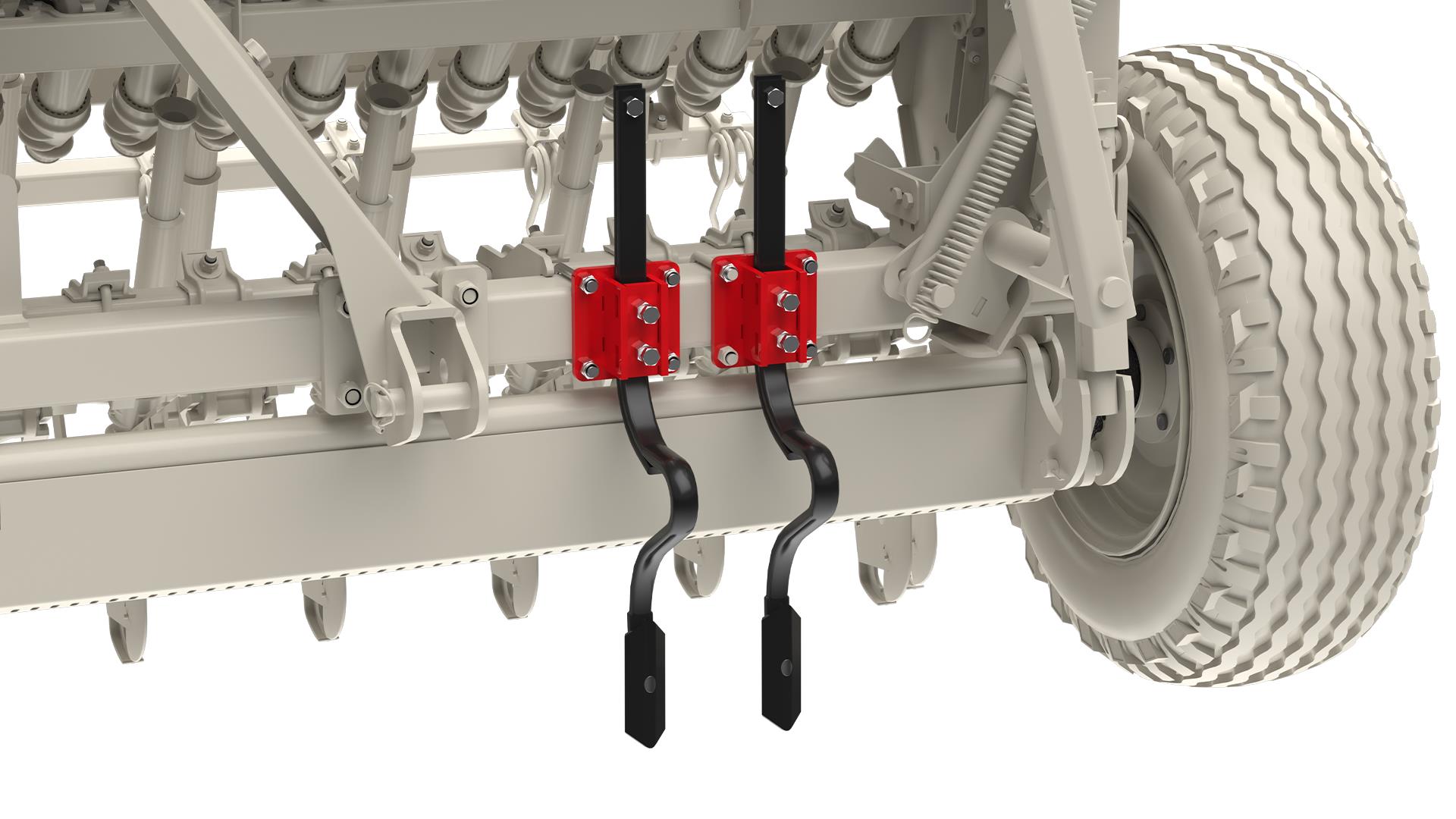

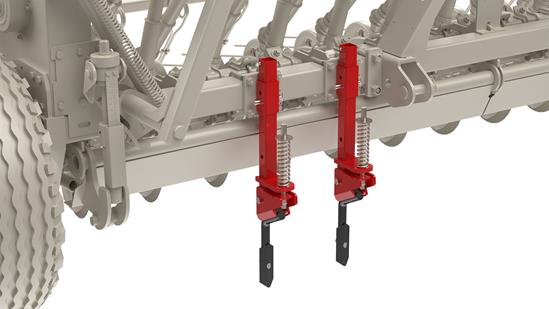

TRACK ERADICATOR TRACK ERADICATOR

Track eradicator can be equipped optionally to loose track of the track wheels.

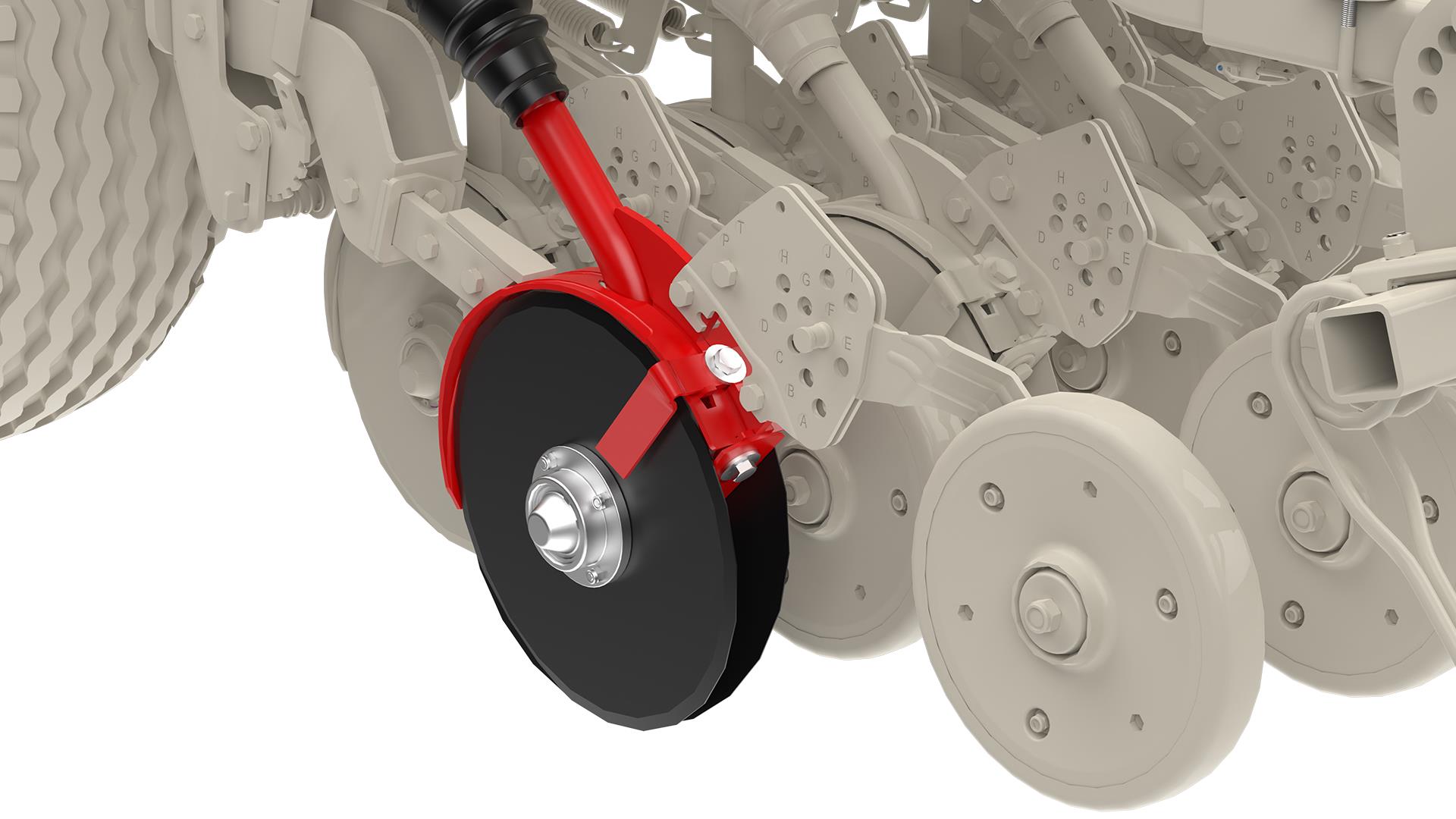

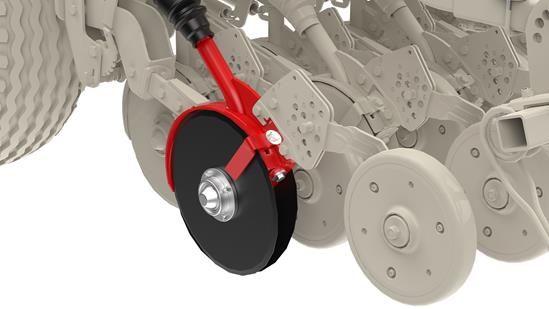

DOUBLE DISC ROW UNIT DOUBLE DISC ROW UNIT

Optional "V" shape double disc has standartly equipped with seed pressure wheel.

DOSAGE METER FOR ALL KIND OF GRAINS DOSAGE METER FOR ALL KIND OF GRAINS

The dosage meter has 2 type of rollers to seed small and normal size seeds . The seed change is very easy without roller change.

VARIO GEARBOX VARIO GEARBOX

With the help of variable gearbox seed are sown from 1,5 kg to 400 kg. Dosage meter can be easily adjusted according to seed size.

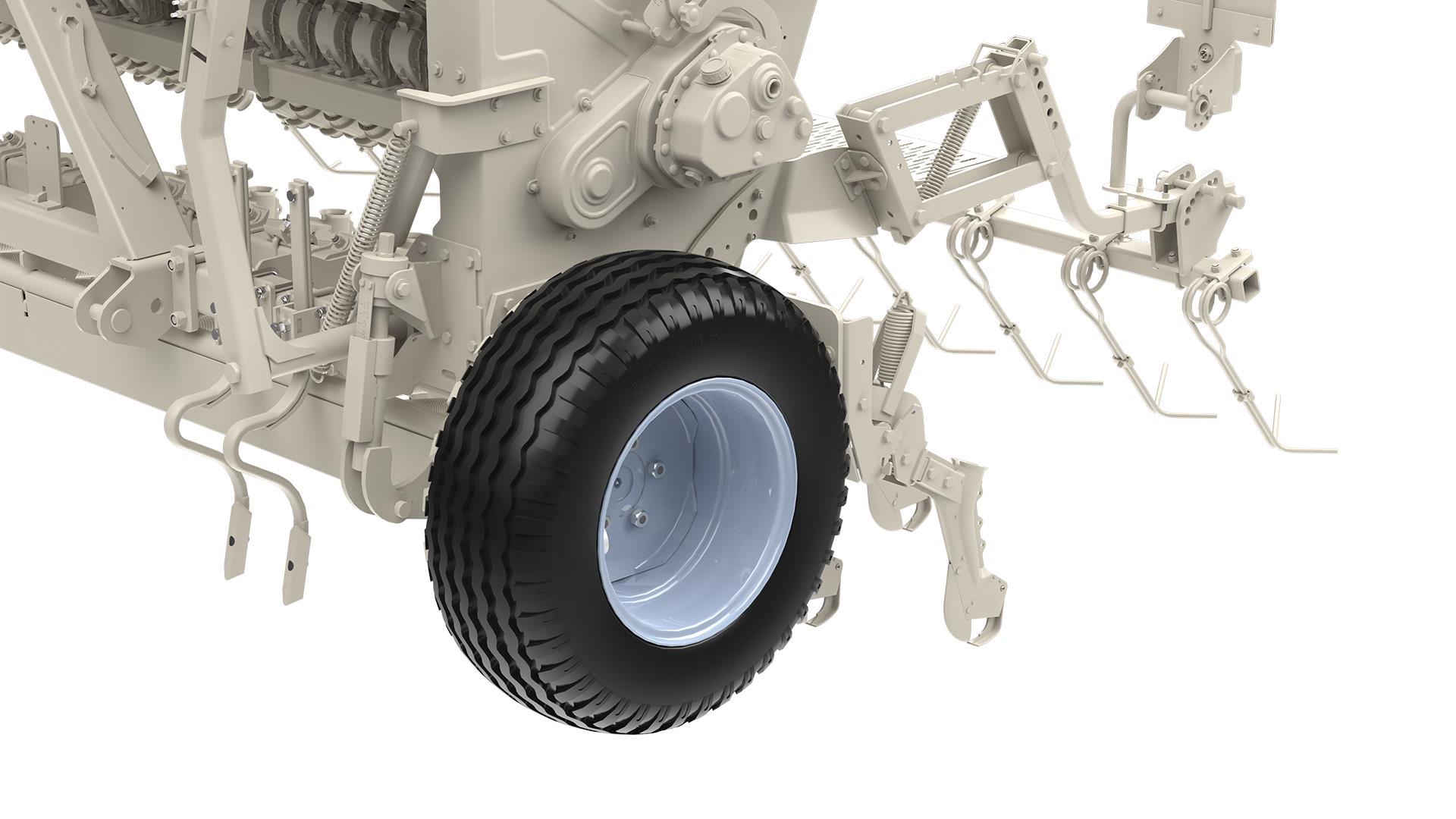

10.0/75-15.3 TYRE SIZE 10.0/75-15.3 TYRE SIZE

Avaliable for 250 anc 400 cm working width.

FERTILIZER KIT FERTILIZER KIT

All Pertum models have fertilizer hopper option.

BASIC TRAMLINE BASIC TRAMLINE

Basic tramline has automatic row shut of system with actuator.

FULL TRAMLINE FULL TRAMLINE

Beside the basic tramline feature, full version has ; -Area counter -Seeding speed -Seed and Fertilizer Level Indicator -Control of Metering Shaft

Technical Specifications
Models

NUMBER OF ROW UNITS  (pcs)

ROW SPACE  (cm)WORKING WIDTH    (cm)TRANSPORT WIDTH (cm)TYRE SIZEWEIGHT (kg)SEED HOPPER CAPACITY (It)SEED HOPPER CAPACITY WITH EXTENSION (It) FERTILIZER HOPPER CAPACITY (It)FERTILIZER HOPPER CAPACITY WITH EXTENSION (It)POWER REQUIREMENT
Tohum Kontrol Alan Ölçer  (hp)       (kW)
PERTUM-S250 20 12,5 250 250 6.00X16 860 480 - - - 50-70 37-52
PERTUM-S300 24 12,5 300 300 6.00X16  1050 590 950 - - 60-80 44-60
PERTUM-S350 28 12,5 350 360 10.0/75-15.3 1180  700 1225 - - 70-90 52-67
PERTUM-S400 32 12,5 400 410 10.0/75-15.3  1365 830 1330 - - 80-110 60-82
PERTUM-F250 20 12,5 250 250 6.00X16  930 240 - 250 - 50-70 37-52
PERTUM-F300 24 12,5 300 300 6.00X16  1130 295 485 310 480 60-80 44-60
PERTUM-F350 28 12,5 350 360 10.0/75-15.3 1270  350 575 370 570 70-90 52-67

PERTUM-F400

32 12,5 400 410 10.0/75-15.3  1450 410 670 430 670 80-110 60-82
