HBM SERIES MECHANICAL GRAIN SEED DRILL



               HBM series is a mechanical grain drill for conventional seeding.  It's possible to seed standart size crops such as wheat,barley,oat,lentil,chickpeas,beans e.t.c.It needs low horse power requirement due to trailed system. HBM series has standartly seed and fertilizer hopper but also possible to have only seed hopper. From 170 cm to 540 cm working width , HBM Series correspond all size of farms request.

Single Disc Type Row Unit

From 30 kg to 400 kg/ha

Standartly Seed and Fertilizer Hopper

Fluted Dosage Meter

Trailed Type Usage

Hydraulic Depth Adjustment

Loading Platform

Single Line Marker

Product Equipment
7.50X16 TYRE SIZE 7.50X16 TYRE SIZE

12.4X24 TYRE SIZE 12.4X24 TYRE SIZE

The flap system which can be opened according the size of the seed allows the seeding of not only the wheat and barley but also coarse-grain seeds (Pulses) without breaking.

Single-Piped Seeding System Single-Piped Seeding System

Single piped seeding system provides a maximum level production by means of its plain structure in especially dampened and wet soils.

Cast Iron Type Seeding System Cast Iron Type Seeding System

Cast iron type seeding system ensures seeding in even excessive precipitations in the autumn months thanks to its durable and plain structure.

Loading Platform Loading Platform

The loading platform is a very useful way for loading seed and fertilizer.

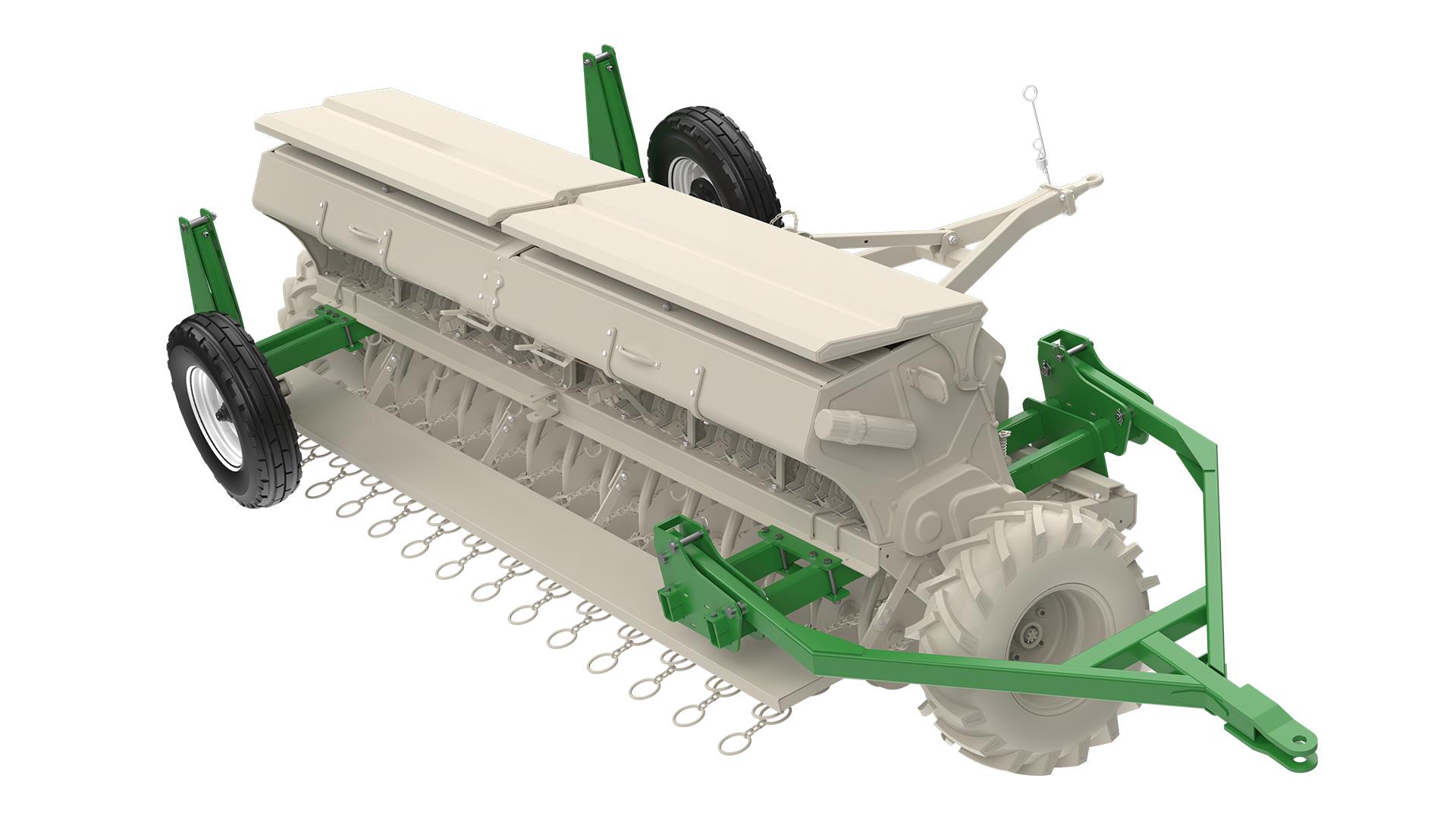

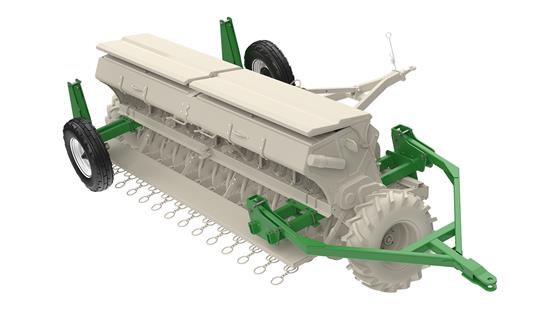

TRAILED KIT TRAILED KIT

11.5X80-15.3 TYRE SIZE 11.5X80-15.3 TYRE SIZE

V Type Seed and Fertilizer Box V Type Seed and Fertilizer Box

Thanks to angular slope that the “V” shape has given, the box provides an easy flow of the seed and fertilizer towards craws. When the seeds and fertilizers in the depot run short during seeding, this does not allow piling up on the bottom of box and enables the boxes to empty fully.

Double-Piped Seeding System Which Increases Productivity Double-Piped Seeding System Which Increases Productivity

By means of double pipe structures of the leg system, the fertilizer and seed go down through separate pipes and drops fertilizer underneath and seed 2 cm on it. Thus, the fertilizer does not burn the seed in dry seasons and its productivity it gets from fertilizer increases when the seed is shoot out.

Unseen Fertilizer Cover Unseen Fertilizer Cover

While filling seed and fertilizer , unseen cover prevents mixing of seed and fertilizer.

DOUBLE DISC SEED OPENER DOUBLE DISC SEED OPENER

Technical Specifications



Model
Number of Discs
Disc Spacing (cm)

Seed Hopper Capacity (kg)

Small Seed Hopper Capacity (kg)

Fertilizer Hopper Capacity (kg)
HBM- 12
12
14
200
-
200
HBM- 14
14
14
230
-
230
HBM- 16
16
14
260
-
260
HBM- 18
18
12,5 veya 14
290
-
290
HBM- 20
20
12,5 veya 14
320
-
320
HBM- 22
22
12,5 veya 14
350
-
350
HBM- 24
24
12,5 veya 14
380
-
380
HBM-NK 20
20
12,5 veya 14
320
70
320
HBM-NK 22
22
12,5 veya 14
350
76
350
HBM-NK 24
24
12,5 veya 14
380
83
380







Model
Total Width (c) (cm)

Total Long (a) (cm)

Total High (b) (kg)
Working Width (14 cm)
Working Width (12,5 cm)
Weight (kg)
Tyre Size
Power Requirements
HBM- 12
250
300

140

168
-
680
6.00x16
30-40 hp
26-30 kw
HBM- 14
275
300 140
196
-
750
35-45 hp
30-33 kw
HBM- 16
300
300 140
224
-
830
7.50x16
40-50 hp
33-37 kw
HBM- 18
330
300 140
252
-
900
45-55 hp
37-41 kw
HBM- 20
365
300 140
280
250
980
50-60 hp
41-44 kw
HBM- 22
390
300 140
308
275
1065
55-65 hp
44-48 kw
HBM- 24
420
300 140
336
300
1155
65-75 hp
52-56 kw
HBM-NK 20
365
300 140
280
250
1080
50-60 hp
41-44 kw
HBM-NK 22
390
300 140
308
275
1175
55-65 hp
44-48 kw
HBM-NK 24
420
300 140
336
300
1255
65-75 hp
52-56 kw
