SINGLE TELESCOPIC COULTER TYPE



             Ozdoken VPYT series precision planters are produced with coulter type seedbed openers. The row space can be adjusted from 70 to 75 cm. Transport width is 340 cm on the traffic. Possible to seed corn, sunflower, cotton, soja. Fertilizer system and microgranulator system are available as an option. It is produced only with 6 rows.

Coulter Type Row Units

Polythen Fertilizer Hopper.

Single Hydraulic Row Markers

Coulter Type Fertilizer Opener

2 Set Of Seeding Disc

Pto Shaft (Can Be Chosen Octagonal Or Hexagonal Input )

Area Counter

Product Equipment

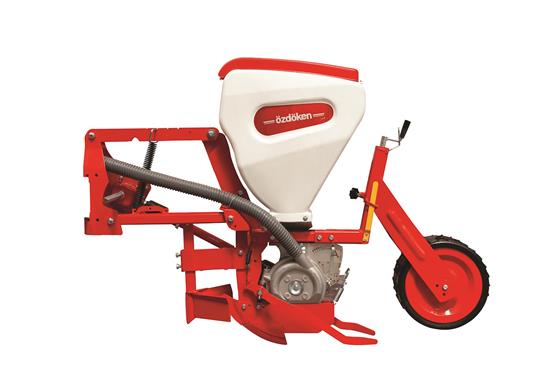

COULTER TYPE ROW UNIT COULTER TYPE ROW UNIT

Coulter type row unit is suitable for well prepared soils without crop residues.

SEED HOPPER SEED HOPPER

40 Lt High Resistance Polythen Hopper.

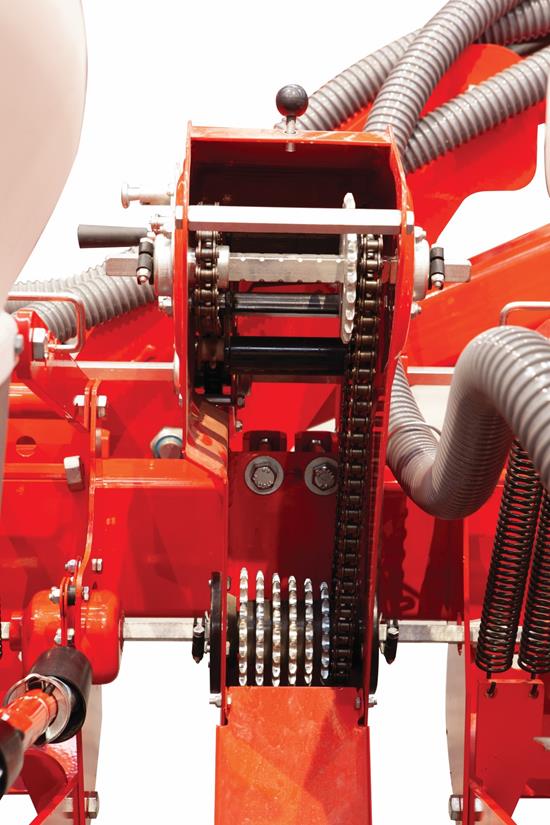

GEARBOX GEARBOX

It’s easy to configurate seed spacing with mechanical gearbox.For precise seeding,gearbox is connected to row units with the best and security way.

CARDAN SHAFT DRIVE CARDAN SHAFT DRIVE

Cardan shaft is reliable and precise movement system and it’s maintenance free.

SOIL CLOSERS SOIL CLOSERS

Standart soil closer.

COULTER TYPE FERTILIZER OPENER COULTER TYPE FERTILIZER OPENER

OPTIONAL TS SERIES SEED CONTROLLER OPTIONAL TS SERIES SEED CONTROLLER

-Seeding Control - Visually and Audibly Alarm -Seeding Speed -Area Counter

SINGLE HYDRAULIC ROW MARKER SINGLE HYDRAULIC ROW MARKER

In standart,all models have single hydraulic row marker.

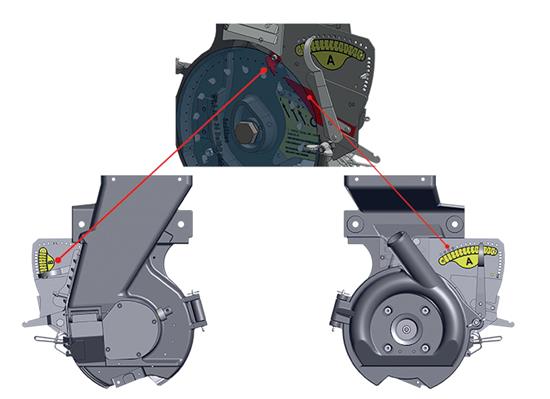

EASY DOUBLE SINGULATORS EASY DOUBLE SINGULATORS

For perfect singulation for all kind of seeds on all row units ,selectors can be adjusted from the outside of the distributor by a metering scale.

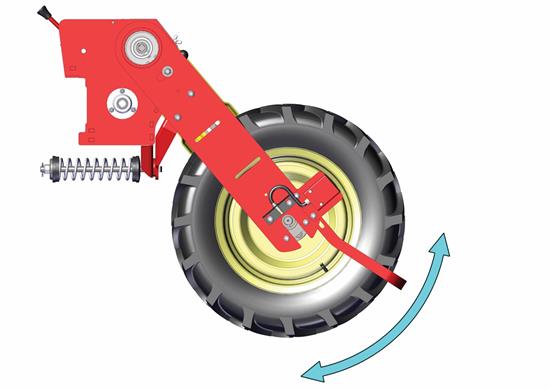

MOVEMENT WHEELS MOVEMENT WHEELS

The standart wheel system has continuos contact on the ground which reduce the stress of the row units on the ground.

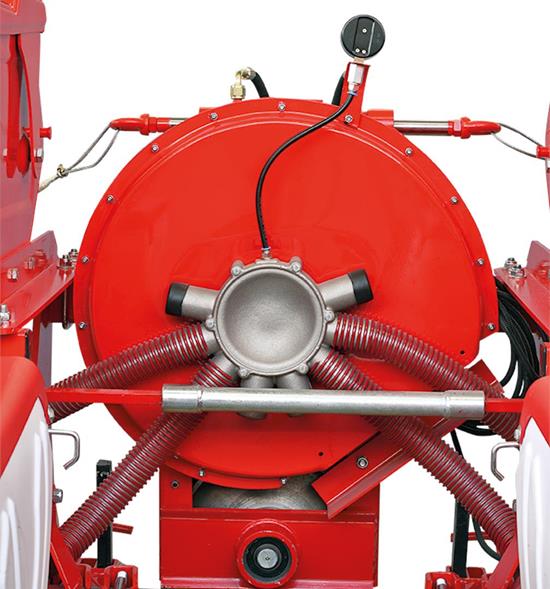

FAN SYSTEM FAN SYSTEM

Vacuum system has to be reliable while on working.Our fan system drive PTO shaft on 540 rpm and it is reliable even on high work hours and it’s quiet for user comfort.

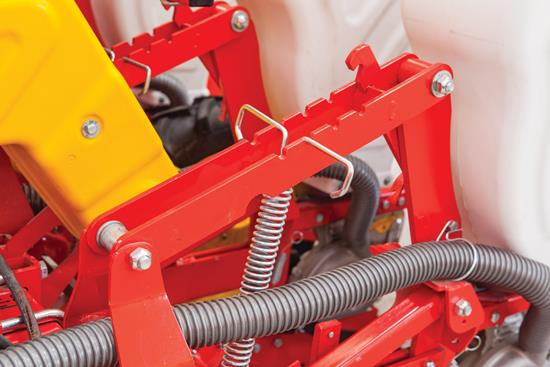

PARALLEL LINKAGE PARALLEL LINKAGE

Parallel linkage is mounted on repleceable metallic bushes.Adjustable down pressure spring is standart.

REAR PRESS WHEEL REAR PRESS WHEEL

500X175 rubber press wheel is standart on coulter type row units.

STANDART AREA COUNTER STANDART AREA COUNTER

Area counter is standart in all models.

OPTIONAL DIGITROLL DMS-08 SEED CONTROLLER OPTIONAL DIGITROLL DMS-08 SEED CONTROLLER

• Photosensored seed monitoring up to 8 rows • Total and partial hectare count • Automatic system diagnostic • Audible and visual blockage alarm • 6 selectable thresholds for missing seed alarms • Seed size selection for refined seed detection

DOUBLE HYDRAULIC ROW MARKER DOUBLE HYDRAULIC ROW MARKER

Double hydraulic row marker is a good choice if there are some obstacles on fields.

Technical Specifications
Model
No Of Row Units
Row Space (cm)
Transport Width (cm)
Minimum Weight (kg)
Movement Tyre
Polythen Fertilizer Hopper (lt)
Metal or Inox Fertilizer Hopper (lt)
Jumbo Plastic Hopper (lt)
Jumbo Metal Fertilizer Hopper (lt)
VPYT-6
6
70-75
340

 890
5.00x15


-
 -
-
-
VPYT-7
7
50
960
-
-
-
VPYT-G6
6
70-75
 1160
180lt x 2
200 lt x 2
-
VPYT-G6
6
70-75
 1260
6.50/80-15
-
-
-



Model
No Of Row Units
Row Space (cm)
Transport Width (cm)
Minimum Weight (kg)
Movement Tyre
Polythen Fertilizer Hopper (lt)
Metal or Inox Fertilizer Hopper (lt)
Jumbo Plastic Hopper (lt)
Jumbo Metal Fertilizer Hopper (lt)
VPYT-6
6
70-75
340
 970
23.5/10.50-12
-
 -
-
-
VPYT-7
7
50
1040
-
-
-
-

VPYT-G6
6
70-75
 1240
180 lt x 2
200 lt x 2
-
VPYT-G6
6
70-75
 1380
 -
-
-



* On all models, “G“ refers fertilizer hopper.
