FIXED FRAME COULTER TYPE



                Ozdoken VPHE series precision planters are produced with coulter type seedbed openers. The row space can be adjusted at the desired distance. Possible to seed corn, sunflower, sugarbeet, cotton, soja. Fertilizer system and microgranule system are available as an option. It is produced from 2 rows to 12 rows.

Coulter Type Row Units

Polythen Fertilizer Hopper

Single Hydraulic Row Markers

Double Hydraulic Row Markers (Only For 8 Rows)

Coulter Type Fertilizer Opener

2 Set Of Seeding Disc

Pto Shaft (Can Be Chosen Octagonal Or Hexagonal Input )

Area Counter

Product Equipment

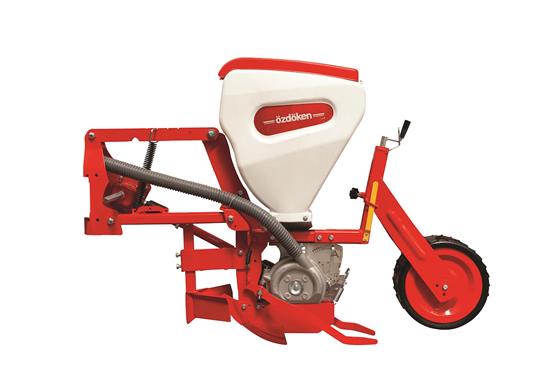

COULTER TYPE ROW UNIT COULTER TYPE ROW UNIT

Coulter type row unit is suitable for well prepared soils without crop residues.

SEED HOPPER SEED HOPPER

40 Lt High Resistance Polythen Hopper.

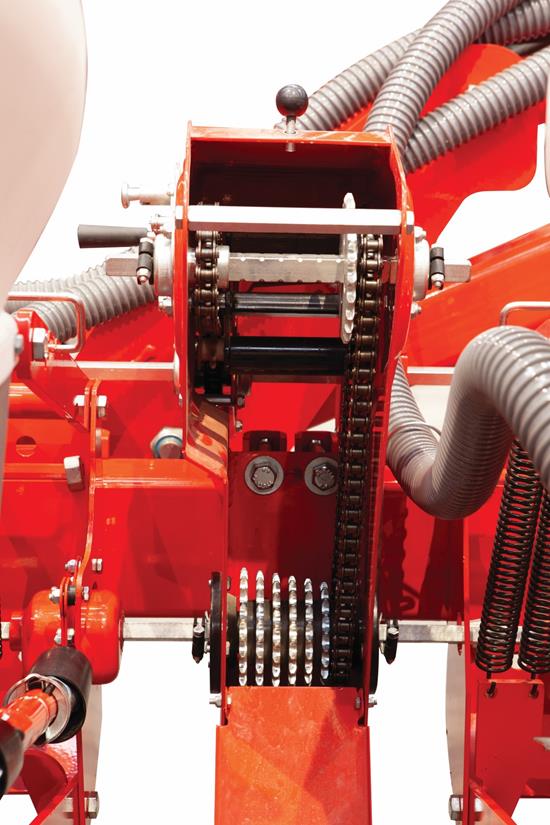

GEARBOX GEARBOX

It’s easy to configurate seed spacing with mechanical gearbox.For precise seeding,gearbox is connected to row units with the best and security way.

CARDAN SHAFT DRIVE CARDAN SHAFT DRIVE

Cardan shaft is reliable and precise movement system and it’s maintenance free.

SOIL CLOSERS SOIL CLOSERS

Standart soil closer.

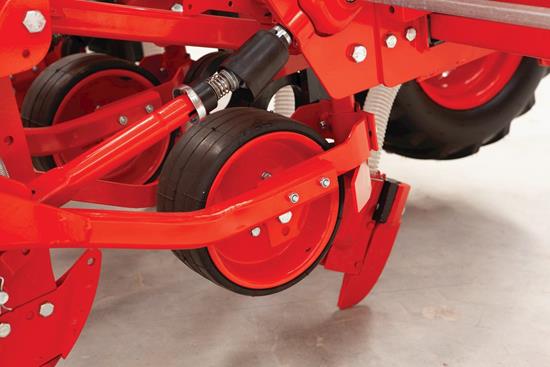

ROW UNITS SUGAR BEET ROW UNITS SUGAR BEET

For small seeds,especially sugar beet ,there is front press wheel for perfect seed bed preparation.

STANDART AREA COUNTER STANDART AREA COUNTER

Area counter is standart in all models.

OPTIONAL DIGITROLL DMS-08 SEED CONTROLLER OPTIONAL DIGITROLL DMS-08 SEED CONTROLLER

• Photosensored seed monitoring up to 8 rows • Total and partial hectare count • Automatic system diagnostic • Audible and visual blockage alarm • 6 selectable thresholds for missing seed alarms • Seed size selection for refined seed detection

DOUBLE HYDRAULIC ROW MARKER DOUBLE HYDRAULIC ROW MARKER

Double hydraulic row marker is a good choice if there are some obstacles on fields.

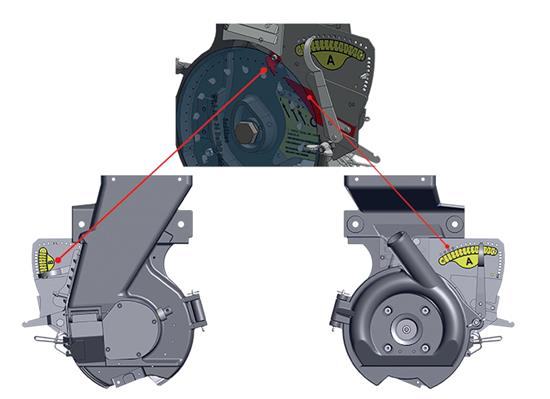

EASY DOUBLE SINGULATORS EASY DOUBLE SINGULATORS

For perfect singulation for all kind of seeds on all row units ,selectors can be adjusted from the outside of the distributor by a metering scale.

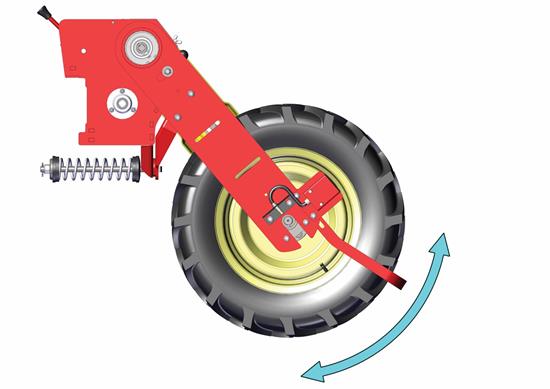

MOVEMENT WHEELS MOVEMENT WHEELS

The standart wheel system has continuos contact on the ground which reduce the stress of the row units on the ground.

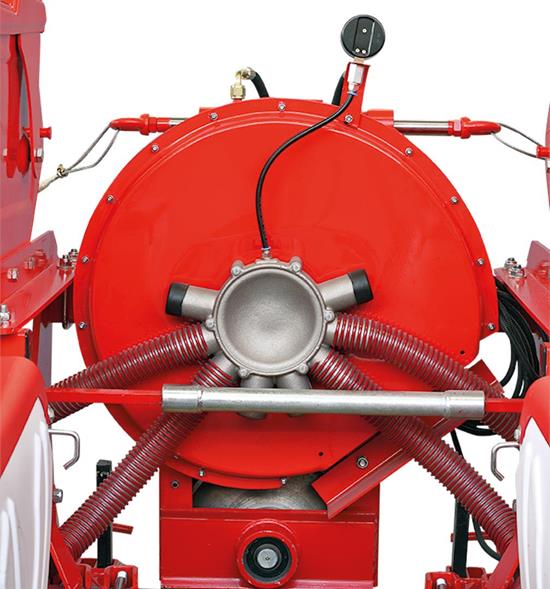

FAN SYSTEM FAN SYSTEM

Vacuum system has to be reliable while on working.Our fan system drive PTO shaft on 540 rpm and it is reliable even on high work hours and it’s quiet for user comfort.

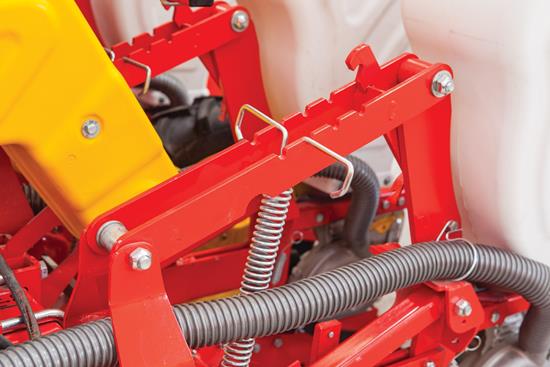

PARALLEL LINKAGE PARALLEL LINKAGE

Parallel linkage is mounted on repleceable metallic bushes.Adjustable down pressure spring is standart.

REAR PRESS WHEEL REAR PRESS WHEEL

500X175 rubber press wheel is standart on coulter type row units.

COULTER TYPE FERTILIZER OPENER COULTER TYPE FERTILIZER OPENER

OPTIONAL TS SERIES SEED CONTROLLER OPTIONAL TS SERIES SEED CONTROLLER

-Seeding Control - Visually and Audibly Alarm -Seeding Speed -Area Counter

SINGLE HYDRAULIC ROW MARKER SINGLE HYDRAULIC ROW MARKER

In standart,all models have single hydraulic row marker.

Technical Specifications
Model
No Of Row Units
Row Space (cm)
Transport Width (cm)
Minimum Weight (kg)
Movement Tyre
Polythen Fertilizer Hopper (lt)
Metal or Inox Fertilizer Hopper (lt)
Jumbo Plastic Hopper (lt)
Jumbo Metal Fertilizer Hopper (lt)
VPHE-2
2
70-75
100
 385
5.00x15
-
 -
-
-
VPHE-G2
2
70-75
100
460
180 lt x 1
200 lt x 2
-
VPHE-3
3
150
300
 630
 -
-
VPHE-G3
3
150
300
 800
 180 lt x 2
 200 lt x 2
-
VPHE-4
4
70-75/90
300
670
-
 -
-
VPHE-G4
4
70-75/90
300
880
 180 lt x 2
200 lt x 2
750 lt x 1
1000 lt x 1
VPHE-5
5
45-50/70-75
300/350
 750
-
-
VPHE-G5
45-50/70-75
300/350
 1055180 lt x 2
 200 lt x 2
 -
1000 lt x 1
VPHE-6 645-50/70-75 350/420 765 - - -
VPHE-G6 645-50/70-75350/4201100 230 lt x 2  250 lt x 2 - -
VPHE-G6 670-75  4201185 6.50/80-15230 lt x 2  - - 1000 lt x 1
VPHE-8 70560 965  - - -
VPHE-G8 70560 1425  280 lt x 2 400 lt x 2 700 lt x 2



Model
No Of Row Units
Row Space (cm)
Transport Width (cm)
Minimum Weight (kg)
Movement Tyre
Polythen Fertilizer Hopper (lt)
Metal or Inox Fertilizer Hopper (lt)
Jumbo Plastic Hopper (lt)
Jumbo Metal Fertilizer Hopper (lt)
VPHE-4
4
70-75
300
 750
23.5/10.50-12
-
 -
-
-
VPHE-G4
4
70-75
300
920
23.5/10.50-12
180 lt x 2
200 lt x 2
750 lt x 1
1000 lt x 1
VPHE-5
5
55-65
300
 820
-
 -
-
VPHE-6
6
45-50-65
350/420
 840
23.5/10.50-12
 -
-
-
VPHE-G6
6
45-50-65
350/420
1150
23.5/10.50-12
180 lt x 2
200 lt x 2
 -
-
VPHE-7
7
45-50
350
940
-
-
-
-
-
VPHE-9
9
50
450
 1100
-
-
-
VPHE-12
12
45-50
560
1600
23.5/10.50-12
-
-
-
-



* On all models, “G“ refers fertilizer hopper.
