OFFSET TRAÎNÉ PGD-B

70-175
ch puissance du tracteur
234-454
cm largeur de travail

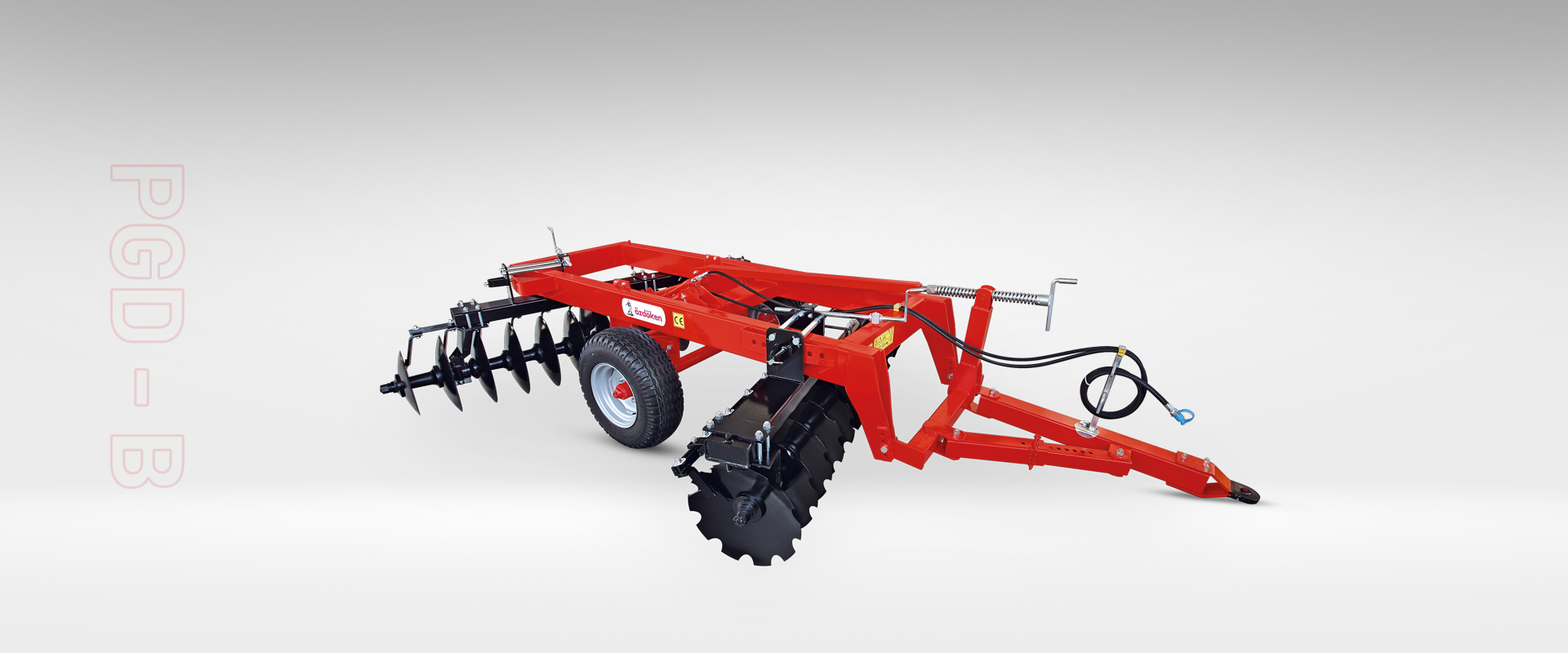

Images du produit

Spécifications Techniques

Model PGD-B-18 PGD-B-20 PGD-B-22 PGD-B-24 PGD-B-26 PGD-B-28 PGD-B-30 PGD-B-32 PGD-B-34 PGD-B-36 PGD-B-38
Nombre de disques 18 20 22 24 26 28 30 32 34 36 38
Diamètre du disque (mm) 560 x 4,5 / 610 x 5 / 660 X 6 560 x 4,5 / 610 x 5 / 660 X 6 560 x 4,5 / 610 x 5 / 660 X 6 560 x 4,5 / 610 x 5 / 660 X 6 560 x 4,5 / 610 x 5 / 660 X 6 560 x 4,5 / 610 x 5 / 660 X 6 560 x 4,5 / 610 x 5 / 660 X 6 560 x 4,5 / 610 x 5 / 660 X 6 560 x 4,5 / 610 x 5 / 660 X 6 560 x 4,5 / 610 x 5 / 660 X 6 560 x 4,5 / 610 x 5 / 660 X 6 560 x 4,5 / 610 x 5 / 660 X 6
Distance entre disques (cm) 22 22 22 22 22 22 22 22 22 22 22 22
Nombre de paliers 4 6 8 8 8 8 8 8 12 12 12
Dimensions du cadre principal (cm) 100 x 200 x 6 100 x 200 x 6 100 x 200 x 6 100 x 200 x 6 100 x 200 x 6 100 x 200 x 6 100 x 200 x 6 100 x 200 x 8 100 x 200 x 8 100 x 200 x 8 100 x 200 x 8
Dimensions du bâti du disque (mm) 40 x 40 40 x 40 40 x 40 40 x 40 40 x 40 40 x 40 40 x 40 40 x 40 40 x 40 40 x 40 40 x 40 40 x 40
Poids (kg) 1680 1760 1840 1915 1995 2065 2200 2351 2510 2680 2750
Longueur totale (cm) 500 500 500 500 500 500 500 500 500 500 500 500
Hauteur totale (cm) 160 160 160 160 160 160 160 160 160 160 160 160
Largeur de travail (cm) 234 256 278 300 322 344 366 388 410 432 454
Largeur de travail (cm) 198 220 242 264 286 308 330 352 374 396 418
Puissance Requise (cv) 70-80 75-85 90-100 100-110 110-120 120-130 125-135 135-145 145-155 155-165 165-175
