HBM

35-85
hp tractor power
150-448
cm working width

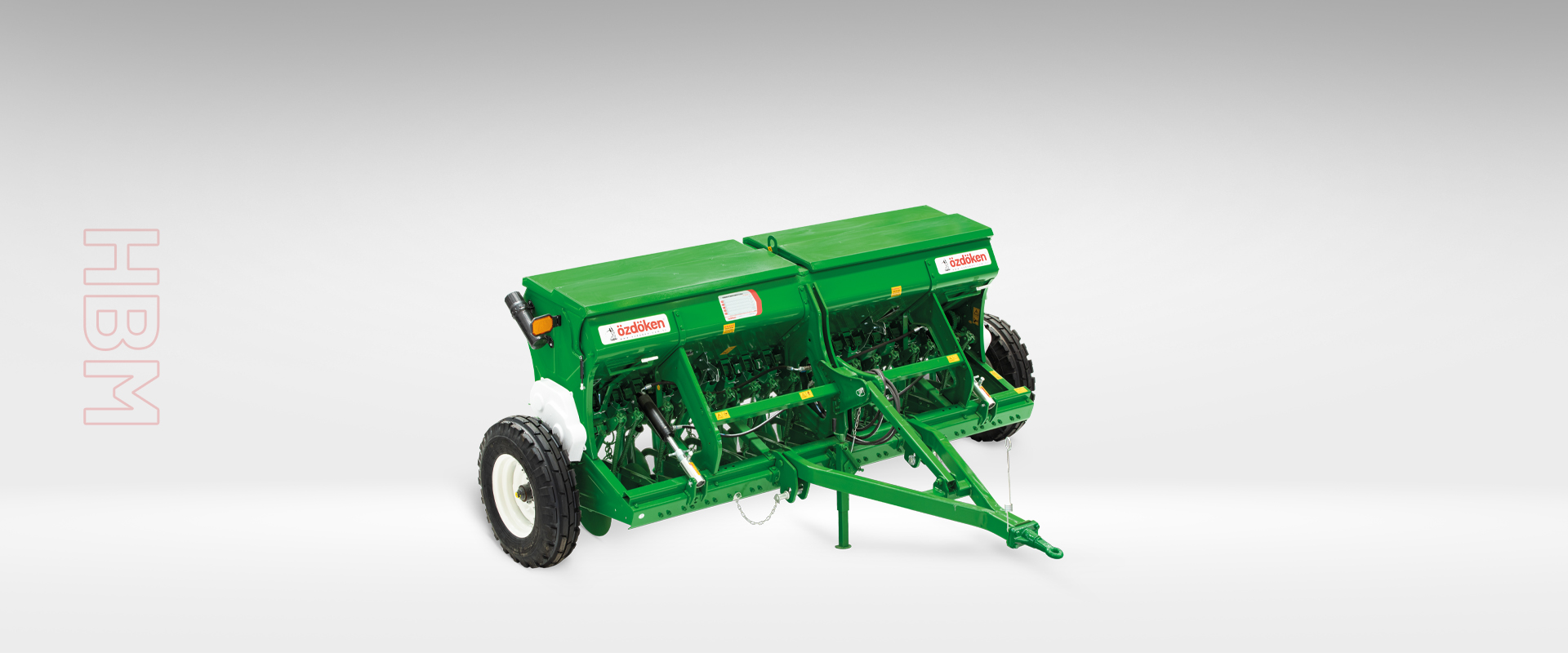

HBM series is a mechanical grain drill for conventional seeding. It's possible to seed standart size crops such as wheat,barley,oat,lentil,chickpeas,beans e.t.c.It needs low horse power requirement due to trailed system. HBM series has standartly seed and fertilizer hopper but also possible to have only seed hopper. From 170 cm to 540 cm working width , HBM Series correspond all size of farms request.

Product Images

Technical Specifications

Model HBM-N12 HBM- N14 HBM-N16/S16 HBM- N18/S18/B18 HBM- N20/S20/B20 HBM- N22/S22/B22 HBM- N24/S24/B24 HBM-N26/S26/B26 HBM-S28/B28 HBM-B32
Number of Discs (pcs) 12 14 16 18 20 22 24 26 28 32
Row Space (cm) 12,5 / 14 12,5 / 14 12,5 / 14 12,5 / 14 12,5 / 14 12,5 / 14 12,5 / 14 12,5 / 14 12,5 / 14 12,5 / 14 12,5 / 14
Working Width (12,5 cm and 14 cm) 150-168 175-196 200-224 225-252 280-280 308-308 336-336 364-364 392-392 448-448
Transport Width (12,5 cm and 14 cm) -250 -275 280 / 290-305 / 315 305 / 315 / 315-330 / 340 / 340 330 / 340 / 340-365 / 385 / 385 355 / 365 / 365-390 / 400 / 400 380 / 390 / 390-415 / 425 / 425 405 / 415 / 415-445 / 455 / 455 440 /440 -480 / 480 490-540
Length (cm) 300 300 300 300 300 300 300 300 300 300 300
Height (cm) 140 140 140 140 140 140 140 140 140 140 140
Weight (kg) 670 785 850 / 890 945 / 985 / 1025 1010 / 1055 / 1095 1065 / 1105 / 1145 1145 / 1185 / 1225 1225 / 1265 / 1305 1335/ 1375 1460
Seed Hopper Capacity (lt) 200 230 260 290 320 350 380 410 440 470
Tyre Size (N) 7.50x16 7.50x16 7.50x16 7.50x16 7.50x16 7.50x16 7.50x16 7.50x16 - -
(S) - - 11.5 x 80-15.3 11.5 x 80-15.3 11.5 x 80-15.3 11.5 x 80-15.3 11.5 x 80-15.3 11.5 x 80-15.3 11.5 x 80-15.3 -
(B) - - - 12.4 / 11-24 12.4 / 11-24 12.4 / 11-24 12.4 / 11-24 12.4 / 11-24 12.4 / 11-24 12.4 / 11-24
Power Requirement (hp) 35-40 40-45 45-50 50-55 55-60 60-65 70-75 70-75 75-80 80-85
Fertilizer Hopper Capacity (lt) 200 230 260 290 320 350 380 320 440 470
