Double disc type row units
Single hydraulic marker
Coulter type fertilizer opener
Easy double singulators
For perfect singulation for all kind of seeds on all row units ,selectors can be adjusted from the outside of the distributor by a metering scale.
Standart area counter
Area counter is standart in all models.
Double disc type fertilizer opener
Double Disc type is optional on disc type row units and it’s especially suitable for low-till conditions.
Double hydraulic marker
Rubber seed press wheel
The press wheel stops the seed at the seeds come to into good contact with the soil.
Turbodisc
Metal seed press wheel
Trash wheel
Trash wheels can be mounted instead of clod remover.
Microgranulator set
Digitroll DMS-08 sensor
Traffic kit - bicma reflector polish ledlight
Digitroll integra sensor
2-12
rows
50-100
hp tractor power
Double Disc Type Row Units
Polythen Fertilizer Hopper
Single Hydraulic Row Markers
Double Hydraulic Row Markers (Only For 8 Rows)
Coulter Type Fertilizer Opener
2 Set Of Seeding Disc
Pto Shaft (Can Be Chosen Octagonal Or Hexagonal Input )
Area Counter

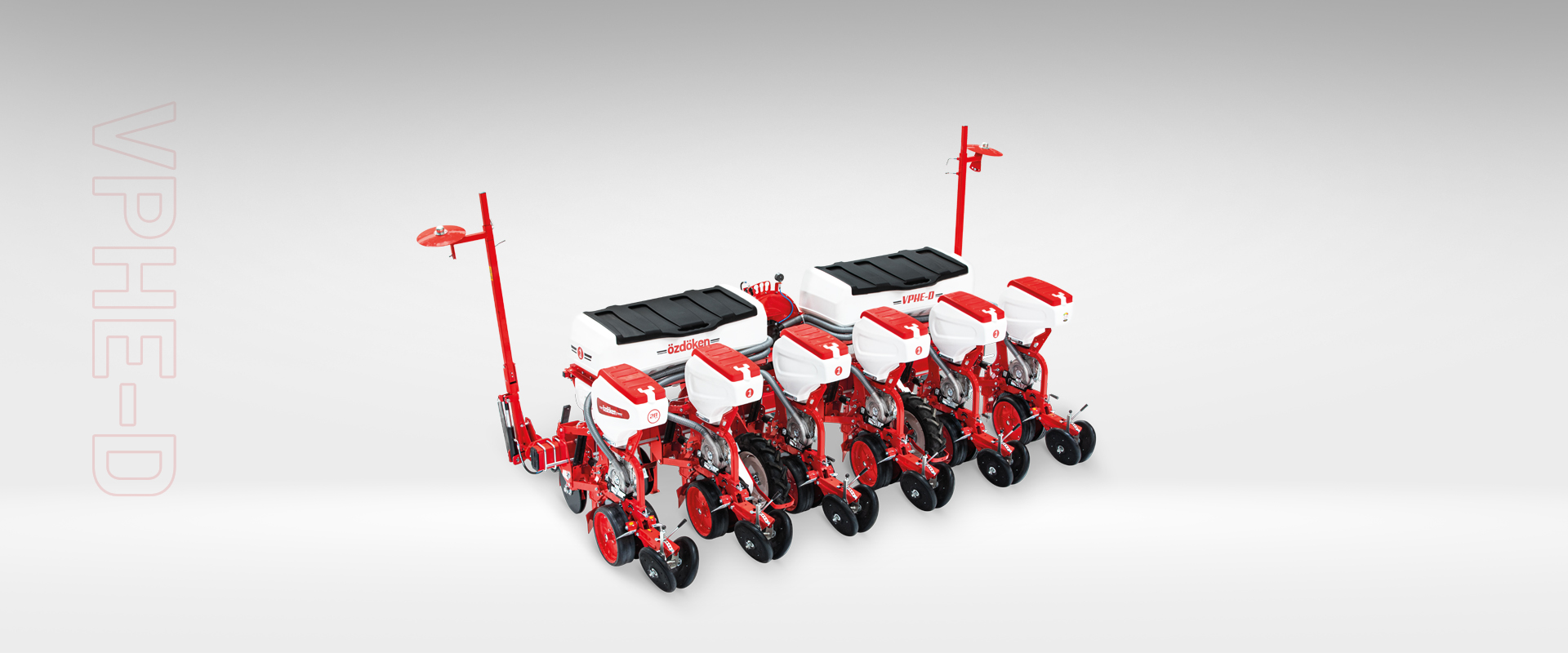

Ozdoken VPHE-D series precision planters are produced with disc-type seedbed openers. The row space can be adjusted at the desired distance. Possible to seed corn, sunflower, sugarbeet, cotton, soja. Fertilizer system and microgranule system are available as an option. It is produced from 2 rows to 12 rows.
Product Equipment
Double disc type row units
Single hydraulic marker
Coulter type fertilizer opener
Easy double singulators
For perfect singulation for all kind of seeds on all row units ,selectors can be adjusted from the outside of the distributor by a metering scale.
Standart area counter
Area counter is standart in all models.
Double disc type fertilizer opener
Double Disc type is optional on disc type row units and it’s especially suitable for low-till conditions.
Double hydraulic marker
Rubber seed press wheel
The press wheel stops the seed at the seeds come to into good contact with the soil.
Turbodisc
Metal seed press wheel
Trash wheel
Trash wheels can be mounted instead of clod remover.
Microgranulator set
Digitroll DMS-08 sensor
Traffic kit - bicma reflector polish ledlight
Digitroll integra sensor
Technical Specifications
| Model | VPHE-D2 | VPHE-DG2 | VPHE-D3 | VPHE-DG3 | VPHE-D4 | VPHE-DG4 | VPHE-D5 | VPHE-DG5 | VPHE-D6 | VPHE-DG6 | VPHE-D8 | VPHE-DG8 | VPHE-D12 (45-50 cm) | VPHE-D12 (70-75 cm) | VPHE-DG12 (45-50 cm) | VPHE-DG12 (70-75 cm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Number of Units | 2 | 2 | 3 | 3 | 4 | 4 | 5 | 5 | 6 | 6 | 8 | 8 | 12 | 12 | 12 | 12 |
| Unit Spacing (cm) | 70-75 | 70-75 | 150 | 150 | 70-75/90 | 70-75/90 | 45-50/70-75 | 45-50/70-75 | 45-50/70-75 | 45-50/70-75 | 70 | 70 | 45-50 | 70-75 | 45-50 | 70-75 |
| Transport Width (cm) | 100 | 100 | 300 | 300 | 300 | 300 | 300/350 | 300/350 | 350/420 | 350/420 | 560 | 560 | 560 | 830 | 560 | 830 |
| Height (cm) | 150 | 150 | 150 | 150 | 150 | 150 | 150 | 150 | 150 | 150 | 150 | 150 | - | - | - | - |
| Length (cm) | 200 | 200 | 200 | 200 | 200 | 200 | 200 | 200 | 200 | 200 | 200 | 200 | - | - | - | - |
| Weight (kg) | 435 | 550 | 765 | 900 | 780 | 970 | 920 | 1150 | 1160 | 1320 | 1430 | 1890 | - | - | - | - |
| Tyre Size | 5.00x15 | 5.00x15 | 5.00x15 | 5.00x15 | 5.00x15 | 5.00x15 | 5.00x15 | 5.00x15 | 5.00x15 | 5.00x15 | 6.50/80-15 | 6.50/80-15 | - | - | - | - |
| Polythen Fertilizer Hopper (lt) | - | 180 x 1 | - | 180 x 2 | - | 180 x 2 | - | 180 x 2 | - | 230 x 2 | - | 280 x 2 | - | - | 180 x 4 | 230 x 4 |
| Metal or Inox Fertilizer Hopper Cap. (lt) | - | 200 x 2 | - | 200 x 2 | - | 200 x 2 | - | 200 x 2 | - | 250 x 2 | - | 400 x 2 | - | - | - | - |
| Jumbo Plastic Hopper (lt) | - | - | - | - | - | 750 x 1 | - | - | - | - | - | - | - | - | - | 750 x 3 |
| Jumbo Metal Fertilizer Hopper (lt) | - | - | - | - | - | 1000 x 1 | - | 1000 x 1 | - | - | - | 700 x 2 | - | - | - | - |
| Power Requirement (hp) | 50-60 | 50-60 | 55-65 | 55-65 | 60-70 | 60-70 | 65-75 | 65-75 | 70-80 | 70-80 | 90-100 | 90-100 | - | - | - | - |
Videos
Get to Know the VPHE DG4 - 4-Disc Model Up Close
