1080-1710
hp tractor power
200-448
cm working width

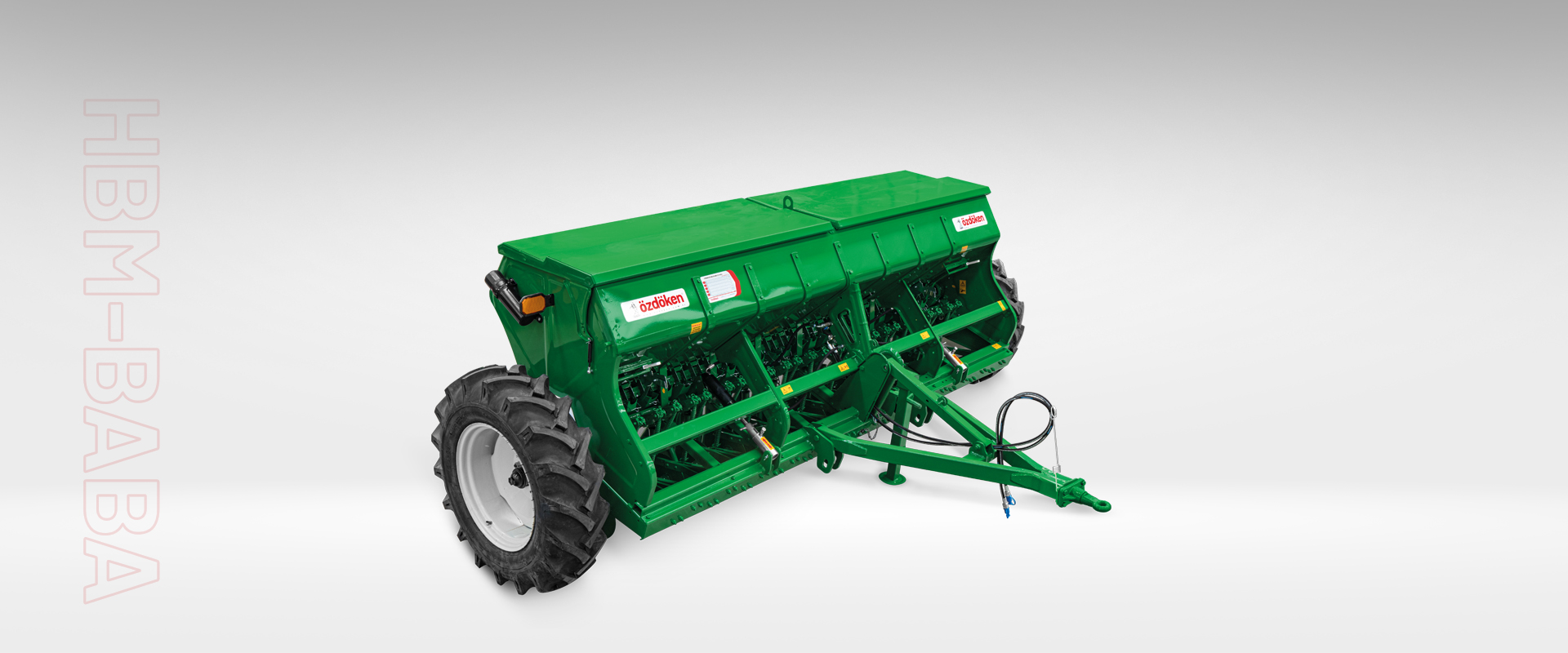

HBM-BABA series has double size bigger seed and fertilizer capacity than standart HBM. HBM-BABA series is a mechanical grain drill for conventional seeding. It's possible to seed standart size crops such as wheat,barley,oat,lentil,chickpeas,beans e.t.c.It needs low horse power requirement due to trailed system. HBM series has standartly seed and fertilizer hopper but also possible to have only seed hopper. From 170 cm to 540 cm working width , HBM Series correspond all size of farms request.
Technical Specifications
| Model | HBM-BABA16 | HBM-BABA18 | HBM-BABA20 | HBM-BABA22 | HBM-BABA24 | HBM-BABA26 | HBM-BABA28 | HBM-BABA32 | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Number of Discs (pcs) | 16 | 18 | 20 | 22 | 24 | 26 | 28 | 32 | ||||||||
| Row Space (cm) | 12,5 / 14 | 12,5 / 14 | 12,5 / 14 | 12,5 / 14 | 12,5 / 14 | 12,5 / 14 | 12,5 / 14 | 12,5 / 14 | 12,5 / 14 | |||||||
| Working Width (12,5 cm and 14 cm) | 200-224 | 225-252 | 250-280 | 275-308 | 300-336 | 325-364 | 350-392 | 400-448 | ||||||||
| Transport Width (12,5 cm and 14 cm) | 290-305 | 350-350 | 380-380 | 400-400 | 430-430 | 460-460 | 49- 490 | 540-540 | ||||||||
| Length (cm) | 330 | 330 | 330 | 330 | 330 | 330 | 330 | 330 | 330 | |||||||
| Height (cm) | 160 | 160 | 160 | 160 | 160 | 160 | 160 | 160 | 160 | |||||||
| Weight (kg) | 470 | 530 | 585 | 640 | 700 | 755 | 810 | 950 | ||||||||
| Seed Hopper Capacity (lt) | 480 | 540 | 595 | 650 | 710 | 765 | 820 | 950 | ||||||||
| Fertilizer Hopper Capacity (lt) | 11.5 x 80 - 15.3 | 11.5 x 80 - 15.3 | 12.4 / 11-24 | 12.4 / 11-24 | 12.4 / 11-24 | 14.9/13-24 | 14.9/13-24 | 14.9/13-24 | ||||||||
| Tyre Size (B) | 45-55 | 50-60 | 55-65 | 60-70 | 70-80 | 70-80 | 80-90 | 90-100 | ||||||||
| Power Requirement (hp) | 1080 | 1210 | 1330 | 1470 | 1490 | 1650 | 1710 | 1690 | ||||||||
