Double disc type row units
Disc type fertilizer opener
Disc type is optional on disc type row units and it’s especially suitable for low-till conditions.
Single hydraulic marker
Coulter type fertilizer opener
Easy double singulators
For perfect singulation for all kind of seeds on all row units ,selectors can be adjusted from the outside of the distributor by a metering scale.
Standart area counter
Area counter is standart in all models.
Double hydraulic marker
Rubber seed press wheel
The press wheel stops the seed at the seeds come to into good contact with the soil.
Turbodisc
Metal seed press wheel
The press wheel stops the seed at the seeds come to into good contact with the soil.
Traffic kit bicma reflector polish ledlight
Trash wheel
Trash wheels can be mounted instead of clod remover.
Microgranulator set
Digitroll integra sensor
Digitroll DMS-08 sensor
8-12
rows
100-130
hp tractor power
Double Disc Type Row Units
Double Hydraulic Row Markers
2 Set Of Seeding Disc
Pto Shaft (Can Be Chosen Octagonal Or Hexagonal Input)
Area Counter
Traffic

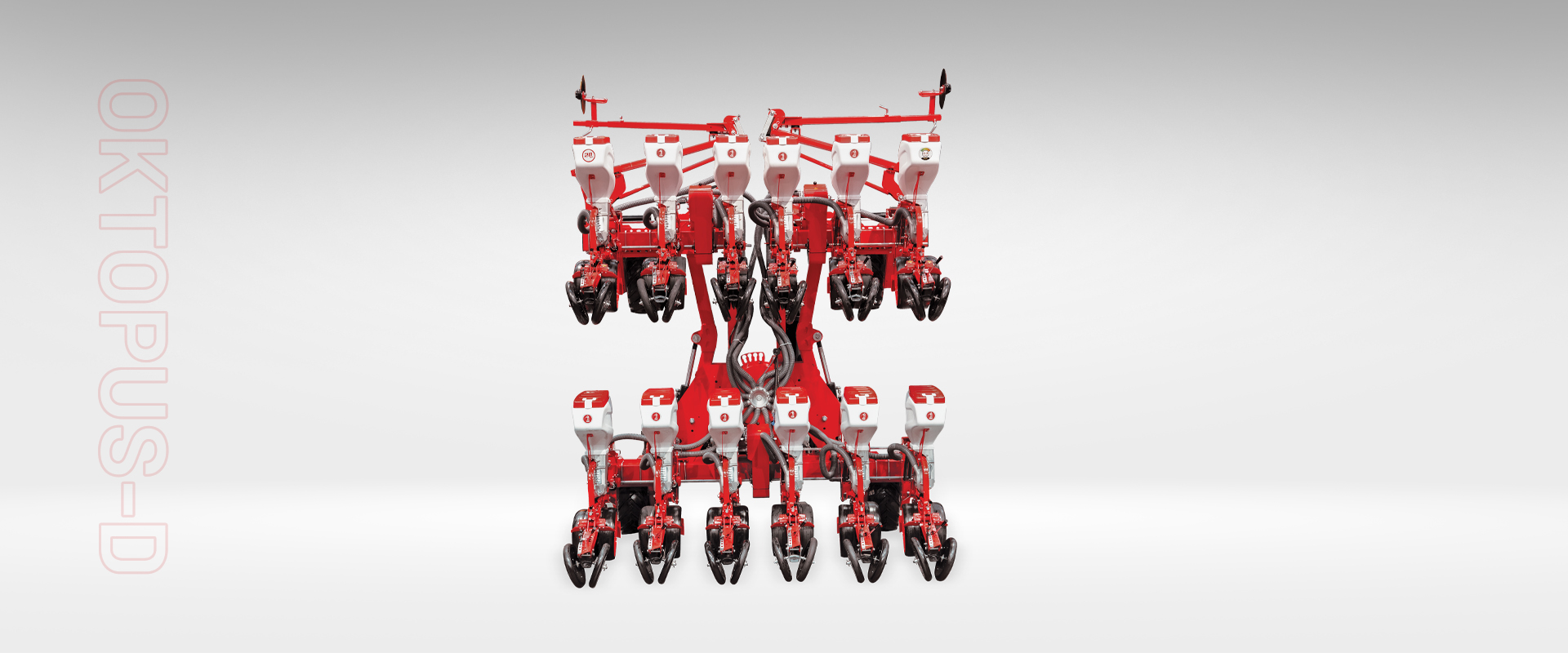

Ozdoken OKTOPUS series precision planters are produced with disc type seedbed openers. Possible to seed corn, sunflower, sugarbeet, cotton, soja. It is produced from 8,9 and 12 rows.
Product Equipment
Double disc type row units
Disc type fertilizer opener
Disc type is optional on disc type row units and it’s especially suitable for low-till conditions.
Single hydraulic marker
Coulter type fertilizer opener
Easy double singulators
For perfect singulation for all kind of seeds on all row units ,selectors can be adjusted from the outside of the distributor by a metering scale.
Standart area counter
Area counter is standart in all models.
Double hydraulic marker
Rubber seed press wheel
The press wheel stops the seed at the seeds come to into good contact with the soil.
Turbodisc
Metal seed press wheel
The press wheel stops the seed at the seeds come to into good contact with the soil.
Traffic kit bicma reflector polish ledlight
Trash wheel
Trash wheels can be mounted instead of clod remover.
Microgranulator set
Digitroll integra sensor
Digitroll DMS-08 sensor
Technical Specifications
| Model | OKTOPUS-D8 (50 cm) | OKTOPUS-D8 (70-75-80 cm) | OKTOPUS-D9 | OKTOPUS-D12 | ||||
|---|---|---|---|---|---|---|---|---|
| No Of Row Units | 8 | 8 | 9 | 12 | ||||
| Row Space (cm) | 50 | 70-75-80 | 65 | 50 | ||||
| Transport Width (cm) | 300 | 300 | 300 | 300 | 300 | |||
| Weight (kg) | 2000 | 2000 | 2200 | 2600 | ||||
| Power Requirement (hp) | 100-120 | 100-120 | 110-130 | 110-130 | ||||
| Tyre Size | 23.5x10.50-12 | 23.5x10.50-12 | 23.5x10.50-12 | 23.5x10.50-12 | 23.5x10.50-12 | |||
