FIXED FRAME 2 TO 12 ROWS

2-12
rows
50-100
hp tractor power
Coulter Type Row Units
Polythen Fertilizer Hopper
Single Hydraulic Row Markers
Double Hydraulic Row Markers (Only For 8 Rows)
Coulter Type Fertilizer Opener
2 Set Of Seeding Disc
Pto Shaft (Can Be Chosen Octagonal Or Hexagonal Input )
Area Counter

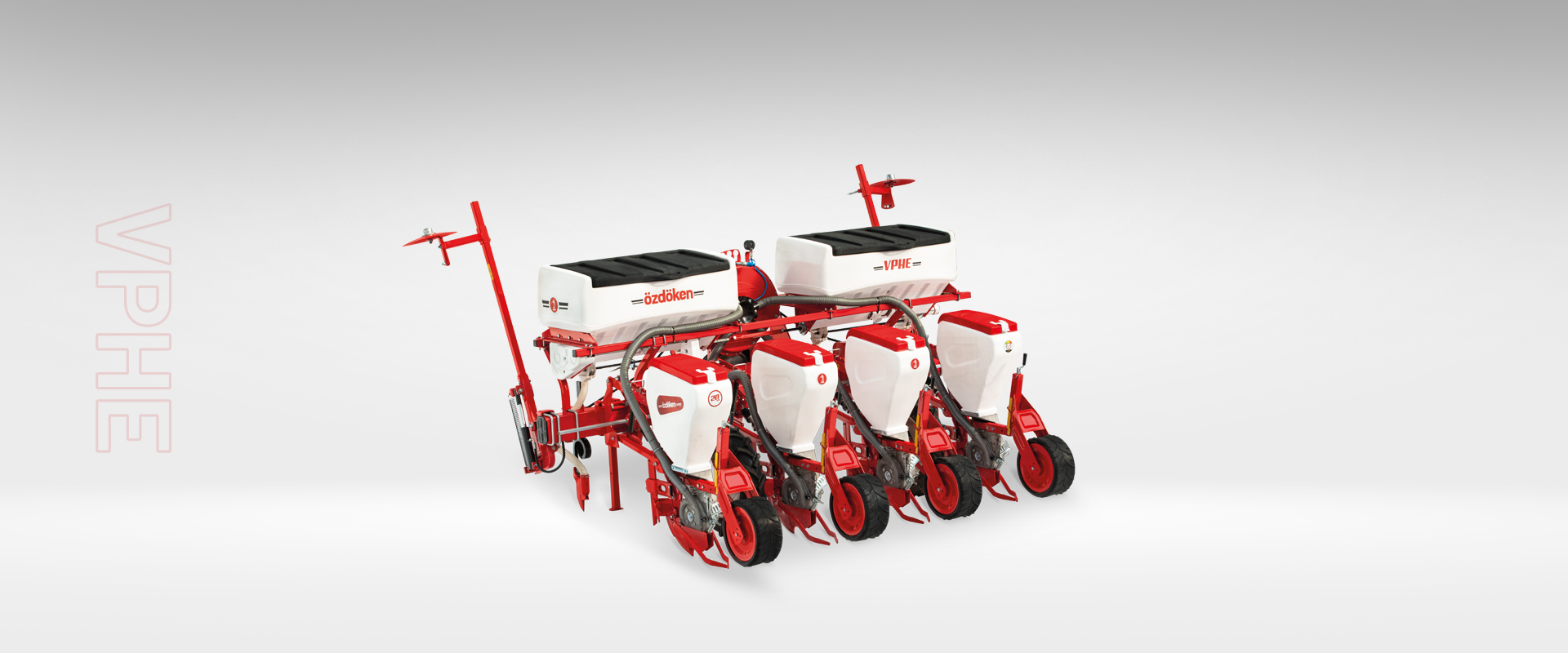

Ozdoken VPHE series precision planters are produced with coulter type seedbed openers. The row space can be adjusted at the desired distance. Possible to seed corn, sunflower, sugarbeet, cotton, soja. Fertilizer system and microgranule system are available as an option. It is produced from 2 rows to 12 rows.

Product Images

Technical Specifications

Model VPHE-2 VPHE-G2 VPHE-3 VPHE-G3 VPHE-4 VPHE-G4 VPHE-5 VPHE-G5 VPHE-6 VPHE-G6 VPHE-8 VPHE-G8 VPHE-12 (45-50 cm) VPHE-12 (70-75 cm) VPHE-G12 (45-50 cm) VPHE-G12 (70-75 cm)
Number Of Row Unit 2 2 3 3 4 4 5 5 6 6 8 8 12 12 12 12
Row Space (cm) 70-75 70-75 150 150 70-75/90 70-75/90 45-50/70-75 45-50/70-75 45-50/70-75 45-50/70-75 70 70 45-50 70-75 45-50 70-75
Transport Width (cm) 100 100 300 300 300 300 300/350 300/350 350/420 350/420 560 560 560 830 560 830
Height (cm) 150 150 150 150 150 150 150 150 150 150 150 150 - - - -
Length (cm) 200 200 200 200 200 200 200 200 200 200 200 200 - - - -
Weight (kg) 385 460 630 800 670 880 750 1055 765 1100 965 1425 - - - -
Tyre Size 5.00x15 5.00x15 5.00x15 5.00x15 5.00x15 5.00x15 5.00x15 5.00x15 5.00x15 5.00x15 6.50/80-15 6.50/80-15 - - - -
Polythene Fertilizer Hopper Cap. (lt) - 180 x 1 - 180 x 2 - 180 x 2 - 180 x 2 - 230 x 2 - 280 x 2 - - 180 x 4 230 x 4
Jumbo Polythene Fertilizer Hopper Cap. (lt) - - - - - 750 x 1 - - - - - - - - - 750 x 3
Jumbo or Inox Fertilizer Hopper Cap. (lt) - - - - - 1000 x 1 - 1000 x 1 - - - 700 x 2 - - - -
Power Requirement (hp) 50-60 50-60 55-65 55-65 60-70 60-70 65-75 65-75 70-80 70-80 90-100 90-100 - - - -
