Double disc type row units
Single hydraulic marker
Coulter type fertilizer opener - each row unit
Easy double singulators
For perfect singulation for all kind of seeds on all row units ,selectors can be adjusted from the outside of the distributor by a metering scale.
Standart area counter
Area counter is standart in all models.
Double disc type fertilizer opener
Double Disc type is optional on disc type row units and it’s especially suitable for low-till conditions.
Double hyraulic marker
Rubber seed press wheel
The press wheel stops the seed at the seeds come to into good contact with the soil.
Turbodisc
Metal seed press wheel
The press wheel stops the seed at the seeds come to into good contact with the soil.
Traffic kit bicma reflector polish ledlight
Trash wheel
Trash wheels can be mounted instead of clod remover.
Microgranulator set
Digitroll integra sensor
Digitroll DMS-08 sensor
4-6
rows
65-100
hp tractor power
Adjustable Telescopic Frame (75 And 95 Cm Row Space For 4 Rows )
Adjustable Telescopic Frame (45,50,55,60,65,70 Cm Row Space For 6 Rows )
Double Disc Type Row Units
Polythen Fertilizer Hopper
Single Hydraulic Row Markers
Coulter Type Fertilizer Opener
3 Set Of Seeding Disc
Pto Shaft (Can Be Chosen Octagonal Or Hexagonal Input )
Area Counter

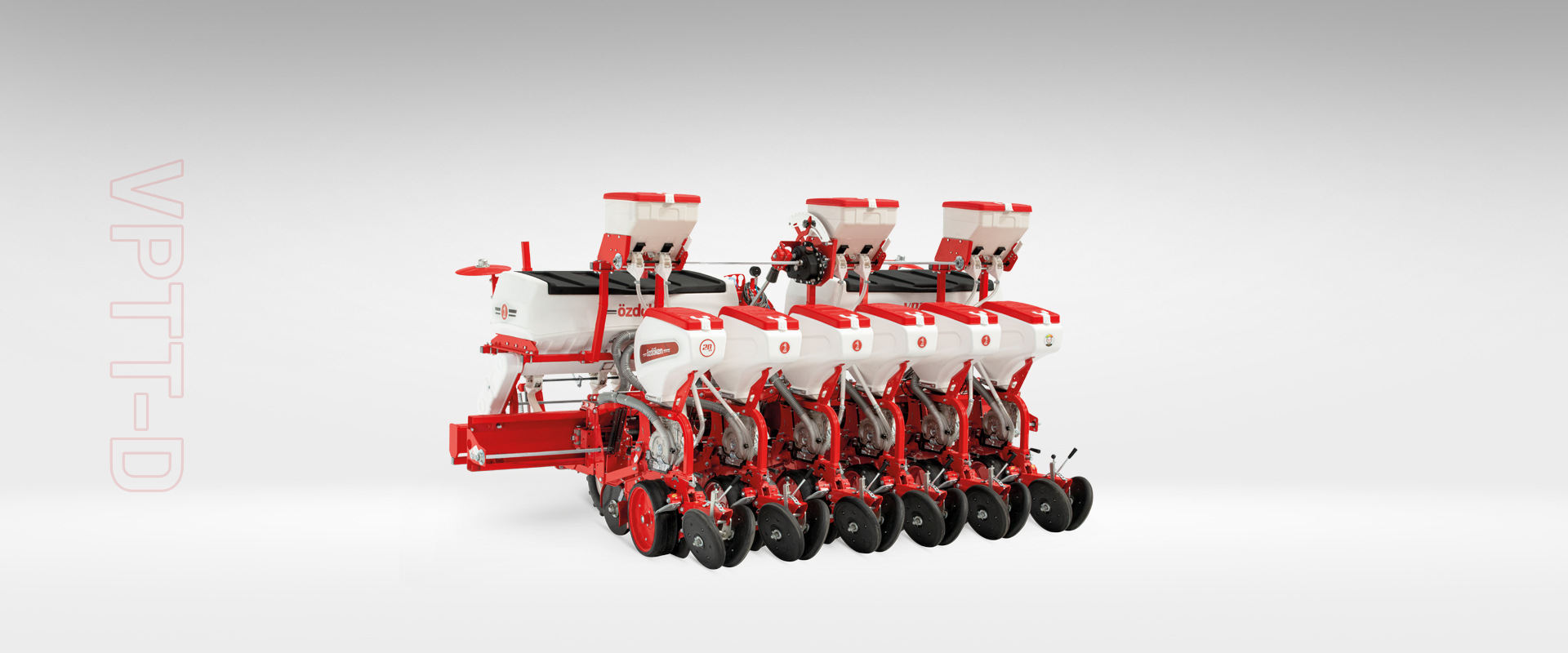

VPTT-D series precision planter is produced as disc type. Possible to change row space 45,50,55,60,65,70 cm with the help of adjustable telescopic frame. Fertilizer system and microgranule system are available as an option. 4,5,6 rows are avaliable for production.
Product Equipment
Double disc type row units
Single hydraulic marker
Coulter type fertilizer opener - each row unit
Easy double singulators
For perfect singulation for all kind of seeds on all row units ,selectors can be adjusted from the outside of the distributor by a metering scale.
Standart area counter
Area counter is standart in all models.
Double disc type fertilizer opener
Double Disc type is optional on disc type row units and it’s especially suitable for low-till conditions.
Double hyraulic marker
Rubber seed press wheel
The press wheel stops the seed at the seeds come to into good contact with the soil.
Turbodisc
Metal seed press wheel
The press wheel stops the seed at the seeds come to into good contact with the soil.
Traffic kit bicma reflector polish ledlight
Trash wheel
Trash wheels can be mounted instead of clod remover.
Microgranulator set
Digitroll integra sensor
Digitroll DMS-08 sensor
Technical Specifications
| Model | VPTT-D4 (45-50-70 cm) | VPTT-DG4 (45-50-70 cm) | VPTT-D4 (75-95 cm) | VPTT-DG4 (75-95 cm) | VPTT-D5 | VPTT-DG5 | VPTT-D6 | VPTT-DG6 | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| No Of Row Units | 4 | 4 | 4 | 4 | 5 | 5 | 6 | 6 | ||||||||
| Row Space (adjustable) (cm) | 45-50-70 | 45-50-70 | 75-95 | 75-95 | 45-50-55-60-65-70 | 45-50-55-60-65-70 | 45-50-55-60-65-70 | 45-50-55-60-65-70 | ||||||||
| Transport Width (cm) | 300 | 300 | 330 | 330 | 320 | 320 | 400 | 400 | ||||||||
| Height (cm) | 150 | 150 | 150 | 150 | 150 | 150 | 150 | 150 | 150 | |||||||
| Length (cm) | 220 | 220 | 220 | 220 | 220 | 220 | 220 | 220 | 220 | |||||||
| Weight (kg) | 1080 | 1180 | 1080 | 1180 | 1260 | 1400 | 1360 | 1520 | ||||||||
| Tyre Size | 23.5/10.50-12 | 23.5/10.50-12 | 23.5/10.50-12 | 23.5/10.50-12 | 23.5/10.50-12 | 23.5/10.50-12 | 23.5/10.50-12 | 23.5/10.50-12 | 23.5/10.50-12 | |||||||
| Plastic Hopper (lt) | - | 200 x 2 | - | 200 x 2 | - | 200 x 2 | - | 250 x 2 | ||||||||
| Power Requirement (hp) | 65-75 | 70-80 | 65-75 | 70-80 | 80-90 | 80-90 | 90-100 | 90-100 | ||||||||
Videos
ADJUSTABLE TELESCOPIC FRAME DISC TYPE
